Wimberley, Inc. Phone: 1- - - 434 529 8385

1750 Broadway St Toll Free: 1- - -888 665 2746 (USA & Canada)

Charlottesville, VA

22902 USA www.tripodhead.com info@tripodhead.com

5 Year Warranty – for details see www.tripodhead.com/warranty.cfm

Package Contents:

M 1 Module: -Quick release Arm (Qty 1)-

M 3 Module: -Tilt Arm (Qty 1)

Instructions on reverse >>

Dimensions (overall L x W x H): 5.7” 1.0” 6.7” x x in Weight: 6 oz (170g)

Sidekick Flash Bracket

F 6-

F 6 Flash Bracket-

M 6-

M 6 Extension Post Module:- This post extends the height of your flash by up to 5”

which helps reduce red eye or steel eye in your people or animal subjects. If you desire “ ”

more extension, you can stack up to three Extension Posts to get the height you need.

200mm Macro

Mounts on camera body

plate for small lenses

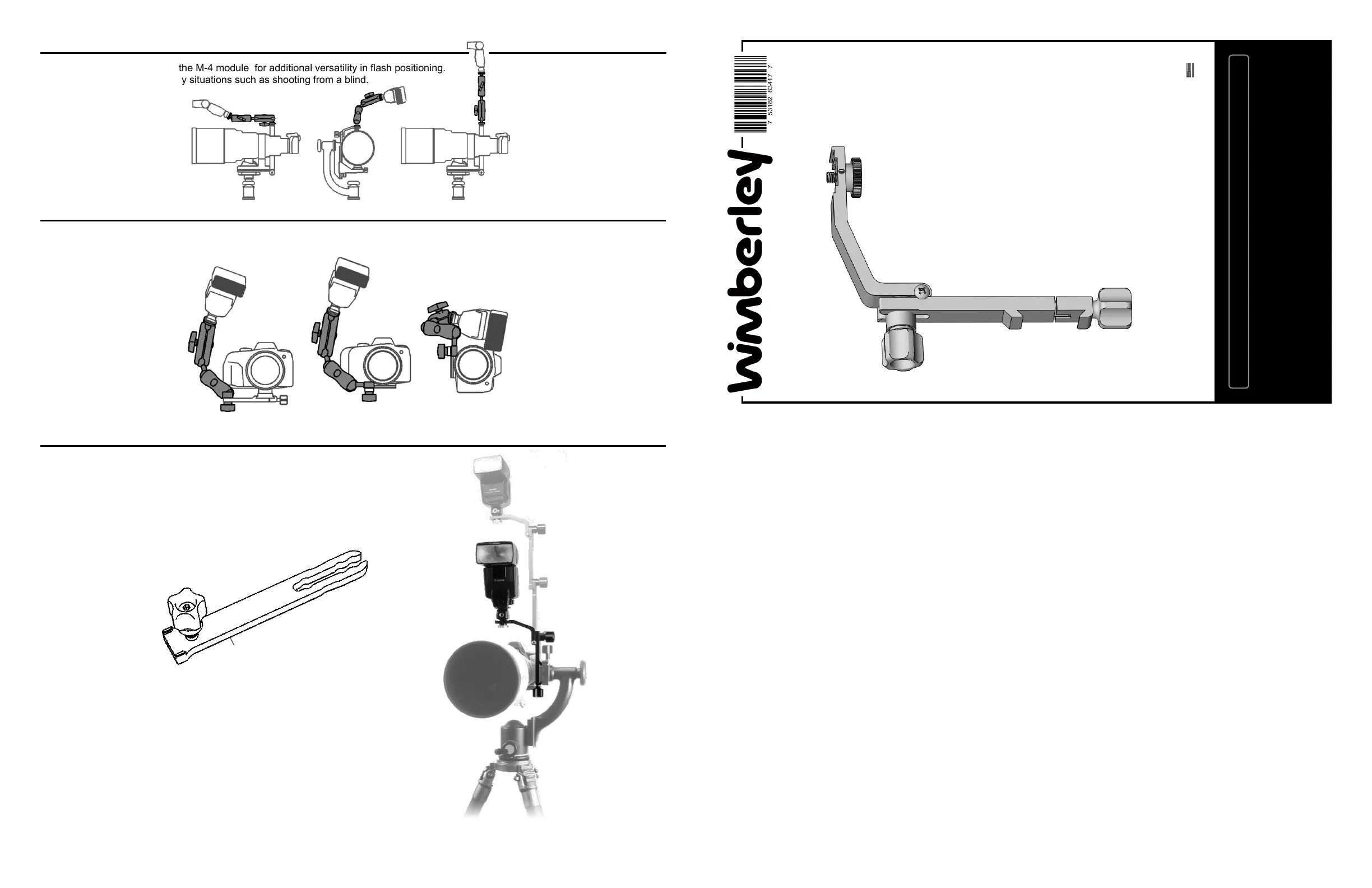

Macro Flash Bracket (F 2): -The Macro Arm (M-4) can also be used to connect directly to the Quick Release Arm (M 1). - -

This is commonly used in macro applications or with small cameras and lenses where the upright module is not necessary.

Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.

Other Uses and Add ons:-

Macro Arm (M 4): -Use the M 4 module for additional versatility in flash positioning. -

This is especially useful in tricky situations such as shooting from a blind.

Made in USA

Attaching the Bracket to a Lens:

The F 6 bracket attaches to your Arca Swiss style plate using a special narrow, low profile quick release clamp that - - - -

eliminates loose screws and the need for tools. The clamp on the bottom module (M 1) can be attached to the bottom -

of an Arca Swiss style plate, or the M 1 can be flipped to attach to the top of the plate if needed. - - (Requires double dovetail plate)

M 1 Quick release Arm Module - -

shown here in two positions (1) QR

clamp in and (2) QR clamp facing out.

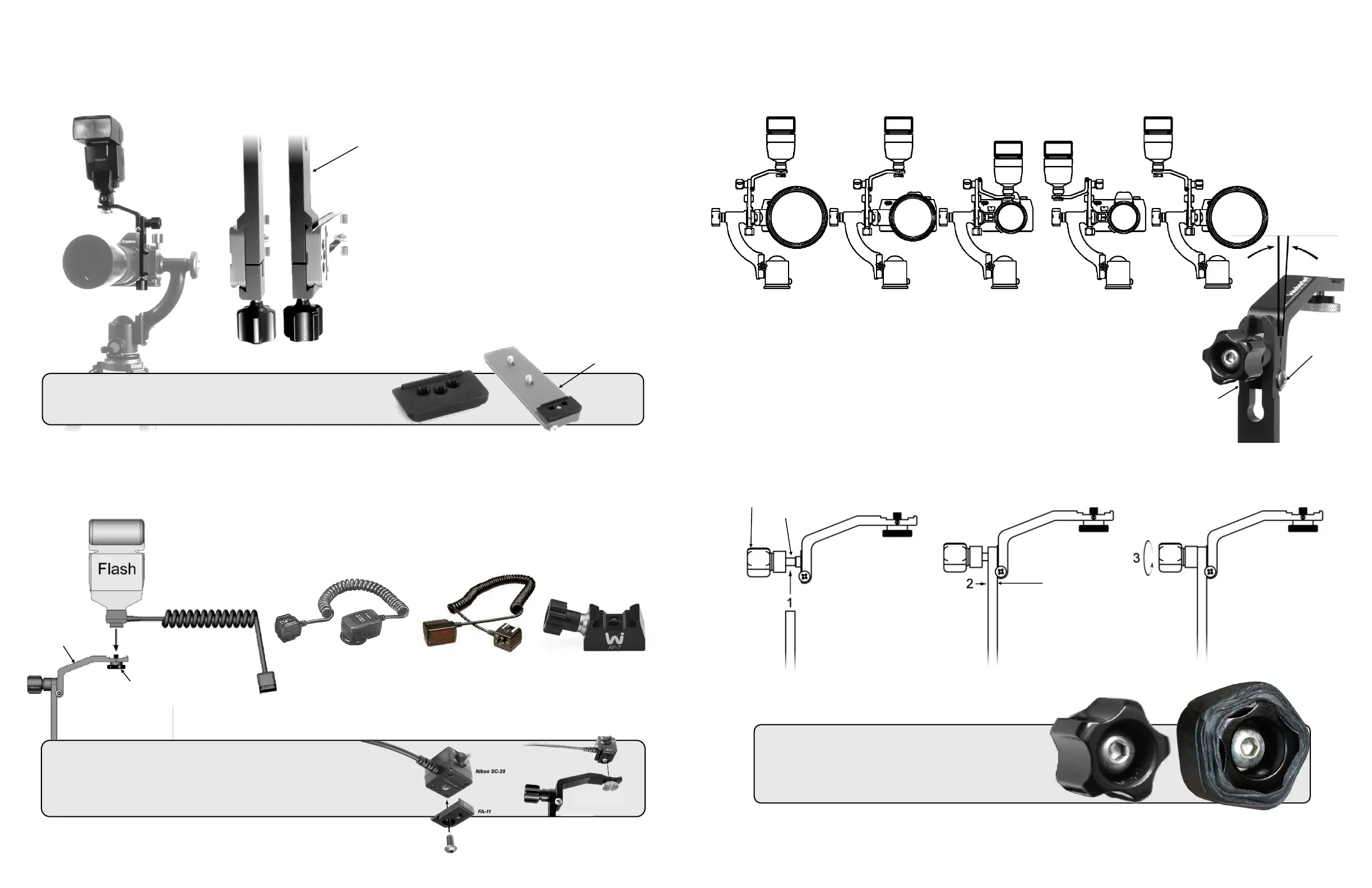

Positioning your Flash:

The Modular Flash Bracket System design allows you to easily disassemble brackets for convenient storage. It also allows you to

adjust the size of the bracket to fit different sized lenses using the keyed slots of the upright module to increase or decrease the height

of the flash unit. Flip the Tilt Arm upside down to lower the flash even further. When the M 3 is used flipped upside down, the thumb--

screw must also be flipped. Below are some of the configurations possible.

Positioning the tilt arm:

You can also swivel the Tilt Arm so that it tilts forward or backward. The Tilt Arm is fitted with two tilt stop

screws that restrain tilting movement. If you wish to tilt the flash simply unscrew the appropriate side

screw enough to give you the desired amount of rotation. If you are using a collared macro lens, flip the

Tilt Arm upside down and in the highest position. In this orientation, the side stop screws do not engage -

and the arm is completely free to tilt.

Note: For most telephoto applications no tilt is needed (even at the closest focusing distance).

At a maximum you may need up to 3 degrees of forward tilt. This can be accomplished using

the tilt arm stop screws or using the built in feature on your flash unit if it so equipped. -

Forward tilt

Stop Screw

Backward tilt

Stop Screw

600 f/4 300 f/2.8 200mm macro 200mm macro 600 f/4

Attach M 1 Quick Release to single dovetail plates:- Use the AP 11 to -

convert older, single dovetail plates made by Really Right Stuff and Kirk to

the double dovetail configuration for greater flexibility in bracket attachment.

Single dovetail

plate

AP-11

Connecting Flash Bracket Modules:

(The figure below shows the connection between M 3 and upright module; the same principle applies for other module connections.)-

knob

cylindrical nub

Unscrew the knob so that

the upright module can fit

between the cylindrical

nub and the knob base

Forked end of

module

Slip the forked end of the module

over the exposed threads. Locate

one of the enlarged areas in the

forked end over the cylindrical nub.

Tighten the knob

securely.

Tip: if you find the metal knobs difficult to grip, try wrapping

several layers of self fusing rubber grip tape ( ) around -3M 2155

the knob to cushion it and make it easier to grip in the field.

Feel free to contact us if you have any questions.

Nikon SC 29 compatibility note:-

The Nikon SC 29 cord requires the use our Flash Cord Adapter (sold -FA-11

separately) to attach the cord snugly to the bracket because the cord mount-

ing foot is slightly too wide to fit properly in the slot on the flash arm.

Nikon Off Camera Shoe Cord- Canon Off camera Shoe Cord-

The AP 7 cold shoe adapter can be used to mount the Speedlight flash unit to the flash bracket s mounting stud. The Nikon AS 20 can also be used. -’-

Attaching Your Flash Unit:

Wimberley Flash brackets have a mounting thumbscrew that attaches to an off camera hot shoe cable or a cold shoe adapter 1/4”-20 -

such as the Wimberley AP 7. We do not sell flash cords. Please follow camera and flash unit recommendations when purchasing -

flash cords to ensure proper signal transmission.

Use the thumbscrew on the top of the M 3 Tilt Arm module to attach the shoe. Make sure the flash adapter -

seats snugly into the bottom notch of the Tilt Arm module. There should be no need to over tighten.-

M 3-

Thumbscrew

Off Camera-

Flash Cable

AP- 7 Cold Shoe
