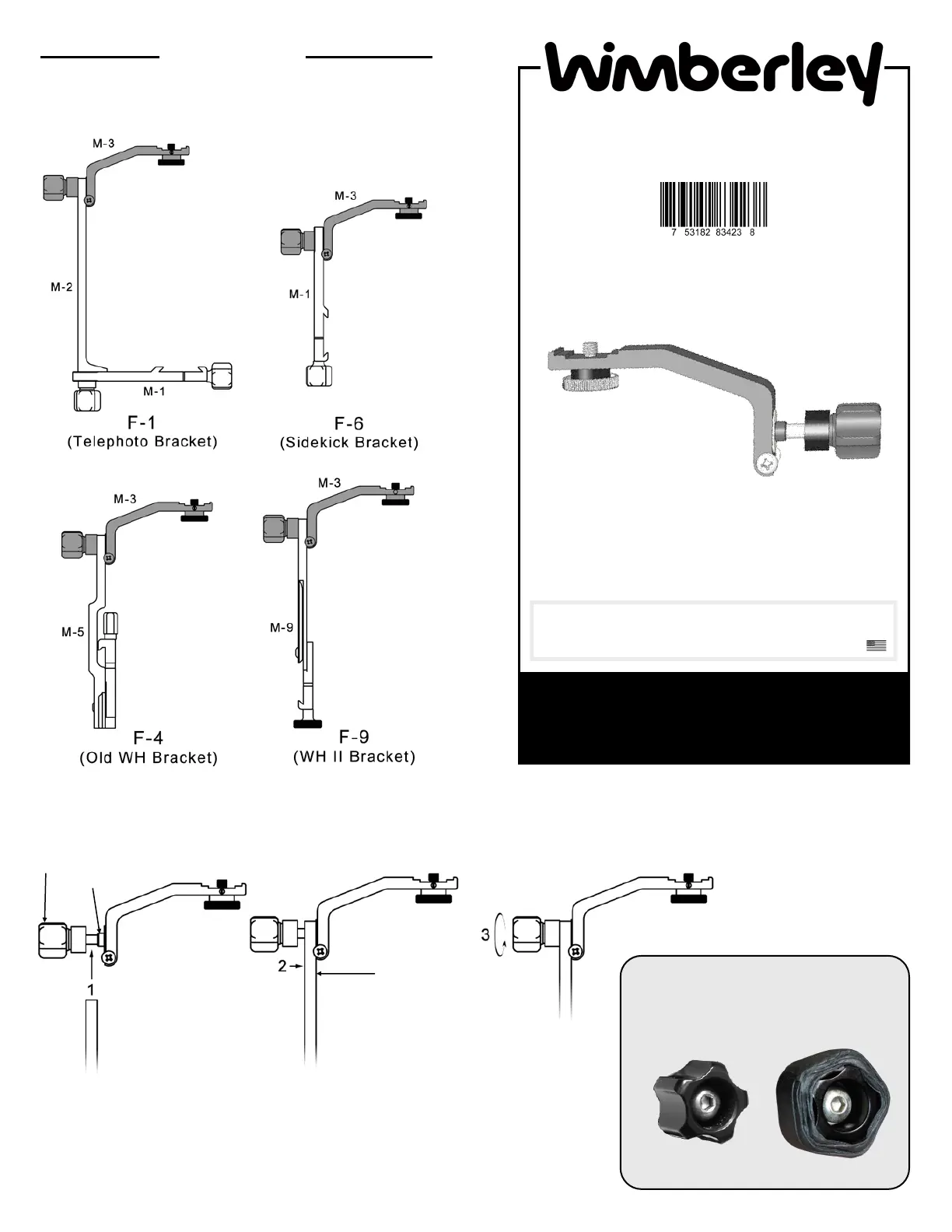

The M 3 Tilt Arm - is one of the components of the Wimberley
Modular Flash Bracket System. It is included in the following
combo units.
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
About the M 3-
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
5 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details
Weight: 3.5 oz
Dimensions (Overall L x W x H): 5.4 x 1.0 x 1.0 in
Materials: Anodized 6061 Aluminum, stainless steel fasteners
Package Contents:
• M 3 Module: -Tilt Arm (Qty 1)
Instructions continued on back>>
Connecting Flash Bracket Modules:
knob
cylindrical nub
Unscrew the knob so that
the upright module can fit
between the cylindrical
nub and the knob base
Forked end of
module
Slip the forked end of the
module over the exposed
threads. Locate one of the
enlarged areas in the forked
end over the cylindrical nub.
Tighten the knob
securely.
Tip: if you find the metal knobs difficult
to grip, try wrapping several layers of
self fusing rubber grip tape (-3M 2155)
around the knob to cushion it and make it
easier to grip in the field.
Feel free to contact us
if you have any questions.
M 3- Tilt Arm
Flash Bracket Module
Made in USA
Wimberley, Inc. ©2017, All Rights Reserved Rev. 170707
Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.
Nikon SC 29 compatibility note:-
The Nikon SC 29 cord requires the use our Flash Cord Adapter (Sold -FA-11
separately) to attach the cord snugly to the bracket because the cord mount-
ing foot is slightly too wide to fit properly in the slot on the flash arm. Some
older Canon off camera flash cords have this same issue.-
Forward tilt
Stop Screw
Positioning the tilt arm:
You can also swivel the Tilt Arm so that it tilts forward or backward. The Tilt Arm is fitted with two tilt
stop screws that restrain tilting movement. If you wish to tilt the flash simply unscrew the appropriate
tilt screw enough to give you the desired amount of rotation. If you are using a collared macro lens,
flip the Tilt Arm upside down and in the highest position. In this orientation, the side stop screws do -
not engage and the arm is completely free to tilt.
Note: For most telephoto applications no tilt is needed (even at the closest focusing distance).
At a maximum you may need up to 3 degrees of forward tilt. This can be accomplished using
the tilt arm stop screws or using the built in feature on your flash unit if it so equipped. - Backward tilt
Stop Screw
600 f/4 300 f/2.8 200mm macro 200mm macro 600 f/4
Positioning your Flash:
The Modular Flash Bracket System design allows you to easily disassemble brackets for convenient storage. It also allows you to
adjust the size of the bracket to fit different sized lenses using the keyed slots of the upright module to increase or decrease the height
of the flash unit. Flip the Tilt Arm upside down to lower the flash even further. When the F 3 is used flipped upside down, the thumb--
screw must also be flipped. Below are some of the possible configurations.
The AP 7 cold shoe adapter can be used to mount the Speedlight flash unit to the flash bracket s mounting stud. The Nikon AS 20 can also be used. -’-
Contact us if you have trouble mounting your flash to the bracket.
Attaching Your Flash Unit:
Wimberley Flash brackets have a mounting thumbscrew that attaches to an off camera hot shoe cable or a cold shoe adapter 1/4”-20 -
such as the Wimberley AP 7. We do not sell flash cords. Please follow camera and flash unit recommendations when purchasing -
flash cords to ensure proper signal transmission.
Use the thumbscrew on the top of the M 3 Tilt Arm module to attach the shoe. Make sure the flash adapter -
seats snugly into the bottom notch of the Tilt Arm module. There should be no need to over tighten.-
M 3-
Thumbscrew
Canon Off camera Shoe Cord- Wimberley AP 7 Cold Shoe-
Nikon Off Camera Shoe Cord-
