The M 9-Wimberley Head Bracket is a vertical upright with an

Arca Swiss style quick release that is useful for several flash - -

applications. It is part of the Wimberley Modular Flash Bracket

System. It is included in the following combo unit.

Wimberley, Inc. - - - Phone: 1 434 529 8385

1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)

Charlottesville, VA

22902 USA www.tripodhead.com info@tripodhead.com

About the M 9-

Wimberley, Inc. - - - Phone: 1 434 529 8385

1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)

Charlottesville, VA

22902 USA www.tripodhead.com info@tripodhead.com

5 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details

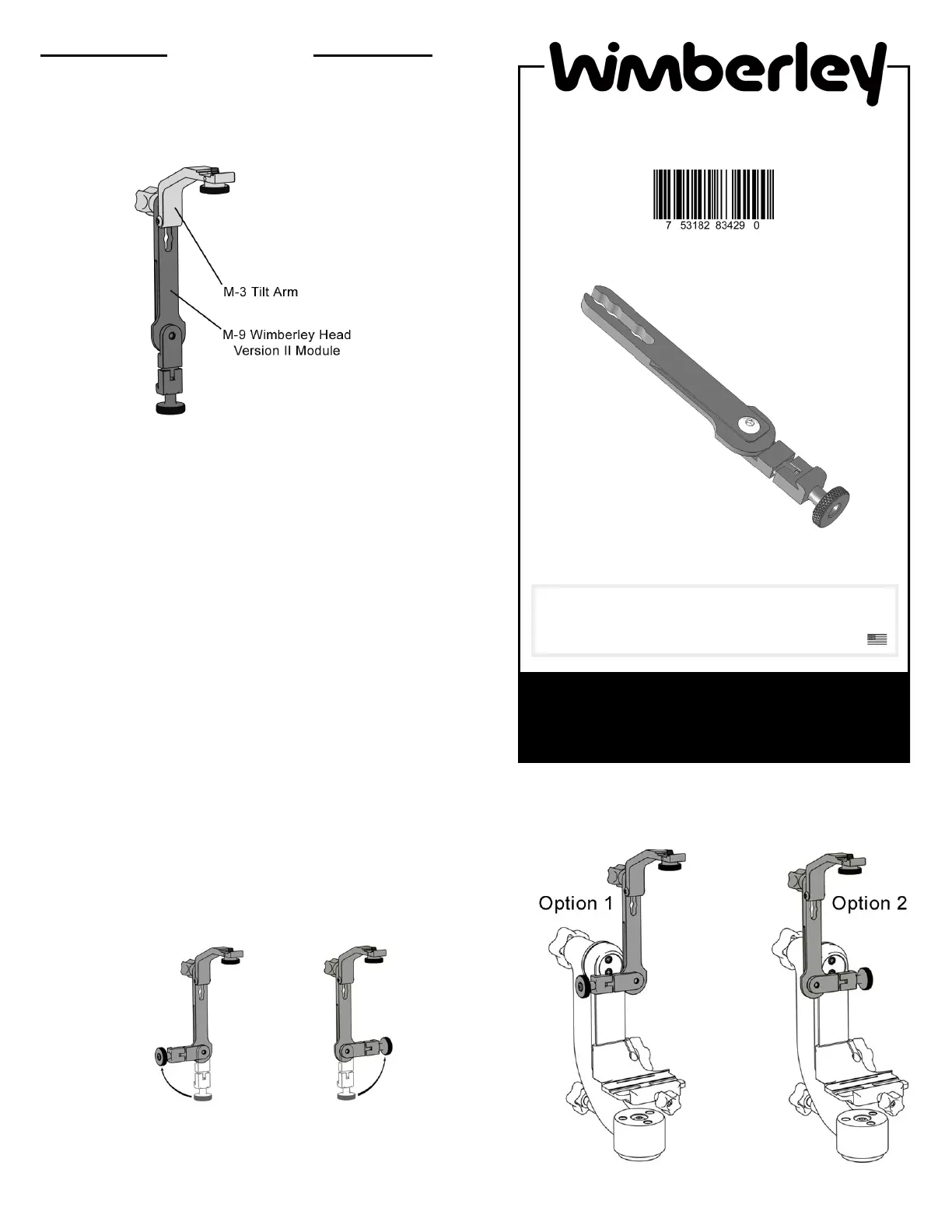

Attaching the M 9 Bracket to the Wimberley Head Version II:-

The M 9 bracket is designed to attach to the Arca Swiss slots on the swing arm of the -

Wimberley Head version II (WH 200). This bracket can stay on the head when swap--

ping lenses.

1. Pivot the moving jaw with the knob to either side, perpendicular to

the upright portion of the M 9 module. Choose the option that feels -

best to you and allows you to comfortably access the focusing ring

on your lens.

Instructions continued on back >>

Package Contents:

• M 9 Module - - Wimberley Head Version II

Upright and Quick release (Qty 1)-

Weight: 3.1 oz

Dimensions (Overall L x W x H): 7.5 x 1.27 x .3 in

Materials: Anodized 6061 Aluminum, stainless steel fasteners

M 9- Wimberley Head Version II

Flash Bracket Module

F-9

(Wimberley Head Version II Flash Bracket)

2. Loosen the bottom knob until it will fit on arm dovetail.

3. -Slide the bracket down the swing arm from the top. Turn the M 9 screw

knob to tighten the clamp jaws and secure the bracket on the swing

Sidemount Configuration:

The (with an M 3 as an F 9 combo) M 9-- -

Bracket can also be used on the side mount -

gimbal heads such as the Wimberley Side-

mount SidekickHead and the . Swivel the

M 9 s quick release arm to the straight posi--’-

tion, then attach the bracket to the dovetail

on your Arca Swiss style lens plate.-

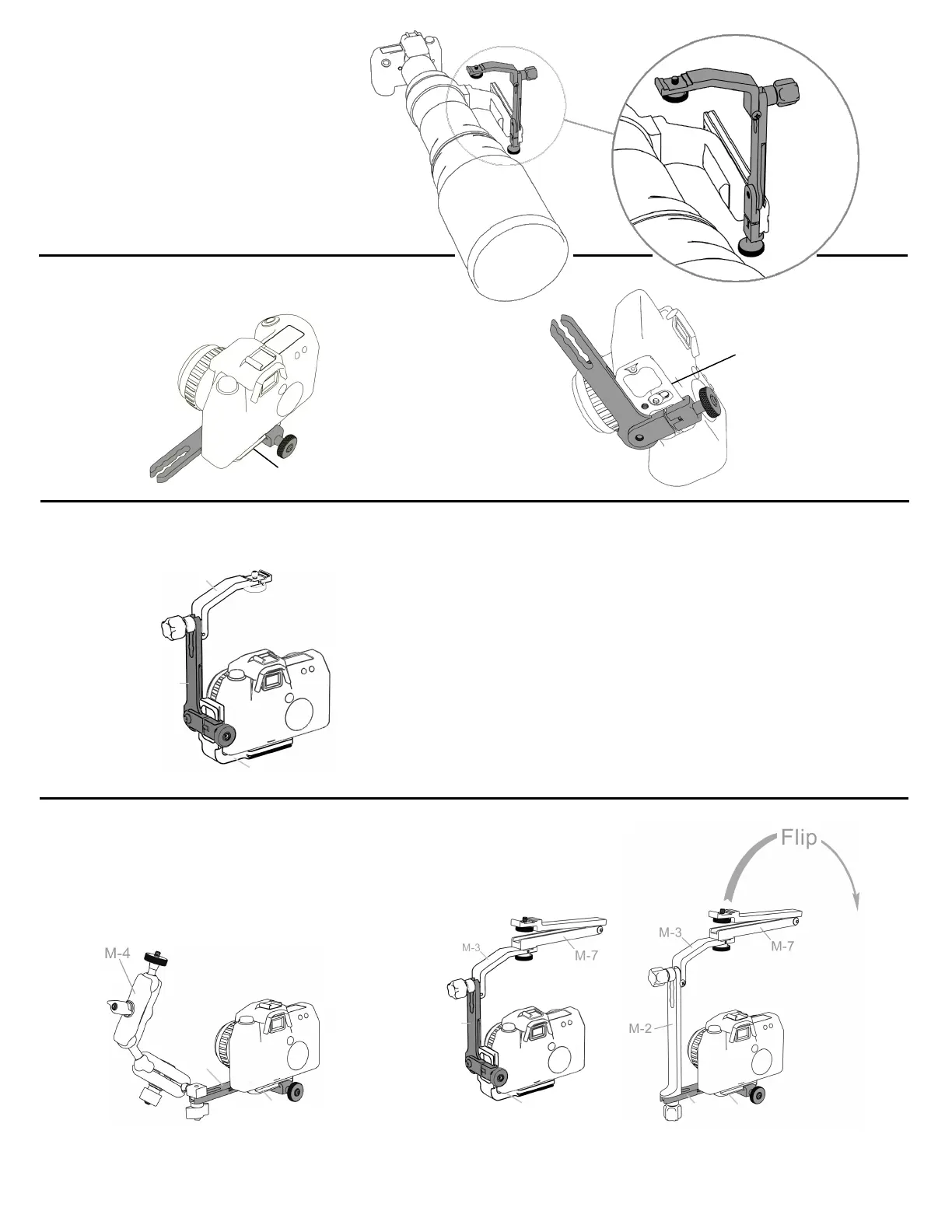

Attaching Module M 9 to Your Camera Body:-

You can attach the M 9 to an Arca Swiss style camera body plate - -

as shown.

Quick Flip Bracket-

P 5 Camera Body Plate-

Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.

Macro, Wedding and Portrait Photography:

You can also attach an M 4 module to form a macro bracket, or attach modules M 2, M 3, & M- - - -7

to form a quick flip bracket for wedding & portrait photography. The M 9 can also be used with an - -

Arca Swiss compatible L bracket for additional positioning flexibility. - -

P 5 Camera -

Body Plate

Attaching Module M 9 to an L Plate:- -

You can attach the M 9 to an Arca Swiss style camera L plate as shown.- - -

M 9-

L bracket- P 5-

M 9-

P 5-

Macro Bracket

M 9-

L bracket-

M 3-
