RISE CONTROL
Varies the of the output transient function.RISE time
FALL CONTROL
Varies the FALL time of the output transient function.
VARIABLE OUTPUT CONTROL
Manually controls the amplitude level and polarity of the VARI-OUT output.

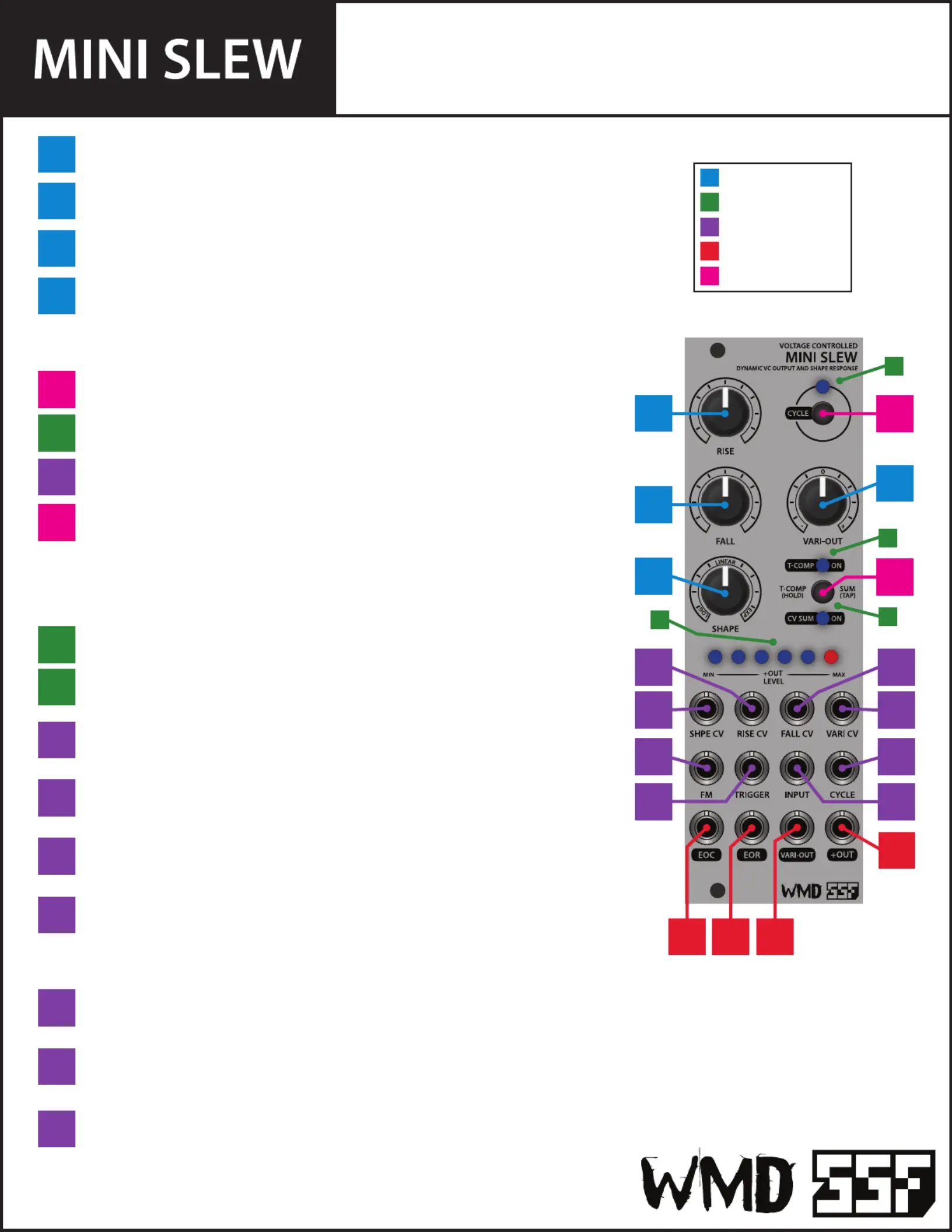

MINI SLEW is a feature packed function generator and VC slew limiter. Transient functions are generated using
the rise, fall and shape controls. Complex functions can be generated using the voltage controlled shape and
vari-out via direct CV inputs. MINI SLEW features a novel time compensation mode which permits the timing of
the transient to remain relatively constant while the shape parameter is adjusted. CV SUM mode permits a
single CV patched into rise or fall to process both parameters or two CVs patched into rise and fall to be
summed and applied to both parameters. Additional features include VC cycle (toggle on/o), end of rise and
end of fall outputs, FM input and an LED voltmeter for monitoring the amplitude of the direct positive output.
CYCLE MODE TOGGLE
Push this button to toggle cycle mode on/o.
SHAPE CV INPUT
Use this input to vary the SHAPE with CV. Use the SHAPE control to add an oset to
the applied control voltage.
VARI CV INPUT
Use this input to vary the amplitude and polarity of the VARI OUT output. Use the
VARI-OUT control to add an oset to the applied control voltage. Control voltages must
be approximately +/-5V to sweep the full range. Set the VARI-OUT control to center
position for symmetrical modulation.
EXPONENTIAL FM CV INPUT
Apply a control voltage here to modulate both RISE and FALL roughly tracks . This input
2-3 octaves.
TRIGGER INPUT
Apply a trigger or gate to this input to . You can also use initiate a transient function
this input to re-trigger a function when CYCLE mode is active.
PANEL CONTROL
LED INDICATOR
INPUT
OUTPUT
MODE SELECTOR
COLOR KEY LEGEND
C
IN
O
R
F
VO
SRISE/FALL SHAPE CONTROL
Smoothly varying logarithmic, linear, and exponential shape control. This control aects
both Rise and Fall simultaneously. This control works as an oset when CV is applied to
the SHPE CV input. Use T-COMP mode (detailed below) to retain a relative time constant
when changing the output shape.
TS TIME COMPENSATION and CV SUM
T-COMP: Hold this button for >1 second to compensation of the SHAPE toggle time
control on/o.
CV SUM: Tap this button to toggle CV SUM on/o. CV SUM applies to the RISE and FALL
CV inputs. When active, CV SUM allows a single CV applied to either RISE or FALL to
aect both inputs. If two CV sources are applied to the RISE and FALL inputs, the both
CV sources are summed (added together) and applied to inputs.both
T-COMP LED
This LED turns on when T-COMP mode is active.
CV SUM LED
This LED turns on when CV SUM mode is active.
LS
LT
RISE CV INPUT
Use this input to vary the RISE time with CV. Use the RISE control to add an oset to
the applied control voltage.
FM
SLEW INPUT
Apply a signal to be slewed by the RISE, FALL and associated CV inputs to this
input. Apply a gate to create a rise/hold/decay transient function. Apply any
control voltage or audio signal here to dynamically shape the input signal.
IN
F
C
STS
LT
LC
LS
LE
EOR
CV
VARI
CV
SHPE
FM
T
CV
RISE
CV
C
LC CYCLE LED
This LED indicates the cycle rate when cycle mode is active.
CYCLE CV TOGGLE
Apply a 0-5V gate signal to this input to toggle the current cycle on/o state.
C
SHPE
CV
RISE
CV
FALL CV INPUT
Use this input to vary the FALL time with CV. Use the FALL control to add an oset
to the applied control voltage.
FALL
CV
VARI
CV
T
EOC END OF CYCLE OUTPUT
This is the EOC output. A pulse/gate is generated whenever the output
transient completes a RISE/FALL cycle.
EOR END OF RISE OUTPUT
This is the EOR output. A pulse/gate is generated whenever the
output transient completes the RISE phase of the output transient.
VO VARIABLE OUTPUT
This is the VARIABLE output aected by the VARI-OUT control and VARI CV input.
OMAIN OUTPUT
This is the main output. This output is always positive and maximum ampli-
tude. The +OUT LED array reects the current amplitude state of this output.
LA MAIN OUT LED ARRAY
This LED array indicates the current amplitude state of the +OUT (main output).
MINI SLEW
SAVING MODE STATES
MINI SLEW will store all mode states during power cycle intervals.
Please allow a to pass in order to insure that minimum of 60 seconds
your mode states will be retained when power is cycled o/on.
