BINATION SWITCHES:

ct between analog OR in the up

tion, sum in the middle posi-

and difference in the bottom

tion. Each switch corresponds

he channel with the matching

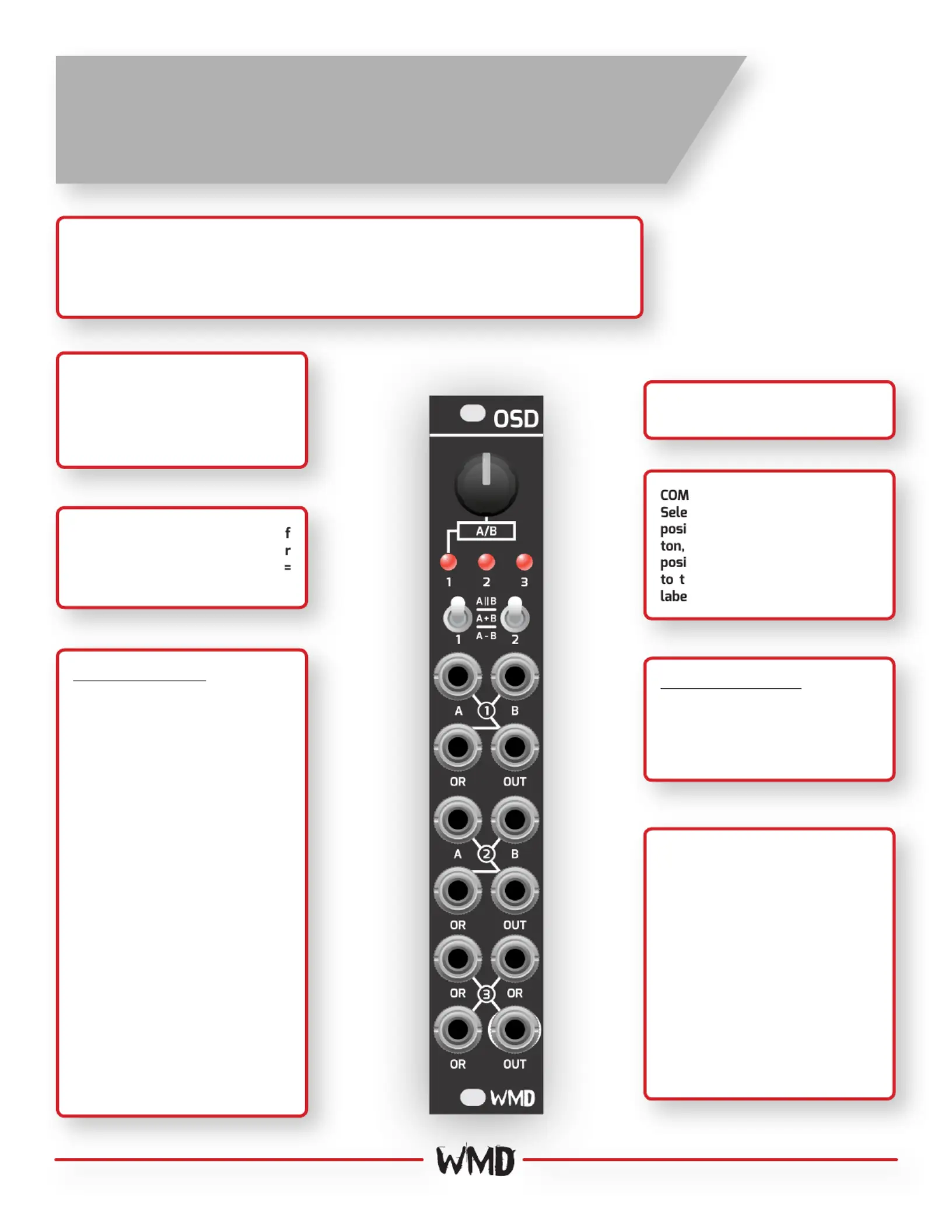

Thank you for purchasing OSD, WMD’s multi-functional signal combination utility. OSD

comprises of 3 blocks of unique functions offering the user endless utility in a small

package. Combine Audio, CV, or both at the same time; OSD’s signal path is high band-

width and high precision meaning it’s ready for whatever you throw at it!

LEDs: Show the output voltage o

their respective channels. Bipola

display, red = negative and green

positive.

OSD

Multi-function Signal Combination Utility

3 UNIQUE CHANNELS

OSD features 3 unique channels of

signal combination:

Channel 1 offers a crossfader that

balances between the signals input

to the A and B jacks. The attenu-

ated signals combine according

to the selection on SWITCH 1, and

then are analog OR’d with the

signal input to the OR jack.

Channel 2 has the same signal

ow as Channel 1 but removes the

crossfader so your combinations

are all at unity levels. Precision

components make this channel

great for combining sensitive sig-

nals like V/Oct.

Channel 3 offers a simple but al-

ways useful, precision triple input,

analog OR. Great for combining

gates or simple rectication.

SPECS:

Size: 4hp

Depth: 40mm(with cables)

Power: 50mA +12V, 50mA -12V

All Inputs:

>=100k ohm impedance

.1% Resistors

All Outputs:

470 ohm impedance

impedance compensated for

precision.

20Vpp range

CH1 A/B CROSSFADER: Crossfades

between the two signals present

on the A and B jacks of Channel 1.

This feature is great for combining

modulation sources or audio!

-10V Normalled to all inputs!

WHAT IS ANALOG OR?

Analog OR is the technical way of

saying a circuit that compares two

signals and outputs the one that is

a higher voltage.
