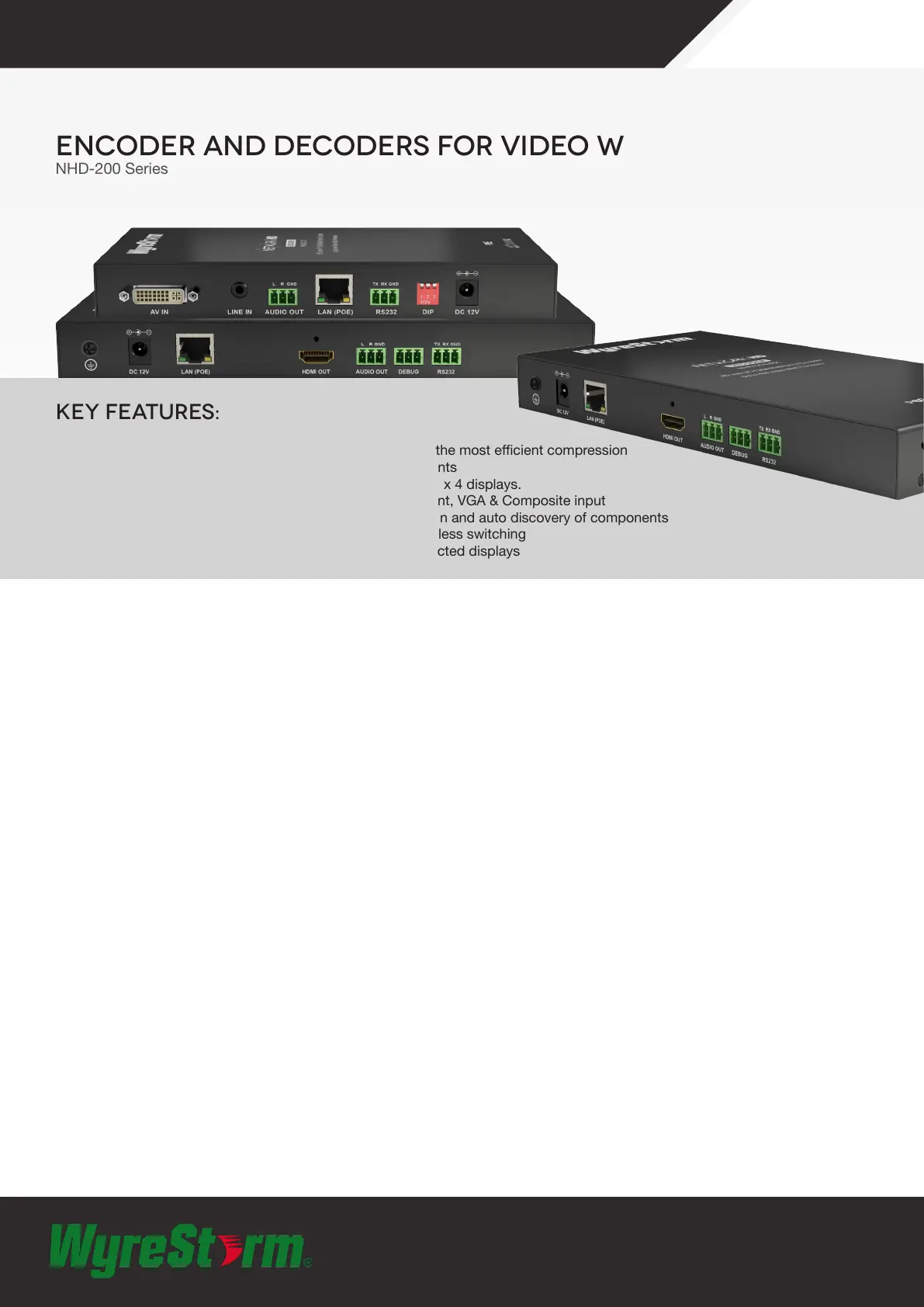

Wyrestorm NetworkHD™ 200-Series HD Over IP

Encoder and Decoders for video wall

NHD-200 Series

WyreStorm® NetworkHD 200 is our agship H.264 HD over IP distribution platform. With its simple system conguration and

powerful video wall functionality it is the best all round solution for commercial AV installs. Enabling the distribution of multiple

video formats over a dedicated IP network switch for commercial AV applications.

NetworkHD 200 series facilitates the transmission of an HDMI, DVI, Component & VGA signals (including Full HD 1080p video with

2.1 audio) to any number of HDMI displays over standard Ethernet (Cat5e/6) infrastructure. The NHD-200-RX enables the display

of a single image on a display whilst the NHD-210-RX decoder adds video wall playback to the system.

WYRESTORM PRODUCT SPECIFICATION SHEET

• Highly scalable, visually lossless HD over IP solution using the most ecient compression

technology to allow for very large commercial AV deployments

• Powerful video wall functionality (NHD-210-RX only) up to 4 x 4 displays.

• Multi-format DVI-I input selectable to HDMI, DVI, Component, VGA & Composite input

• Plug and Play setup with automatic networking conguration and auto discovery of components

• Quick SyncTM technology for virtually instantaneous, seamless switching

• CEC One-Touch Play & Standby or RS232 control of connected displays

Key Features:

Additional Features & Benefits:

• Supports video previewing on a PC or third party device.

NetworkHD 100 outputs simultaneous IP streams. One full

resolution for the NHD-100-RX. The other small one supports

resolutions of 352 x 288 @ 5Hz to easily preview a video from

the encoder on a PC or Mac

• Use with the new NHD-000-CTL controller for simple

conguration and control via the LAN, as well as for allowing

control from third party control system such as AMX, Crestron,

Control4, RTI & WyreStormTM Enado.

• Supports PoE to enable remote powering from POE network

switches, eliminating the need for a nearby power outlet

• Full PC control suite available free of charge at wyrestorm.com

• Supports HDCP

• Audio Breakout on both Encoder & Decoder

• Congurable encoding bit rate up to 40 Mbps

NHD-000-CTL

1 x NHD-000-CTL Main Unit

1 x Power Adapter (12V 1A DC)

1 x Phoenix Conn.

(Male, 3.5 mm, 3 pins)

2 x Mounting Brackets

5 x IP labels

NHD-200-TX

1 x NHD-200-TX Main Unit

1 x Power Adapter (12V 1A DC)

1 x Detachable Plug

1 x HDMI to DVI Converter

2 x Phoenix Conn.

(Male, 3.5 mm, 3 pins)

2 x Mounting Brackets

NHD-200-RX

1 x NHD-200-RX Main Unit

1 x Power Adapter (12V 1A DC)

1 x Detachable Plug

3 x Phoenix Conn.

(Male, 3.5 mm, 3 pins)

2 x Mounting Brackets

NHD-210-RX

1 x NHD-210-RX Main Unit

1 x Power Adapter (12V 1A DC)

1 x Detachable Plug

3 x Phoenix Conn.

(Male, 3.5 mm, 3 pins)

2 x Mounting Brackets

in the box

US OFFICE:

TEL: +1 518-289-1293

EMEA OFFICE:

TEL: + 44 (0) 1793 230 343

WYRESTORM PRODUCT SPECIFICATION SHEET

Specifications NHD-200-TX

Input Video Ports 1 × DVI IN

Input Video Type HDMI 1.3, DVI 1.0, VGA, YPbPr

Input Video Resolutions HDMI: 640 x 480 @ 60Hz, 480p @ 60Hz, 576p @ 50Hz,

800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 720p @ 50Hz, 720p @ 60Hz,

1280 x 800 @ 60Hz, 1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz,

1366 x 768 @ 60Hz, 1400 x 1050 @ 60Hz, 1440 x 900 @60Hz,

1680 x 1050 @ 60Hz, 1080p @ 24Hz, 1080p @ 25Hz, 1080p @ 30Hz,

1080p @ 50Hz, 1080p @ 60Hz, 1920 x 1200 @ 60Hz

DVI: 640 x 480 @ 60Hz, 480p @ 60Hz, 576P @ 50Hz, 800 x 600 @ 60Hz,

1024 x 768 @ 60Hz, 720p @ 50Hz, 720p @ 60Hz, 1280 x 800 @ 60Hz,

1280 x 1024 @ 60Hz, 1360 x 768 @ 60Hz, 1366 x 768 @ 60Hz,

1400 x 1050 @ 60Hz, 1440 x 900 @ 60Hz, 1680 x 1050 @ 60Hz,

1080p @ 24Hz, 1080p @ 25Hz, 1080p @ 30Hz, 1080p @ 50Hz, 1080p @ 60Hz,

1920 x 1200 @ 60Hz

VGA: 640 x 480 @ 60Hz, 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, 1280 x 1024 @ 60Hz,

1280 x 720 @ 60Hz, 1280 x 768 @ 60Hz, 1280 x 800 @ 60Hz, 1360 x 768 @ 60Hz,

1366 x 768 @ 60Hz, 1440 x 900 @ 60Hz, 1400 x 1050 @ 60Hz,

1680 x 1050 @ 60Hz, 1920 x 1080 @ 60Hz, 1920 x 1200 @ 60Hz

Component: 720 x 480p @ 60Hz, 720 x 576p @ 50Hz, 1280 x 720p @ 50Hz,

1280 x 720p @ 60Hz

Input Video Signal 0.5 ~ 1.2 V p-p

Encoding Data Rate Up to 40 Mbps, congurable

Output Video Ports 1 x LAN

Output Video Type H.264/MPEG-4 AVC

Output Video Resolutions Large IP stream: 480p @ 60Hz ~ 1920 x 1200 @ 60Hz, Small IP stream: 352 x 288 @ 5Hz

Video Impedance 100 Ω

Input DDC Signal 5 V p-p (TTL)

End-to-End Time Latency About 60 ms-90 ms (Low latency mode), About 250 ms-300 ms (High quality mode)

Input Audio Ports 1 x Audio Jack

Input Audio Format Stereo

Output Audio Ports 1 x Phoenix Connector

Output Audio Format Stereo

Control Method Rear panel source switch, PC congurator and RS232

Operating Temperature +32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing

Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing

Power 12V 1A DC

Power Consumption 6W (Max.)

ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)

Surge Protection Voltage ±1 kV

Product Dimensions (WxHxD) 200mm x 25 mm x 94mm / 7.9’’ x 1.0’’ x 3.7’’

Weight 0.48 Kg

Certication CE, FCC, RoHS compliant

For additional product information visit wyrestorm.com

For technical support contact: North America: 1 844-280-WYRE (9973) EMEA/ROW: +44 (0) 1793 230 343 +
