Side 1/4

4K HDR HDMI-Over-HDBaseT Receiver

with HDCP 2.2 and PoH

RXV-70-4K-G2 v1 Quickstart Guide

RXV-70-4K-G2 v1 Quickstart Guide | 190620

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

Email: support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the

installation process.

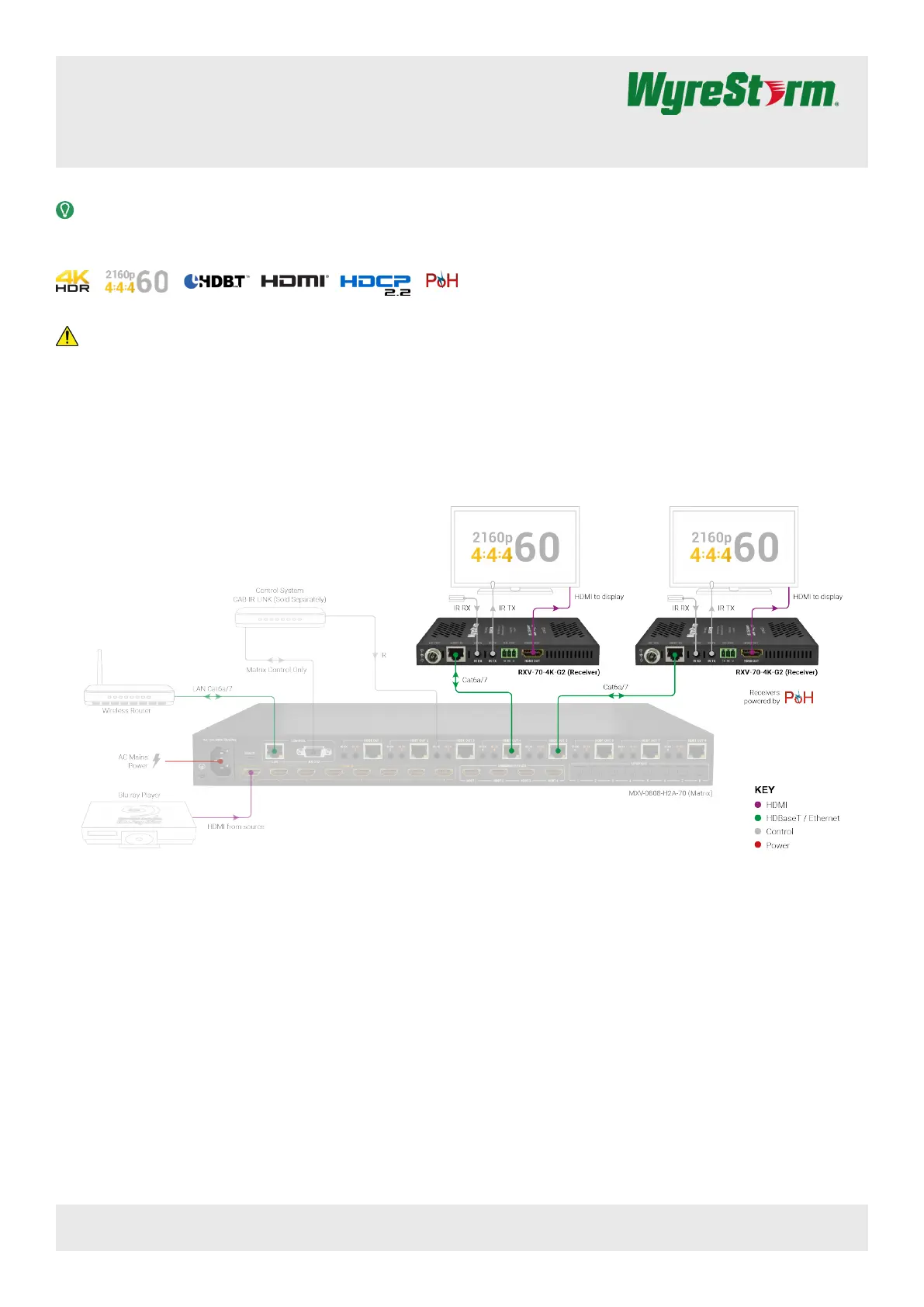

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document versions,

additional documentation, and conguration tools.

• Read through the section for important wiring Wiring and Connections

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x RXV-70-4K-G2 Receiver

1x Wide-band IR Emitter

1x Wide-band IR Receiver (30-50KHz)

2x Mounting Brackets

1x 3-pin Terminal Block

1x Quickstart Guide (this document)

RXV-70-4K-G2 v1 Quickstart Guide | 190620

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

Email: support@wyrestorm.com

2 of 4

Front Panel Rear Panel

Power LED Solid: The receiver is powered On

Off: The receiver is powered Off

Status LED Flashing: The receiver is operating normally.

Off: The receiver is Not operating normally.

HDCP LED

Solid: HDCP content is present.

Flashing: HDCP content is not present.

Off: No signal.

LINK LED

Solid: Link to receiver has been established.

Flashing: Link to receiver has not been

established.

Power Input

5.5mm Screw Down Barrel Jack

Connect to the included 18V DC 1A power

supply to the transmitter or receiver. A power

supply is not required on the other end as it

will be powered using PoH.

HDBT In

8-pin RJ-45 female

Connect the matrix HDBT Out to

receivers HDBT In.

IR TX

IR RX

IR TX - 3.5mm (1/8in) Mono Jack: Connect

to the supplied IR emitter to control a local

device from the remote display location via

HDBaseT

IR RX - 3.5mm (1/8in) Stereo Jack: Connect

to the supplied IR receiver to send IR to the

remote display location via HDBaseT.

See for more IR TX/RX Guidelines

information.

RS-232 1x RS-232: 3-pin Phoenix

HDMI Out 19-pin type A HDMI female

Supports HDMI and DVI/D with adapter
