IMPORTANT! Installation Requirements

• Visit the product page to download the latest document version, additional

documentation, rmware, and conguration tools.

• Install the latest rmware to ensure that all features described in this

document are available during and after installation.

• Read through the Wiring and Connections section for important wiring

guidelines before creating or choosing premade cables.

• An HDBaseT receiver is required to use this product.

• See Recommended Products for guidelines on choosing a receiver.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

Recommended Products

To take full advantage of the features of this switcher, WyreStorm

recommends the following products be used to complete the installation.

RX-70-4K HDBaseT Receiver – This Class A PoH receiver can be used for

general purpose transmission where IR and RS-232 routing maybe required.

RX-70-4K-ARC HDBaseT Receiver – This Class A PoH receiver can be used

for general purpose transmission where IR and RS-232 routing or Audio

Breakout maybe required.

Note: If CEC control of displays is required, the RX-70-4K-ARC cannot be used

as it does not support this feature.

In the Box

1x SW-0401-HDBT Switcher

1x 12V DC 3A Power Supply

1x AC Power Cord with US Plug

1x AC Power Cord with UK Plug

1x AC Power Cord with EU Plug

2x 3-pin Male Phoenix Connector

1x 4-pin Male Phoenix Connector

3x 5-pin Male Phoenix Connector

2x Mounting Brackets

1x Quickstart Guide (This Document)

Additional Information

Visit the product page at wyrestorm.com for additional content regarding this

product.

• Product API for conguring control via a 3rd party control system.

• Firmware updates – We consistently improve our products and may supply

rmware updates in the future to improve the operation.

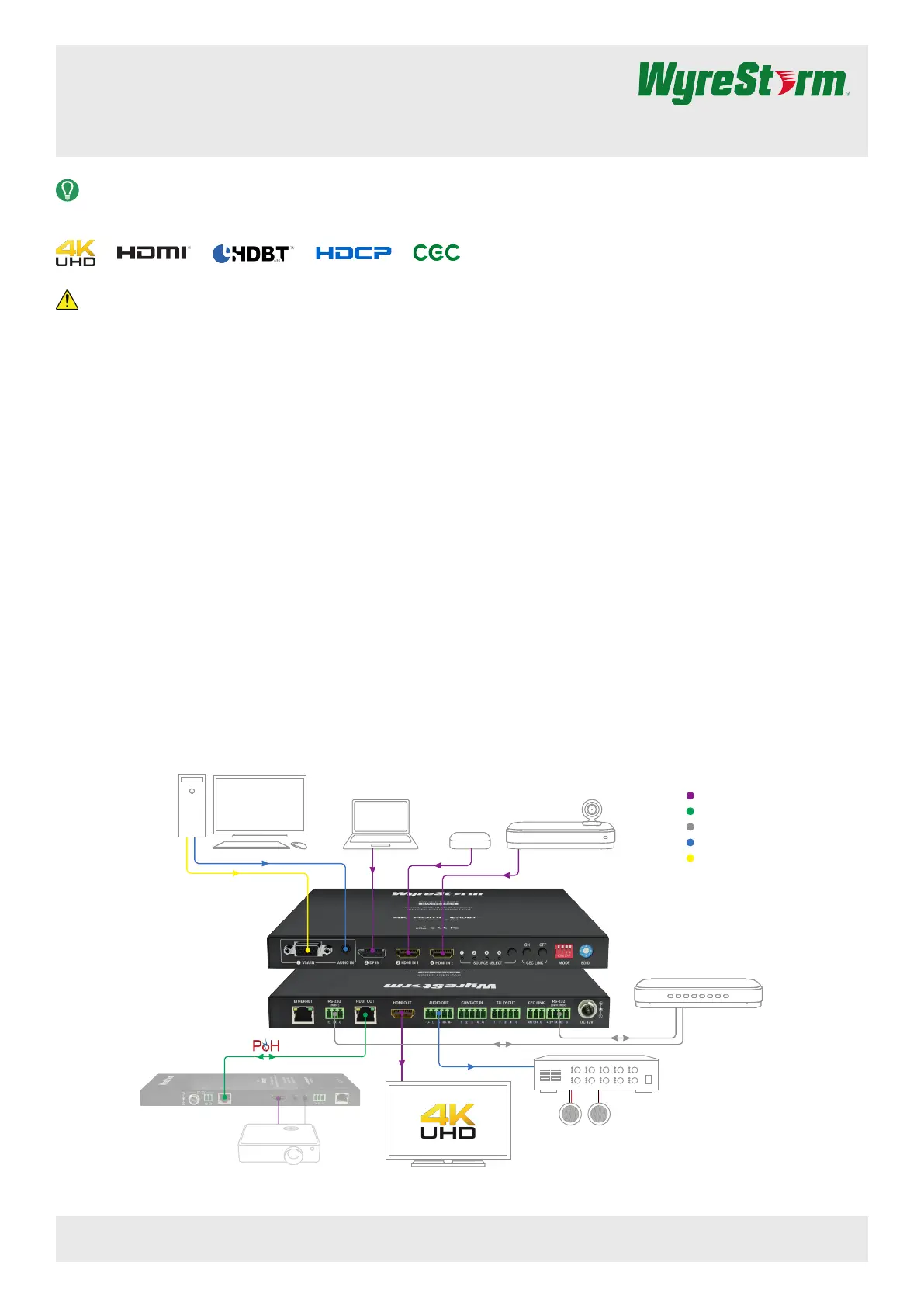

Basic Wiring Diagram

SW-0401-HDBT Quickstart Guide | 180305

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation

process.

4 Input Scaling Smart Switch with CEC and HDBaseT Out

SW-0401-HDBT Quickstart Guide

KEY

HDMI/DisplayPort

HDBaseT

RS-232/Serial

Analog Audio

Analog Video

WyreStorm HDBaseT

Receiver

Control System

Personal Computer

Laptop

Media Player

Video Conference Device

Amplifier

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

HDMI/HDBaseT Wiring

IMPORTANT! HDMI/HDBaseT Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on HDMI

and Ethernet transmission limiting performance. Steps should be taken to

minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using high quality HDMI cables such as

WyreStorm Active Optical or Express to ensure the highest content

performance available.

• The type of category cable and length used can restrict the available video

resolution. While Cat5e can be used, WyreStorm recommends using Cat6

or higher to ensure the highest content performance available. See Video

Resolutions in the Specications table before determining cable type and

length.

Pin 1

Pin 8

Wire colors shown follow EIA/TIA-568B standard.

Pin 1:

Pin 2:

Pin 3:

Pin 4:

Pin 5:

Pin 6:

Pin 7:

Pin 8:

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RS-232 Communication

Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for

pin functionally to ensure that the correct connections can be made.

See SW-0401-HDBT API located on the website for commands and conguration of communication ports.

RS-232 Switcher Control RS-232 HDBT to Zone

CEC Link Control

The CEC link allows for a hard wire contact closure connection to turn CEC On

and Off to control the standby mode of the display.

Contact In/Tally Out

Contact connections are provided to allow for switching sources and feedback

to a contact closure button on a desk or wall plate.

Audio Out

The Audio Out supports both balanced and unbalanced connections. Wiring may vary on the 3rd party device, refer to the documentation for the device being

connected.

Balanced Connections Unbalanced Connections
