2x1 HDMI/VGA over HDBaseT™ Auto-Switching 2-Gang

In Wall Transmitter (100m/328ft)

TX-SW-IW-0201 Quickstart Guide

In the Box

1 x TX-SW-IW-0201 HDBaseT Wall Plate Transmitter

1 x 3-pin Plug-in Phoenix Connector

2 x 2pin-plug-in phoenix connectors

1 x Decorative Wall Plate with 4 screws

4 x 6-32x20mm Installation Screws

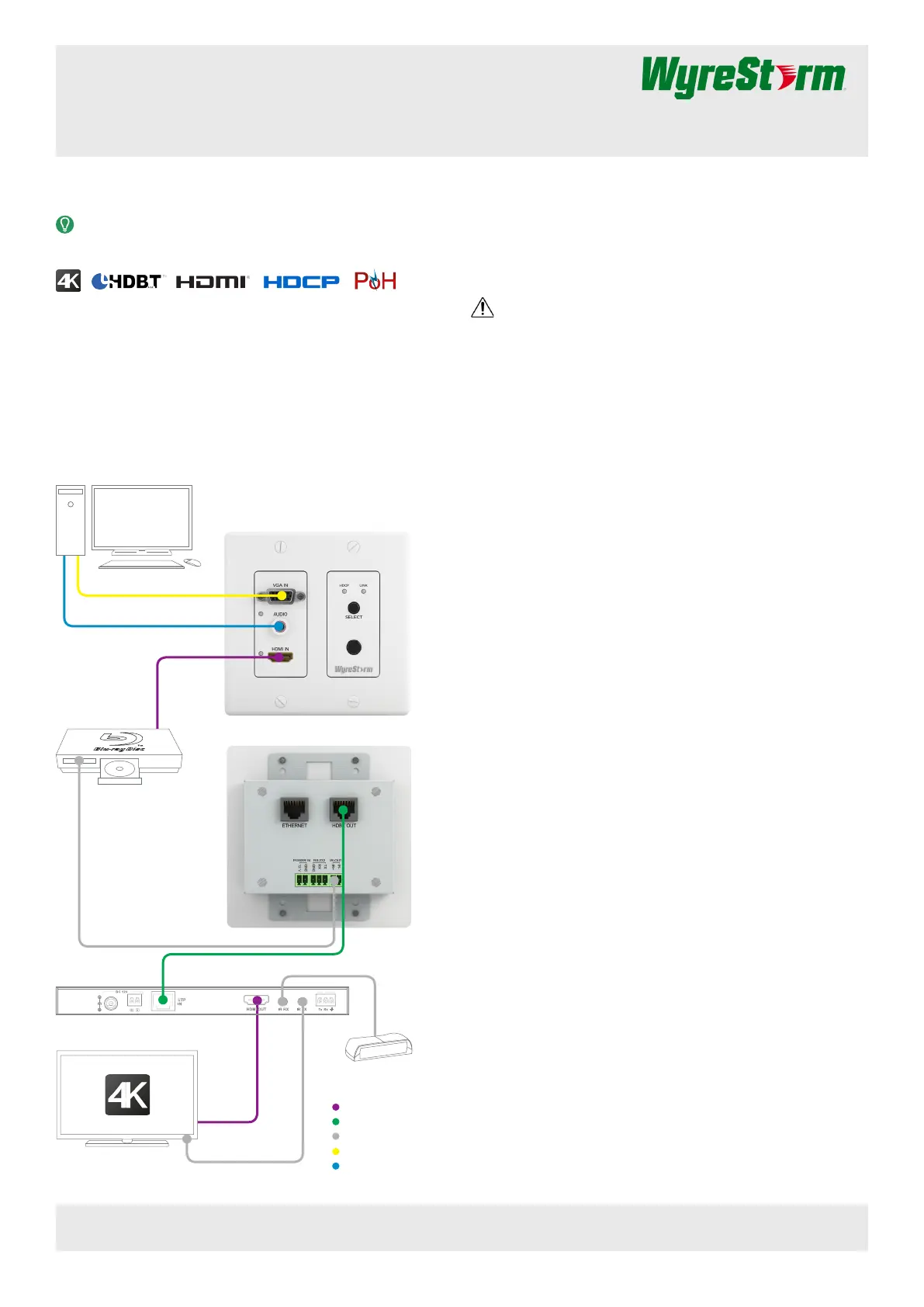

Basic Wiring Diagram

Installation

IMPORTANT! Do not connect or disconnect (hot plug) the HDMI, or

HDBaseT connections while the transmitter is powered on. Doing so may

cause damage to the transmitter or connected devices.

1. Verify that all items are included in the packaging per the list under

the section.In the Box

2. Run a Cat5/5e/6 cable from the transmitter location to the receiver

location. Terminate the cable per the section and HDBaseT Wiring

connect to the on the transmitter.HDBT Out

3. (Optional) Terminate an IR emitter or cable per the section IR Wiring

and connect to the on the transmitter. Place the IR emitter IR Out

onto the source device near the IR receiver or connect to an IR port

on the source.

4. (Optional) Terminate a cable per the section and RS-232 Wiring

connect to the RS-232 pass-through on the transmitter. Connect the

opposite end to a port on a control system.

5. Connect the opposite end of the HDBaseT cable to a WyreStorm

HDBaseT receiver, switcher, or 3rd party display device with built-in

HDBaseT receiver. Power on the receiver.

6. (Optional) If power for the transmitter is not being supplied by the

receiver via PoH, connect a 12V DC 1A power supply (not included)

to the connection on the transmitter. See Power In Power Supply

Wiring.

7. Install the TX-SW-IW-0201 in a dual-gang wall box located near the

source.

8. Connect up to 2 sources to the transmitter.

• Connect a VGA source to the VGA In on the transmitter.

• Connect an HDMI source to the on the transmitter using HDMI In

an HDMI cable from a high quality brand such as WyreStorm

Express.

9. Power on the HDBaseT receiver or connect the power supply to an

AC outlet.

A PoH compatible HDBaseT transmitter with VGA & HDMI inputs, tting into a decora 2-Gang wall box.

TX-SW-IW-0201 Quickstart Guide | 150828

North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343

support@wyrestorm.com

1 of 4

KEY

HDMI

HDBaseT Cat5e/6

IR TX and RX

Analog Video (VGA)

Analog Audio

HDMI from Source

VGA from Source

Audio from Source

IR Out to Source

HDBaseT Cat5e/6

HDMI to

Display

IR TX to Display

IR RX (IR to Transmitter)

TX-SW-IW-0201 Front (with wall-plate)

TX-SW-IW-0201 Rear

HDMI Source

VGA Source

4K HDMI Display

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

TX-SW-IW-0201 Quickstart Guide | 150828

North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343

support@wyrestorm.com

2 of 4

Front Panel Rear Panel

HDMI IN and HDMI LED

19-pin type A HDMI female digital

video/audio input: Supports HDMI

and DVI/D (requires adapter-not

included). Limited to 297MHz pixel

clock. LED illuminates when HDMI

source is selected.

AUDIO IN

3.5 mm (1/8 in) Stereo Analog

Audio:

Connect to audio output of device

connected to VGA input.

VGA IN and VGA LED

15-pin VGA VESA (D-SUB 15):

Connect to D-SUB 15 VGA output

of a device such as a computer.

LED illuminates when VGA source is

selected.

EDID Settings

3 Position Dipswitch (Under

Faceplate):

Used to set EDID to correct

resolution conicts between the

source and the display.

See EDID Settings.

HDCP LED

Solid: Audio and Video signal is

HDCP protected.

Flashing: Audio and Video signal is

not HDCP protected.

O: No Audio and Video signal.

LINK LED

Solid: Link to receiver has been

established.

Flashing: Link to receiver has not

been established.

SELECT Press to switch between the VGA

and HDMI source inputs.

IR Sensor

30-55kHz IR Receiver.

Receives an IR signal from hand-

held remote or asher that is

transmitted to the remote display via

HDBaseT.

POWER IN

2-pin Screw Down Phoenix

Connector

(Optional) Connect to a 12V DC 1A

power supply (not included). Do not

use when powering transmitter via

PoH. See .Power Supply Wiring

ETHERNET

8-pin RJ-45 female

Connect to a router or switch to

supply Ethernet to remote location.

RS-232

3-pin Screw Down Phoenix

Connector

Used to send RS-232 signals to

the remote display location via

HDBaseT.

See RS-232 Wiring.

HDBT OUT

8-pin RJ-45 female

Connect to an HDBaseT receiver.

See for wiring HDBaseT Wiring

details.

IR OUT

2-pin Screw Down Phoenix

Connector

Used to send IR signals sent from

the remote display location via

HDBaseT to a device (source)

located near the transmitter.

See .IR Wiring
