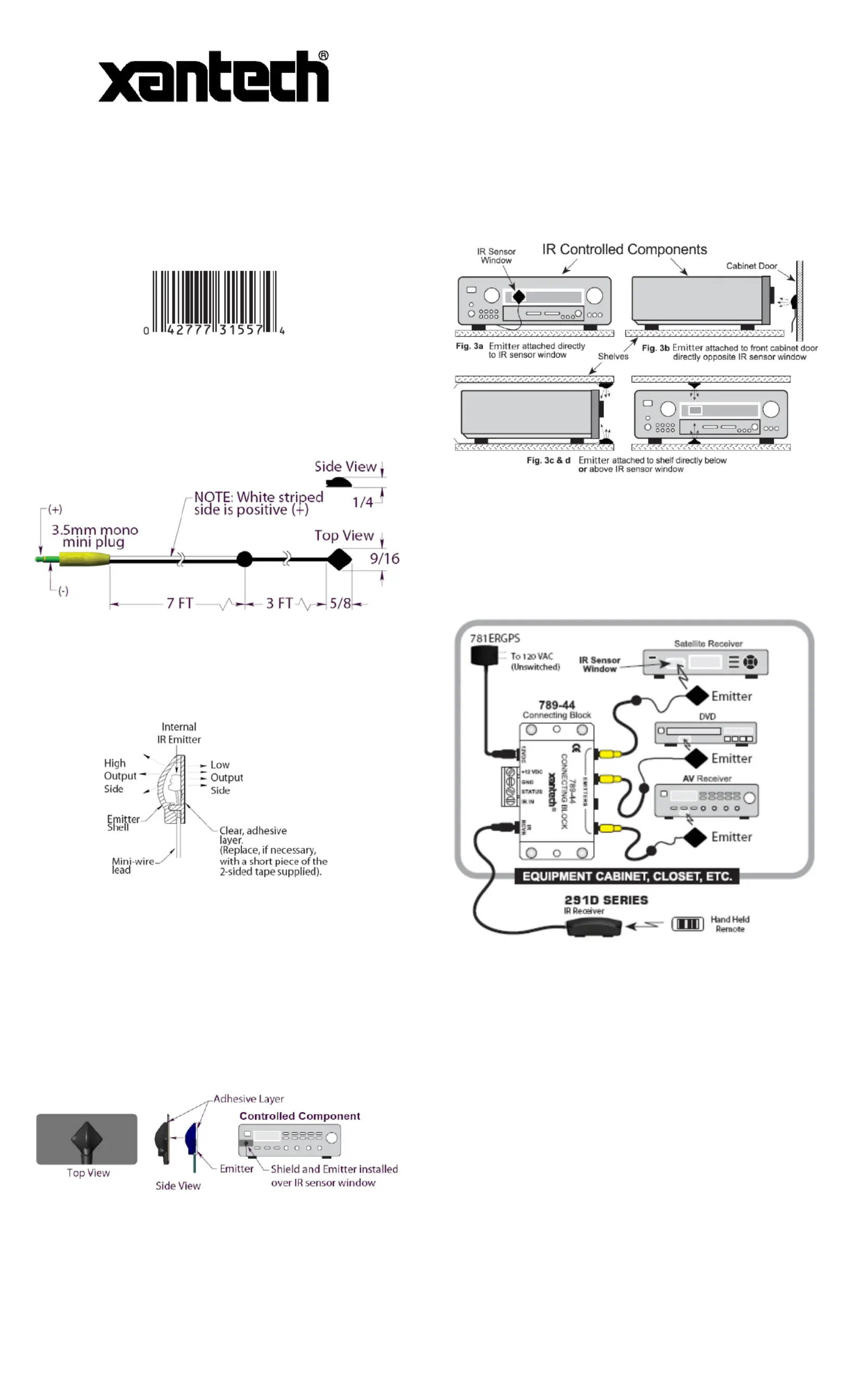

MODEL
282D
Designer Emitter
INSTALLATION INSTRUCTIONS
DESCRIPTION
The 282D Designer Emitter contains a tiny infrared LED housed in a
miniature, designer styled, black appearing, injection molded plastic shell.
It emits IR (infrared) control signals sent to it by IR receivers or other
Xantech controllers. The 282D can be installed directly on the IR sensor
window of the controlled device or other suitable locations.
INSTALLATION
ATTACHING THE EMITTERS TO IR SENSOR WINDOWS
• Each emitter has a clear adhesive layer on the bottom flat surface of
the shell.
• Simply peel off the adhesive cover and affix the emitter to the center
of the IR sensor window on the controlled component’s front panel.
• In some cases it may be difficult to find the location of the IR sensor
on the component. Consult the owner’s manual of the unit, or the
manufacturer, for the exact IR sensor window location.
• Double-sided adhesive tape is included. If you move the emitter to a
different component, use this tape to replace the current adhesive
layer for the best adhesion.
• The shell, though dark in appearance, is transparent to infrared light,
allowing commands from a handheld remote control to pass through
it. This permits direct control of the equipment from a handheld
remote as well as from the 282D.
BLACK (IR OPAQUE) EMITTER SHIELD
• An optional shield, available from Xantech as model 28DES, fits over
the emitter head and the sensor window of the controlled component.
It prevents unwanted external IR signals from passing through or
leaking past it.
• Use the 28DES when you want the equipment to respond only to the
282D, such as in zone controlled systems.
ATTACHING THE EMITTERS TO OTHER LOCATIONS
• The high output from the curved top side of the emitter permits control
from as much as 3 feet away when on the axis of the IR sensor
window of the component.
• This allows placement on surfaces just below, above or in front of the
controlled components for a more pleasing aesthetic appearance.
• Choose a location on a cabinet shelf, door, etc., as shown in Figs. 3b,
c and d. Be sure the edge of the component does not block the IR
signal (Figs. 3c and d).
CAUTION: Cabinet door locations (Fig. 3b) will usually result in interruption
of the IR control signals to the components when the door is open.
CONNECTING THE EMITTERS
• Simply insert the mono mini plug of the 282D emitter into the
“EMITTERS” or “OUT” jacks on any of the Xantech Connecting
Blocks or Controllers.
• CAUTION: DO NOT plug emitters into the IN/OUT or HIGH OUT
jacks on the 790-00 and 791-44 Connecting Blocks. To do so will
destroy the emitters!
Limited Warranty
Xantech® warrants its products to be free of defects in materials or
workmanship. This is a Limited Lifetime warranty from the date of purchase
by the original consumer. Any products returned to Xantech and found to
be defective by Xantech within the warranty period will be repaired or
replaced, at Xantech’s option, at no charge. Xantech will not be
responsible for the actual cost of installation or removal of the product, nor
for any incidental or consequential damages. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you. This warranty gives you specific
legal rights. You may have additional legal rights that vary from state to
state.
Xantech Corporation
13100 Telfair Ave. 2F, Sylmar CA 91342 | Xantech.com
Installation Instructions, 282D © 2008 Xantech Corporation
Document # 08905166A
This document is copyright protected. No part of this manual may be
copied or reproduced in any form without prior written consent from
Xantech Corporation. Xantech Corporation shall not be liable for
operational, technical, or editorial errors/omissions made in this document.
