08905087A - 1 -

INSTALLATION INSTRUCTIONS

XSS26100W

100Watt, Speaker Selector Volume Control

A/B Source Selection

6 Stereo Speaker Channels

DESCRIPTION

The XSS26100W provides an easy-to-use, easy-to-install, centralized speaker control unit. Premium

components are used to provide high-quality acoustical speaker distribution and independent volume

control. The XSS26100W requires no external power source.

SPECIFICATIONS

 Source input selectable, A or B switches.

 Dimensions: 17.5” W x 2.5” H x 6.25” L (with feet installed)

 Frequency response: 20Hz to 20kHz ± 1dB

 Attenuation: 11 steps plus OFF.

 Adjustable impedance matching. 4- or 8-Ohm speaker compatible.

 Recessed area allows the use of custom labels or ne permanent markings.

 Removable screw terminal connectors used with 12 to 22 AWG wiring.

 Rack-mount ears and hardware included.

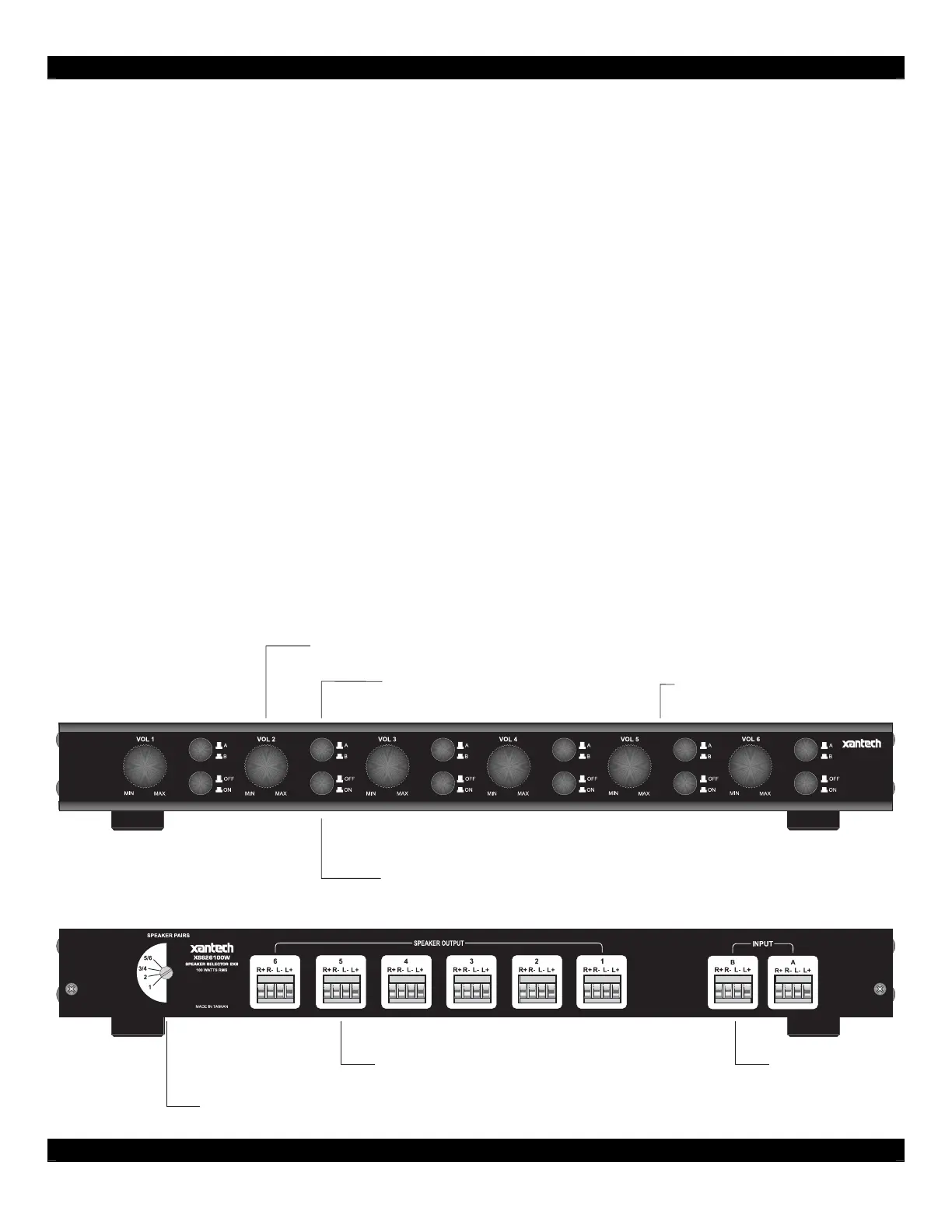

12 STEP VOLUME CONTROL

INDIVIDUAL ROOM ON/OFF SOURCE SWICH

INDIVIDUAL ROOM A/B SOURCE SWITCH RECESSED AREA FOR CUSTOM ROOM

LABELS

XSS26100W

SPEAKER

SELECTOR 2X6

IMPEDANCE PAIR SELECTOR

REMOVABLE CONNECTORS TO AMPLIFIER

08905087A - 2 -

A/B SOURCE INPUT SELECTION

The XSS26100W provides the ability for two amplifiers to be connected and active at the same time.

Each speaker output can select either an A or B source input independently.

ON/OFF OUTPUT SELECTION

The XSS26100W provides the ability for each speaker output to be turned ON or OFF independently.

Though it is possible to also turn off a speaker output by turning the volume control to OFF, this

feature allows the speaker output to maintain its previous set volume.

VOLUME CONTROL

The XSS26100W provides a volume control with 11 steps of attenuation and an OFF position. Each

speaker output can be independently controlled.

- Turning the volume knob clockwise will increase the volume.

- Turning the volume knob counter-clockwise will decrease the volume.

→→→ CLOCKWISE DIRECTION ( VOLUME UP ) → → →

KNOB POSITION 1 2 3 4 5 6 7 8 9 10 11 12

ATTENUATION OFF -42dB -36dB -30dB -24dB -18dB -15dB -12dB -9dB -6dB -3dB 0

ADJUSTABLE IMPEDANCE MATCHING

Determine the number of speaker pairs that are to be installed on one speaker output. Then, set the

speaker pair to that number.

INSTALLATION

1) Set adjustable impedance matching selector using a flat-head screwdriver. (see ADJUSTABLE

IMPEDANCE MATCHING for more information).

2) Connect each pair of speakers to the desired speaker output. It is a good idea for each

speaker output to be in the OFF position.

3) Connect the amplifier output to the either A or B input. Now set each volume control to the

input that the amplifier was installed to. (see A/B SOURCE INPUT SELECTION for more

information).

4) Set the amplifier or receiver to the lowest volume setting.

5) Set each volume control to the maximum volume setting (fully clockwise). Be sure each

speaker output is in the ON position.

6) Slowly increase the amplifier or receiver volume level until you reach the maximum listening

level desired.

7) Finally, lower the volume control level. Volume control setting is now complete.

LABEL INSTALLATION

1) Using the included labels, select the description that best matches your application.

2) Peel off the label and apply it to the XSS26100W. Be sure the surface is clean and dry.
