ATS-1050 Quick Start Guide

Supplied items

Before assembling and connecting, make sure you have received all of the following items.

If anything is missing, please call 888-892-6242, 8AM to 5PM PST Monday through Friday.

Placement

Place the sound bar in front of or below your TV, at least 50 mm

(2") away from your TV.

The sound bar may also be attached to a wall, using the

included mounting template and commercially available

screws. Refer to the Owner’s Manual for additional installation

instructions.

Set the installation position selector switch according to

the installation position of the sound bar. The sound quality

appropriate to the installation position will be set.

NOTE

•

Be careful not to stack the sound bar with any other components, as

vibration may cause system disruption in other components.

Sound bar (ATS-1050)

Mounting template

(Use when attaching the sound bar to a wall.)

Remote control Optical cable

1.5 m (4.9 ft)

3.5 mm stereo mini plug cable

1.5 m (4.9 ft)

Owner’s Manual

Continued to the reverse side

Battery

(AAA, R03, UM4) × 2

(Install the batteries in the

remote control.)

Spacer × 2

(Use when attaching the

sound bar to a wall.)

Quick Start Guide

(This sheet)

Installation position

selector switch

(bottom panel)

On a TV cabinet, etc. Attaching to a wall

Remote control

sensor (front panel)

Remote control

sensor (top panel)

Keys

Installation position

selector switch

(bottom panel)

BD/DVD ANALOG

SUBWOOFEROUT

Connections

Optical cable

(supplied)

Set top box or playback device

(such as a Blu-ray Disc

player)

Watching TV

For details, refer to the Owner’s Manual.

1. Press to turn on the sound bar.

2. Press the TV key to select TV as the input source.

3. Select the desired input source on the TV.

4. Press the VOLUME (+/–) keys to adjust the

volume.

Playback of a deviceBluetooth®

You can connect a Bluetooth device, such as a smartphone or

digital music player, with the sound bar wirelessly. For details,

refer to the Owner’s Manual.

... and more features!

For details about the other useful features, refer to the

Owner’s Manual.

– “HOME THEATER CONTROLLER” sound bar control app

– TV’s remote control learning function

– Clear voice

OPTICAL OUTPUT

Connect to an AC wall

outlet. Leave the unit

powered off until all

connections are complete.

Sound bar (rear)

HINT

In the following cases, connect the coaxial digital

audio output of the playback device to the BD/DVD

input of the sound bar with a coaxial digital cable

(commercially available), then select the BD/DVD key

on the remote control for the input source.

– The TV does not have an optical output.

– The TV does not output audio (or outputs low volume

audio) from the connected playback device.

– The audio from the playback device connected to

the TV cannot be heard as surround sound.

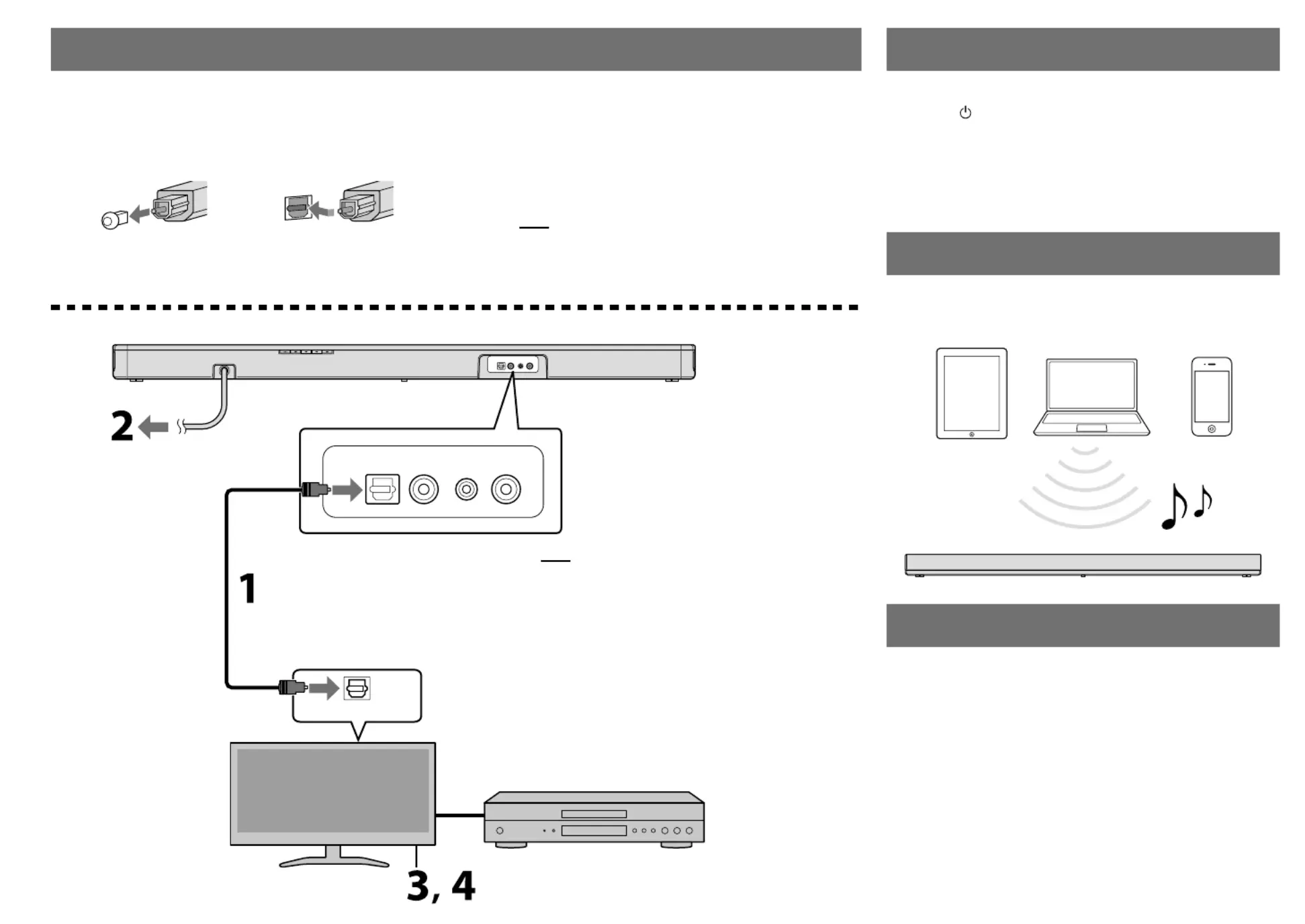

Connect the TV and sound bar with the

optical cable (supplied).

Remove the cap of the optical cable and check the

direction of the plug.

Connect the power cable of the sound bar to

AC wall outlet.

Turn on the TV and set the volume to

minimum.

Disable the TV speakers using the TV’s audio

settings menu (if available).

HINT

If a setting to disable the speaker output is not available on

your TV, you may disable it by connecting headphones to the

headphone jack on the TV. For details, refer to the instruction

manual of the TV.

The Bluetooth

word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under

license.

Blu-ray Disc is a trademark of the Blu-ray Disc Association.
