OVERVIEW OF THE INSTALLATION

STEPS

PREPARE/SWITCH ON 8585/8595

8585/8595 Vehicle-Mount

PREREQUISITES

Note: A description of the Conﬁg settings is detailed in the 8585/8595

User Guide, PN 8000240.

>Launch Conﬁg through Start>Programs.

>Note that Conﬁg settings can only be saved in .Admin Mode

>Enter the password .gold

>Conﬁgure the Automatic Switch-off function - this

governs the power-up and shutdown procedure for the

8585/8595 connected to a separate start up signal (for

example, a car ignition).

>Program the Front Panel keys of the 8585/8595. Assign

frequently used functions to the soft keys.

OVER >

Note: Conﬁgure the 8585/8595 before fastening it to machines or

vehicles. In this way, software conﬁguration for the WLAN

function, for Automatic switch-off. etc. is signiﬁcantly

simpler and more convenient.

>Power supply cable 1616302-001 or 1616303-001.

>If operating the 8585/8595 using an external mouse or

keyboard, connect this before switching on the device.

POWER SUPPLY/SWITCH ON THE DEVICE

>Connect the 8585/8595 to the vehicle power supply using

a 1616302-001 or 1616303-001 power cable.

>Press the Power button to switch on the 8585/8595.

IMPORTANT: The 8585/8595 series is equipped with an integrated

power supply for direct voltage. 12/24 VDC and

24/48 VDC models are available. The output

voltage of the vehicle must be compatible with the

input voltage of the 8585/8595. If it is not, the

8585/8595 may be badly damaged.

CONFIGURING THE 8585/8595

WITH CONFIG

The 8585/8595 is equipped with the conﬁguration program, Conﬁg.

You can deﬁne the automatic switch off and front key assignment

along with other settings using this program.

IMPORTANT: Conﬁg settings should only be made by qualiﬁed

technical staff.

Conﬁg Program Functions

>Click on the Congig icon in the taskbar.

LAUNCHING CONFIG

>Conﬁg is automatically launched in the . Note Admin Mode

that Conﬁg settings can only be saved in Admin Mode.

>Enter the password . gold

CONFIGURING CONTINUED

Note: Use the Settings menu to deﬁne the language of the Conﬁg

software.

WIRELESS NETWORK SETTINGS

(WLAN)

As an option, the 8585/8595 can be equipped with a Summit WLAN

card. A default WLAN proﬁle with the basic settings is deﬁned at the

factory. This proﬁle must be adjusted to customer-speciﬁc require-

ments using the Summit Client Utility program (SCU).

IMPORTANT: WLAN settings with SCU should only be changed by

qualiﬁed technical staff.

>To launch SCU, click on the on the desktop.SCU icon

>Log on, and insert the password (all in uppercase).SUMMIT

>Make the necessary setting changes.

SUMMIT CLIENT UTILITY PROGRAM (SCU)

Before you mount the 8585/95:

>The automatic switch-off function must be conﬁgured.

>The installation site/vehicle must be prepared (on vehicles:

connection to ignition, observe correct voltage, etc.).

POSITION OF 8585/8595 ON VEHICLES

>The driver’s ﬁeld of vision must be obstructed.not

>If a keyboard and scanner are to be installed, allow

enough space.

We recommend that the installation process be carried out in the

following sequence:

> Step 1: Secure the mounting bracket onto the vehicle.

> Step 2: Connect the cables to the device.

> Step 3: Attached the 8585/8595 to the mounting bracket.

> Step 4: If 8585/8595 is mounted above head height, it is

recommended to also use a safety strap with the

mount bracket.

Note: Copy the following web site to your browser to access product

User Guide and mounting bracket Installation Instructions:

http://www.ingenuityworking.com/knowledge/w/

knowledgebase/1135.85858595-vehicle-mount-computers-prod

uct-manuals.aspx

Ignition adaptor

cable

PN 1616302-001

Screen blanking

adaptor cable

PN 1616303-001

March 8, 2015

PN MN001636A02.a

8585/8595 VEHICLE-MOUNT COMPUTER

Quick Start Guide

M N 0 0 1 6 3 6 A 0 2

ELECTRICAL INSTALLATION

IMPORTANT!

>Position and connect the 8585/8595 as close to the battery

as possible.

>Do not attach the 8585/8595 directly to a connector for a

high-powered consumer (e.g., an inverter for forklift motors)

as this could cause restarts, malfunctions or damage to

the device.

>Some forklifts have a chassis that is connected to DC+;

therefore, the 8585/8595 chassis is also connected to DC+.

However, if peripheral devices that supply DC- to the

8585/8595 through an interconnector (such as a DC- serial

port), this will cause a short circuit. This will inevitably lead

to malfunctions or even a total system failure.

>Some forklifts have a chassis that is isolated from DC+ and

DC-. Ground connection of the 8585/85 chassis should be

connected to the vehicle chassis.

>Ensure that the ground connection is correct. Individual

vehicle requirements and any installed supplementary

electronic systems on the vehicles must be reviewed to

ensure that 8585/8595 grounding is compatible.

Refer to vehicle manufacturers instructions.

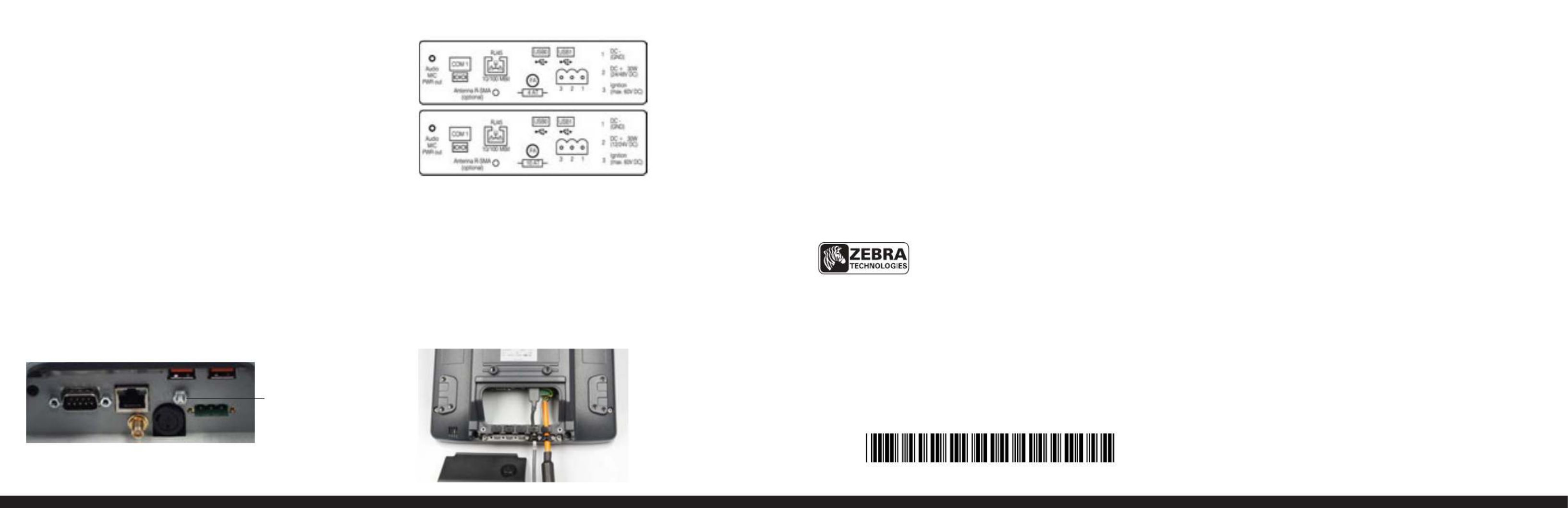

ELECTRICAL CONTINUED

Ground bolt

8585/8595 connectors,

24/48 VDC

8585/8595 connectors,

12/24 VDC

CABLE COVER AND STRAIN

RELIEF

Once the 8585/8595 and mounting bracket have been secured:

>Prepare the strain relief. (See illustration on next page.)

>Position the cables on the stress relief rail so that they will

ﬁt through the openings in the cable cover.

>Mount the cable loosely on the strain relief rail.

Zebra reserves the right to make changes to any product to improve reliability, function, or design.

Zebra does not assume any product liability arising out of, or in connection with, the application or use of any

product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or

patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in

which Zebra products might be used. An implied license exists only for equipment, circuit, and subsystems

contained in Zebra Products.

Warranty

For the complete Zebra hardware product warranty statement, go to:

http://www.zebra.com/warranty

Zebra Technologies Corporation

Lincolnshire, IL U.S.A.

http://www.zebra.com

Psion, Psion Teklogix, and the 8585/95 are trademarks of Psion Inc. Other product names mentioned in

this document are trademarks or registered trademarks of other hardware, software, or service provid-

ers and are used herein for identication purposes only.

Final steps:

>Fix the cables to the strain relief rail.

>Close the cable cover carefully.

Example of cable positioning to the

strain relief rail
