© 2016 ZOOM CORPORATION
Copying or reprinting this manual in part
or in whole without permission is prohibited.
OPERATION MANUAL
Handy Recorder
001
Introduction / H4n Pro features
H4n Pro features
Introduction
• An all-in-one handy recorder.
The H4n Pro is lightweight (294 g) with a very compact design and is equipped
with high quality stereo condenser microphones arranged in an XY pickup
pattern, a built-in speaker, SD card recording, a mixer and internal effects.
You can enjoy recording and creating your own music anytime, anywhere with
the H4n Pro.
• Versatile eld recorder with multi-track capability.
The H4n Pro is capable of recording in several different operation modes.
STEREO mode enables high-quality stereo recording. 4CH mode can record 2
sound sources simultaneously in stereo. MTR mode allows playback of 4 tracks
and recording of 2 tracks simultaneously. You can use it as a eld recorder to
record melodies and band performances on-the-y and to capture sound effects.
You can also use it as a multitrack recorder to make songs by overdubbing instru-
ments and vocals. Furthermore, in STAMINA mode you can record in stereo for
up to 11 hours using batteries only.
• New 90/120°-variable XY stereo mic
The H4n Pro allows you to adjust the angle of the onboard microphones to address
a wider range of recording scenarios. Set the microphones to 120° for a wider area
of sound, or set them to 90° for a more focused sound source. Either way, the
mics retain their XY conguration, so you can record natural stereo sound with
no phase cancellation.
• Connect mics and guitars directly using combined XLR/
standard phone jacks
The H4n Pro includes input jacks for connections that can accommodate a variety
of recording styles. Microphones, including stereo mics and condensers, electric
guitars, basses and keyboards can all be connected directly.
• Use as an audio interface and SD card with a computer
An onboard USB 2.0 Hi-Speed port allows direct connection to a computer. You
can use it as an audio interface with built-in effects (sampling rate limited to 44.1
kHz when using the effects). You can also use the H4n Pro as an SD card reader
for your computer. You can transfer recorded les to your computer and use them
to create audio CDs or work with them in DAW software.
• Tuner, metronome, karaoke and various other functions
The tuner functions include not only a standard chromatic tuner, but also support
less common tunings, such as for 7-string guitars and 5-string basses. The metro-
nome function is convenient for practice and multitrack recording. You can also
use the H4n Pro as a practice device.
Use the SPEED function to adjust the playback speed from 50–150%. The
KARAOKE functions include center canceling for stereo les and variable key
control, making it valuable for language learning and voice training.
Thank you very much for purchasing our ZOOM H4n Pro Handy Recorder.
The H4n Pro has the following special features.
Please read this manual carefully to fully understand the functions of the H4n Pro so that you can make the most of it for many years.
After reading this manual, please keep it with the warranty in a safe place.
002
Introduction / Applications
The H4n Pro is ideal for these applications
Vocal recording
Recording live performances
Recording meetings
Recording acoustic guitars
Band practices
Field recording
Piano recitals
Transferring analog sound sources to digital
Drum practice recording
004
Introduction / Contents
1-07 Settings/recording: TRACK MENU ................................................ 057
1-08-1 Settings/recording: Automatic re-recording (PUNCH IN/OUT) ..... 059
1-08-2 Settings/recording: Manual re-recording (PUNCH IN/OUT) .......... 061
2-01-1 Recording functions: AUTO REC ................................................... 063
2-01-2 Recording functions: AUTO REC STOP ........................................ 064
2-02 Recording functions: PRE REC...................................................... 065
2-03 Recording functions: LO CUT ........................................................ 066
2-04 Recording functions: COMP/LIMIT ................................................ 067
2-05 Recording functions: REC LEVEL AUTO ....................................... 069
2-06 Recording functions: MONITOR .................................................... 070
2-07 Recording functions: INPUT 1/2 LEVEL LINK................................ 071
2-08 Recording functions: MONO MIX .................................................. 072
2-09 Recording functions: MS STEREO MATRIX .................................. 073
3-01-1 Tuner: CHROMATIC TUNER .......................................................... 075
3-01-2 Tuner: other TUNER types ............................................................. 076
3-01-3 Tuner: TUNER CALIB ..................................................................... 077
3-01-4 Tuner: TUNER INPUT..................................................................... 078
3-02 Metronome (METRONOME)........................................................... 079
3-03-1 Eectsoverview ............................................................................. 081
3-03-2 Eects(EFFECT) ............................................................................ 083
3-03-3 Patch editing (EFFECT EDIT) ......................................................... 084
3-03-4 PRE AMP module editing (EFFECT EDIT: PRE AMP) .................... 085
3-03-5 EFX module editing (EFFECT EDIT: EFX) ....................................... 086
3-03-6 EFFECT EDIT: LEVEL/RENAME..................................................... 087
3-03-7 EFFECT EDIT: STORE ................................................................... 088
3-03-8 Importing patches from other projects (EFFECT IMPORT) ........... 089
3-04-1 Karaoke preparation (KARAOKE) ................................................... 091
3-04-2 Karaoke recording (KARAOKE) ...................................................... 093
4-01 Playback: File Playback (STEREO, 4CH and STAMINA modes) ... 094
4-02 Playback: PLAY MODE .................................................................. 095
4-03 Playback: Setting marks ................................................................ 096
4-04 Playback: AB REPEAT ................................................................... 097
4-05 Playback: SPEED ........................................................................... 099
4-06 Playback: MIXER............................................................................ 100
4-07 Playback:Playingles(MTRmode) ............................................... 101
4-08 Playback: Specifying a counter time ............................................. 102
5-01 Editing/Output: FOLDER SELECT ................................................. 103
5-02 Editing/Output: FILE SELECT ........................................................ 104
5-03 Editing/Output: FILE INFORMATION ............................................. 105
5-04 Editing/Output: FILE DELETE ........................................................ 106
5-05 Editing/Output: FILE DELETE ALL ................................................. 107
5-06 Editing/Output: FILE COPY............................................................ 108
5-07 Editing/Output: FILE RENAME ....................................................... 109
5-08 Editing/Output: FILE MP3 ENCODE .............................................. 111
006
Introduction / Safety precautions for users
Safety precautions for users
SAFETY PRECAUTIONS
In this manual, warning and caution symbols are used to
highlight dangers of accidents and troubles. Users should
read them to prevent accidents. The meanings of these sym-
bols are as follows:
If the users ignore this symbol and handle the de-
vice the wrong way, serious injury or death could
result.
If the users ignore this symbol and handle the de-
vice the wrong way, bodily injury and damage to
the equipment could result.
An action that is mandatory
An action that is prohibited
Please read through the following safety tips and precautions
to ensure hazard-free use of the H4n Pro.
Power requirements
AC adapter operation
Make sure to use only a DC5 center plus 1A
(ZOOM AD 14) AC adapter. The use of other
than the specied type could damage the unit
and pose a safety hazard.
Connect the AC adapter only to an AC outlet
that supplies the rated voltage required by the
adapter.
When disconnecting the AC adapter from the
AC outlet, make sure to grasp the adapter itself.
Never pull on the cable.
During lightning or when not using for an ex-
tended period, disconnect the AC adapter from
the AC outlet.
Battery operation
Use 2 commercially-available 1.5V AA batteries
(alkaline dry cell batteries or nickel metal hydride
batteries).
When not using for an extended period, remove
the batteries from the unit.
If battery leakage has occurred, wipe the battery
compartment and battery terminals carefully to
remove all remnant of battery uid.
When using the unit, the battery compartment
cover should be closed.
Install batteries with the correct +/− orientations.
Do not use new and old batteries together. Do
not use batteries of dierent brands or types
together.
Environment
To prevent unexpected troubles and malfunc-
tions, avoid using the H4n Pro in environments
where it will be exposed to:
• Extreme temperatures
• Heat sources such as radiators or stoves
• High humidity or moisture
• Excessive dust or sand
• Excessive vibration or shock
Handling
The H4n Pro is a precision instrument. Do not
exert undue pressure on the keys and other
controls. Take care not to drop or bump it, and
do not subject it to shock or excessive pressure,
which can cause serious trouble.
Take care that no foreign objects (coins, pins,
etc.) or liquids (water, alcoholic drinks or juice)
enter the unit.
Do not place the H4n Pro speaker close to other
precision instruments (watches and computers),
electronic medical instruments or magnetic cards.
Connecting cables and input and output jacks
You should always turn o the power to the H4n Pro
and all other equipment before connecting or discon-
necting any cables. Make sure to disconnect all con-
nection cables and the power cord before moving
the H4n Pro.
Alterations
Never open the case of the H4n Pro or attempt
to modify the product in any way since this
could result in damage to the unit.
Volume
Do not use the H4n Pro at a loud volume for
a long time since this could cause hearing im-
pairment.
USAGE PRECAUTIONS
Electrical interference
For safety considerations, the H4n Pro has been designed
to provide maximum protection against the emission of elec-
tromagnetic radiation from inside the device, and protection
from external interference. However, equipment that is very
susceptible to interference or that emits powerful electro-
magnetic waves should not be placed near the H4n Pro, as
the possibility of interference cannot be ruled out entirely.
With any type of digital control device, the H4n Pro included,
electromagnetic interference could cause malfunction and
could corrupt or destroy data. Care should be taken to mini-
mize the risk of damage.
Cleaning
Use a soft, dry cloth to clean the H4n Pro. If necessary,
slightly moisten the cloth. Do not use abrasive cleanser, wax,
or solvents (such as paint thinner or cleaning alcohol), since
these may dull the nish or damage the surface.
Breakdown and malfunction
If the unit becomes broken or malfunctions, immediately dis-
connect the AC adapter, turn the power o and disconnect
other cables. Contact the store where you bought the unit or
ZOOM service with the following information: product mod-
el, serial number and specic symptoms of breakdown or
malfunction, along with your name, address and telephone
number.
Please keep this manual in a convenient
place for future reference.
007
Introduction / Copyright warnings
Copyright warnings
■ Recording of live performances
Many artists and most live venues do not allow recording and photography and
will check for cameras and recorders at the entrance. Even if recording is allowed,
it is prohibited to sell, distribute, or upload to the Internet without the organizers
authorization. Copyright violation is a crime.
■ Music CDs and downloaded sound sources
Using music recorded on CDs and other media as well as downloaded sound
sources for purposes other than personal enjoyment (including, for example, play-
ing them in a concert hall or other location and altering songs) could be a violation
of copyright laws.
Zoom Corporation will not assume any responsibility related to infringements of
copyrights.
Trademarks:
• The SD and SDHC logos are trademarks.
• MPEG Layer-3 audio compression technology is licensed from Fraunhofer IIS and Sisvel
S.p.A.
• Windows®, Windows® 10, Windows®8, Windows® 7 and Windows Vista® are trademarks
or registered trademarks of Microsoft® Corporation.
• Macintosh and Mac OS are trademarks of Apple Inc.
• Other product names, registered trademarks and company names in this document are
the property of their respective companies.
For the purpose of improvement, product specications and appearance are subject to
change without notice.
〉〉〉〉 〉〉〉〉 〉〉〉〉
009
Operational overview / Recording ow using the H4n Pro

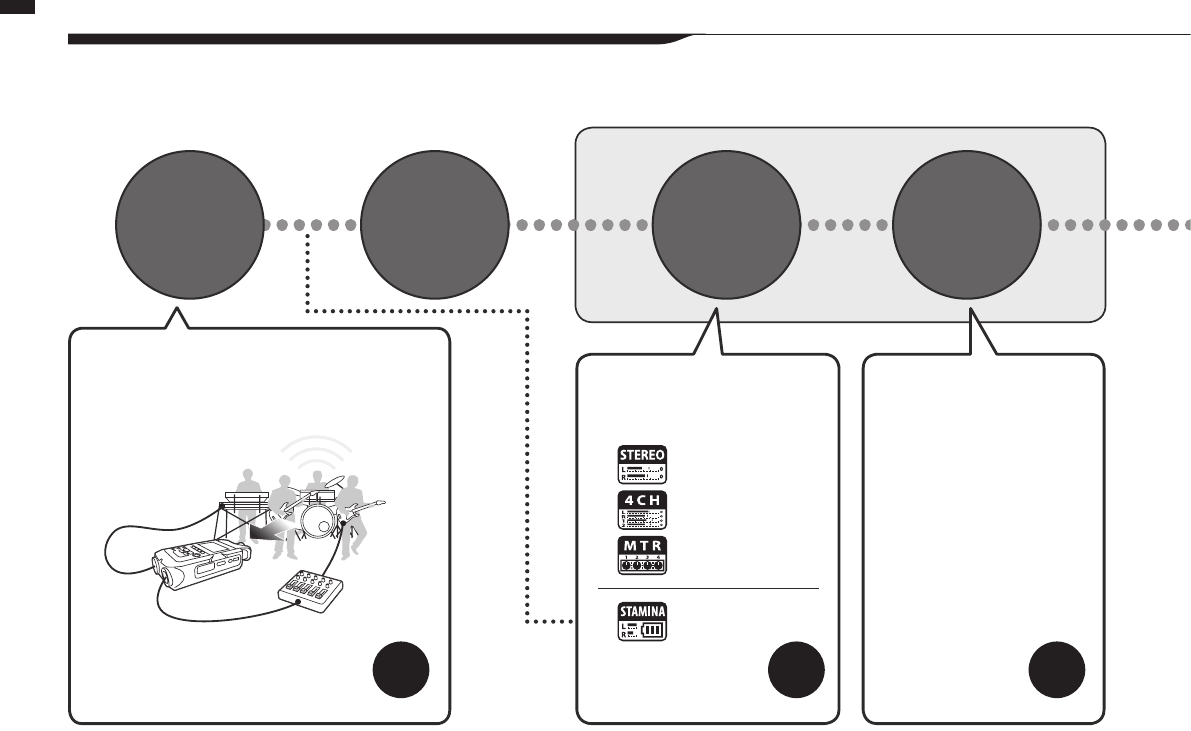

1-1 Recording ow using the H4n Pro
Operational overview
ThefollowingisthebasicowofrecordingoperationsfortheH4nPro.Dependingontherecordingapplication,
you can select which recording mode and audio quality setting is right for the situation.
In addition to the built-in mic, you can use the
external stereo mic input jack and INPUT 1 and 2
external input jacks. Phantom power and plug in
power are also supported.
You can select among 4 modes
according to the input source types,
and post-recording editing and output
needs.
Set-up
STEREO Mode
• AUTO REC
• REC LEVEL AUTO
• LO CUT
• COMP/LIMIT
• MONO MIX
• METRONOME
• EFFECT/PATCH
• KARAOKE etc.
4CH Mode
MTR Mode
STAMINA Mode
Set the recording level and other
settings as you like.
Connect
to other
audio
devices
Turn the
power on Select the
mode
Set the
recording
method
P.017
P.027 P.035 P.063-
〉〉〉〉 〉〉〉〉 〉〉〉〉
〉〉〉〉 〉〉〉〉 〉〉〉〉
010
Operational overview / Recording ow using the H4n Pro
• PLAY MODE
• AB REPEAT
• SPEED
• MARK LIST
etc.
Recording in STEREO/
STAMINA mode………...P.047
Recording in 4CH mode
...………P.051
Recording in MTR mode
…...……P.053
• PUNCH-IN/OUT
etc.
• FILE INFORMATION
• FILE MP3 ENCODE
• FILE STEREO ENCODE
• DIVIDE
• MOVE
• BOUNCE
etc.
Use these convenient ways to
swiftly review/playback parts of
recordings.
In MTR mode punch-in/out func-
tions allow you to re-record only
sections you want to correct.
Recordings are managed as les
and projects, and can be edited in
various ways.
Record Playback
and conrm
Re-record
Edit and
output
P.094- P.059- P.105-
013
Fundamentals / Names and functions of parts

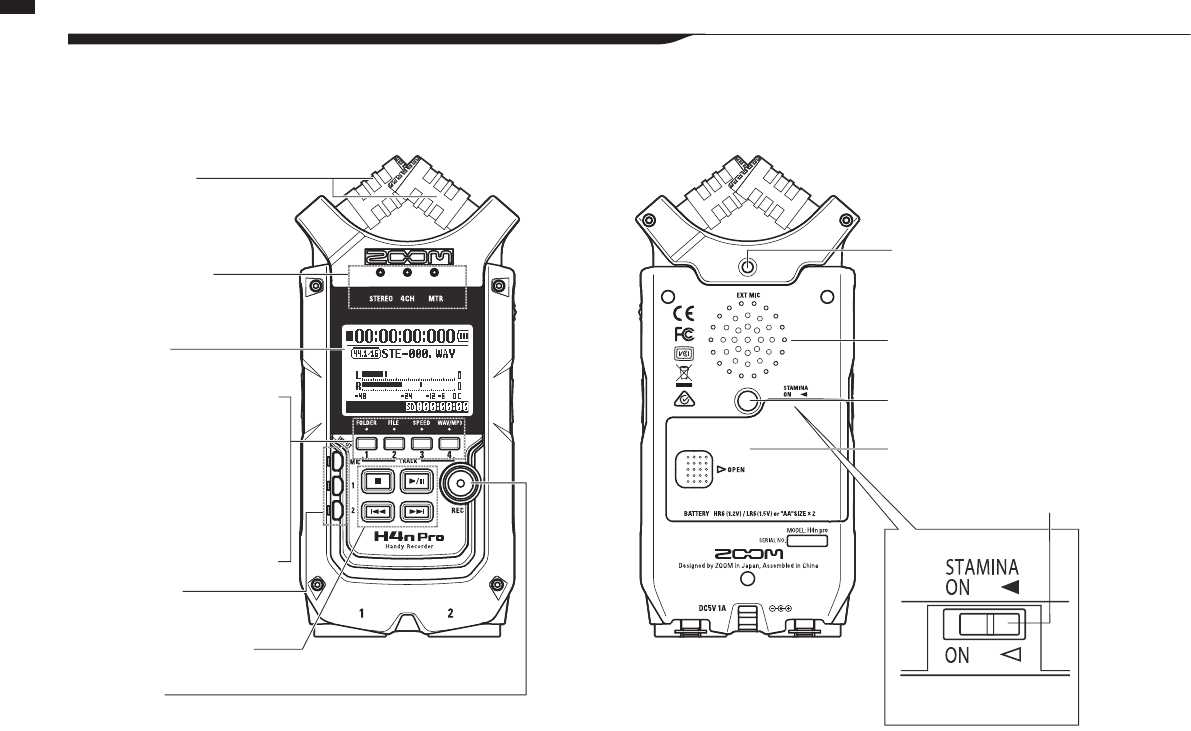

2-1 Names and functions of parts
Fundamentals
Front Back
Input jack for external stereo
mic that uses plug-in power
Built-in mono speaker
Threaded tripod mount
Battery cover
STAMINA switch
90/120° stereo
XY mic (built-in)
•STEREO/4CHmode
shortcut buttons
1 FOLDER
2 FILE
3 SPEED (Stereo mode)
4 WAV/MP3 (Stereo/4CH mode)
•MTRmodeTRACK
1–4 buttons
STEREO/4CH/MTR
mode indicators
Display with
backlight
INPUT
MIC, 1–2 buttons
Transport control buttons
REC button
Produkt Specifikationer
| Mærke: | Zoom |
| Kategori: | Digital multitrack optager |
| Model: | H4nPro |
Har du brug for hjælp?
Hvis du har brug for hjælp til Zoom H4nPro stil et spørgsmål nedenfor, og andre brugere vil svare dig
Digital multitrack optager Zoom Manualer
15 August 2024
14 August 2024
9 August 2024
6 August 2024
Digital multitrack optager Manualer
Nyeste Digital multitrack optager Manualer
22 August 2024
21 August 2024
21 August 2024
4 Juli 2024
4 Juli 2024
