Side 1/4
Installation
Maintenance Instructions

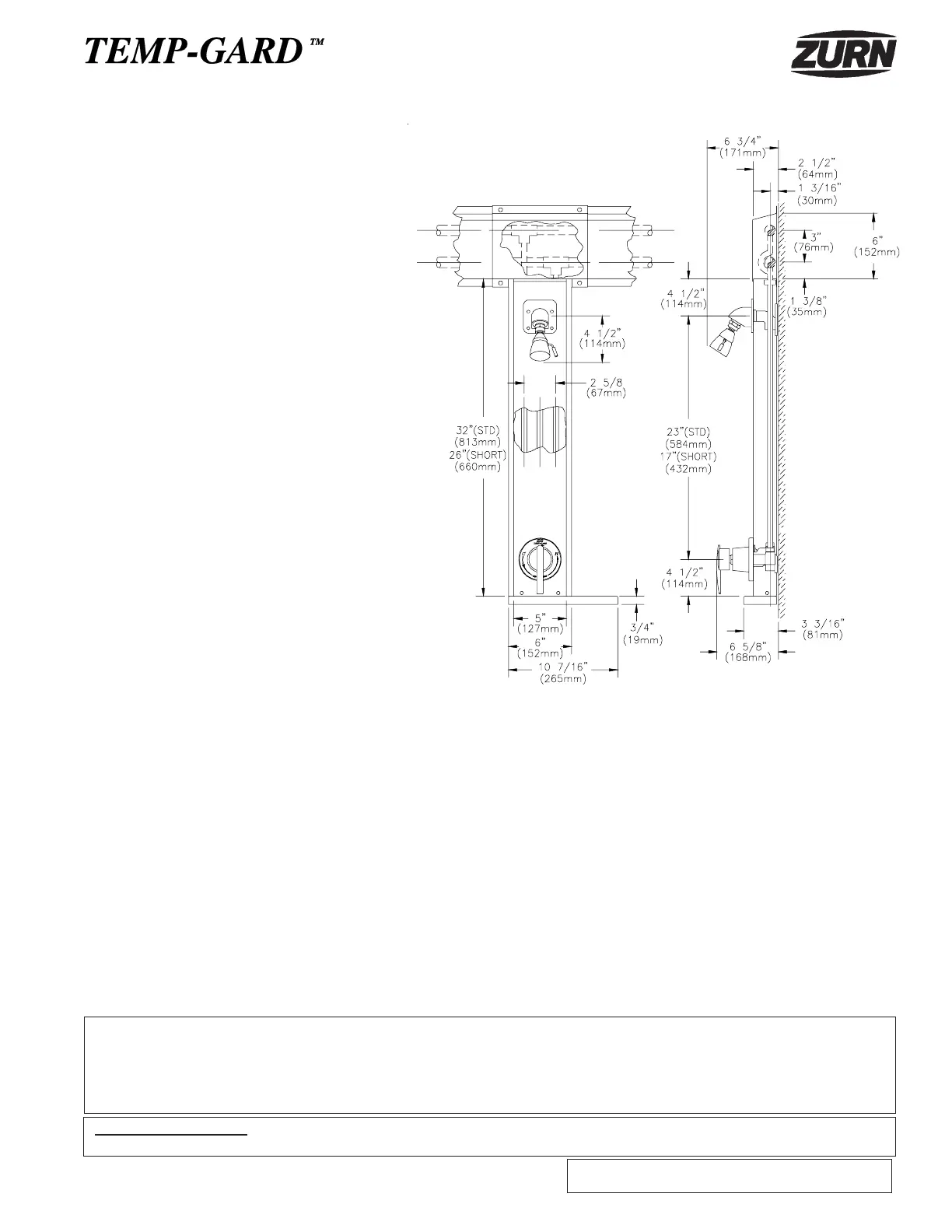

AQUA-PANEL, MODELS - Z7500, Z7530, Z7550, AND Z7533 SERIES
Pressure Balancing Shower Valve
AQUA-PANEL INSTALLATION INSTRUCTIONS
1. Remove all valve handles and
escutcheons from all valves
(Metering, Diverter, and/or Pressure
Balancing) on Aqua-Panel unit.
2. Remove top two vandal proof screws
from the institutional showerhead
mount. Leave the bottom two screws
attached to the panel. Remove
vandal proof screw that fastens valve
to panel. Screw is located just above
valve body.
3. Lift off panel from valve / piping
assembly.
4. Mount valve / piping assembly on wall
using the three holes in the top wall
bracket and the two holes by the
valve body.
5. Remove pressure balancing valve
control stem by first backing out
adjustment screw until o-ring is fully
exposed. Next, open valve counter
clockwise to full hot position and
unscrew bonnet cap. Control stem
and bonnet cap will come out
together. Leave packing nut in place.
The preceding sequence must be
followed to avoid distortion of control
stem.
6. If unit has metering valve in place of
pressure balancing valve remove
handle nut assembly and poppet
assembly.
7. Turn service stops, counter
clockwise, to fully open position.
8. Solder connections at the hot and
cold inlet pipes.
9. Turn water on and flush system of
any debris.
10. Turn water off and reinstall pressure
balancing valve control stem, or
handle nut and poppet assemblies
in metering valves.
14. If thru-ceiling extension pipe covers
are being used, remove top end cap
and use internal bracket (7500-17B)
to attach panel to extension. Use
external bracket (7500-17A) to
fasten extension to wall near the
ceiling.
12. Turn water on, and use adjustment
screw to limit maximum water
temperature on pressure balancing
valve as described in box below. To
adjust metering valve see supplim-
ental instructions.
13. Reinstall all escutcheons and
handles. Attach handwall unit if
applicable.
11. Remove protective coating from
panel and reinstall on valve / piping
assembly. Gently press tailpiece
with o-ring into wall bracket.
Reattach the top two vandal proof
screws into the wall bracket.
Reattach lower vandal proof screw
just above valve body.
Installation Notes for Options:
CR-Unit is attached to wall using
brackets provided.
FL-Removal of panel from piping is
not necessary, connect supplies
using flexible hoses provided.
TS-Removal of tub Spout is required
W2, W3-Removal of panel from piping is
not necessary. Remove top end
cap to access top mounting
slots.
The ZURN AQUA-PANEL Pressure Balancing Shower Valve is equipped with an adjustable limit stop screw. The limit stop device is to be
used to limit the valve handle from being turned to undesired hot water discharge temperatures. To adjust the limit stop screw, remove
handle and escutcheon, turn valve to maximum desired temperature and turn the limit stop screw until it seats.
IMPORTANT: Failure to adjust the limit stop screw properly increases the chances for serious injury.
WARNING: This shower system may not protect the user from scalding when there is a failure of other temperature controlling devices
elsewhere in the plumbing system.
Proposition 65 Warning This product contains chemicals known to the State of California to cause cancer or birth defects or
other reproductive harm.
Form # CF941 Date: 12/16/11 Product No. IS7500
C.N. No. 128419 Rev. D Sheet 1 of 4
