AIMB-789 Startup Manual 1

AIMB-789 LGA1851 Intel

Core™ Ultra (Series 2) ATX

Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2

Startup Manual

Specications (Cont.) Packing List

For more information on this and other Advantech prod-

ucts, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our sup-

port website for AIMB-789 at:

https://advt.ch/aimb789espt

extra warranty for free at:

http://www.register.advantech.com

This manual is for the AIMB-789 series Rev. A1, and all

specications are subject to the datasheet on the o󰀩cial

website. The information in this manual is subject to

change without notice.

Part No. 2041078900

Printed in China

1st Edition

Feb 2025

• SATA interface: Four on-board Serial ATA 3.0 connectors

support data transmission rates up to 600 MB/s. All four

SATA 3.0 ports support Advanced Host Controller Inter-

face (AHCI) technology.

• PCIe and PCI slots: One PCIe x16 Gen 5 expansion

slot, one PCIe p1-x8 expansion slot (Gen 4 p1-x4 link), three

PCIe p1-x4 (Gen 4) expansion slots (Gen 4 p1-x4 link), one

PCIe p1-x1 Gen4 expansion slot, and one PCI slot.

• USB 3.2/2.0: 6 USB 3.2 Gen 1 ports (4 rear, 2 via

header), 7 USB 2.0 ports (4 rear, 2 via header, 1 internal

Type-A).

• Serial port: Six serial ports: COM1, COM2 and COM4 ~

6 are RS-232; COM3 is RS-232/422/485 with BIOS menu

options.

• SPI interface: Advantech-designed SPI connector sup-

ports optional dTPM 2.0 module.

• Watchdog timer: 255 timer level intervals.

Graphics Interface

• Chipset: CPU integrated graphics controller.

• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz

refresh rate.

• HDMI: Resolution up to 3840 x 2160 @ 30 Hz refresh

rate.

• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.

Ethernet Interface

• Interface: 10/100/1000 Mbps.

• Controller: LAN1: Intel

I219-LM; LAN2: Intel

I210-AT.

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)

• Power consumption: Intel® Core™ Ultra 65W; DDR5

32 GB x 4

Maximum: +3.3 V at 7.35 A, +5 V at 3.45 A, +12 V at 0.21

A, +5 Vsb at 0.23 A, -12 V at 0.06 A

• Operating temperature: 0 ~ 60°C (depending on CPU

loading and thermal solution)

• Weight of board: 0.7 kg (1.54 lb)

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x AIMB-789 motherboard

• 1 x AIMB-789 startup manual

• 2 x Serial ATA HDD data cables

• 1 x I/O port bracket

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard Functions

• CPU: LGA1851 socket supporting Intel

Core™ Ultra

(Series 2) Desktop Processors.

• BIOS: AMI 256 Mbit SPI BIOS

• Chipset: Intel

Q870 PCH

Note: Legacy platforms are not supported.

• System memory: Up to 192 GB in four 288-pin DIMM

sockets, supporting dual-channel DDR5 4400 SDRAM.

AIMB-789 supports non-ECC unbu󰀨ered DIMMs

• M.2 socket: M.2 socket supports up to PCIe p1-x4 Gen 5

M-Key 2280 type storage devices.

Specications

2 AIMB-789 Startup Manual

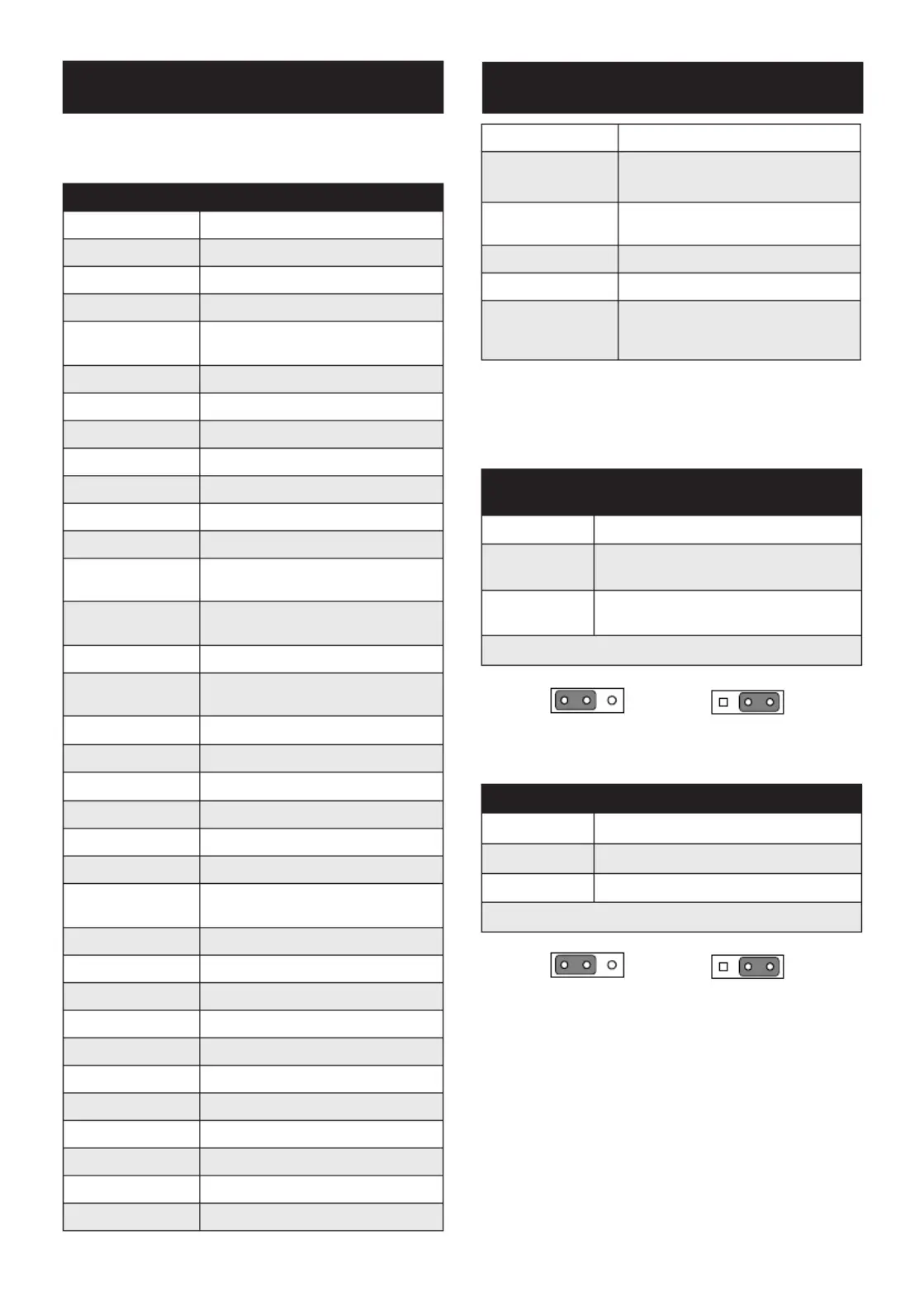

The board has a number of jumpers that allow you to con-

gure your system to suit your application. The table below

lists the function of each jumper and connector.

Connector/Jumper List

Label Function

LAN1 ~ LAN2 GbE LAN

USB3C1 USB 3.2 Gen 1 port *2

USB3C2 USB 3.2 Gen 1 port *2

USB3H1

USB 3.2 Gen 1 port *2

(20-pin header)

USB2C1 USB 2.0 port *4

USB2A1~USB2A2 USB 2.0 port (internal Type-A)

USB2H1 USB 2.0 port *2 (10-pin header)

VGA1 VGA connector

COM1 Serial port: RS-232 (DB-9 connector)

HDMI1 HDMI connector

DP1 DP connector

COM2,

COM4 ~ COM6

Serial port: RS-232 (9-pin header)

COM3

Serial port: RS-232/422/485 (9-pin

header)

CPUFAN1 CPU fan connector (4-pin)

SYSFAN1 ~

SYSFAN3

System fan connector (4-pin)

JFP1 + JFP2 Front panel connector

AUDIO1+AUDIO2 Audio connector (Line Out, Mic In)

VOLT1 Alarm board power connector

JCASE1 Case open connector

LANLED1 Front panel LAN indicator connector

NVME1 M.2 2280 M-Key socket

NVME2

M.2 2280 M-Key socket (Only on the

AIMB-789-1 version)

SATA4 ~ SATA7 Serial ATA 3.0 port

PCIE1 PCIe x16 slot (Gen 5)

PCIE2 PCIe p2-x4 slot (Gen 4)

PCIE3 PCI slot

PCIE4 PCIe p2-x1 slot (Gen 4)

PCIE5 PCIe p2-x4 slot (Gen 4)

PCIE6 PCIe p2-x8 slot (x4 Gen 4 link)

PCIE7 PCIe p2-x4 slot (Gen 4 link)

DIMMA1 Channel A DIMM1

DIMMA2 Channel A DIMM2

DIMMB1 Channel B DIMM1

DIMMB2 Channel B DIMM2

ATX12V1+

ATX12V2

ATX 12 V auxiliary power connector

(for CPU)

EATXPWR1

ATX 24-pin main power connector

(for system)

GPIO1 8-bit GPIO from super I/O

SMBUS1 SMBus connector from PCH

SPI_TPM1

SPI (Serial Peripheral Interface)

connector for Advantech dTPM 2.0

module.

Note: The PCIE1&PCIE2 slots can only support graph-

ics cards and storage cards according to the

specication recommended by Intel. Other types

of add-on cards might not work properly.

JCMOS1: CMOS clear data

JME1: Intel® ME update

Closed Pins Result

1-2

*Keep CMOS data

*Enable ME update

2-3

Clear CMOS data

Disable ME update

* Default

*Keep CMOS data Clear CMOS data

*Enable ME update Disable ME update

PSON1: ATX/AT mode selection

Closed Pins

Result

1-2 AT mode

2-3 *ATX mode

* Default

AT mode *ATX mode

123

Jumpers and Connectors

Jumpers and Connectors (Cont.)
