Side 1/3

ASMB-807 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x ASMB-807 startup manual

• 2 x SATA data cables

• 2 x SATA power cables

• 2 x CPU carrier (E1A & E1B)

• 1 x I/O port bracket

• 2 x M.2 screws

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard M/B Functions

• CPU: LGA4677 Intel Xeon® W-3500/2500 series and

Xeon® W-3400/2400 series processors

• BIOS: AMI 512 Mbit SPI BIOS

• Chipset: Intel

W790 PCH

• System Memory: 8* DDR5 4400/4800

Registered ECC DIMM, Max. Capacity 2TB

Note1: Due to the inherent limitations of older PC archi-

tectures, the system may not fully detect 512 GB

RAM when 512 GB RAM is installed.

Note2: Max speed of 4800 MT/s can only be supported

with1DIMMperchannelconguration(Total4

DIMMs installed on DIMMA1/B1/E1/F1 slots)

ASMB-807 Series LGA 4677 Intel® Xeon® W

Processors ATX Server Board with 8 x DDR5, 3 x PCIe

x16, 8 x SATA 3.0, 9 x USB 3.2, 2 x M.2, Dual 10GbE,

and IPMI

•

SATA Interface: 8 x SATA3 6Gb/s ports Intel Rapid

Storage (for Windows only) (SATA0-SATA7 supports

software RAID 0, 1, 10 & 5)

• Serial Ports: One external serial port and one onboard

header, RS-232 only

• Keyboard/Mouse Header (KBMS1): Supports the stan-

dard PS/2 keyboard and mouse via PS/2 cable.

• Watchdog Timer: 255 level timer intervals

• USB Port: Supports up to 6 x USB 3.2 Gen2x1 ports, 2 x

USB 3.2 Gen1x1 (onboard 20-pin header), 3 x USB 2.0 (2

ports from onboard 10-pin header + 1 x onboard Type A),

and 1 x USB 3.2 Gen2x2 ports (onboard Type-E A-Key

header)

VGA Interface

• Chipset: ASPEED AST2500/2510

• Display Memory: 64 MB

• Resolution: Supports VGA up to resolution 1920 x 1200

@ 60 Hz refresh rate

Ethernet Interface

• Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T

• Controller: LAN1/2: Intel I226; LAN3/4: Intel X710

CPU Carrier Information

• E1A: Intel Xeon® W-3500/3400 series processors

• E1B: Intel Xeon® W-2500/2400 series processors

Mechanical and Environment

• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)

• Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb

• Power Consumption (mainboard only, excluding IO

device): Max. load: +3.3 V @ 2.94A, +5 V@ 1.81A,

+12 V @ 0.03A,+5 Vsb @ 0.14A, 12 V_8P @ 19.36A

• Operating Temperature: 0 ~ 60°C (depending on CPU

speed and cooler solution)

• Net Weight: 0.97 kg

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Connectors

Label Function

ATXPWR1 ATX 24-pin main power connector

ATX12V1, ATX12V2 Processor power connector

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

months extra warranty for Free at:

http://www.register.advantech.com

This manual is for the ASMB-807 series Rev. A1.

Part No. 2042080700

Printed in China

1st Edition

Oct 2024

Specications(Cont.)

Jumpers and Connectors

Startup Manual

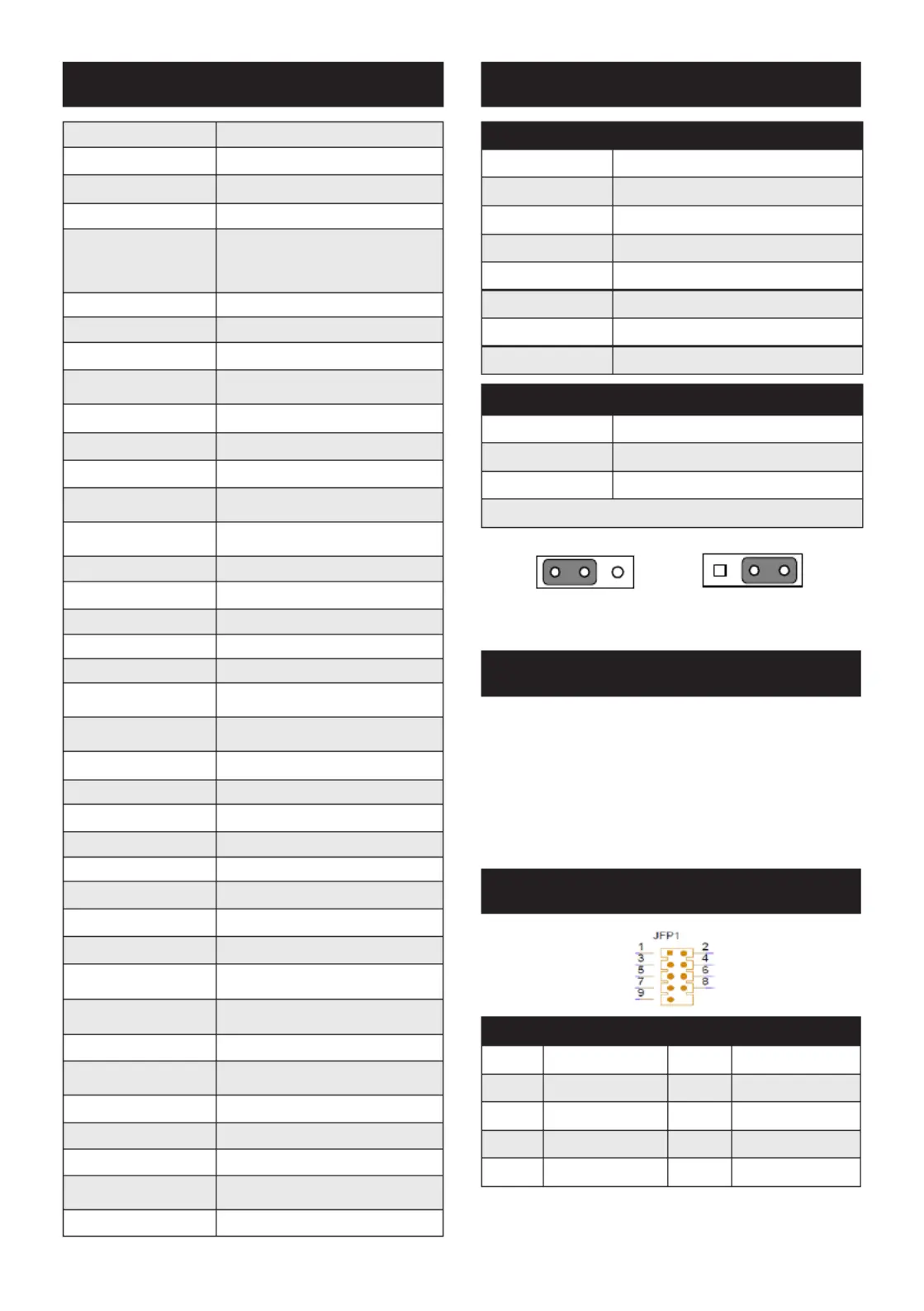

2 ASMB-807 Startup Manual

BH1 For optional battery kit

BIOS_SKT1 BIOS SPI ROM

COM2 Serial port: RS-232

CPUFAN0 CPU FAN connector

DIMMA1, DIMMA2,

DIMMB1, DIMMB2,

DIMME1, DIMME2,

DIMMF1, DIMMF2

DDR5 slot

EX_THR1 Connector for external thermistor

GPIO1 GPIO connector

HDAUD1 Audio header

KBMS1

External keyboard and mouse con-

nector (6-pin)

LAN1, LAN2, LAN3_4 RJ-45 LAN connector

BMCLAN_USB3C3 IPMI dedicated LAN connector

SPI_TPM1 TPM connector

M2_2280_1,

M2_2280_2

M.2 connector (SATA & PCIe x4)

PMBUS1

PMBUS connector to communicate

with power supply

SATA0~SATA7 SATA connector 0~7

SGPIO1,SGPIO2 SATA SGPIO header

PCIEX4_SLOT1 PCIE 4 slot, open end (x4 link) (PCH)

PCIEX16_SLOT2 PCIE x16 slot (x16 link) (CPU)

PCIEX16_SLOT3 PCIE x16 slot (x16 link) (CPU)

PCIEX8_SLOT5

PCIE p2-x8 slot, open end (x8 link)

(CPU)

PCIEX4_SLOT6

PCIE p2-x4 slot, open end (x4 link)

(PCH)

PCIEX16_SLOT7 PCIE x16 slot (x16 link) (CPU)

SLOT12V1 For PCIe slot 12V input only

SMBUS1 SMBus header

SPI_CN1 Connector for BIOS update tool

BMC_SPI1 BMC EEPROM

SYSFAN0~SYSFAN5 System FAN connector

USB2H1 USB 2.0 port 9, 10, (9-pin header)

USB2A1 USB 2.0 port 14 (Type-A)

USB3C1, USB3C2,

USB3C3

USB 3.2 Gen2x1 port 1, 2, 3, 4, 5, 6

USB3H1 3.2 Gen1x1 port 7, 8 (19-pin header)

USB3E1 USB 3.2 Gen2x2 port 11(Type-E)

VGA1_COM1

VGA + COM connector, Serial:

RS-232

ESPI1 eSPI connector

SYS_LED1 System LED connector

LANLED1 LAN LED connector

PEHP1

NVMe Raid Status SMBus for NVMe

BP LED Control

VROC1 Intel Virtual RAID (VROC) key

Jumpers and Connectors (Cont.)

Jumper list

Label Function

JCASE1 Chassis case open alarm

JCMOS1 CMOS clear

JFP1, JFP2 Front panel header

JME1 ME update

JTHR_SEL1 To select on board or external thermistor

JWDT1 Watchdog Reset

PSON1 AT(1-2)/ATX(2-3), default (2-3)

JCMOS1/JME1: CMOS clear/ME update function

Closed pins Result

1-2

Keep CMOS data/Disable ME update*

2-3 Clear CMOS data/Enable ME update

*: Default

Keep CMOS data/ Clear CMOS data/

Disable ME update Enable ME update

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

JFP1

1 HDD_LED + 2 PWR BTN

HDD_LED -

4 GND

5 PWR LED + 6 RST BTN

7 GND 8 GND

9 GND

123

1 2 3

Jumpers and Connectors

Declaration of Conformity

Installation Note
