ASMB-818 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x ASMB-818 Startup Manual

• 1 x SATA data cables

• 1 x SATA power cables

• 2 x CPU power cables (8P)

• 1 x CPU carrier - E2A (XCC)

• 1 x CPU carrier - E2B (MCC)

• 1 x PCIe I/O support

• 1 x front panel converter cable

• 1 x I/O port bracket

• 1 x M.2 screw

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Standard M/B Functions

• CPU: LGA4710 6th Gen Intel® Xeon® Scalable proces-

sor

• BIOS: AMI 512 Mbit SPI BIOS

• System Memory: 8 x DDR5 6400 MT/s registered ECC

DIMM, Max. capacity 2TB

ASMB-818 Series LGA 4710 6th Gen Intel® Xeon®

Scalable ATX Server Board with 8 DDR5, 3 PCIe x16,

5 SATA3, 4 USB 3.2 (Gen1), 1 M.2, Dual 10GbE, IPMI

Startup Manual

Note: Due to the inherent limitations of older PC ar-

chitectures, the system may not fully detect 2TB

RAM when 2TB RAM is installed.

• SATA Interface: Asmedia ASM1165: 4 x SATA 3.0 (6

Gb/s) via Slim-SAS HD, 1 x SATA 3.0 (6Gb/s)

• Serial Ports: One at the rear I/O, only supporting RS-232

• Watchdog Timer: 255-level timer intervals

• USB Port: Supports up to 4 x USB 3.2 (Gen1) ports (2

rear ports, 2 ports from the onboard 20-pin header) and 5

x USB 2.0 ports (1 x Type-A, 4 rear ports)

VGA Interface

• Chipset: ASPEED AST2600

• Display Memory: 64 MB

• Resolution: Supports VGA, resolution up to 1920 x 1200

@ 60 Hz refresh

Ethernet Interface

• Interface: 10/100/1000/2500 Mbps & 10 GbE Base-T

• Controller: LAN1/2: Intel I226; LAN3/4: Intel X710

Mechanical and Environmental

• Dimensions (L x W): 244x304mm(9.6″x12″)

• Power Supply Voltage: +3.3 V, +5 V, +12 V, +5 Vsb

• Power Consumption (mainboard only, excluding I/O

device): Max. load: +3.3 V @ 0.59 A, +5 V@ 1.92 A,

+12 V @ 6.65 A,+5 Vsb @ 0.01 A, +12V_8P_1 @ 17.22

A, +12V_8P_2 @ 15.91 A

• Operating Temperature: 0 ~ 60°C (depending on CPU)

• Net Weight: 0.97 kg

Theboardhasanumberofjumpersthatallowyoutocongure

your system to suit your application. The table below lists the

function of each of the jumpers and connectors.

Connectors

Label Function

ATXPWR1

ATX 24-pin main power connector

ATX12V1, ATX12V2 Processor power connector (for CPU0)

BH2 For optional battery kit

BIOS_SKT1 BIOS SPI ROM

COM1 Serial port: RS-232

CPUFAN0 CPU FAN connector

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

months extra warranty for free at:

http://www.register.advantech.com

This manual is for the ASMB-818 Series Rev. A1.

Part No. 2042081800

Printed in China

1st Edition

May 2025

Specications(Cont.)

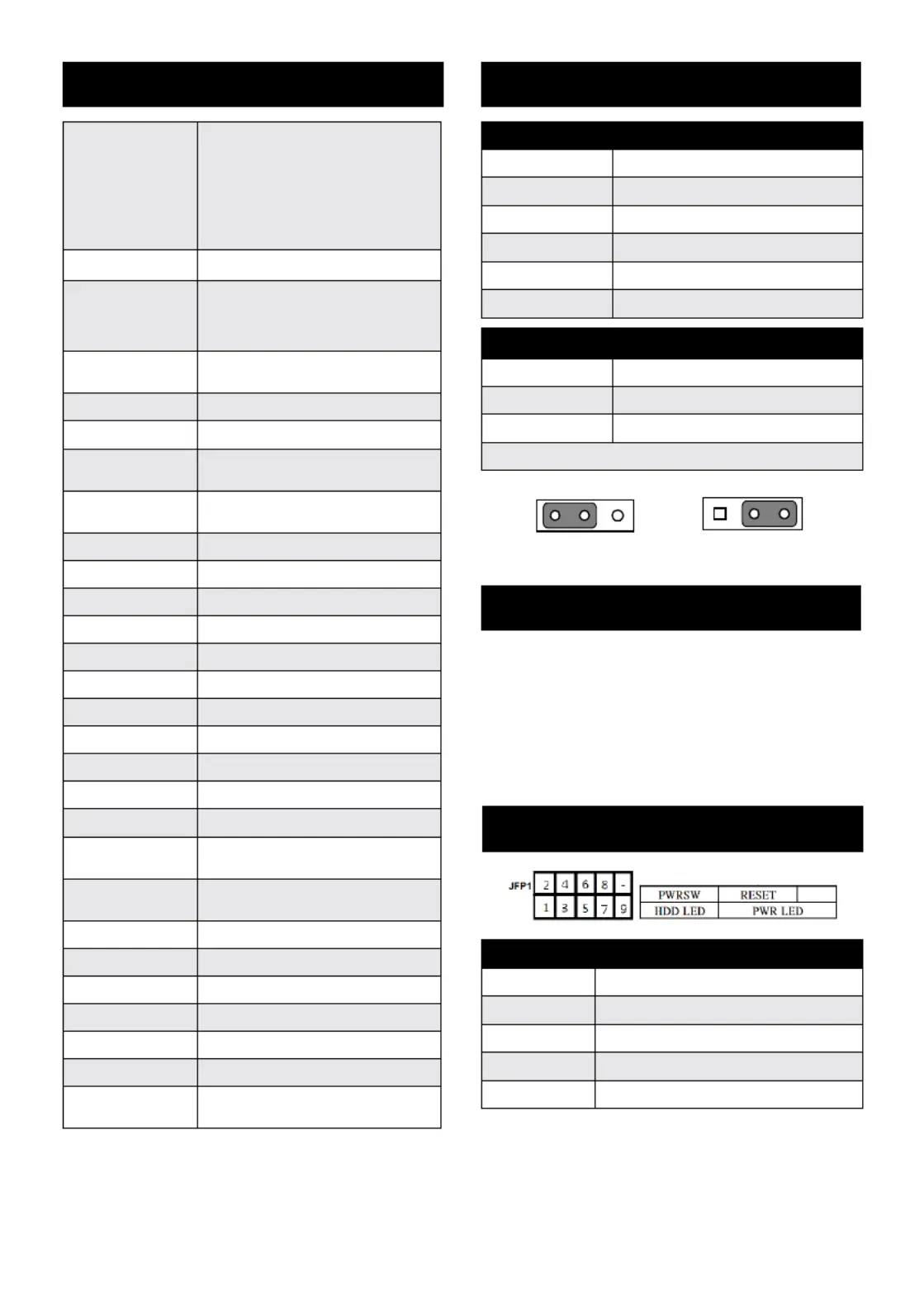

Jumpers and Connectors

2 ASMB-818 Startup Manual

C0_DIMM_A1,

C0_DIMM_B1,

C0_DIMM_C1,

C0_DIMM_D1,

C0_DIMM_E1,

C0_DIMM_F1,

C0_DIMM_G1,

C0_DIMM_H1

DDR5 slot

GPIO1 GPIO connector

LAN1_USB2C1,

LAN2_USB2C2,

LAN4_3

RJ-45 LAN connector and USB 2.0 port

1, 2, 3, 4

BMC_LAN_USB3C1

IPMI dedicated LAN connector & USB 3.2

Gen1 port 1, 2

EX_THR1 Connector for external thermistor

M2_2280_1 M.2 connector (PCIe Gen5 x4)

PMBUS1

PMBUS connector to communicate with

power supply

SATA_CON1, SATA4

4 x SATA 3.0 via Slim-SAS HD, and one

SATA connector

PCIEX4_SLOT1 PCIe p2-x4 slot (x4 link) (CPU)

PCIEX16_SLOT2 PCIe x16 slot (x16 link) (CPU)

PCIEX4_SLOT3 PCIe p2-x4 slot, close end (x4 link) (CPU)

PCIEX16_SLOT4 PCIe x16 slot (x16 link) (CPU)

PCIEX8_SLOT5 PCIe p2-x8 slot (0 or p2-x8 link) (CPU)

PCIEX16_SLOT6 PCIe x16 slot (8 or x16 link) (CPU)

PCIEX8_SLOT7 PCIe p2-x8 slot (x8 link) (CPU)

SLOT12V1 For PCIe slot 12V input only

SMBUS1 SM Bus header

SPI_CN1 Connector for BIOS update tool

BMC_SPI1 BMC SPI ROM

SYSFAN0~

SYSFAN5

System FAN connector

USB3H1, USB2A1

USB 3.2 Gen1 port 3, 4 (20-pin header);

USB 2.0 port 5 (Type-A)

SKY_SB1 SMBUS for SKY series HDD BP

VGA1 VGA connector

ESPI1 eSPI connector

SYS_LED1 System LED connector

LANLED1 LAN LED connector

PEHP1 NVMe RAID LED control

VROC1

Enables NVMe RAID, hot-plug, and LED

control via direct PCIe CPU link

Jumpers and Connectors (Cont.)

Jumper list

Label Function

JCASE1 Chassis case open alarm

JCMOS1

CMOS clear

JFP1, JFP2 Front panel header

JWDT1 Watch Dog Reset

PSON1 AT(1-2)/ATX(2-3), default (2-3)

JCMOS1: CMOS clear function

Closed pins Result

1-2

Keep CMOS data update*

2-3 Clear CMOS data update

*: Default

Keep CMOS data Clear CMOS data

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

JFP1

Pin.2 #PWR_SW

Pin.4

GND

Pin.6 #RST_SW

Pin.8 GND

Pin.3, Pin.5 SATA_M.2_LED, BMC_SUSLED

*The power button pin is located at Pins 2 & 4 of the front panel

connector.

123

1 2 3

Jumpers and Connectors (Cont.)

Declaration of Conformity

Installation Notes
