ASMB-830 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x ASMB-830 Startup Manual

• 1 x SATA data cables

• 1 x SATA power cables

• 2 x CPU power cables (8P)

• 1 x I/O port bracket

If any of these items are missing or damaged, please

contact your distributor or sales representative immediately.

Note 1:  AcrobatReaderisrequiredtoviewanyPDFle.

Acrobat Reader can be downloaded at:

https://www.adobe.com/downloads.html

(Acrobat is a trademark of Adobe)

ASMB-830 Series LGA 4094 AMD EPYC™ 7003 ATX Server

Board with 8 x DDR4, 5 x PCIe x16, 9 x SATA3, 5 x USB3.2

Gen1, Dual 10GbE, IPMI

Startup Manual

Standard M/B Functions

• CPU: SP3 LGA4094 AMD EPYC™ 7003 Series proces-

sors

• BIOS: AMI 256 Mbit SPI BIOS

• System Memory: 8* DDR4-2666/2933/3200

Registered ECC DIMM, Max. Capacity 512 GB

Note 2: Due to the inherent limitations of the PC archi-

tecture, the system may not fully detect 512 GB

RAM when 512 GB RAM is installed.

• SATA Interface: 8 via SFF-8643 ports and 1 SATA 6Gb/s

port

• Serial Ports: 1 at rear IO, 1 onboard header, only sup-

ports RS-232

• Keyboard/Mouse Header (KBMS2): Supports the stan-

dard PS/2 keyboard and mouse via PS/2 cable

• Watchdog Timer: 255 level timer intervals

• USB Port: Supports up to 5 x USB 3.2 Gen1 ports (2 rear

ports, 2 ports from onboard 20-pin header and 1*Type-A

on board)

VGA Interface

• Chipset: ASPEED AST2500

• Display Memory: 64 MB

• Resolution: Supports VGA up to resolution 1920 x 1200

@ 60 Hz refresh rate

Ethernet Interface

• Interface: 10/100/1000 Mbps & 10 GbE Base-T

• Controller: LAN1/2: Intel I210; LAN3/4: Intel X550

Mechanical and Environment

• Dimensions (L x W): 244 x 304 mm (9.6” x 12”)

• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vs

• Power Consumption (mainboard only, excluding IO

device): Max. load: +3.3 V @ 12.646 A, +5 V@ 3.004 A,

+12 V @ 24.731 A,+5 Vsb @ 0.18 A, -12 V@ 0.082 A,

12V_8P @ 24.88 A

• Weight: 1.05 kg (weight of board)

• Operating Temperature: 0 ~ 60°C (depending on CPU)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

For technical support and service, please visit our

support website at:

http://support.advantech.com

months extra warranty for Free at:

http://www.register.advantech.com

This manual is for the ASMB-830 series Rev. A1

Part No. 2042083001

Printed in China

2nd Edition

June 2024

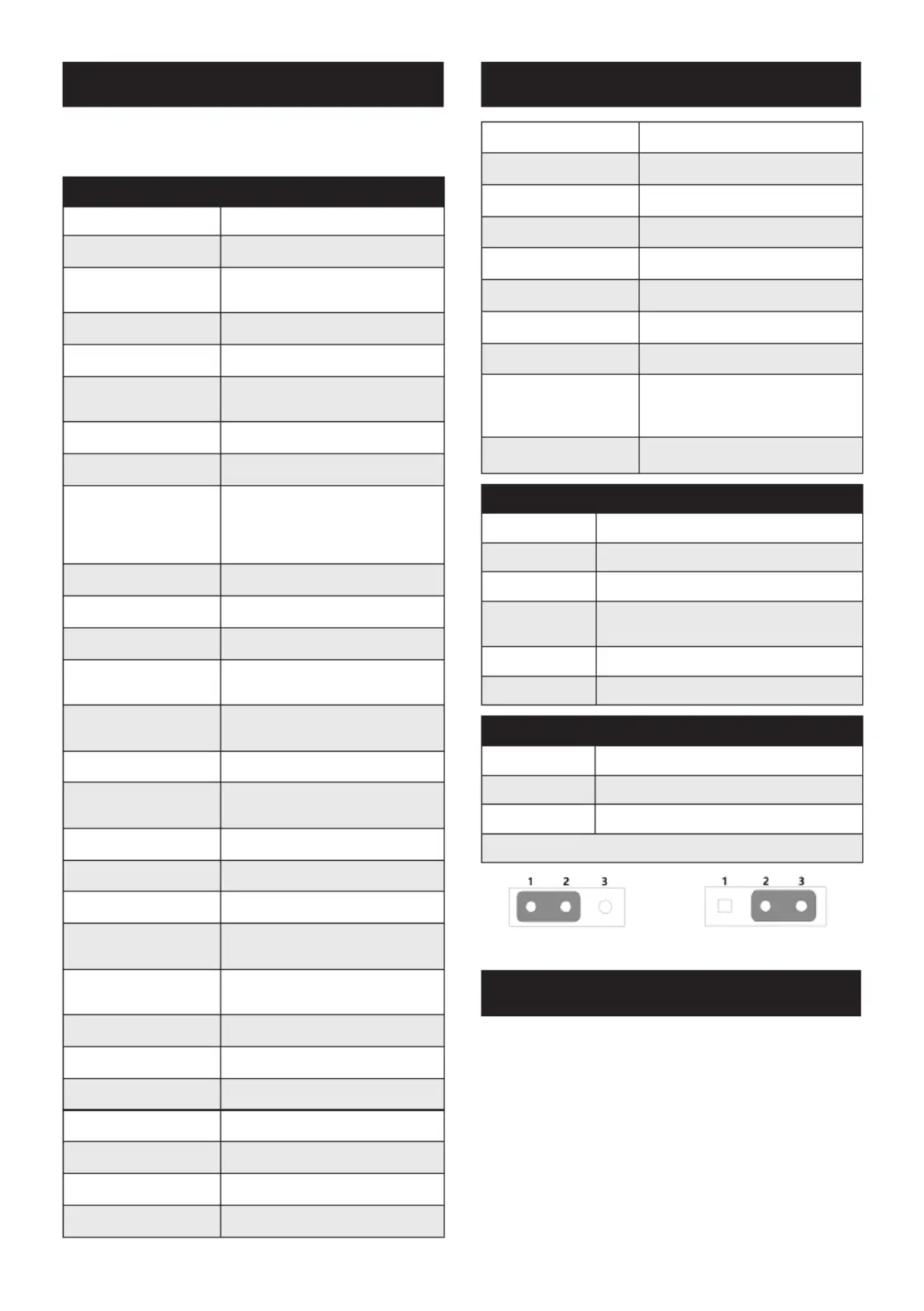

2 ASMB-830 Startup Manual

The board has a number of jumpers that allow you to con-

gureyoursystemtosuityourapplication.Thetablebelow

lists the function of each of the jumpers and connectors.

Connectors

Label Function

ATXPWR1

ATX 24-pin main power connector

ATX12V1, ATX12V2

Processor power connector

(for P1)

BH2 For optional battery kit

BIOS_SKT1 BIOS SPI ROM

BMC_SPI1

IPMI ROM

(ASMB-830I & T2 SKUs only)

COM2 Serial port: RS-232

CPUFAN0 CPU FAN connector

DIMMA1, DIMMB1,

DIMMC1, DIMMD1,

DIMME1, DIMMF1,

DIMMG1, DIMMH1

DDR4 slot

EX_THR1 Connector for external thermistor

GPIO1 GPIO connector

HDT1 HDT connector

JFP1, JFP1+JFP2,

JFP3

Front panel header

KBMS1

External keyboard and mouse

connector (6-pin)

LAN1_2, LAN3_4 RJ-45 LAN connector

LAN5

IPMI dedicated LAN connector

(ASMB-830 I & T2 SKUs only)

LPC1 TPM connector

M2_22110_1 M.2 connector (SATA & PCIe x4)

M2_22110_2 M.2 connector (PCIe x4)

PMBUS1

PMBUS connector to communi-

cate with power supply

SATA_CON1

SATA 0~7 via SFF8643 con-

nector

SATA8 SATA Connector

SGPIO1, SGPIO2 SATA SGPIO header

PCIEX16_SLOT1 PCIE x16 slot (x16 link) (CPU)

PCIEX8_SLOT2 PCIE p2-x8 slot (x8 link) (CPU)

PCIEX16_SLOT3 PCIE x16 slot (x16 link) (CPU)

PCIEX8_SLOT4 PCIE p2-x8 slot (x8 link) (CPU)

PCIEX16_SLOT5 PCIE x16 slot (x16 link) (CPU)

Jumpers and Connectors (Cont.)

PCIEX16_SLOT6 PCIE x16 slot (x16 link) (CPU)

PCIEX16_SLOT7 PCIE x16 slot (x16 link) (CPU)

PEHP1 NVMe LED control

SLOT12V1 For PCIe slot 12V input only

SMBUS1 SMBus header

SPI_CN1 Connector for BIOS update tool

SPI_SKT1 EC EEPROM

SYSFAN0~SYSFAN6 System FAN connector

USB3_12, USB3_34,

USB3_5

USB 3.2 port 1, 2; USB 3.2 port

3, 4 (20-pin header);

USB 3.2 port 5 (Type A)

VGA1, COM1 VGA & COM connector

Jumper list

Label Function

JCASE1 Chassis case open alarm

JCMOS1

CMOS clear

JTHR_SEL1

To select on board or external thermis-

tor

JWDT1 Watch Dog Reset

PSON1 AT(1-2) / ATX(2-3)

JCMOS1: CMOS clear function

Closed pins Result

1-2

Keep CMOS data

2-3 Clear CMOS data

*: Default

Keep CMOS data Clear CMOS data

Declaration of Conformity

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

Jumpers and Connectors
