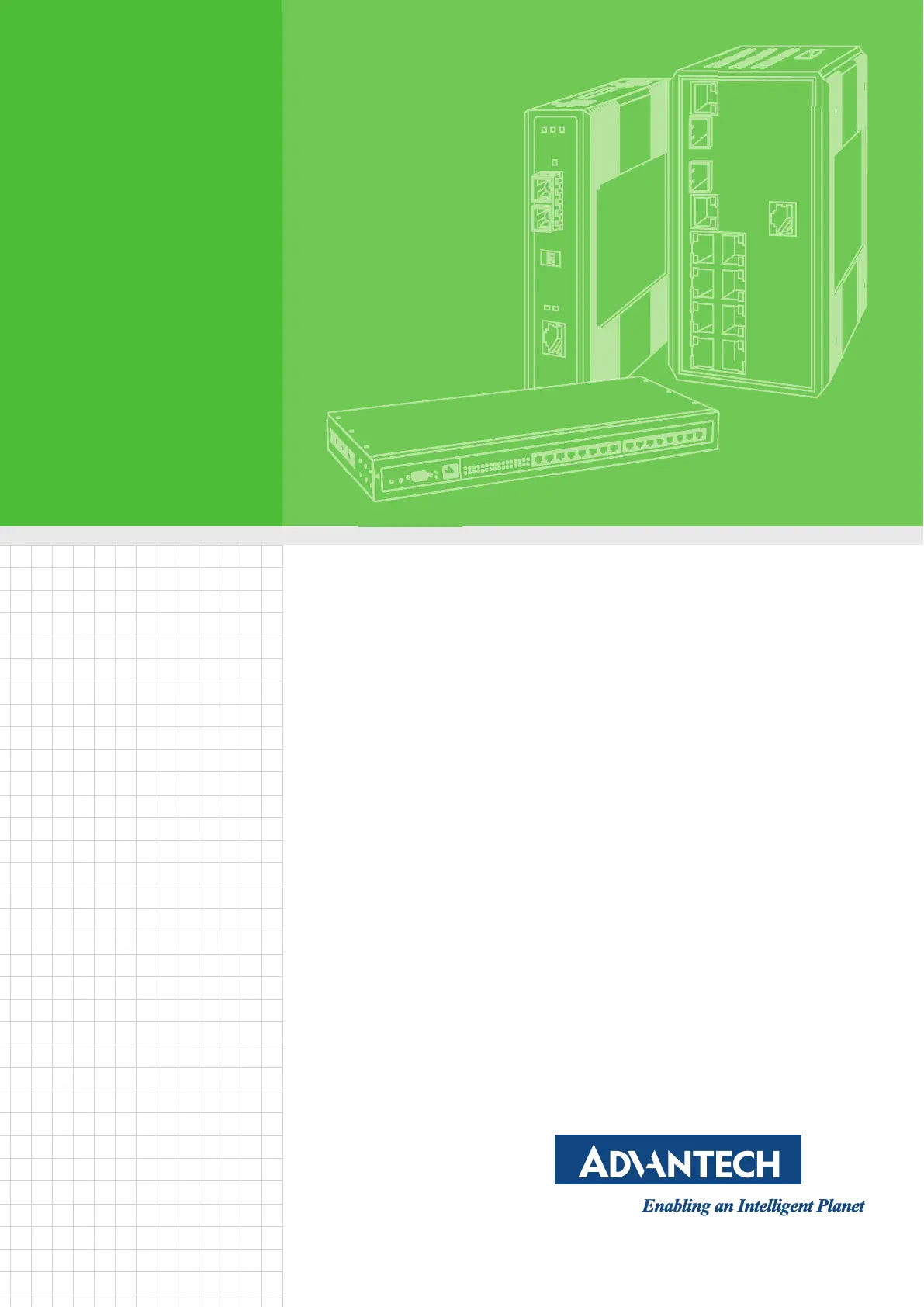

User Manual

EKI-7720 Series

16FE/16GE + 4G SFP Port

Managed Redundant Industrial

Switch

EKI-7720 Series User Manual ii

The documentation and the software included with this product are copyrighted 2006

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable. How

ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (5 years)

Advantech warrants to you, the original purchaser, that each of its products will be

free from defects in materials and workmanship for five years from the date of pur

chase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation. Advantech assumes no

liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of

our customers never need to use our repair service. If an Advantech product is defec

tive, it will be repaired or replaced at no charge during the warranty period. For out of-

warranty repairs, you will be billed according to the cost of replacement materials,

service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note

anything abnormal and list any on screen messages you get when the problem

occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandize

authorization) number from your dealer. This allows us to process your return

more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt)

in a shippable container. A product returned without proof of the purchase date

is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

Printed in Taiwan Edition 1

July 2021

Produkt Specifikationer

Mærke:	Advantech
Kategori:	bryter
Model:	EKI-7720G-4F-AE
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-40 - 85 °C
Relativ luftfugtighed ved drift (H-H):	10 - 95 %
Strømforbrug (typisk):	12.1 W
Driftstemperatur (T-T):	-10 - 60 °C
Strømkilde:	DC
Netværksstandarder:	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad
Bæredygtighedscertifikater:	CE, Federal Communications Commission (FCC)
DC indgangsspænding:	12 - 48 V
Fiber optisk strømstik:	SFP
Overholdelse af bæredygtighed:	Ja
Switch-type:	Ikke administreret
10G understøttelse:	Ingen
Basis omskiftning RJ-45 Ethernet porte, antal:	16
Basis omskiftning RJ-45 Ethernet porttype:	Gigabit Ethernet (10/100/1000)
MAC adresselabel:	8000 entries
Switch kapacitet:	40 Gbit/sek.
Jumbo Frames support:	Ja
Jumbo rammer:	9216
Stabelbar:	Ingen
Fiberkanal porte:	4
Antal installerede SFP moduler:	4
Transmissionsafstand (maks.):	110 km
Maksimum overførselsafstand (multi tilstand):	100 m
