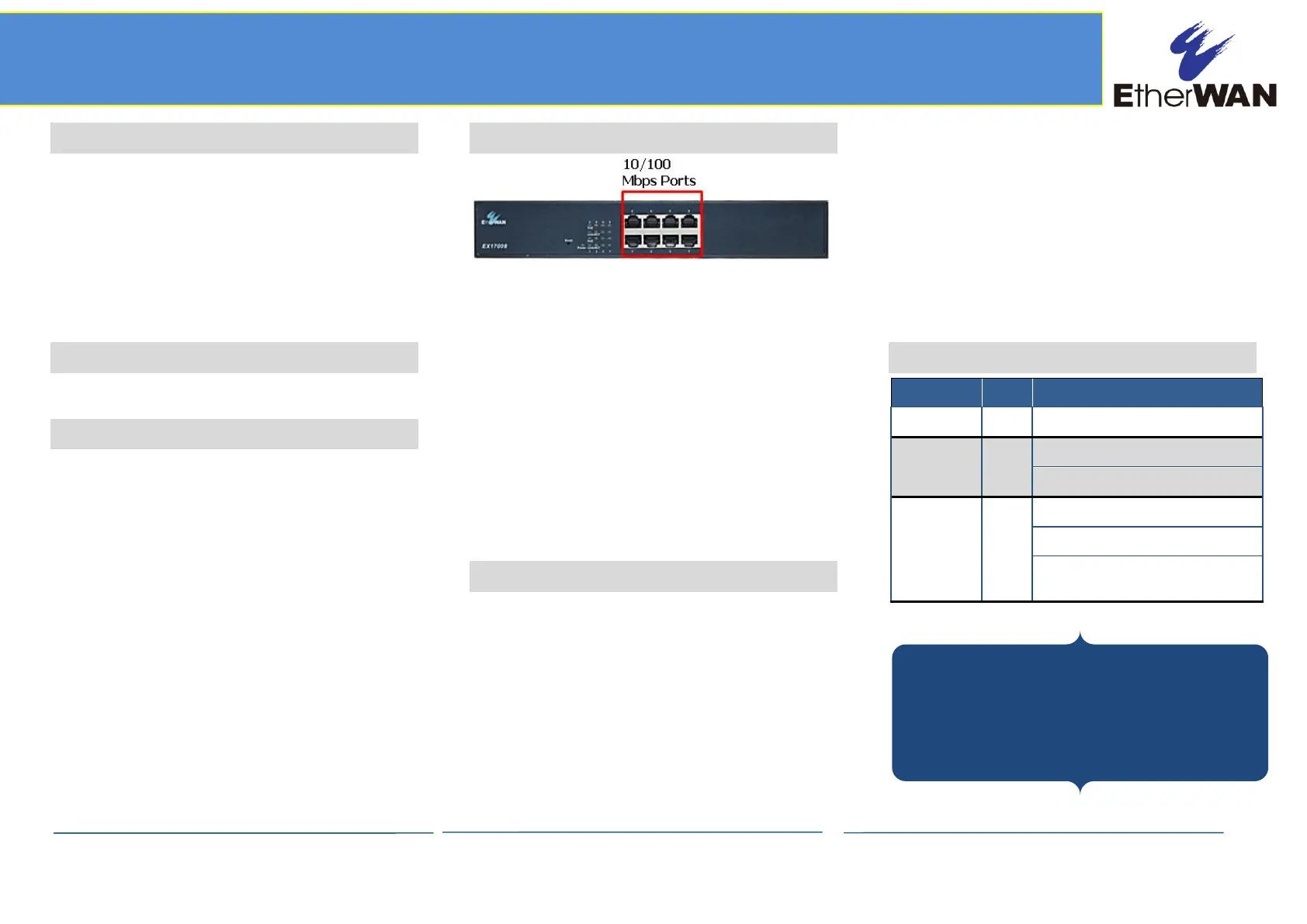

Copyright 2020 EtherWAN Systems, Inc. Page 1
All Rights Reserved
EX17008A
02/25/2020
W70G-E17008AQ3
1 Unpacking
Unpack the items. Your package should include:
One EX17008A unmanaged switch
One AC power cord
One CD containing this user’s guide
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2 What Else You Need
Category 5 or better Ethernet cables
3 Select a Location
Desktop installations: Mount on a flat table
or shelf surface.
Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
Identify a power source within 6 feet (1.8
meters).
Choose a dry area with ambient temperature
between 0 and 40ºC (32 and 104ºF).
Do not cover fans on the rear and side.
Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.
Keep the switch at least 6 ft (1.83 m) away
from the nearest source of electromagnetic
noise, such as a photocopy machine.
4 Connect to the Data Ports
The switch is equipped with eight 10/100 Mbps
RJ-45 port that provide IEEE802.3at Power over
Ethernet (PoE), with up to 30 Watts per port (50
- 57VDC, 600mA Max.) These ports can be
connected to PoE devices such as IP surveillance
cameras or Voice Over Internet Protocol (VoIP)
phones.
A. Insert one end of a Category 5 or better
Ethernet cable into a switch port.
B. Connect the other end into the Ethernet port
of the device.
C. Repeat steps A and B for each additional
device you want to connect to the switch.
5 Apply AC Power
A. Connect the female end of the supplied AC
power cord to the power receptacle on the
switch rear panel. Connect the other end to
a grounded 3-pronged AC outlet.
B. On the switch rear panel, move the ON/OFF
switch to the ON position.
When you apply AC power:
All green PoE and Link/ACT LEDs blink
momentarily.
The fans start.
The yellow Power LED goes ON.
The Link/ACT LEDs for every port connected
to a device flash, as the switch conducts a
brief Power On Self-Test (POST).
6 Front Panel LEDs
LED
Color
Status
Power
Yellow
ON = switch is receiving power.
PoE
(port number)
Green
ON = Power Device (PD) is connected.
OFF = PD is disconnected.
Link/ACT
(port number)
Green
ON = valid network connection.
OFF = no data transmission on port.
Flashing = port is sending or receiving
data.
Congratulations! You have successfully
installed your switch.
EX17008A Unmanaged Switch Installation Guide
