LED Outdoor Luminaires Part #: CAPW050804L30ENBK

Wall or Ceiling Mount CAPW050804L30ENWH

120VAC / 60Hz

Limited Factory Warranty

This product is manufactured by AFX Inc. AFX warrants this xture is free from defects in materials and workmanship when ins talled and used under normal operating conditions for a period of 5 years from

date of purchase. This warranty covers all component parts and extends only to replacement of defective xture or components; it does not cover failure due to improper installation, misuse, mishandling or

damage incurred in transit. For questions, please call AFX at 1- -873-2326. 800

Safety Precautions

 Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result in potentially

fatal electric shock and/or property damage.

 It is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes.

 Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.

 This xture is designed for use in a 120VAC, 60Hz fused circuit.

 To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must be a separate

ground wire (green) contact between this xture and the ground connection of your main power supply panel.

 This xture is intended to be used for general door lighting in wet locations.out

 Disclaimer

Changes or modications not expressly approved by the party responsible for compliance could void NOTE: This equipment the user’s authority to operate the equipment.

has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-005 (B) / NMB-005 (B). These

limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

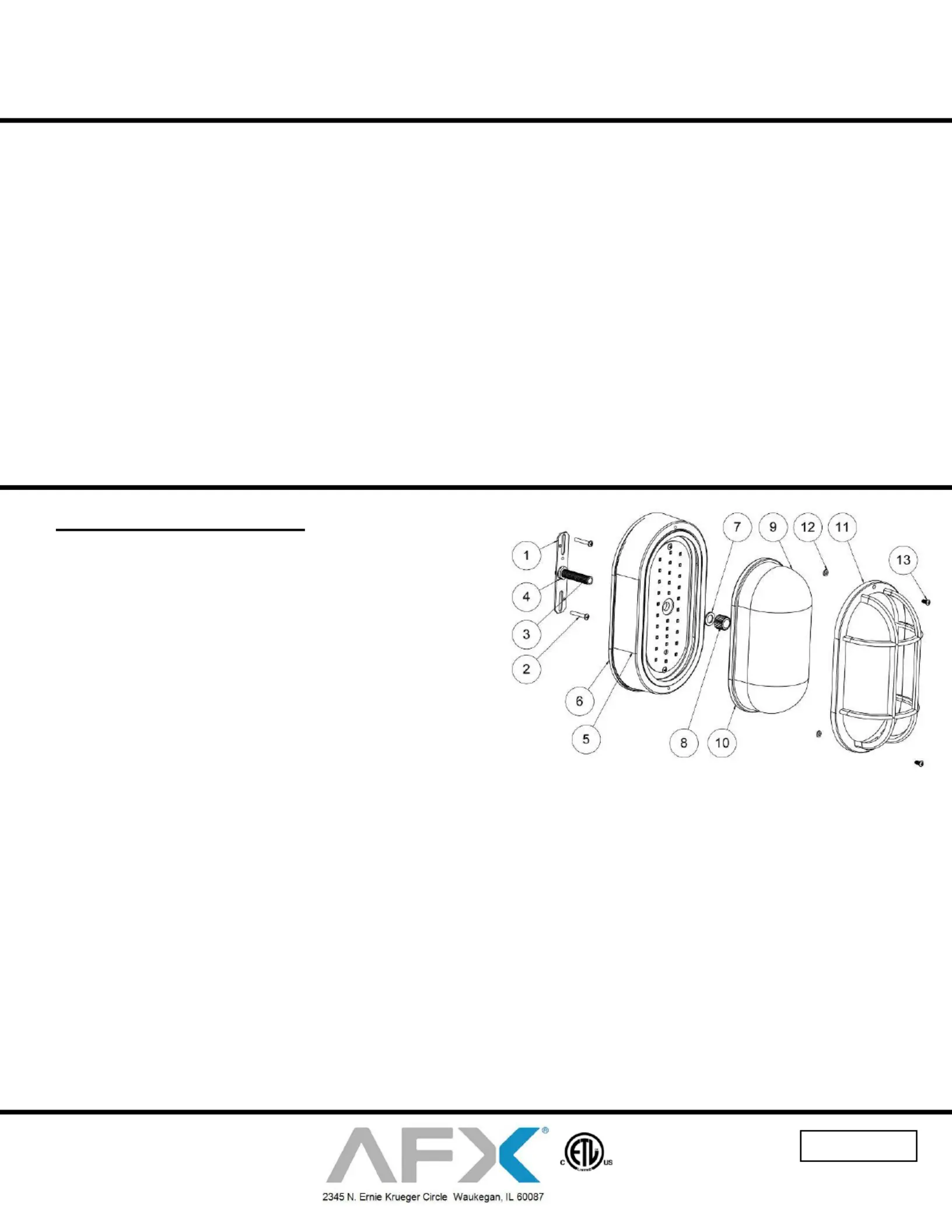

ASSEMBLY INSTRUCTIONS

Step 1 - Preparing for installation.

A. at fuse or circuit breaker box before installing or Disconnect electrical power

servicing any part of this xture.

B. Carefully remove the xture from the carton.

C. Remove mounting bracket from parts bag. (1)

D. Install mounting bracket ) to junction box (not provided) by securing it with (1

two screws (2 Install stem (3) to mounting bracket al). lowing about 1.5” to

protrude outward then secure with jam nut (4).

Wiring-all wiring must take place inside junction box (not included).

Caution: Make sure power is o at fuse or circuit breaker box. Check power wires

for damage or scrapes. Use wire suitable for at least °C (194°F). 90

Note: Most dwellings built before 1985 have supply wire rated to 60C. Consult a

qualied electrician before installing.

Step 2 Wiring xture. –

A. Make all wire connections to appropriate wire. Secure with wire nuts

(provided) .

B. Connect the green wire from the xture to the supply power source ground

wire.

C. The black wire from the xture is connected to the black ) wire from supply (L

power source.

D. The white wire from the xture is connected to the white (N) wire from supply

power source.

E. Tuck all connections neatly into the junction box.

Step 3 Mounting. –

A. Install xture (5) over the mounting bracket (1) by aligning center hole to stem

and secure it with rubber washer (7) and thumb nut (8). Housing gasket (6) is

pre-installed from factory.

B. Pre-installed o-ring (12) and screw (13) to top and bottom hole of the retainer

bracket (11) Then install the diuser (9) with retaining bracket the xture by . to

aligning screws to t and bottom hole of the xture then tighten two screws to op

secure it. Diuser gasket (10) is pre-installed from factory.

Step 4 - Restore power at fuse or circuit breaker box .

8061161 R0
