PCV Series LED Vanity Indoor Luminaires

Models: PCV241700L30SN, PCV362500L30SN, PCV483400L30 SN

Page 1 of 1 8060968 R4

Limited Factory Warranty

This product is manufactured by AFX Inc. This xture is warranted to be free from defects in materials and workmanship when installed and used under

normal operating conditions for a period of 5 years from date of purchase. This warranty covers all component parts and extends only to replacement of

defective xture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit.

Safety Precautions

 Read all safety precautions and installation instructions carefully before installing or servicing this xture. Failure to comply with these instructions could result

in potentially fatal electric shock and/or property damage.

 is recommended that a qualied electrician perform all wiring. This xture must be wired in accordance with all national and local electrical codes. It

 Do not handle any energized xture or attempt to energize any xture with wet hands or while standing on a wet or damp surface or in water.

 This xture is designed for use in a 120V AC, 60Hz fused circuit.

 Make sure that the power source conforms to the requirements of the xture. (See labels on xture housing)

 To reduce the risk of electrical shock, and to assure proper operation, this xture must be adequately grounded. To accomplish proper grounding, there must

be a separate ground wire (green) contact between this xture and the ground connection of your main power supply panel.

 This xture is intended to be used for general indoor lighting in dry or damp locations.

 Disclaimer:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-

005 (B) / NMB-005 (B). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiver antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult with the dealer or an experienced radio/TV technician for help.

Any modications to this xture may void the warranty and interfere with the safe operation of the luminaire.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

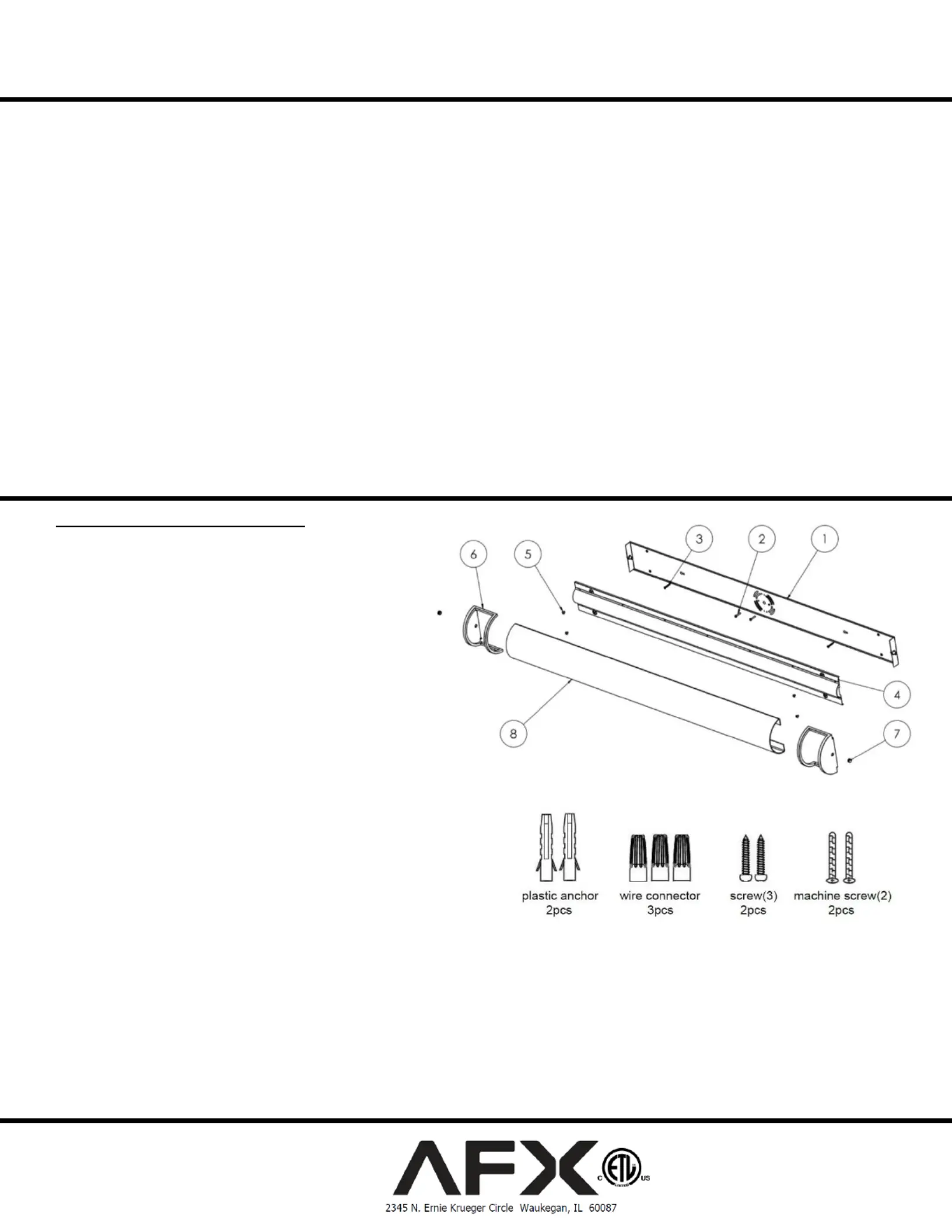

ASSEMBLY INSTRUCTIONS

Step 1 - Preparing for installation

A. Disconnect electrical power at fuse or circuit breaker

box before installing or servicing any part of this xture.

B. Carefully remove the xture from the carton.

Step 2 - Remove back pan from the xture by removing two (1)

thumbnuts ) and four screws (5) to release from channel (7

(4).

Wiring-all wiring must take place inside junction box (not

included).

Caution: Make sure power is o at fuse or circuit breaker

box. Check power wires for damage or scrapes. If power

supply wires are within three inches of the LED board, use

wire suitable for at least °C (194°F). 90

Note: Most dwellings built before 1985 have supply wire

rated to 60°C. Consult a qualied electrician before

installing.

Step 3 - Install back pan (1) to junction box (not provided) using two machine

screws (2) and plastic anchor & wood screws (3) to wall.

Step 4 - Make all wire connections to appropriate wire. Secure with wire nuts

(supplied).

A. Connect the green wire from the xture to the power source green wire.

B The black wire from the xture is connected to the black wire from . (L)

power source.

C The white wire from the xture is connected to the white (N) wire from .

power source.

D Tuck all connections neatly into the junction box. .

Step 5 - Install channel (4) to back pan (1) with four small screws (5).

Step 6 - Install one of metal end cap (6) with thumbnut (7) to the back pan (1) then slide diuser in toward previously installed end cap until bottom (8)

out. Secure the diuser with other metal end cap and thumbnut to complete installation.

Step 7 - Restore power at fuse or circuit breaker box.
