INSTALLATION MANUAL

MANUEL D’INSTALLATION

MANUAL DE INSTALACIÓN

INSTALLATIEHANDLEIDING

MANUALE D’INSTALLAZIONE

JP-DA

Video door station

Poste de porte vidéo

Video portero

Videodeurpost met kunststof

opbouwbehuizing

Postazione videocitofonica

esterna

JP-DV

Vandal-resistant video door station

Portier vidéo résistant au vandalisme

Video portero antivandálico

Videodeurpost met metalen

antivandalisme-opbehuizing

Postazione videocitofonica esterna

resistente agli atti vandalici

JP-DVF

Vandal-resistant video door station

Portier vidéo résistant au vandalisme

Video portero antivandálico

Videodeurpost met inox antivandalisme-

inbouwbehuizing

Postazione videocitofonica esterna

resistente agli atti vandalici

JP-DA, JP-DV, JP-DVF

VIDEO DOOR STATION

POSTE DE PORTE VIDÉO

VIDEO PORTERO

VIDEODEURPOST

POSTAZIONE VIDEOCITOFONICA ESTERNA

EnglishFrançaisEspañolNederlandsItaliano

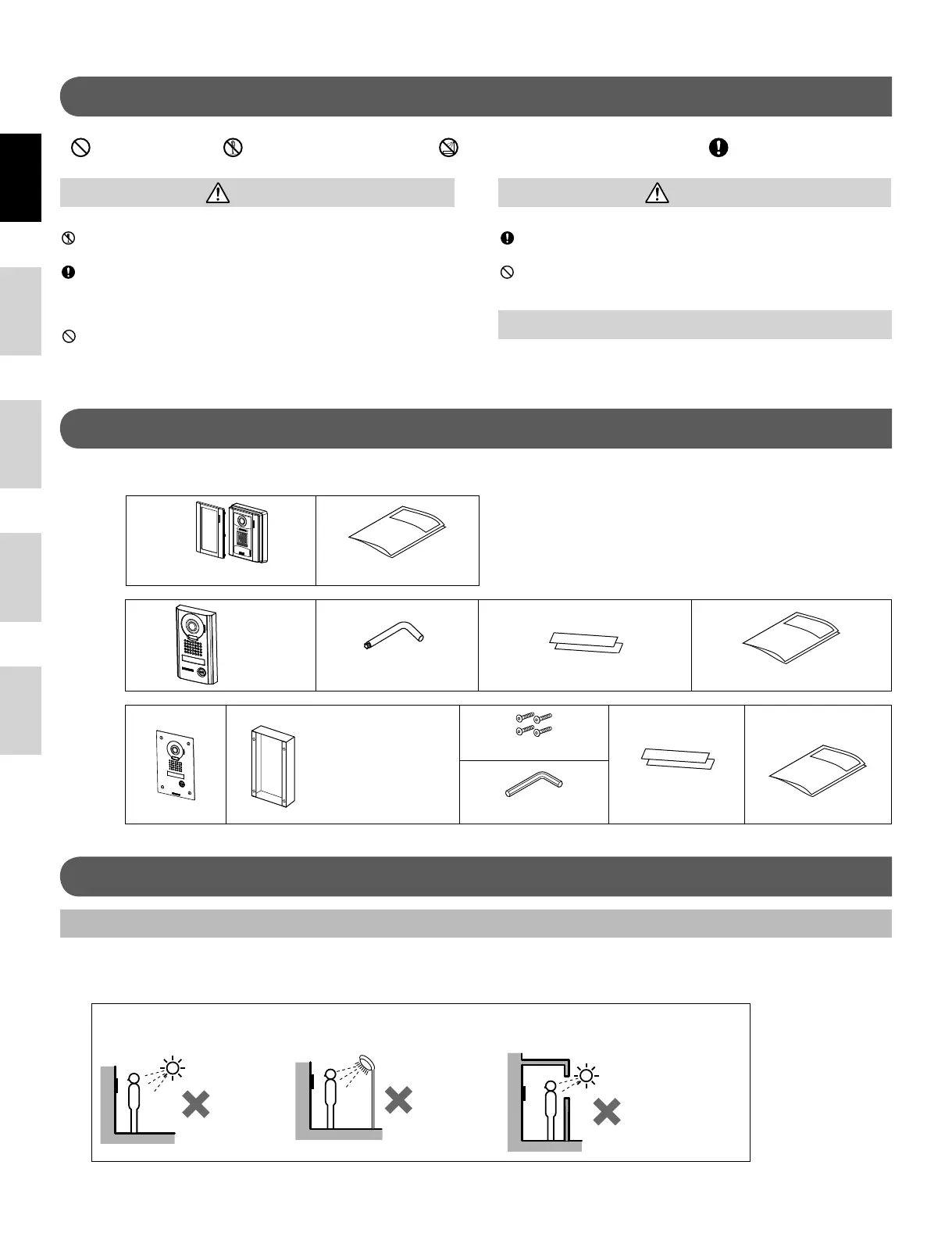

PRECAUTIONS

General Prohibitions Prohibition to Dismantle the Unit Prohibition on Subjecting the Unit to Water General Precautions

WARNING

Negligence could result in death or serious injury.

1. Do not dismantle or alter the unit. Fire or electric shock could

result.

2. Existing wiring such as chime wiring, etc. may contain high

voltage AC electricity. Damage to the unit or electric shock

could result. Wiring and installation should be done by a

qualiﬁ ed technician.

3. This unit is not an explosion-proof unit. Do not install or use

the unit in locations that are ﬁ lled with ﬂ ammable gas such as

oxygen rooms. Fire or an explosion could result.

CAUTION

Negligence could result in injury to people or damage to property.

Before turning on power, make sure wires are not crossed or

shorted. If not, ﬁ re or electric shock could result.

Do not install or make any wire terminations while power supply

is plugged in. It can cause electrical shock or damage to the unit.

GENERAL PRECAUTIONS

1. The door station is weather resistant, but do not spray high

pressure water on door station directly. Unit trouble could result.

PACKAGE CONTENTS

Verify that the following parts are included.

JP-DA

Front panel Main unit Installation manual

JP-DV

The unit

Special screwdriver Transparent nameplate (x2) Installation manual

JP-DVF

The unit

Flush mount back box

Special screw (x4)

Transparent

nameplate (x2) Installation manual

Hexagonal wrench

INSTALLATION

Mounting locations

"Do not install video door station in any of the following locations where lighting or the ambient environment could impact the

display on the video monitor due to the characteristics of the door station's camera."

Locations subject to

direct sunlight

Under street lights or door

lights

Other locations subject to strong

lighting or backlighting conditions

Produkt Specifikationer

Mærke:	Aiphone
Kategori:	Intercomsystem
Model:	JP-DV
Bredde:	98.4 mm
Dybde:	25.4 mm
Højde:	173 mm
Produktfarve:	Grå
Produkttype:	Kameramodul
Driftstemperatur (T-T):	-10 - 60 °C
Materiale:	Støbt aluminium
Monteringstype:	Overflade
Mærke kompatibilitet:	Aiphone
Betragtningsvinkel:	170 °
