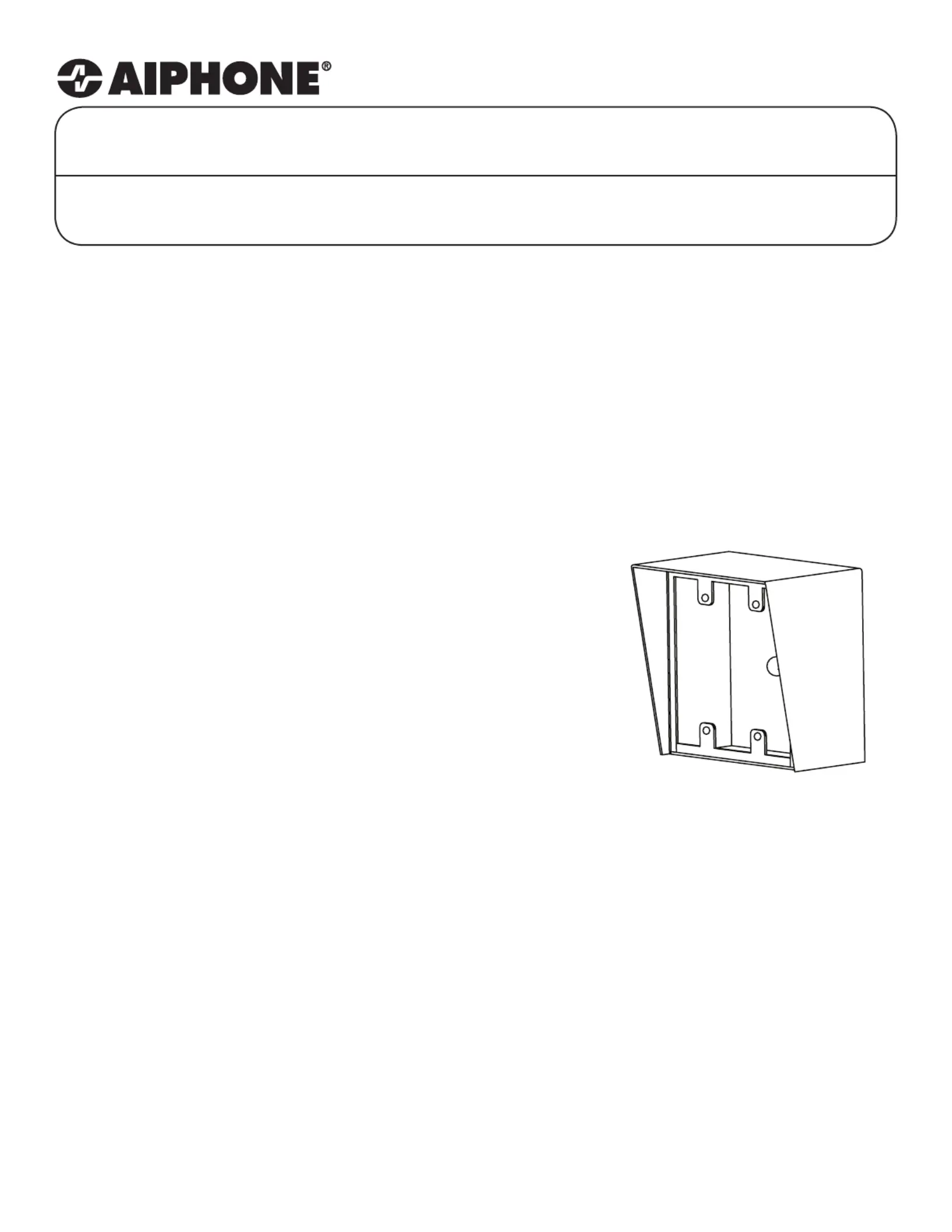

SBX-2G/A

Stainless Steel Surface Mount Box for 2-Gang Sub Stations

The SBX-2G/A is a surface mount stainless steel enclosure designed for mounting Aiphone 2-gang sub

stations. The enclosure is weather resistant and includes space inside for wiring. The unit mounts to a 1-gang

box or ring, or mounts directly to a wall surface.

-INSTRUCTIONS-

SBX-2G/A Instr.

0518JD

MOUNTING:

1. Mount SBX-2G/A to a 1-gang box or wall surface.

2. Connect supplied speed nuts to mounting tabs.

3. Make wiring connections to the sub station.

4. Mount sub station to box using the screws provided.

COMPATIBLE AIPHONE SUB STATIONS:

LEF / IX-1AS, IX-10AS Series

LE-SS/A Vandal Resistant Stainless Steel Sub Station

LE-SSR Vandal Resistant with Red Mushroom Call Button

LE-DA Sub with Stainless Steel Faceplate

IE / AX Series

IE-SS/A Vandal Resistant Stainless Steel Sub Station

IE-SSR Vandal Resistant with Red Mushroom Call Button

IE-JA Sub with Stainless Steen Faceplate

IS Series

IS-SS-2G Vandal Resistant Stainless Steel Sub Station

IS-SSR-2G Vandal Resistant with Red Mushroom Call Button

SPECIFICATIONS:

Mounting: 1-gang box or surface mount directly to wall

Material: 18-Gauge Stainless Steel

Color: Polished Stainless Steel

Mounting Hardware:

⁄

with T-15 Torx Head

Dimensions (HxWxD): 4-

⁄

" x 4-

⁄

" x 3-

⁄

" (top); 2-

⁄

" (bottom)

Interior depth: 2-

⁄

Aiphone Corporation

www.aiphone.com

tech@aiphone.com

(800) 692-0200

PACKAGE CONTENTS:

- SBX-2G/A unit

- Packet of screws (4)

- Speed nuts (4)

- T-15 Torx bit (1)

4-13⁄16"

4-7⁄8"

3-13⁄16"

2-13⁄16"

Produkt Specifikationer

Mærke:	Aiphone
Kategori:	Intercomsystem
Model:	LE-DA
Bredde:	116 mm
Dybde:	40 mm
Højde:	115 mm
Produktfarve:	Black, Stainless steel
Produkttype:	Højttalermodul
Driftstemperatur (T-T):	-10 - 60 °C
Materiale:	Plastic, Stainless steel
Monteringstype:	Overflade
Mærke kompatibilitet:	Aiphone
