POWER SUPPLY ADAPTOR

Models;

SKK-620C

INSTALLATION MANUAL

PRECAUTIONS

1. Do not install or make any wire terminations while power supply is plugged in. It can cause electrical shock or damage to the unit.

2. Before plugging in the unit, make sure wires are not crossed or shorted. Fire or electric shock could result.

3. This power supply unit is designed especially for the Aiphone Intercom System. Do not use this power supply unit for any other purpose.

4. Do not put anything on the unit or cover the unit with cloth, etc. Fire or unit trouble could result.

5. Do not install the unit in the following locations. Fire, electric shock, or unit trouble could result.

· Places under direct sunlight or places near heating equipment that varies in temperature.

· Places subject to dust, oil, chemicals, hydrogen sulfide (hot spring).

· Places subject to moisture and humidity extremes, such as bathrooms, cellars, greenhouses, etc.

· Places where the temperature is quite low, such as inside a refrigerated area or in front of an air conditioner.

· Places subject to steam or smoke (near heating or cooking surfaces).

· Where noise generating devices such as dimmer switches or inverter electrical appliances are close by.

· Locations subject to frequent vibration or impact.

· Locations subject to extremely powerful electric fields.

· The unit is designed for indoor use only. Do not use outdoor.

6. On products with ground terminals, connect to an earth ground. Fire or malfunction could result.

- 1 -

In case your System and/or Power Supply malfunctions or is in apparent trouble, unplug the Power Supply from AC outlet.

1. Do not connect any non-specified power source to the +, - terminals. Fire or damage to the unit could result.

2. Do not connect any terminal on the unit to an AC power line. Fire or electric shock could result.

3. Keep AC cord from being marred or crushed. If the AC cord is damaged, fire or electric shock could result.

4. Do not plug or unplug with wet hands. Electric shock could result.

5. Keep the unit away from water or any other liquid. Fire or electric shock could result.

6. Do not connect the unit with any non-specified power source. Fire or electric shock could result.

7. Do not short the wires of the DC output together. Fire or unit trouble could result.

8. Do not dismantle or alter the unit. Fire or electric shock could result.

9. Insert AC plug completely and securely into AC outlet. Otherwise, fire or electric shock could result.

10. Periodically check for and remove dust on the power plug. If dust is left, it could cause the power plug to heat up, resulting in fire.

11. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.

1. The unit case may become warm with use, but this is not a unit malfunction.

2. Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.

3. Keep the intercom wires more than 30cm (12'') away from AC 100-240V wiring. AC induced noise and/or unit malfunction could result.

4. If the unit is down or does not operate properly, unplug the power supply.

5. Using a cellular phone or professional-use radio equipment such as transceiver close to the system may cause a malfunction.

WARNING (Negligence could result in death or serious injury.)

CAUTION (Negligence could result in injury to people or damage to property.)

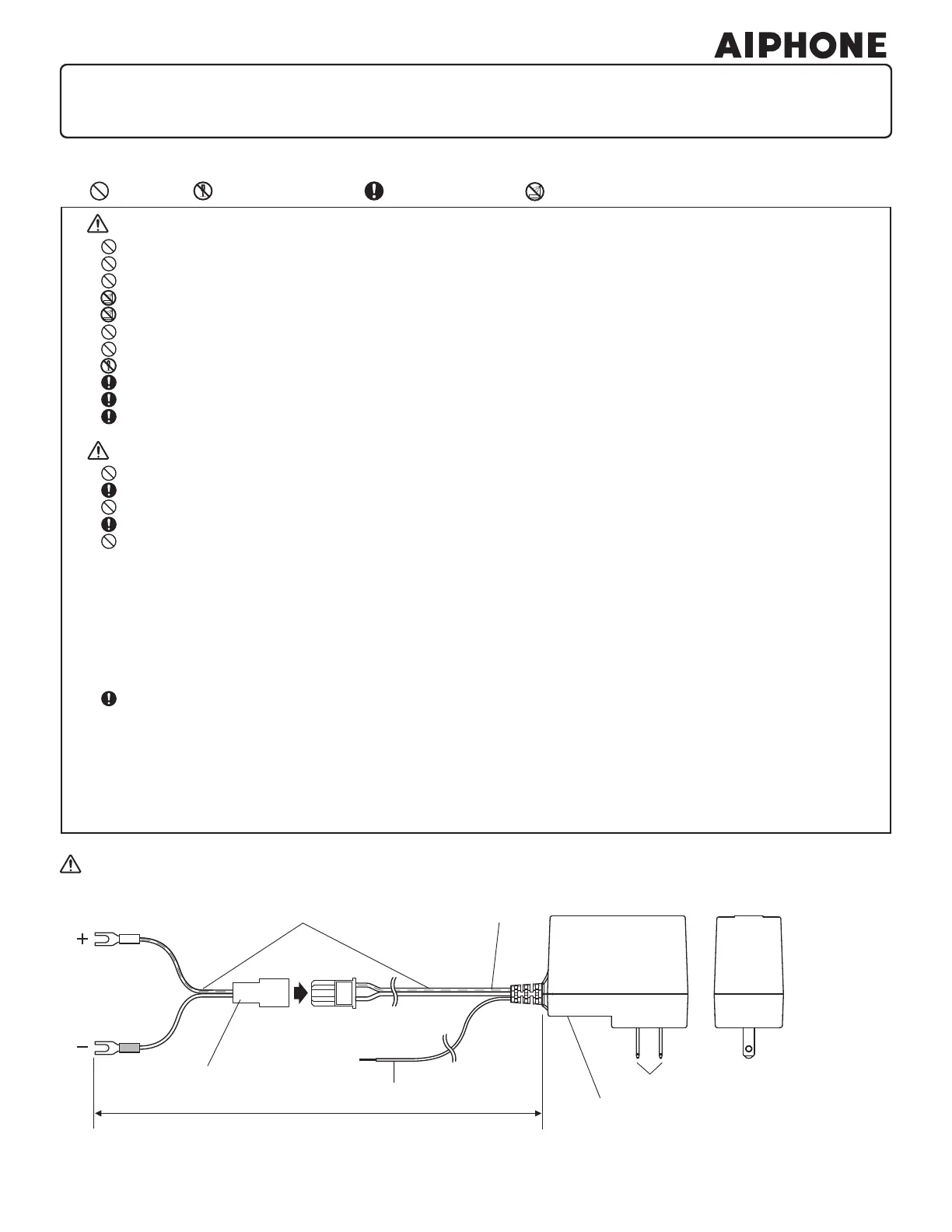

GENERAL PRECAUTIONS

IMPORTANT:

Prohibited Do not dismantle unit General precautions Keep unit away from water

Output cord

approx. 12' (360cm)

White dashed line

Black

Red

Ground wire approx. 1' (30cm)

Connector Plug

Rating label (Étiquette de valeurs nominales)

- 2 -

3 BEFORE ASKING FOR REPAIRS

If your intercom system does not work properly or malfunctions, do not attempt to change or rectify wiring. Ask qualified personnel. If the system is not being

used, SKK-620C can be unplugged.

4 SPECIFICATIONS

• Power source: AC 120V, 60Hz., 0.04A

• Secondary output voltage: DC 6V

• Secondary output current: 200mA

• Dimensions & weight: 2-13/16"H 2-3/16"W 1-3/8"D x x

70.5H 54.0W 33.5D (mm). x x

Approx. 0.21 lbs. (96g)

• Ambient temperature: 32°F to 104°F (0°C to +40°C)

WARRANTY

Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one year after

delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination shall

disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision whether there is a defect in

materials and/or workmanship; and whether or not the product is within the warranty. This warranty shall not apply to any Aiphone product

which has been subject to misuse, neglect, accident, power surge, or to use in violation of instructions furnished, nor extended to units which

have been repaired or altered outside of the factory. This warranty does not cover batteries or damage caused by batteries used in connection

with the unit. This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone.

This warranty is limited to the standard specifications listed in the operation manual. This warranty does not cover any supplementary function

of a third party product that is added by users or suppliers. Please note that any damage or other issues caused by failure of function or

interconnection with Aiphone products is also not covered by this warranty. Aiphone will not be responsible for any costs incurred involving on

site service calls. Aiphone will not provide compensation for any loss or damage incurred by the breakdown or malfunction of its products

during use, or for any consequent inconvenience or losses that may result.

2 WIRING

C-123L/A, LEM-1, LEM-3, AT-406 (AT-206)

SKK-620C

AC 120V

Master station

Red (+)

Black (-)

TAR-3

Red (+)Red (+)

Black (-)Black (-)

SKK-620C

AC 120V

Connect ground wire to earth ground.

•

SKK-620C

• INSTALLATION MANUAL • Connector

1 PACKAGE CONTENTS

Symbol (Symbole) Meaning (Signification)

Connection wire for functional earth (Ligne de raccordement à la terre fonctionnelle)

There is a risk of electric shock. (Il existe un risque de décharge électrique.)

The voltage and current are the direct current. (La tension et le courant sont le courant continu.)

For indoor use only (Pour une utilisation en intérieur uniquement)

Polarity of the terminal (Polarité de la borne)

Double insulation (Double isolation)

The voltage and current are the alternate current. (La tension et le courant sont le courant alternatif.)

Meanings of symbols used on the unit surfaces and in the labels are as follows. (La signification des symboles utilisés sur les surfaces de l'appareil et sur les étiquettes est la suivante.)

Meanings of symbols (Signification des symboles)
