DT22 Getting Started Guide

AP12433 _1

DT22-M

The DT22-M is a PoE enabled Dante I/O unit. It can

be used to complement Allen & Heath digital mixing

systems, or any other system on a Dante network. It

provides 2 mic/line preamps with local gain and

phantom power control, and 2 line level outputs. It

connects to the Dante network over a single Cat

cable.

The DT22-M comes complete with brackets for

surface mounting.

Software

Visit the Audinate website to learn more about

Dante, and download Dante Controller to route

audio and configure devices on a Dante network:

https://www.audinate.com/

Specification

Mic/Line Inputs

Balanced Phoenix, +48V PP

Analogue Gain

0 to + 55dB

Line Inputs

-20dB PAD

Maximum Input Level

+30dBu (line in)

Input Impedance

>4kΩ ( ), >10kΩ (mic line)

Line Outputs

Balanced Phoenix

Output Impedance

<75Ω

Nominal Output

+4dBu = 0dB meter reading

Maximum Output

+22dBu

Dante

48kHz/96kHz

Power and

Temperature

DC Input

+12V DC 1.25A

Power Consumption

10W max

Operating

Temperature Range

0 C to 40 C (32 F to 104 ° ° ° °F)

PoE Requirements

802.3af 15W

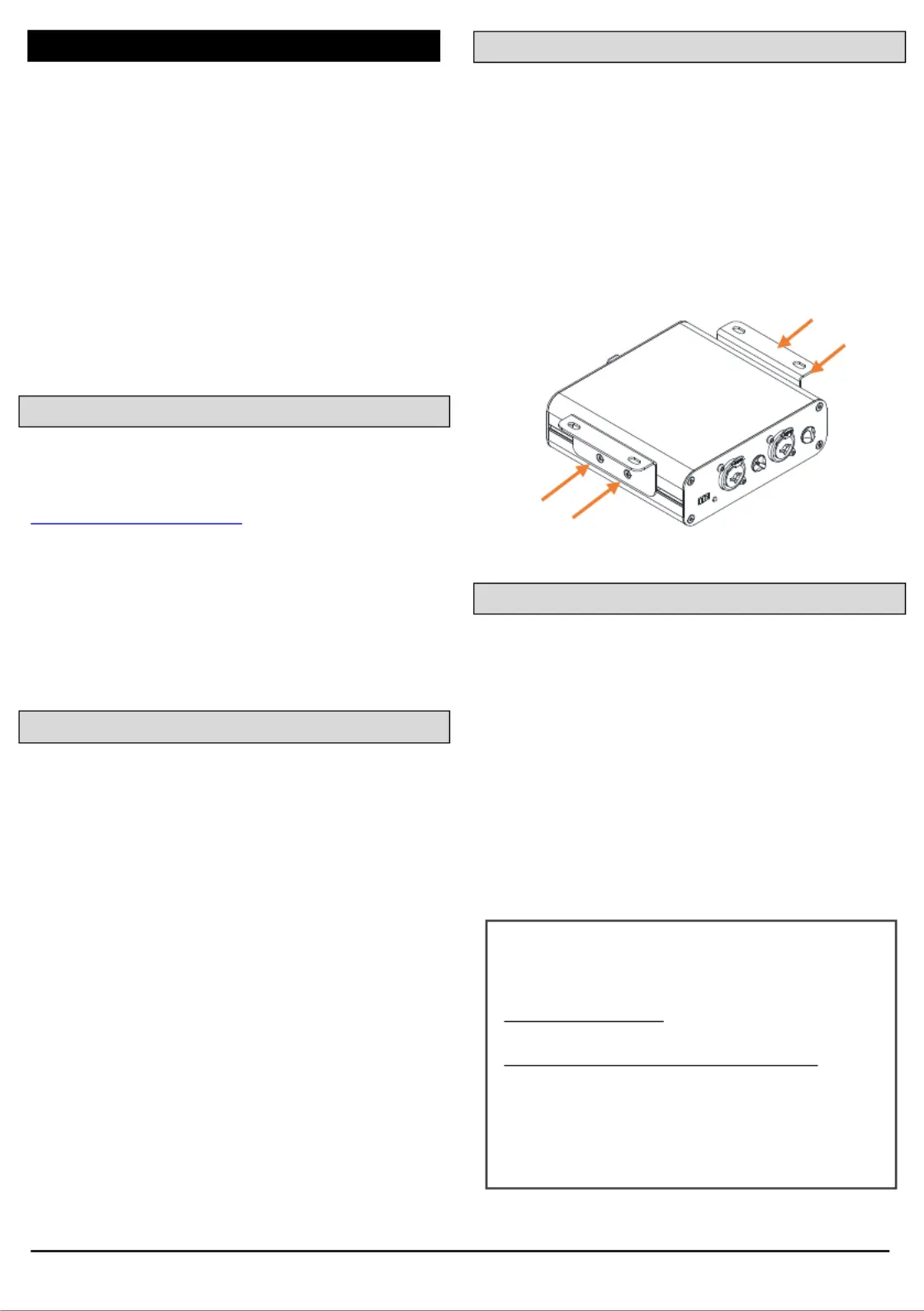

Surface mounting

The surface mounting ears allow the device to be

mounted on top or under a surface, desktop or

podium, or vertically on a wall or partition. They can

be installed to face either the top or bottom of the

unit.

Position the ears centrally on each side of the unit,

aligned with the threaded holes on the insert bars,

facing either up or down as required, and secure

them using the 4x M3x6mm screws provided in the

package.

Rack mounting

Up to two units can be rack-mounted in a single 1U

rack space with the optional rack kit . DT-RK19

Dimensions and

Weight

Width x Depth x Height x Weight

DT22

130 x 100 x 43 mm, 0.5kg

(5.1” x 3.9” x 1.7”, 1lbs)

Read the Safety Instructions Sheet included with the product

and the information printed on the panel before operating.

A limited one year manufacturer’s warranty applies to this

product, the conditions of which can be found at:

www.allen-heath.com/legal

http://www.allen-heath.com/support/register-product/

ALLEN HEATH &

DT22 Getting Started Guide

AP12433 _1

































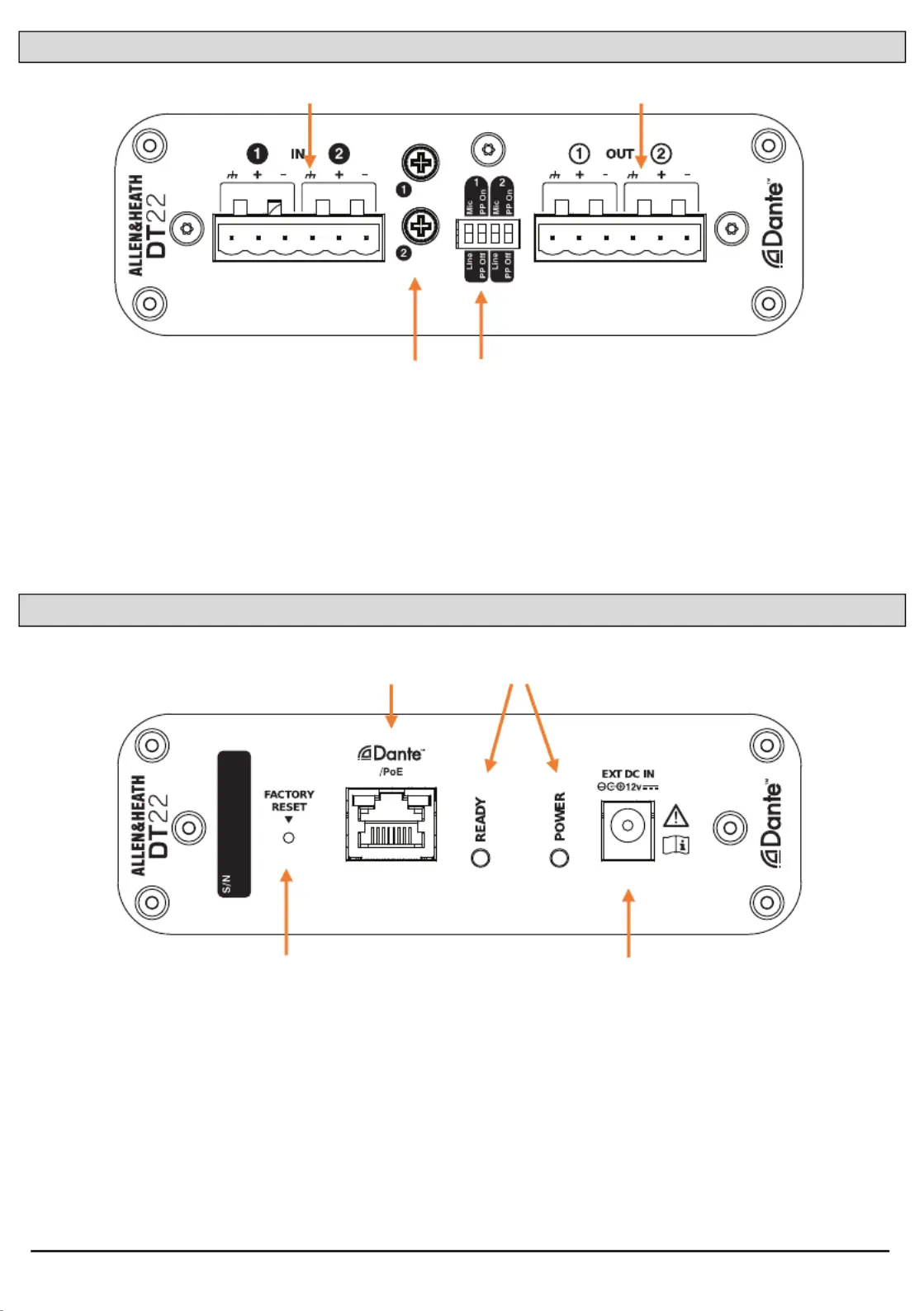

Front panel



 Inputs Balanced Phoenix mic/line inputs.



 Output Balanced Phoenix line outputs.



 Gain Rotary controls for the preamp analogue gain, 0dB to 55dB. Use a Philips screwdriver to adjust

the gain.



 PP +48V Phantom Power and switches for Input 1 and 2. Mic/Line

Rear panel



 Dante EtherCon port for connection to the Dante network and Link / Activity LED indicator. Use a PoE

Ethernet switch or PoE injector to power the unit via this port.



 Power LED indicator and indicator. lights up when the unit is successfully booted and Ready Ready

ready to pass audio.



 Factory Reset Hold down the recessed switch while powering up. After at least 10 seconds,

remove power then power up again normally to reset the network settings and name. This will delete any

static IP address and revert to factory default (DHCP / zero-conf).



 DC input DC 12V connector.
