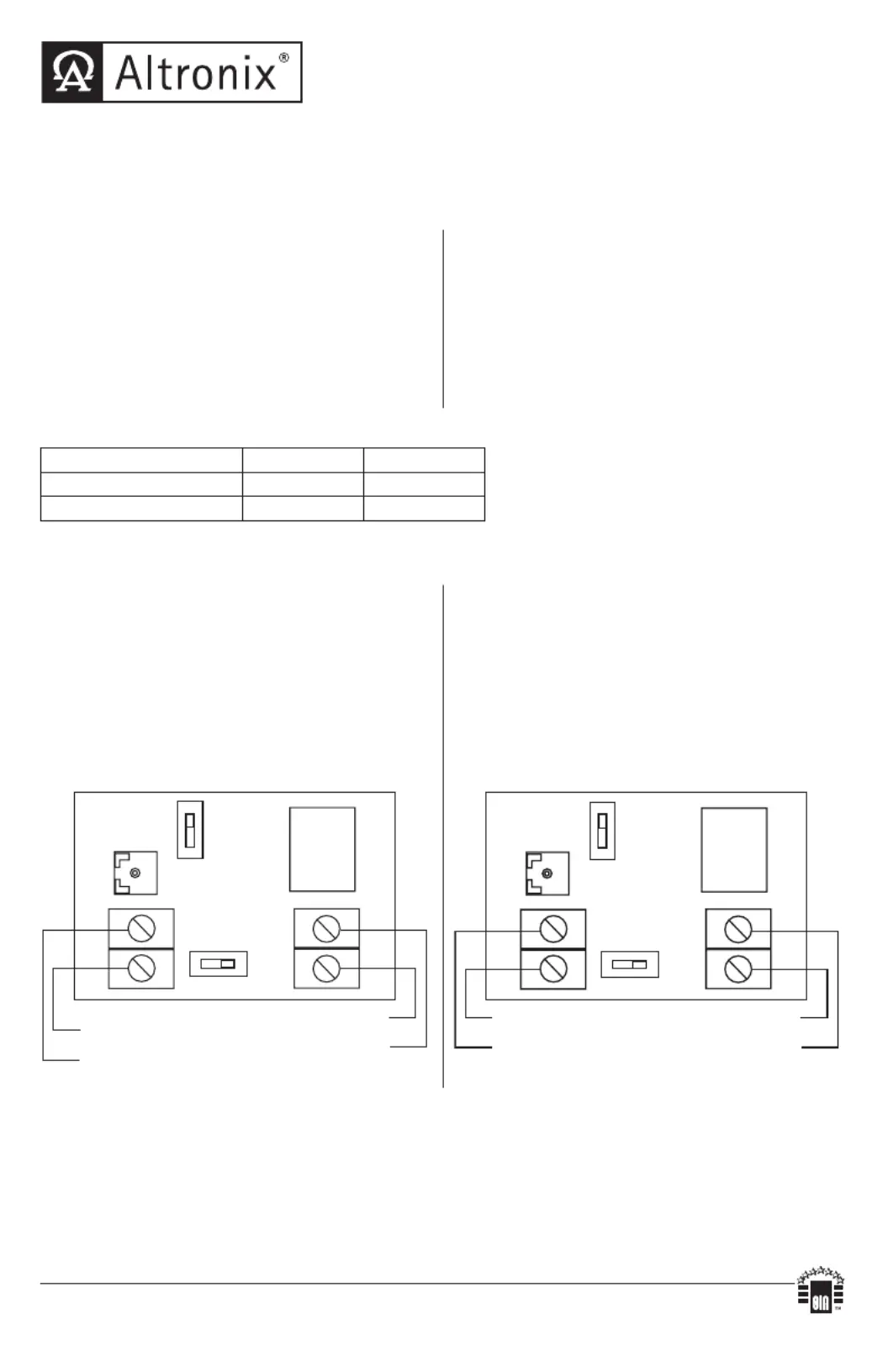

Side 1/1
Overview:
LPD is a convenient way to add a low battery or low power disconnect feature to any 12 or 24VDC power supply
rated up to 8A. 12VDC and 24VDC threshold is adjustable for added flexibility.
Specifications:
Voltage Selection Chart:
Output Voltage SW1 SW2
12VDC OFF ON
24VDC ON OFF
Installation Instructions:
Low Power Disconnect Module
Input:
• Input voltage: 12VDC or 24VDC max., 8A.
Operating Voltages (factory set):
• Low voltage cutoff:
12VDC: 10.5 volts (+/--- 0.3 volts)
24VDC: 20 volts (+/--- 0.3 volts).
• Restore voltage threshold:
12VDC: 11.5 volts (+/--- 0.3 volts)
24VDC: 23 volts (+/--- 0.3 volts).
Relay:
• Relay contact rating 8A max.
Mechanical:
• Product weight (approx.): 0.12 lbs. (0.05 kg).
• Shipping weight (approx.): 0.15 lbs. (0.07 kg).
Board dimensions (W x L x H):
2” x 2.75” x 1” (50.8mm x 69.9mm x 25.4mm)
--- OUT +
+ INPUT ---
Stand-by
Battery
Battery
Terminals
from Power Supply
---
+
---
+
SW2
24VDC-OFF
SW1 12VDC-OFF
ON
ON
--- OUT +
+ INPUT ---
DEVICES
(Max. 8A)
DC
OUTPUT
---
+
---
+
SW2
24VDC-OFF
SW1 12VDC-OFF
ON
ON
Low Battery Disconnect Application:
1. Set the LPD to desired operating voltage via
SW1 & SW2 (see Voltage Selection Chart).
2. Connect power supply Battery Terminals to the
LPD terminals marked [+ INPUT ]---
(Fig. 1 below).
3. Connect the Stand-by Battery to the LPD
terminals marked [ OUT +] --- (Fig. 1 below).
Fig. 1
Low Power Disconnect Application:
1. Set the LPD to desired operating voltage via
SW1 & SW2 (see Voltage Selection Chart).
2. Connect power supply DC Output Terminals to
the LPD terminals marked [+ INPUT ] ---
(Fig. 2 below).
3. Connect the device to be powered to the LPD
terminals marked [ OUT +] --- (Fig. 2 below).
Fig. 2
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
IILPD - Rev. 082016 I01Q
