Rev. 062718 More than just power.TM
Pole Mount Kits
Installation Guide
Models Include:
PMK1
- Accommodates Altronix WP1, WP3, and WP4 outdoor rated enclosures.
- 1.96” x 12” x 2.25” (49.8mm x 304.8mm x 57.2mm)
PMK2
- Accommodates Altronix WP2 outdoor rated enclosure.
- 1.96” x 14” x 2.25” (49.8mm x 355.6mm x 57.2mm)
- 2 - Pole Mount Kits
Overview:
Altronix PMK1 and PMK2 outdoor pole mount kits are designed to simplify the installation of Altronix outdoor
rated power supplies and accessories housed in models WP1, WP2, WP3 and WP4 NEMA rated enclosures.
PMK1 and PMK2 can be mounted on 2” to 8” (50.8mm to 203.2mm) diameter round or 5” (127mm) square poles.
Specifications:
Each kit includes:
- Two (2) powder coated steel mounting brackets.
- Four (4) stainless steel bolts.
- Four (4) stainless steel lock washers.
- Two (2) 39” wormgear quick release straps.
Metal Bracket Dimensions :(approx.)
PMK1:
1.96x 12” x 2.25(49.8mm x 304.8mm x 57.2mm).
Product weight: 2.85 lbs. (1.3kg).
Shipping weight: 3.2 lbs. (1.45kg).
PMK2:
1.96x 14” x 2.25(49.8mm x 355.6mm x 57.2mm).
Product Weight: 3.2 lbs. (1.45 kg).
Shipping Weight: 3.6 lbs. (1.63 kg).
Installation Instructions:
This installation should be made by qualified service personnel. This product contains no serviceable parts.
PMK1 and PMK2 are intended for use with Altronix outdoor rated power supplies or accessories housed in WP1,
WP2, WP3 and WP4 enclosures.
Brackets are designed for use with the Wormgear Quick Release Straps (two included).
1. Thread one (1) wormgear quick release strap through the slots on the back of a mounting bracket (Fig. 1, pg. 2).
2. Once the desired height of the top Pole Mount bracket is achieved, tighten the straps down by sliding open
end of the strap through the locking mechanism on the strap, then tighten the screw with flat head screwdriver
or 5/16” hex socket driver .(Fig. 2, pg. 2)

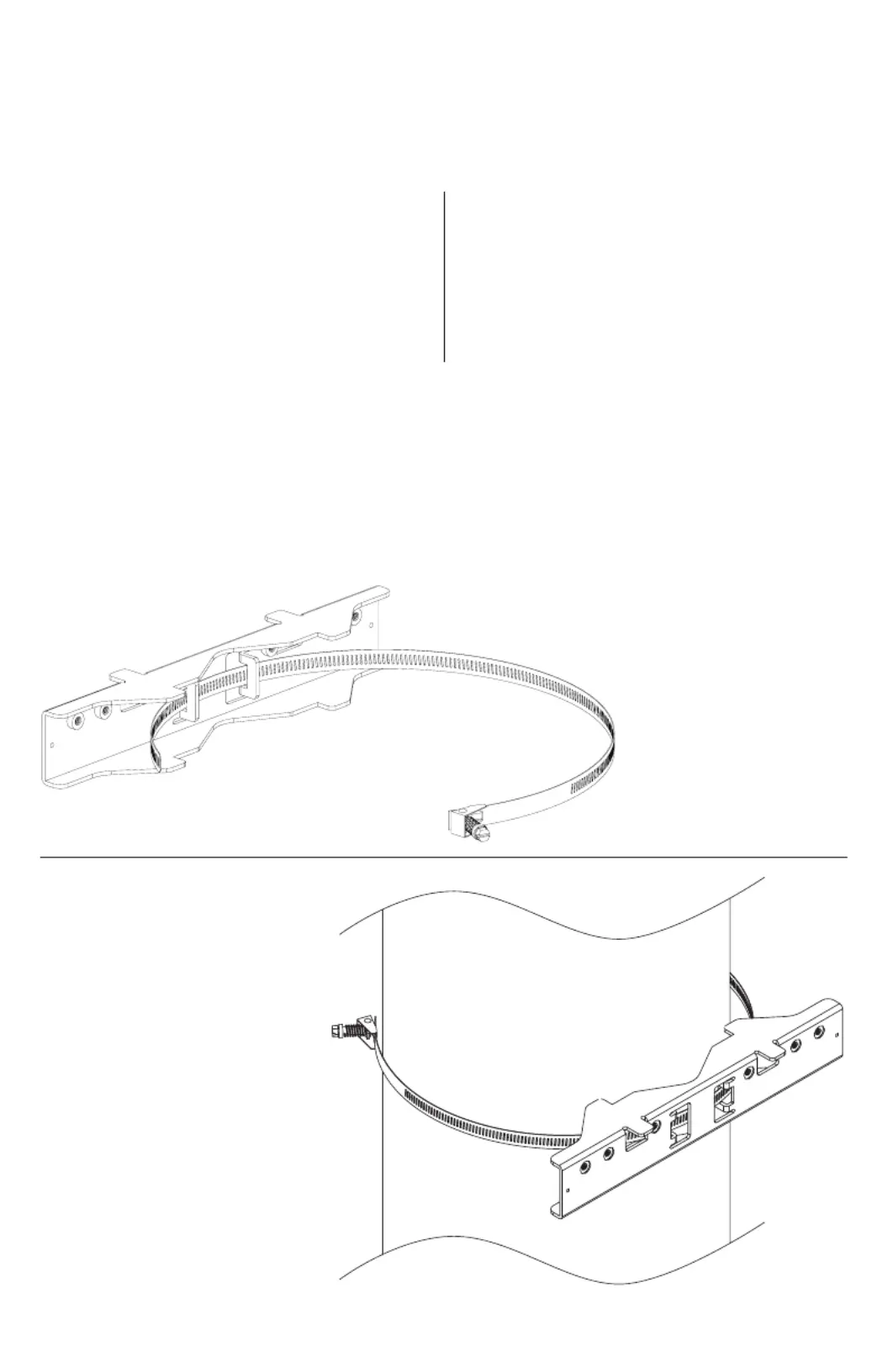

Fig. 1
Fig. 2
