Side 1/8

T3MK75F16

16 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove3 enclosure with TM3 Altronix/Mercury backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) eFlow102NB - Power Supply/Charger

- Two (2) ACM8 - Fuse Protected Access Power Controllers

- One (1) PD8UL - Fuse Protected Power Distribution Module

- One (1) Rocker Switch Bracket with Two (2) Rocker Switches

(Not evaluated by UL)

T3MK77F16

16 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove3 enclosure with TM3 Altronix/Mercury backplane

- Two (2) eFlow104NB - Power Supply/Chargers

- Two (2) ACM8 - Fuse Protected Access Power Controllers

- Two (2) PD8UL - Fuse Protected Power Distribution Modules

- One (1) Rocker Switch Bracket with Two (2) Rocker Switches

(Not evaluated by UL)

T3MK75F16D

16 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove3 enclosure with TM3 Altronix/Mercury backplane

- One (1) eFlow104NB - Power Supply/Charger

- One (1) eFlow102NB - Power Supply/Charger

- Two (2) ACM8CB - PTC Protected Access Power Controllers

- One (1) PD8ULCB - PTC Protected Power Distribution Module

- One (1) Rocker Switch Bracket with Two (2) Rocker Switches

(Not evaluated by UL)

T3MK77F16D

16 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove3 enclosure with TM3 Altronix/Mercury backplane

- Two (2) eFlow104NB - Power Supply/Chargers

- Two (2) ACM8CB - PTC Protected Access Power Controllers

- Two (2) PD8ULCB - PTC Protected Power Distribution Modules

- One (1) Rocker Switch Bracket with Two (2) Rocker Switches

(Not evaluated by UL)

Access & Power Integration

Rev. T3MK071818

Installing Company: Service Rep. Name: _____________________ __________________________________________

Address: Phone #: ________________________________________________________ _________________________

All registered trademarks are property of their respective owners. More than just power.™

Installation Guide

All components of these Trove kits are UL Listed sub-assemblies.

Please refer to the included corresponding Sub-Assembly Installation Guides for further information.

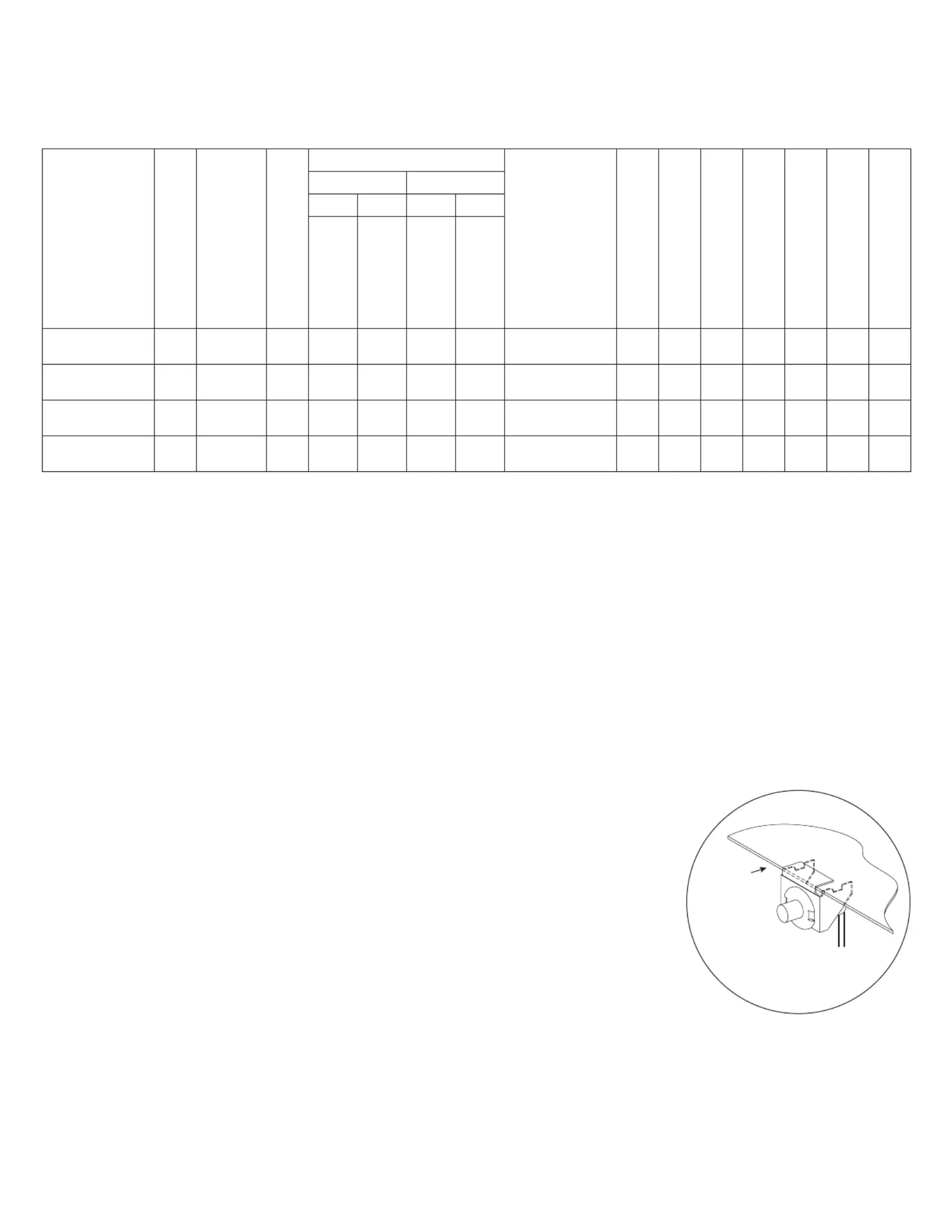

- 2 - T3MK Kits

Overview:

Altronix Trove Mercury kits are pre-assembled and consist of Trove3M3 enclosure/backplane with factory installed Altronix power

supply/charger(s) and sub-assemblies. These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors

in a single enclosure.

Configuration Chart:

Altronix

Model Number

120VAC 60Hz

Input Current (A)

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

Nominal DC Output Voltage

Maximum

Supply

Current for

Main and Aux.

Outputs on Power

Supply board

and ACM8(CB)

Access Power

Controller’s

outputs

Fail-Safe/Fail-Secure or

Dry Form “C” Outputs

Current Per

ACM8(CB) Output (A)

ACM8(CB) Board

Input Fuse Rating

ACM8 Board

Output Fuse Rating

ACM8CB Board

Output PTC Rating

PD8UL Board

Output Fuse Rating

PD8ULCB Board

Output Fuse Rating

Power Supply 1 Power Supply 2

[DC] [Aux] [DC] [Aux]

Output Range

(VDC)

Output Range

(VDC)

Output Range

(VDC)

Output Range

(VDC)

T3MK75F16 86.3A/250V

5A/250V

15A/

32V

20.17-

26.4

20.28-

26.4

9.7-

13.2

10.03-

13.2

12VDC @ 9.3A

24VDC @ 9.2A 16 2.5 10A/

250V

2.5A/

250V –3.5A/

250V –

T3MK75F16D 86.3A/250V

5A/250V

15A/

32V

20.17-

26.4

20.28-

26.4

9.7-

13.2

10.03-

13.2

12VDC @ 9.3A

24VDC @ 9.2A 16 2.5 10A/

250V – 2A – 2.5A

T3MK77F16 96.3A/

250V

15A/

32V

20.17-

26.4

20.28-

26.4

20.17-

26.4

20.28-

26.4 24VDC @ 9.2A 16 2.5 10A/

250V

2.5A/

250V –3.5A/

250V –

T3MK77F16D 96.3A/

250V

15A/

32V

20.17-

26.4

20.28-

26.4

20.17-

26.4

20.28-

26.4 24VDC @ 9.2A 16 2.5 10A/

250V – 2A – 2.5A

Hardware and Accessories:

• Two (2) tamper switches (Altronix Model TS112 or equivalent).

• Cam lock.

• Battery leads.

Mechanical:

• 16 Gauge enclosure with ample knockouts for convenient access.

• Enclosure Dimensions (H x W x D): 36.12” x 30.125” x 7.06” (917.5mm x 768.1mm x 179.3mm).

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having

jurisdiction. Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws

in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the three upper screws, level and secure.

Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes and install

the three fasteners. Place the enclosure’s upper keyholes over the three upper screws.

Install the three lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switches (Altronix Model TS112 or equivalent) in desired location,

opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2”

from the right side . Connect tamper switch wiring to the Access Control Panel input (Fig. 1, pg. 2)

or the appropriate UL Listed reporting device.

To activate alarm signal open the door of the enclosure.

4. Mount Mercury boards to backplane, refer to pg. 3, 4.

5. Refer to the for eFlow104NB, eFlow102NB eFlow Power Supply/Charger Installation Guide

and corresponding for PD8UL(CB) and ACM8(CB) for Sub-Assembly Installation Guides

further installation instructions.

6. Position Mercury access controller module over corresponding standoffs and depress onto

snap on standoffs (Fig. 2-3, pg. 3-4).

7. Mount backplane to enclosure with hardware.

Fig. 1

Tamper Switch

(provided)

To Access Control Panel or

UL Listed Reporting Device

Edge of

Enclosure
