Side 1/12
SAVE FOR FUTURE USE
7302242-100 Rev. A
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2016
NOTE: Pictures may not exactly define contour of china and components.

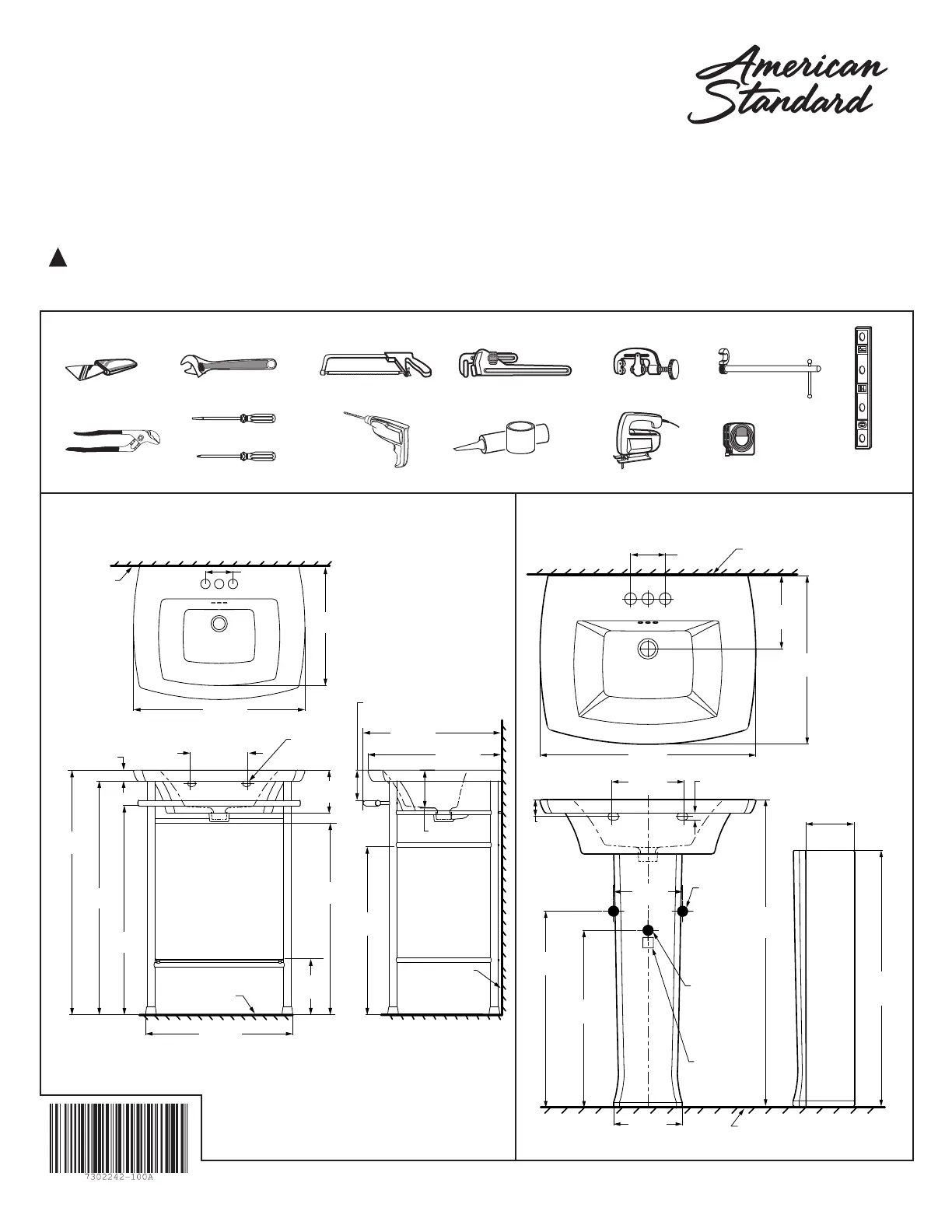

Edgemere
™
0445 Series Console / Pedestal
INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
!
OBSERVE LOCAL PLUMBING AND BUILDING CODES
Recommended Tools & Materials
Edgemere Console Lavatory Edgemere Pedestal Lavatory
Adjustable Wrench
Channel Lock Pliers
Regular Screwdriver
Phillips Screwdriver
Pipe Wrench
Putty Knife
Drill
Saber Saw
Basin Wrench
Plumbers' Putty or
Caulking
Tubing Cutter
Tape Measure
Hacksaw
Level
FINISHED
FLOOR
FOR
ANCHOR
SCREW
MOUNT
FINISHED
WALL
FINISHED
WALL
906mm
(35-11/16")
496mm
(19-1/2")
112mm
(4-7/16")
160mm
(6-5/16")
40mm
(1-9/16")
545mm
(21-1/2")
213mm
(8-3/8")
775mm
(30-1/2")
710mm
(28")
866mm
(34-1/16")
207mm
(8-1/8")
622mm
(24-1/2")
634mm
(25")
102mm
(4")
444mm
(17-1/2")
514mm
(20-1/4")
140mm
(5-1/2")
OPEN TO
FLOOR
FINISHED WALL
OR BACKSPLASH
SUPPLIES
AS REQ'D
1-1/4" O.D.
WASTE
1-1/4" O.D.
TAILPIECE
FINISHED
FLOOR
*578mm
(22-3/4")
*521mm
(20-1/2")
202mm
(8")
213mm
(8-3/8")
22mm
(7/8")
102mm
(4")
215mm
(8-1/2")
634mm
(25")
495mm
(19-1/2")
DRAIN CHASE
50mm
(2")
203mm
(8")
906mm
(35-5/8")
2
7302242-100 Rev. A

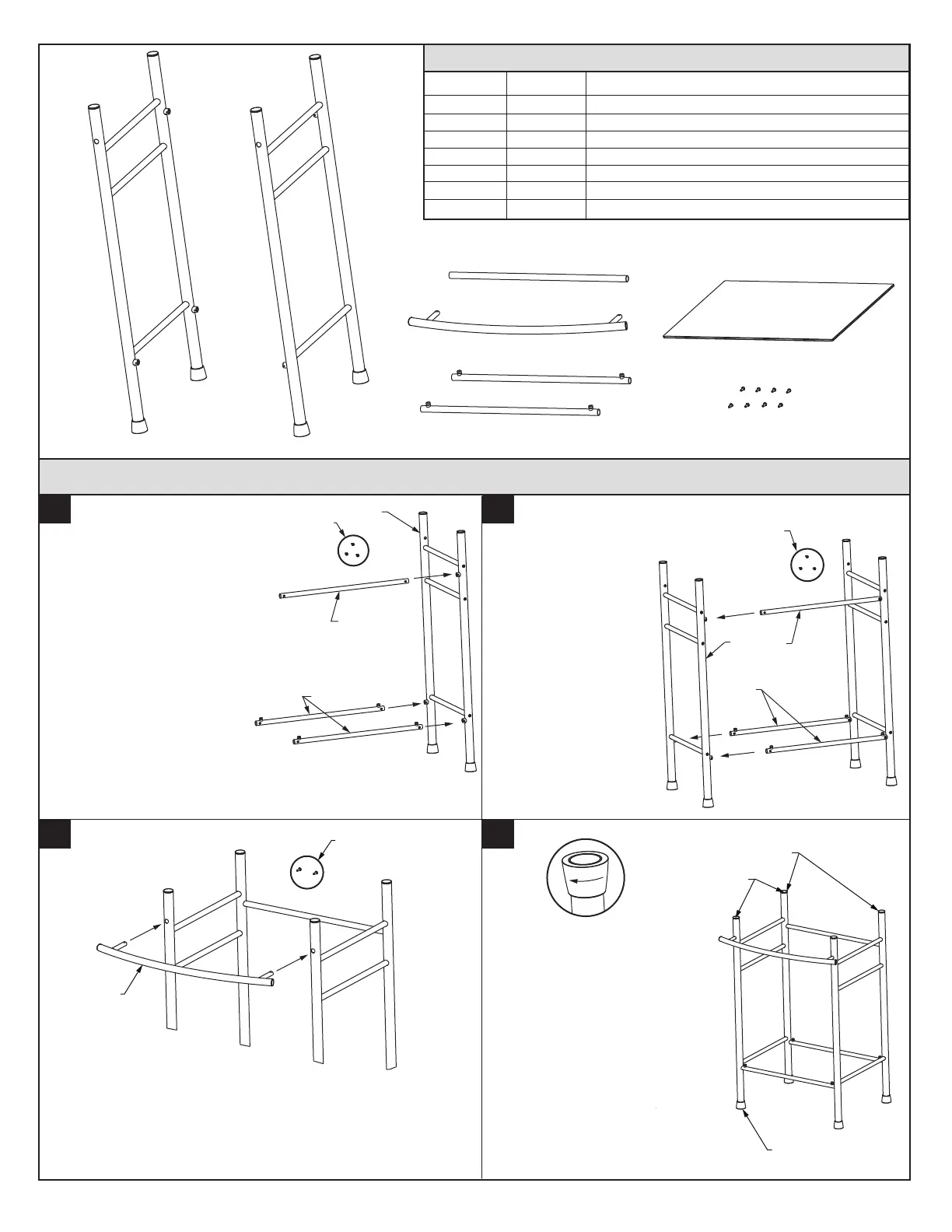

ITEM # QTY. DESCRIPTION
A
B
C
D
E
F
G
1
1
1
1
2
1
8
LEFT SIDE LEG SUB-ASSEMBLY
RIGHT SIDE LEG SUB-ASSEMBLY
BACK TOP SUPPORT TUBE
TOWEL BAR
SHELF SUPPORT TUBE
TEMPERED GLASS SHELF
M4 x 0.7 PHILLIPS HEAD MACHINE SCREW
8719 CONSOLE TABLE COMPONENTS LIST
CONSOLE ASSEMBLY
1 2
3 4
Insert the back top support
tube (C) as well as both shelf
support tubes (E) into the
exposed tube housings in the
left side leg sub-assembly (A)
as shown. Align the support
tubes such that the holes in
the support tubes line up with
the threaded housings in the
side leg sub-assembly. Using
3 of the provided machine
screws, tightly secure the
support tubes into the side leg
sub-assembly.
A
B
C
D
E
F
G
3x - included
machine screws
C
A
E
3x - included
machine screws
C
E
B
D
2x - included
machine screws
Adjustable foot
bumper
Level side-to-side
Level front-to-back
Feet are adjustable
Insert the right side leg
sub-assembly (B) into the
exposed ends of support
tubes (C, E) as shown.
Make sure to align the
support tubes holes to the
threaded portion of the
side leg sub-assemblly
housings. Using 3 of the
provided machine screws,
tightly secure the support
tubes into the right side
leg sub-assembly.
Insert the towel bar (D) into the two exposed holes on the upper
front legs of the the console assembly. Using the final 2 machine
screws, tightly secure the towel rack to the console.
Place assembly into approximate
installation position. Use a level and
the four independently adjustable
foot bumpers to ensure the console
assembly is level both side-to-side
and front-to-back.
Note: Wait until after final installation
of console and sink to assemble
glass shelf onto shelf support and
remove protective film.
