730515-100 Rev. A
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE
AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

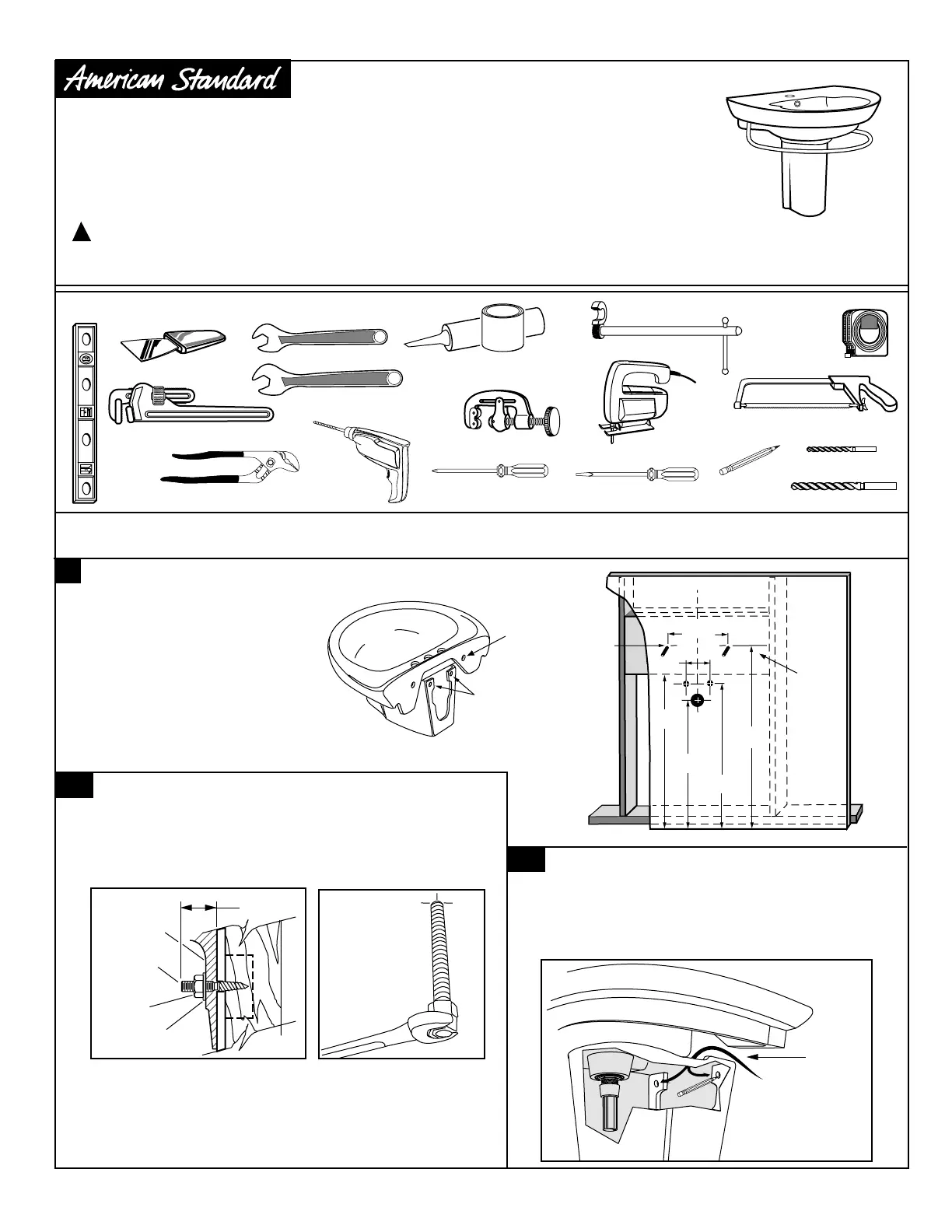

INSTALLATION INSTRUCTIONS
Ravenna Wall-Hung Semi-Pedestal Sink
1
Introduction: Thank you for selecting our products...products which have been the benchmarks of
fine quality for years. To help insure that the installation process will proceed smoothly, please read
these instructions carefully before you begin. Also, review the recommended tools and materials
list; carefully unpack and examine your new plumbing fixture.
7/16" Wrench
Channel Lock Pliers
Regular Screwdriver
Recommended Tools & Materials
Phillips Screwdriver
Pipe Wrench
Putty Knife
Drill
Saber Saw
Basin Wrench
Plumbers' Putty or
Caulking
Tubing Cutter
Tape
Measure
Hacksaw
Pencil
3/16 Dia. Drill
9/32 Dia. Drill
© American Standard Inc. 2003
Level
Install lavatory anchor screws leaving
1-5/8" threaded end exposed as illustrated.
1-5/8"
ANCHOR SCREW INSTALLATION
Anchor
Screw
Washer
Lavatory
Nut
Pedestal
Anchor Holes
Access
L
C
9-1/2"
(241mm)
3"
(76mm)
26-1/2"
(673mm)
21"
(533mm)
24-3/4"
(629mm)
32"
(813mm)
SUPPLIES
3/8" x 4"
HANGER
STUDS
DRYWALL
DOUBLE
2" X 8"
50 X 203mm
WOOD BRACE
FINISHED FLOOR
WASTE
*NOTE: for ease of installation and accessibility, it is recommended that straight stops with flex supply tubes be used.
As an alternative, if rigid supply risers are used, it is suggested to use angle stops in place of the straight stops.
Provide Rough-in: Install waste
pipe 21" (533mm) up from the
floor. Install the supplies at 24-
3/4" (629mm) up from finished
floor, spaced 1-1/2" (38mm) to
either side of centerline. Firmly
attach two 2" x 8" (50 x 203mm)
wood braces to wall studs.
Bottom of brace should be 26-1/2"
(673mm) up from floor and extend
a minimum of 6" (153mm) to
either side of waste. Complete
drywall installation (see figure 1).
SINK
ANCHOR
HOLES
SEMI-PEDESTAL/SHROUD
ANCHOR HOLES
Drill (2) 9/32" dia. (7mm) holes 32" up from finished floor, spaced at 4-
3/4" (120.6mm) either side of centerline. Install (2) 3/8" x 4" lg studs
using the double nut method, leaving 1-5/8" of threaded end exposed.
Mount the sink to studs temporarily, making sure the sink is level side
to side.
Position semi-pedestal under bottom lip of sink. While
holding semi-pedestal in position reach through the access
area between the lavatory and semi-pedestal and mark the
location of anchor holes. Remove semi-pedestal and
predrill 3/16" (4-5mm) dia. holes at locations marked. Install
1/4" x 3" lg studs leaving 1-1/4" exposed. Use same anchor
screw installation as in 2a.
9/16" Wrench
730515-100 Rev. A
AMERICAN STANDARD ONE-YEAR LIMITED WARRANTY
If inspection of this American Standard plumbing product, within one year after its initial installation, confirms that it is defective in
materials or workmanship, American Standard will repair or, at its option, exchange the product for a similar model.
This limited warranty does not apply to local building code compliance; since local building codes vary considerably, the purchaser of
this product should check with a local building or plumbing contractor to insure local code compliance before installation.
This warranty shall be void if the product has been moved from its initial place of installation; if it has been subjected to faulty
maintenance, abuse, misuse, accident or other damage; if it was not installed in accordance with American Standard's instructions; or if it has
been modified in a manner inconsistent with the product as shipped by American Standard.
American Standard's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or
installation, nor shall American Standard be responsible for any other incidental or consequential damages attributable to a product
defect or to the repair or exchange of a defective product, all of which are expressly excluded from this warranty. (Some states or
provinces do not allow the exclusion or limitation of implied warranties, so this exclusion may not apply to you.)
This warranty gives you specific legal rights. You may have other statutory rights that vary from state to state or from province to
province, in which case this warranty does not affect such statutory rights.
For service under this warranty, it is suggested that a claim be made through the contractor or dealer from or through whom the product
was purchased, or that a service request (including a description of the product model and of the defect) be sent to the following address:
In the United States:
American Standard, Inc.
One Centennial Ave.
Piscataway, New Jersey 08855
Attention: Director of Consumer Affairs
Toll Free: (800) 442-1902
In Canada:
American Standard, Inc.
2480 Stanfield Rd.,
Mississauga, Ontario
Canada L4Y 1S2
Toll Free: (800) 387-0369
In Mexico:
Customer Service Manager
American Standard, Inc.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
3 5
4

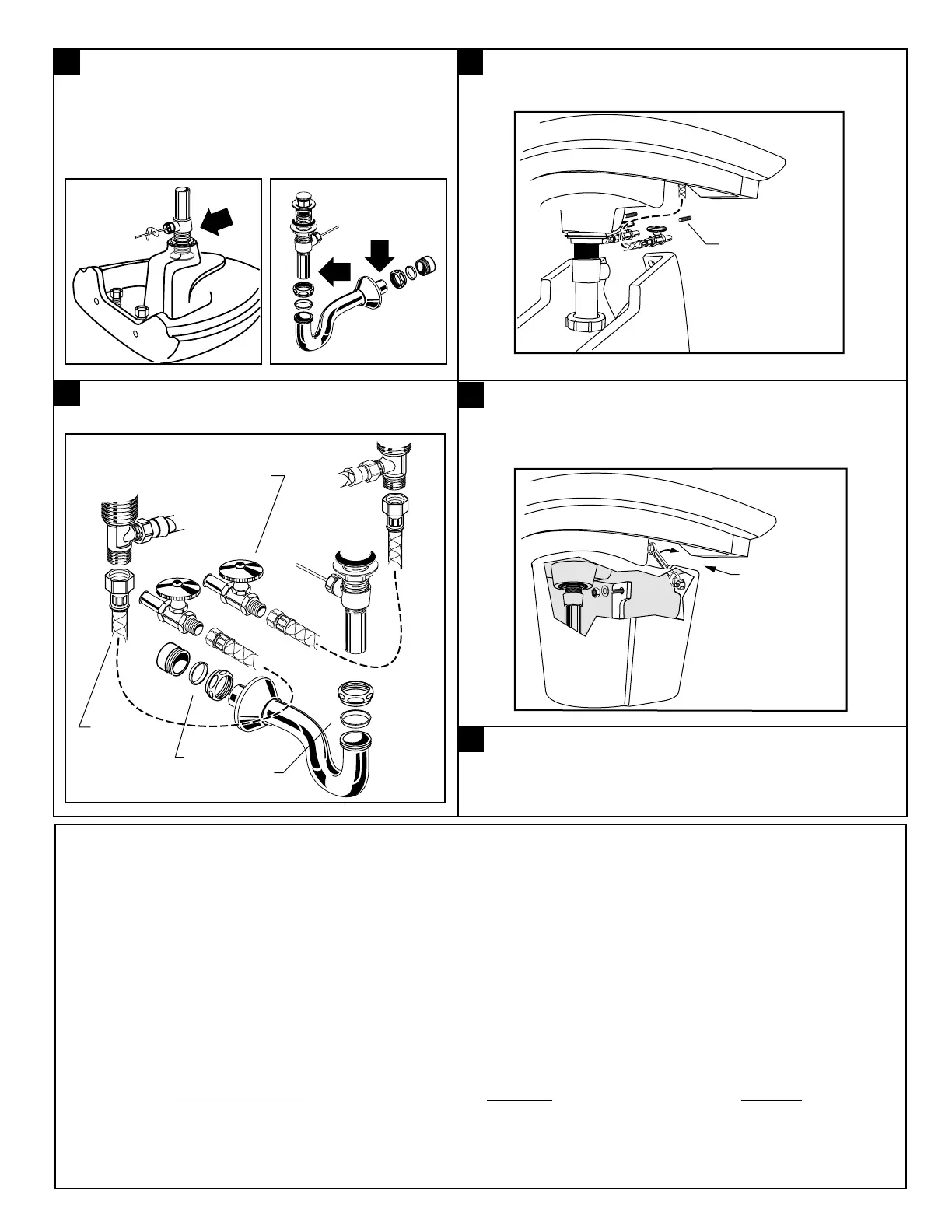

Remove lavatory top. Install faucet and pop-up assembly
("A") according to manufacturer's instructions before
installing sink. Remount sink on the threaded end of wall
studs. Firm up with washers and nuts, but do not over-
tighten. It may be necessary to cut off part of the tailpiece
(area "B") or part of the horizontal leg of the trap (area "C").
Connect water supplies lines and drain pipe
connections. Turn water on and check for leaks.
If installing optional towel bar (model 3520) it is recommended to install
the towel bar after the sink and semi-pedestal are installed. (See
instructions for towel bar.)
Through the access space between pedestal and
lavatory use a 7/16" wrench to tighten the pedestal
to wall.
Mount Semi-Pedestal in position on threaded end
of 1/4" studs using washers and nuts supplied.
A
B
C
7
6
Shut-Off Valves
Flex
Supplies
Drain
Connections
Illustration shown less
wall supplies.
Mounting
Studs
Access space
