Side 1/12
1
sw915 digital audio travel partner
Thank you for choosing the SW915 Digital Audio Travel
Partner from AmpliVox Portable Sound Systems. We are
excited in introducing a “leap forward” in portable sound
systems with the incorporation of a fully digital amplifier
system along with an industry leading remote control
operation. Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the unique
capabilities of another quality product from AmpliVox
Portable Sound Systems. As always, you can reach us at
800-267-5486, Monday - Friday 8am - 6pm CST.
Part #: N011-0039
rounded corners
SW915 LABEL
Color: PMS 300, black, white,
Size: 7.32” x 1.27”
TABLE OF CONTENTS .........................................................1
GETTiNG STArTEd/QuiCk SETup ................................... 2
CONTrOL pANEL FuNCTiONS ..........................................3
CONTrOLS / iNdiCATOrS ................................................4
AudiO FuNCTiONS & AdjuSTmENT ............................... 4
iNpuTS / OuTpuTS .............................................................5

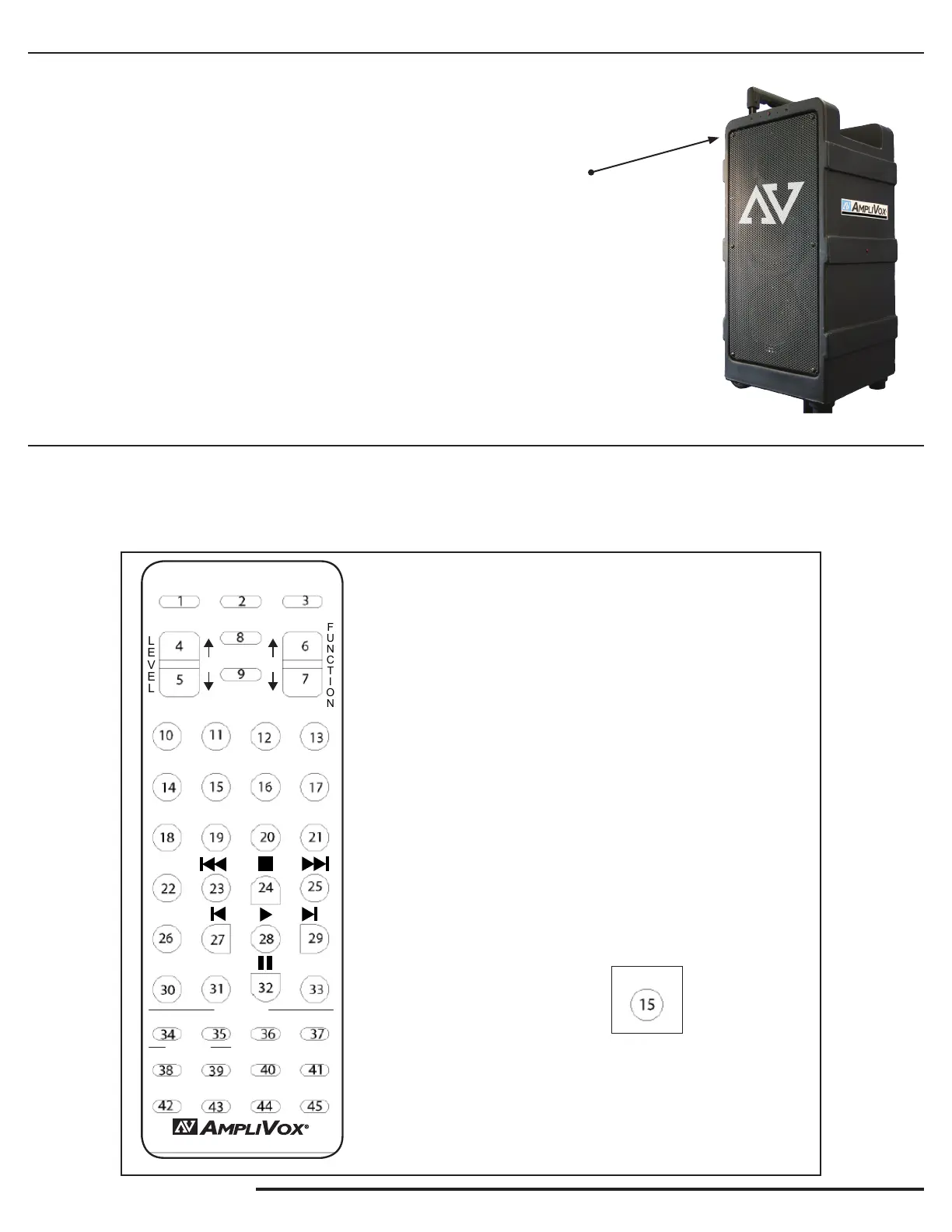

rEmOTE CONTrOL ......................................................... 6-7
WirELESS miC ................................................................... 8
Cd pLAYEr ..........................................................................9
OpTiONAL EQuipmENT

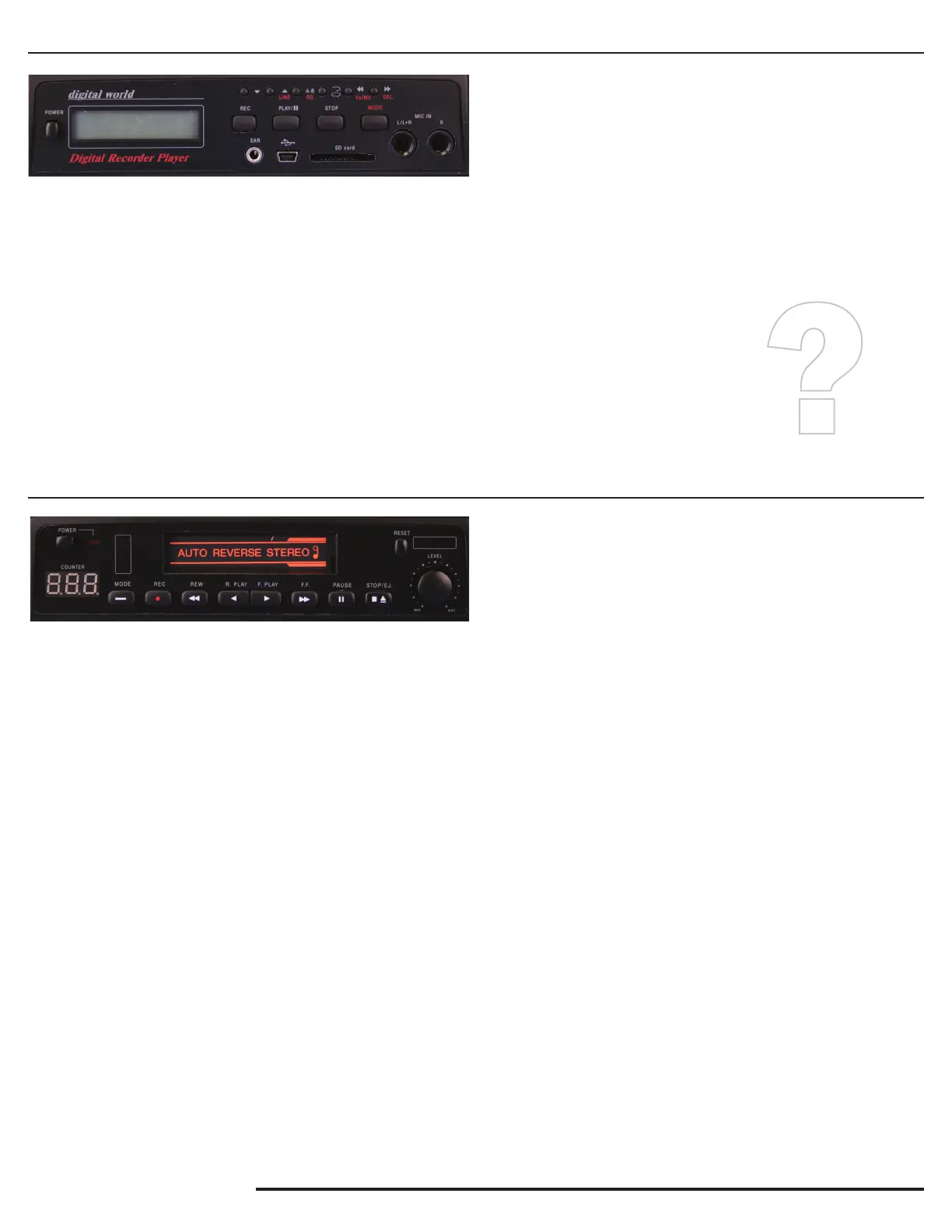

diGiTAL rECOrdEr/pLAYEr .....................................10
CASSETTE rECOrdEr/pLAYEr .................................10
TrOuBLEShOOTiNG .........................................................11
AmpLivOx pOrTABLE SOuNd SYSTEmS
ph. 800-267-5486 Fx. 800-26705489
WWW.AmpLi.COm CuSTOmErSErviCE@AmpLi.COm
Made in USA
NEEd hELp?
CALL 800-267-5486
Or 847-498-9000
EmAiL:
CuSTOmErSErviCE@
AmpLi.COm
uSEr GuidE
2

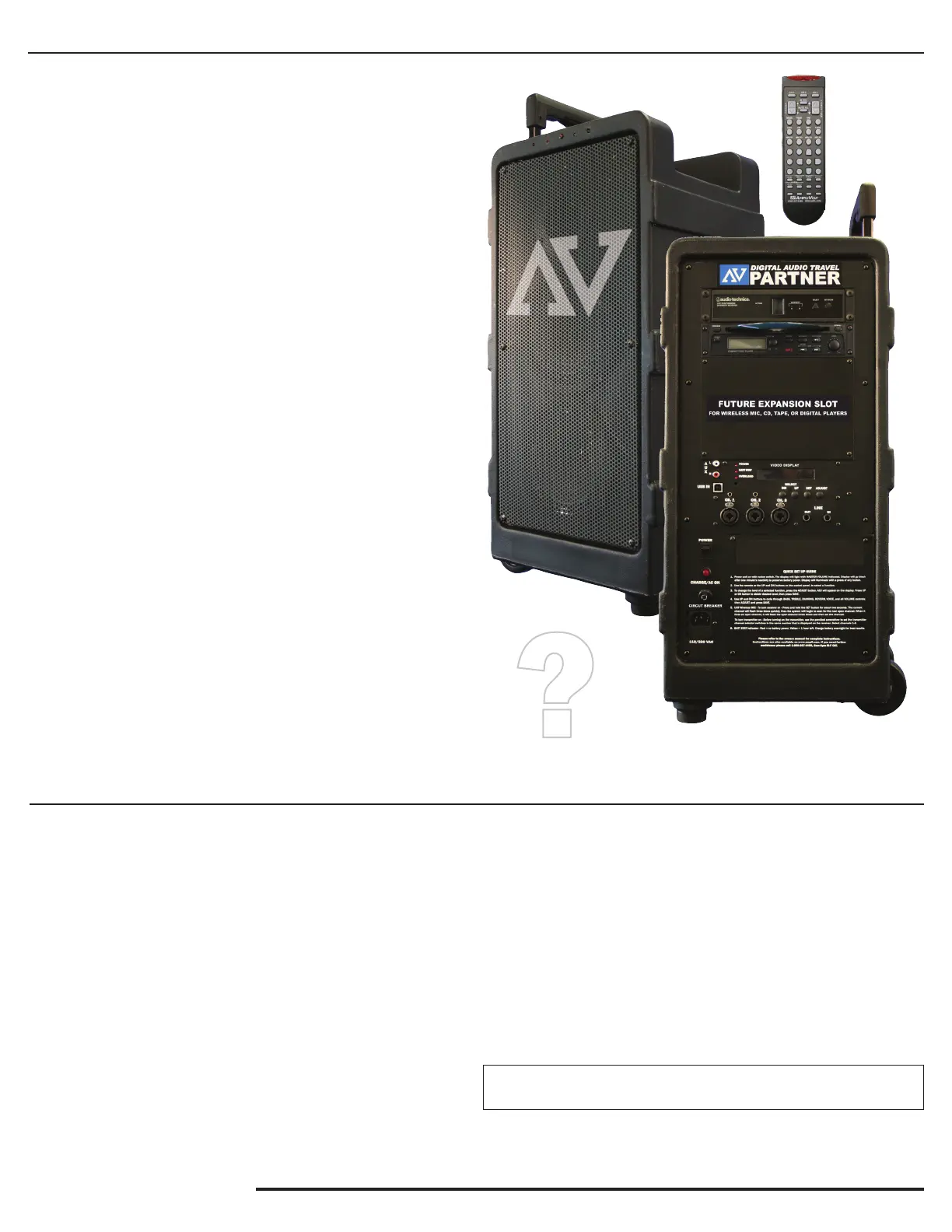

SW915 DIGITAL AUDIO TRAVEL PARTNER
GettinG Started/Quick Setup (alSo printed on Battery cover)
1. Power unit on with rocker switch. The display will light
with MASTER VOLUME indicated.
Display will go black after one minute’s inactivity to
preserve battery power. Display will illuminate with a
press of any button.
2. Use the remote or the UP and DN buttons on the control
panel, to select a function.
3 To change the level of a selected function, press the
ADJUST button. ADJ will appear on the display. Press UP
or DN button to obtain desired level, then press SAVE.
4. Use UP and DN buttons to cycle through BASS, TREBLE,
DUCKING, REVERB, VOICE, and all VOLUME controls; then
ADJUST and press SAVE.

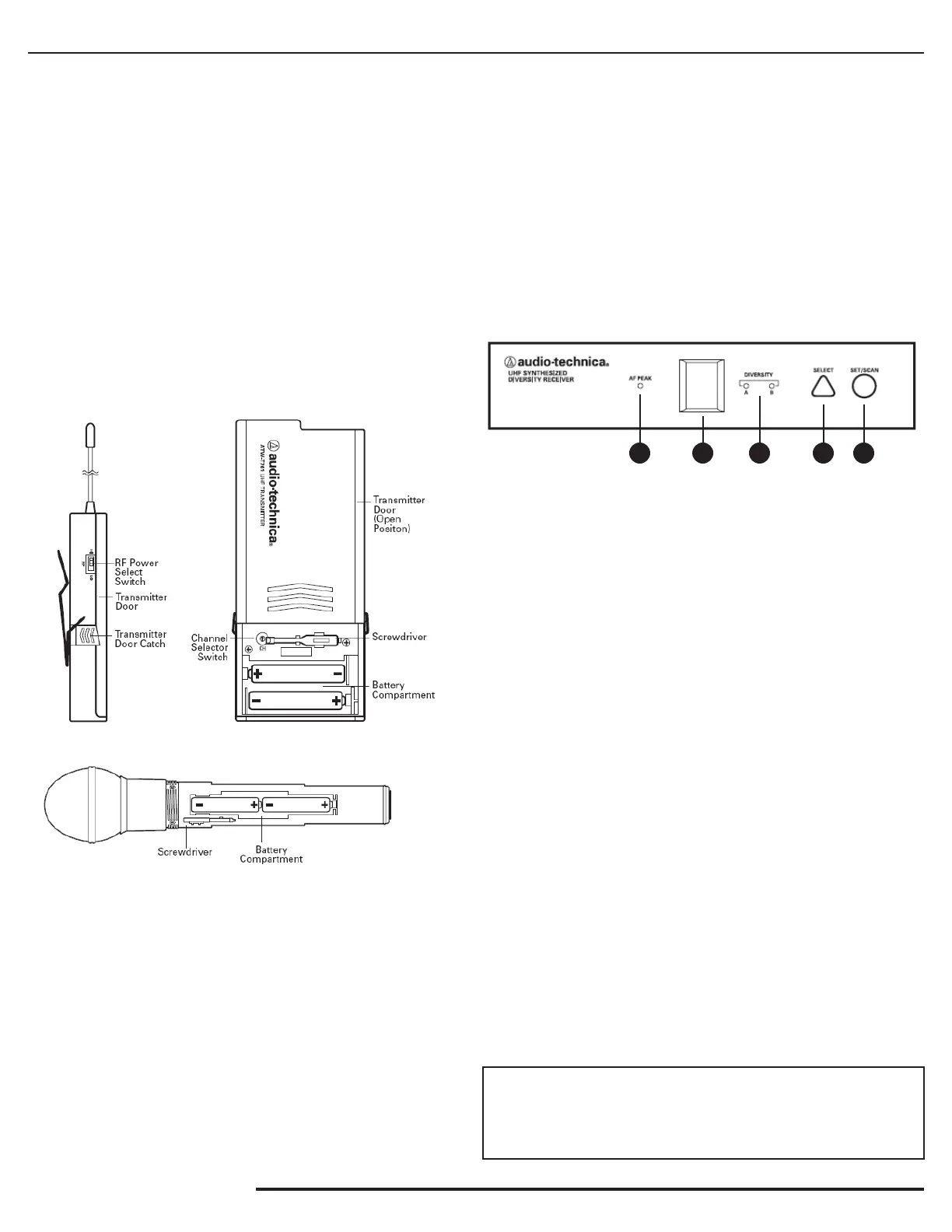

5. UHF Wireless MIC - To turn receiver on - Press and hold the
SET button for about two seconds. The current channel
will flash three times quickly; then the system will begin
to scan for the next open channel. When it finds an open
channel, it will flash the open channel three times and
then set the channel.
To turn transmitter on - Before turning on the transmitter,
use the provided screwdriver to set the transmitter channel
selector switches to the same number that is displayed on
the receiver. Select channels 1-8.
6. BATT STAT indicator - Red = no battery power, Yellow = 1
hour left. Charge battery overnight for best results.
If you need further assistance, please call 1-800-267-5486,
8am-6pm M-F CST.
PLEASE NOTE: THE REMOTE DOES NOT TURN THE UNIT ON OR OFF.
YOU MUST DO THAT ON THE CONTROL PANEL
ATTENTiON:
ALL SAFETY AND OPERATING INSTRUCTIONS SHOULD BE READ
BEFORE OPERATING APPLIANCE. ALL OPERATING AND USE INSTRUCTIONS
SHOULD BE FOLLOWED WHEN OPERATING THE APPLIANCE. HEED AND
ADHERE TO ALL WARNINGS ON THE APPLIANCE AND IN THE OPERATING
INSTRUCTIONS. RETAIN ALL SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE REFERENCE.
WATEr & mOiSTurE -
DO NOT USE THE APPLIANCE NEAR WATER; IE.
BATHTUB, WASHBOWL, KITCHEN SINK, LAUNDRY TUB, WET BASEMENT OR
SWIMMING POOL.
hEAT -
SITUATE THE APPLIANCE AWAY FROM HEAT SOURCES SUCH AS
RADIATORS, HEAT REGISTERS, STOVES OR OTHER APPLIANCES (INCLUDING
AMPLIFIERS) THAT PRODUCE HEAT.
pOWEr SOurCES -
CONNECT THE APPLIANCE ONLY TO A POWER SUPPLY
TYPE DESCRIBED IN THE OPERATING INSTR-UCTIONS OR MARKED ON THE
APPLIANCE. GROUNDING OR POLARIZATION - PRECAUTIONS SHOULD BE TAKEN
SO THAT THE GROUNDING OR POLARIZATION MEANS OF THE APPLIANCE ARE
NOT DEFEATED. POWER CORD PROTECTION - POWER SUPPLY CORDS SHOULD
BE ROUTED SO THAT THEY ARE NOT LIKELY TO BE WALKED ON OR PINCHED BY
ITEMS PLACED UPON OR AGAINST THEM, PAYING PARTICULAR ATTENTION TO
CORDS AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY
EXIT FROM THE APPLIANCE.
prOduCT priCES, FEATurES, SpECiFiCATiONS ANd
AvAiLABiLiTY ArE SuBjECT TO ChANGE WiThOuT NOTiCE.
OBjECT & LiQuid ENTrY -
CARE SHOULD BE TAKEN SO THAT OBJECTS DO
NOT FALL AND LIQUIDS ARE NOT SPILLED INTO THE ENCLOSURE THROUGH
OPENINGS.
dAmAGE rEQuiriNG SErviCE -
THE APPLIANCE SHOULD BE SERVICED
BY QUALIFIED SERVICE PERSONNEL WHEN: (A) THE POWER SUPPLY CORD OR
THE PLUG HAS BEEN DAMAGED (B) OBJECTS HAVE FALLEN OR LIQUID HAS
BEEN SPILLED INTO THE APPLIANCE (C) THE APPLIANCE HAS BEEN EXPOSED
TO RAIN (D) THE APPLIANCE DOES NOT APPEAR TO BE OPERATING NORMALLY
OR EXHIBITS A MARKED CHANGE IN PERFORMANCE (E) THE APPLIANCE HAS
BEEN DROPPED OR THE ENCLOSURE DAMAGED.
SErviCiNG -
THE USER SHOULD NOT ATTEMPT TO SERVICE THE APPLIANCE
BEYOND THAT DESCRIBED IN THE OPERATING INSTRUCTIONS. ALL OTHER
SERVICING REFER TO A QUALIFIED SERVICE PERSONNEL.
important Safety inStructionS
NEEd hELp?
CALL 800-267-5486
EmAiL:
CuSTOmErSErviCE@
AmpLi.COm
3
SW915 DIGITAL AUDIO TRAVEL PARTNER
* USB In: Computer can connect here to allow audio files on computer to be played.
** Mini Jack Inputs: To connect devices as MP3 players, portable tape and CD players or any other audio device that has a 1/8-in. output.
*** XLR/Combo Jacks: To connect balanced or unbalanced microphones that have either XLR or phone plug connectors.
**** AC Power Jack: Either 110 or 220 volts can be used WITHOUT needing to move a switch; as the power supply does this action.
***** Battery Status Light: Red = No battery power, Yellow = 1 hour left of battery power. For best results – charge battery overnight.
# Overload light: Lights up when volume is turned up too far and could cause audible distortion.
## ¼-in. Phone Jacks: Can be used for outboard processors, musical instruments and recorders.

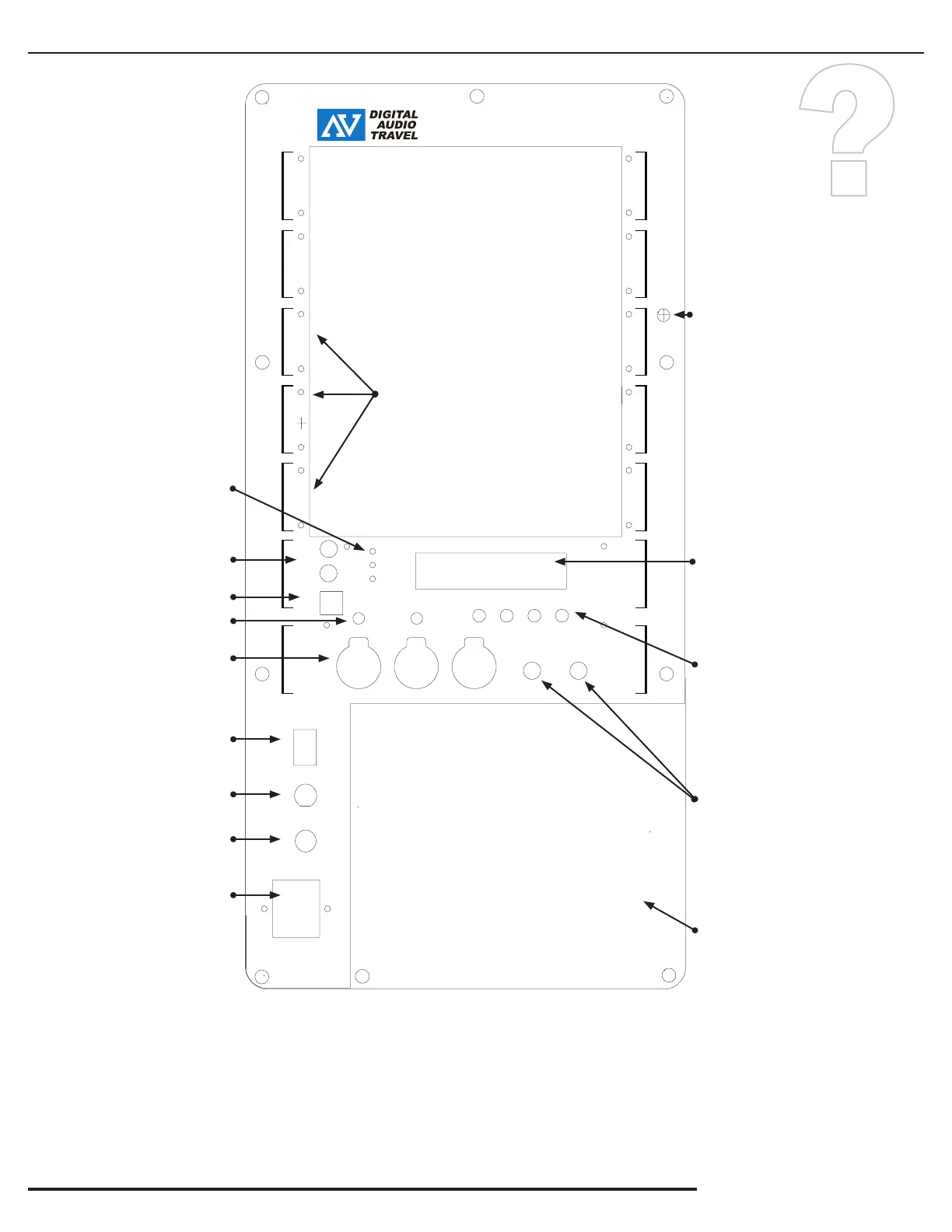

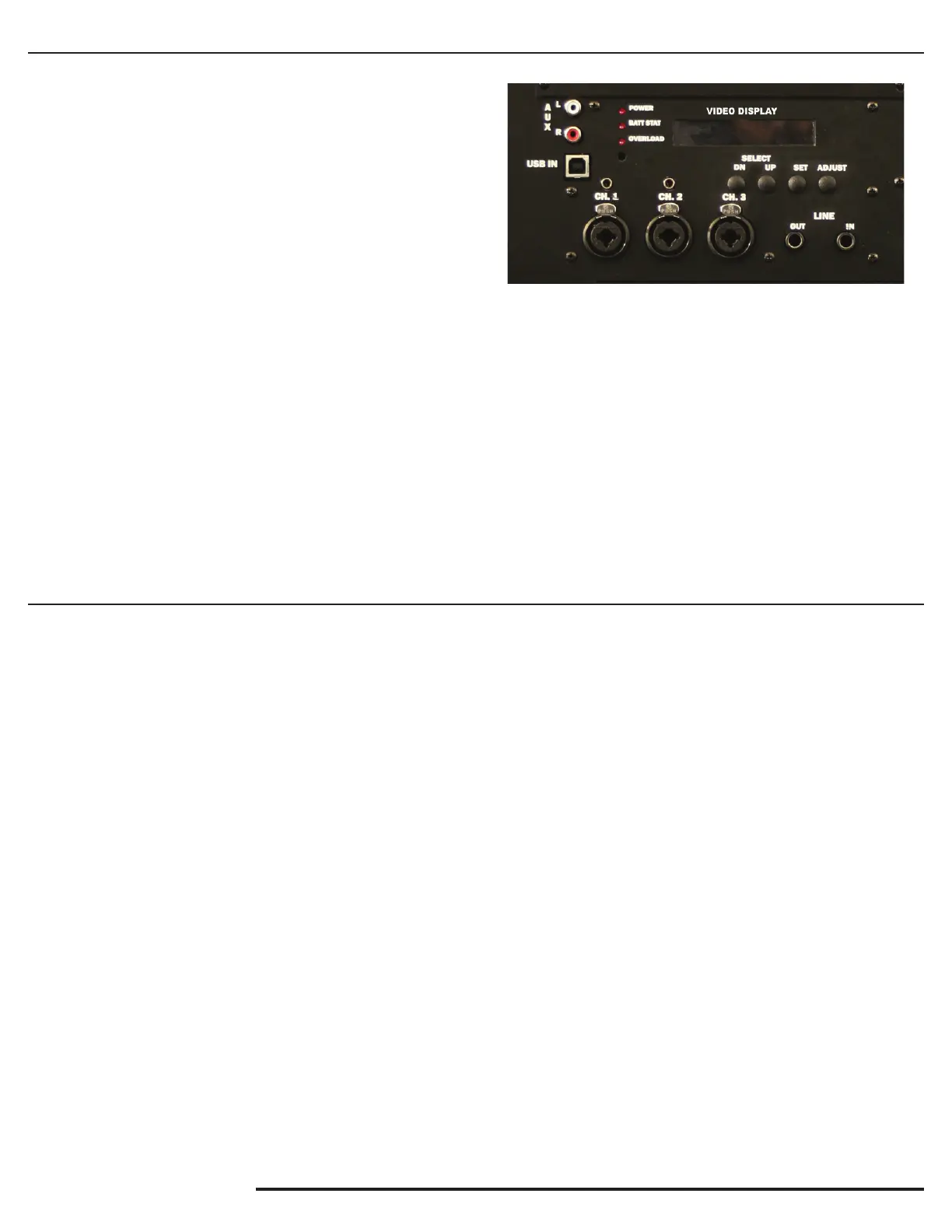

control panel
L
POWER
BATT STAT
OVERLOAD
R
A
U
X
USB
IN
POWER
CH. 1 CH. 2 CH. 3
LINE
IN
ADJUSTSAVEDN UP
SELECT
OUT
CHARGE/AC ON
25 AMP
CIRCUIT BREAKER
110/220 VAC
AUTO SWITCHING
P A RTNER
QUICK SET UP GUIDE
1. Power unit on with rocker switch. The display will light with MASTER VOLUME indicated.
Display will go black after one minute’s inactivity to preserve battery power. Display will
illuminate with a press of any button.
2. Use the remote or the UP and DN buttons on the control panel, to select a function.
3. T o change the level of a selected function, press the ADJUST button. ADJ will appear on the
display. Press UP or DN button to obtain desired level, then press SAVE.
4. Use UP and DN buttons to cycle through BASS, TREBLE, DUCKING, REVERB, VOICE, and all
VOLUME controls; then ADJUST and press SAVE.
5. UHF Wireless MIC - T o turn receiver on - Press and hold the SET button for about two seconds.
The current channel will flash three times quickly; then the system will begin to scan for the
next open channel. When it finds an open channel, it will flash the open channel three times
and then set the channel.
T o turn transmitter on - Before turning on the transmitter, use the provided screwdriver to set
the transmitter channel selector switches to the same number that is displayed on the
receiver. Select channels 1-8.
6. BATT STA T indicator - Red = no battery power, Yellow = 1 hour left. Charge battery overnight
for best results.
Please refer to the owners manual for complete instructions.
Instructions are also available on www.ampli.com. If you need further
assistance please call 1-800-267-5486, 8am-6pm M-F CST. WWW.AMPLI.COM
MADE IN THE USA
INFORMATION DISPLAY
Turns off after 1 minute of inactivity to
save battery. Comes on with touching
any of the 4 buttons below display (DN,
UP, SAVE, ADJUST)
CD PLAYER / RECORDER
WIRELESS MICROPHONE RECEIVER
3 ADDTITONAL SLOTS FOR
OPTIONAL EQUIPMENT:
CASSETTE RECORDER/PLAYER,
DIGITAL RECORDER/PLAYER OR
WIRELESS MICROPHONE RECEIVER
RCA AUXILIARY
INPUTS
* USB INPUT
*** XLR/COMBO JACKS
** MINI JACK INPUTS
CASSETTE PITCH
CONTROL (OPTIONAL
EQUIPMENT)
AUDIO CONTROL BUTTONS - USED
TO SET ALL AUDIO FUNCTIONS
LINE IN / LINE OUT ##
PHONE JACKS (1/4")
INDICATOR LIGHTS:
POWER
***** BATTERY STATUS
# OVERLOAD
INDICATOR LIGHT FOR
AC OR POWER
*** XLR/COMBO JACKS
AC POWER JACK WITH
BUILT-IN LINE FUSE
HOLDER
POWER SWITCH
BATTERY PANEL
USER ACCESSIBLE
Quick Set Up
Instructions are on page 2
NEEd hELp?
CALL 800-267-5486
Or 847-498-9000
EmAiL:
CuSTOmErSErviCE@
AmpLi.COm
4
sw915 digital audio travel partner
controlS and indicatorS:
ON-OFF SWiTCh:
When power switch is in the on position, the BatterY status ligHt
will be illuminated. The color of the LIGHT indicates the condition of the
battery.
Yellow – battery low, recharge immediately
Red – battery must be recharged before use
To charge the batteries, connect the unit to 110VAC using the supplied
power cord. The red CHarger on led will be illuminated indicating
battery is charging. The batteries will charge when unit is operating with
AC power, HOWEVER the unit will charge faster with the power switch in
the “off” position.
THE SW915 MUST BE PLUGGED IN AND CHARGING WHEN NOT IN USE
TO MAXIMIZE BATTERY LIFE. RECHARGING THE UNIT ONLY WHEN
THE BATTERY STATUS LIGHT IS YELLOW OR RED WILL SHORTEN THE
USEFUL LIFE OF THE BATTERIES.
mASTEr vOLumE:
This is the master volume control for the system.
TrEBLE:
This control cuts or boosts the treble level.
BASS:
This control cuts or boosts the bass level.
miCrOphONE vOLumE:
There are three microphone input channels, (Channels 1, 2 & 3 on the
Control Panel) and each channel has individual volume adjustment
controls.
vOiCE/muSiC:
Using the remote, press the V/M button to toggle between voice or
music. For speech, it provides a midrange boost for better sound
projection when in the VOICE position. This selection can also be
performed without use of the remote. Use the up or dwn buttons just
below the display on the Partner to scroll to the voice/music selection.
Use the Adjust button to toggle to either Voice or Music. Then press
Save to save your selection.
audio functionS and adjuStmentS
duCkiNG CONTrOL
The 'Ducking' feature facilitates announcements and paging by
automatically reducing the volume of all the other inputs when the
designated master input is used.
When Ducking is enabled, either wired microphone channel 1 or wireless
microphone 1 is set as the system 'Master.' When the sound picked
up by the master exceeds the 'Threshold' volume, all the other input
volumes in the SW915 are reduced to the 'Attenuation' level. When the
volume of the 'Master' drops below the 'Threshold' level for the time set
as 'Delay', the volumes of the other inputs return to normal. There are
four controls
1 duCkiNG:
this control activates which source of the 915 that will
be used in the ducking circuit. The three settings are ‘Disabled’,
‘Microphone 1’, and ‘Wireless 1’. Select either ‘Microphone 1’ or
‘Wireless 1, to choose which of these two microphones are to be the
main microphone. Select ‘Disabled’ to turn the Ducking Control off.
2 ATTENuATiON:
this determines the sound level to which the
other channels will be reduced to when speaking into the main
microphone. All the way down will mean there will be no effect on
the other channels
3 ThrEShOLd:
This determines how loud the person speaking into
the main microphone has to be when the Voice Ducking feature is
active. This can help prevent any unwanted background noises from
inadvertently activating this feature.
4 dELAY:
This determines how long the Voice Ducking stays active
after the last sound through the main microphone is detected – a
period of silence will follow after the last sound, and the length of
that period of silence will be determined by this setting.
EChO/rEvErB
This is a sound effect feature that makes the audio signal sound as
though it’s in a large area, such as a large cathedral or a cave, by repeating
the sounds that come into the SW915 through the microphones or any
of the accessories. The listener will hear the original sound, plus the
repeated sounds created by this feature. There are two controls:
1 LEvEL:
this control determines the loudness of the echo. In the low
setting the repeated sound is perceived to be quite relative to the
original sound level. As the level is increased the volume of the echo
gets louder.
2 dELAY:
this control determines the amount of time that elapses
between the original sound and the echo. As the level is increased,
the amount of delay between the original sound and the echo is
increased.
TrEBLE:
This control cuts or boosts the treble level.
BASS:
This control cuts or boosts the bass level.
phANTOm pOWEr
The three microphone inputs on the control panel of the 915 can be
configured to supply phantom power for certain types of microphones,
such as condenser types, which require an extra voltage to operate:
Setup, Phantom Power: by selecting this function and using the adjust
command, the user can activate the phantom power for each individual
microphone channel by scrolling to the channel where the phantom
power is needed, and then activating or de-activating the phantom
power as needed.
6
sw915 digital audio travel partner
THERE ARE 4 LIGHTS ON THE
SPEAKER SIDE OF THE DIGITAL
AUDIO TRAVEL PARTNER. THEY
ARE FROM LEFT TO RIGHT:
WIRELESS 1
WIRELESS 2
BATTERY STATUS
POWER
rEmOTE CONTrOL piCkup pATTErN
The remote control for the 915 can be used to operate the controls from any direction around the 915, unless the user is standing
directly in front of the speakers. Also, the remote control will operate the 915 from a distance of up to 50 feet, and be in direct line of
sight for best results. 2 "AA" batteries are included. Velcro is included to attach your remote to the SW915.
1, 2, 3: Select the numbered Channel Control Button to adjust that
channel’s audio . These channels refer to the Combo and 1/8 mini
jacks
4 & 5: Adjusts the level of the selected function. Press 4 to raise level
and 5 to lower level. Level adjustments are for the selected function
such as volume
6 & 7: Function Selector- Used to scroll through functions for selection
8: Master Volume Selector- A short cut key that allows quick adjustment
of Master Volume. Just press this key and then the level keys to adjust
the Master Volume
9: Mute All- Press this button to mute ALL audio output ( Panic button)
10: Bass Control- Press this button and bass will be displayed. Then use
level buttons 4&5 to adjust
11: Treble Control- Press this button and treble will be displayed. Then
use level buttons 4&5 to adjust
12: Voice/Music switch- Press this button to toggle between voice
and music. In the Voice position, the vocal frequencies are enhanced
to produce louder and clearer vocals. These effects are absent in the
music position to allow “uncolored” music to be heard.
13: Not Used
14: Auxiliary Selection- Press this button to select the Auxiliary function
controlling the red/white RCA inputs.
indicator liGhtS
WirELESS miCrOphONE pOWEr LiGhT
There are two yellow lights located above the speakers on the 915.
These lights are WIRELESS 1 & WIRELESS 2. They mean that the power
is on and they are ready to use.
In models equipped with one wireless microphone receiver, the first
light (from left to right) is active.
In models equipped with two wireless receivers, the first light will be the
indicator for Wireless Receiver #1 (from top to bottom on the control
panel) and the second light is the indicator for Wireless Receiver #2
BATTErY STATuS LEd iNdiCATOr:
LED is green when battery
voltage is sufficient for operation. The LED Battery Status indicator
turns red when the battery voltage is low indicating that the unit should
be plugged into AC for continued operation.
CH 1 CH 2 CH 3
BASS TREB V/M
AUX CD MP3 TAPE
LEVEL DELAY THRSH CH1/W1
LEVEL DELAY
M VOL
MUTE ALL
DUCKING
REVERB
LEVEL
FUNCTION
WRLS1
FASTER
NORMAL
SLOWER
FOLDER
SOURCE
RANDOM REPEAT
RECORD
WRLS2 WRLS3 WRLS4
1-800-267-5486 WWW.AMPLI.COM
CH 1 CH 2 CH 3
BASS TREB V/M
AUX CD MP3 TAPE
LEVEL DELAY THRSH CH1/W1
LEVEL DELAY
M VOL
MUTE ALL
DUCKING
REVERB
LEVEL
FUNCTION
WRLS1
FASTER
NORMAL
SLOWER
FOLDER
SOURCE
RANDOM REPEAT
RECORD
WRLS2 WRLS3 WRLS4
1-800-267-5486 WWW.AMPLI.COM

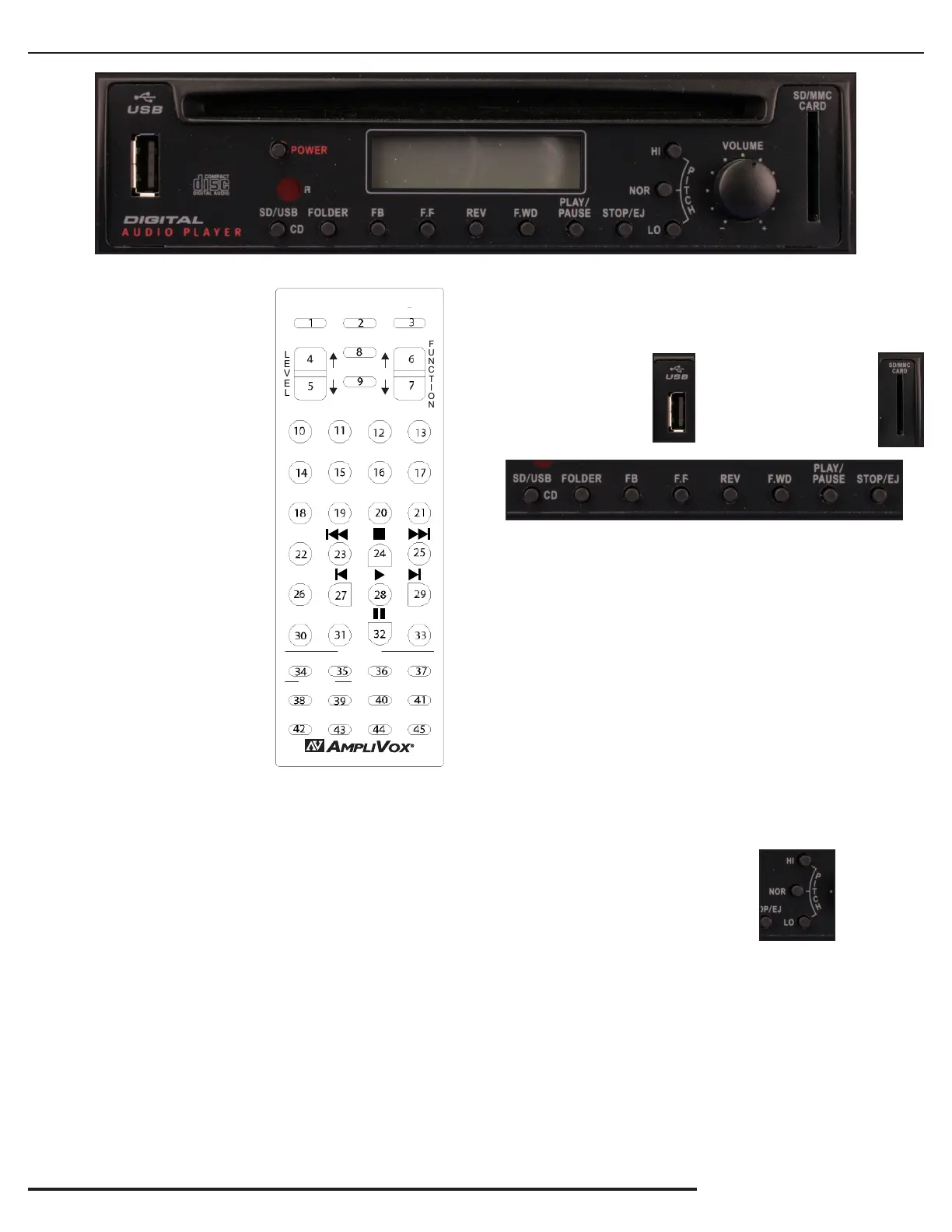

Cd pLAYEr
BuTTON
remote control
15: CD Selection- Press this button
to select the CD player for audio
adjustments and CD player controls.
16: MP3 Selection- Press this button to select the (OPTIONAL) Digital
Player/Recorder for audio adjustments.
17: Tape Selection- Press this button to select the (OPTIONAL) Cassette
Player/Recorder for audio adjustments.
18-21: Wireless Selectors- Press these buttons to select a wireless
receiver for audio adjustments.
7
SW915 DIGITAL AUDIO TRAVEL PARTNER
FASTEr: Speeds up (in steps) the selection being played on the CD player.
NOrmAL: Returns the playing speed to normal if the selection is being played
faster or slower.
SLOWEr: Slows down (in steps) the selection being played on the CD player.
: Backs up the current selection to an earlier point in the recording.
Press the (play) button to stop backing up and resume playing from
the point the backup process was stopped.
: Go back to the beginning of the previous selection.
FOLdEr: USB device and SD Card only; Changes the folder number to be
played.
: Stop the selection being played. Press once to stop and keep the
selection at the point where it was stopped, and when the (play) button
is pressed, the selection will resume at the point where it was stopped.
Press twice to completely stop the CD from playing. Pressing the (play)
button will start the CD from the beginning of the first selection on the
disk.
: Plays the current selection when pressed.
: Temporarily stops, or “pauses” the selection being played. Press this
key again to resume playing the selection.
: Moves the current selection up to a later point in the recording. Press
the (play) button to stop moving forward and resume playing from the
point the forwarding process was stopped.
: Go to the beginning of the next selection.
rECOrd: Not applicable at this time.
SOurCE: Switches the source between the CD player, USB input and SD card
input.
rANdOm: Plays the selections on the CD, USB device or SD card back at
random.
rEpEAT: Restarts the CD, USB device or SD card from the beginning of the first
selection after the last selection has been played.

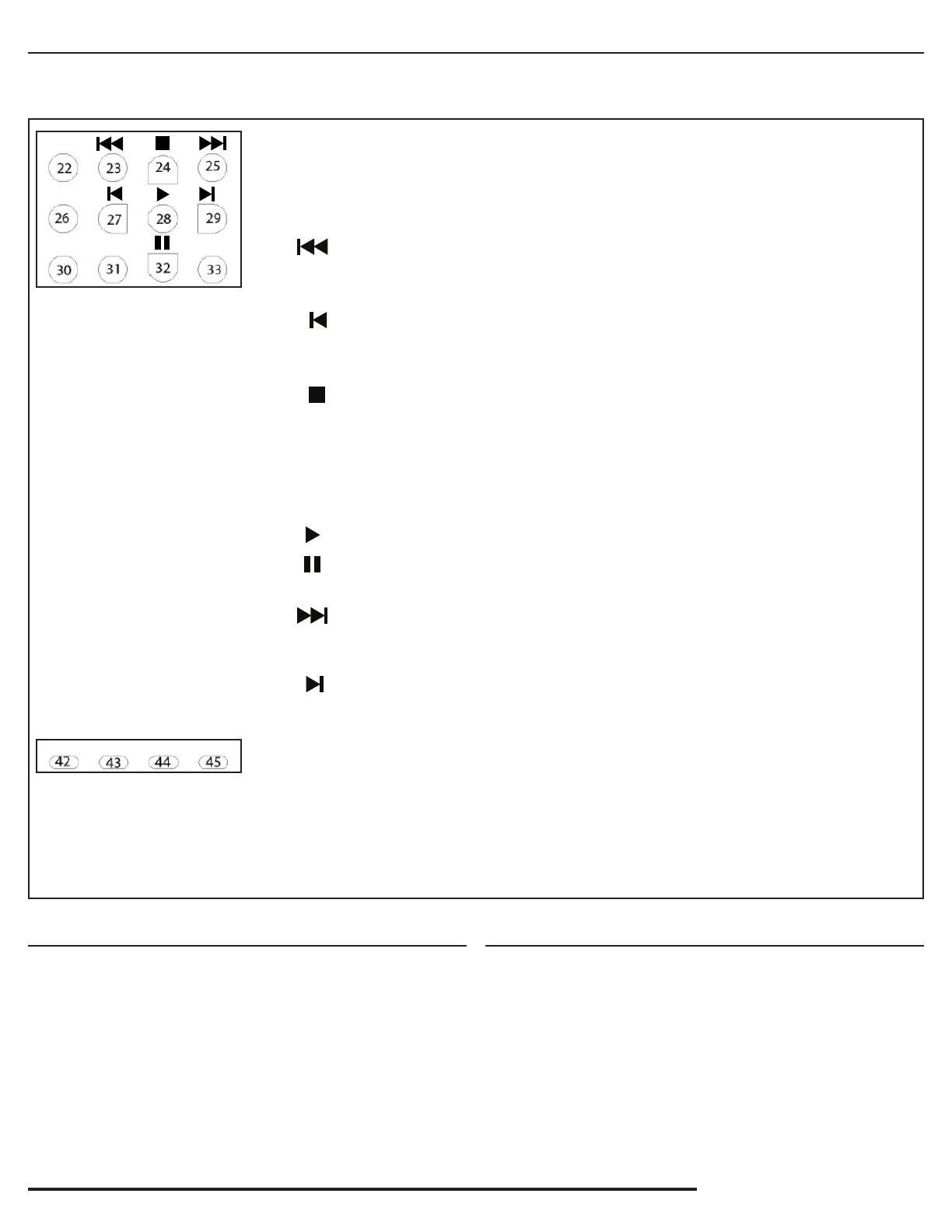

22-33 ANd 42-44: Cd pLAYEr CONTrOLS
CH 1 CH 2 CH 3
BASS TREB V/M
AUX CD MP3 TAPE
LEVEL DELAY THRSH CH1/W1
LEVEL DELAY
M VOL
MUTE ALL
DUCKING
REVERB
LEVEL
FUNCTION
WRLS1
FASTER
NORMAL
SLOWER
FOLDER
SOURCE
RANDOM REPEAT
RECORD
WRLS2 WRLS3 WRLS4
1-800-267-5486 WWW.AMPLI.COM
TrANSpOrT CONTrOLS
CH 1 CH 2 CH 3
BASS TREB V/M
AUX CD MP3 TAPE
LEVEL DELAY THRSH CH1/W1
LEVEL DELAY
M VOL
MUTE ALL
DUCKING
REVERB
LEVEL
FUNCTION
WRLS1
FASTER
NORMAL
SLOWER
FOLDER
SOURCE
RANDOM REPEAT
RECORD
WRLS2 WRLS3 WRLS4
1-800-267-5486 WWW.AMPLI.COM
SOurCE CONTrOLS
Ducking/Talk Over Section
34: Ducking Level- Press this button and Ducking Level will be displayed.
Then use level buttons 4&5 to adjust
35: Ducking Delay: Press this button and Delay will be displayed. Then
use level buttons 4&5 to adjust the delay
36: Threshold selection- Press this button and Threshold will be
displayed. Then use level buttons 4&5 to adjust
37: Ducking Channel Selector- Press this button to toggle between
Wired Chanel One and Wireless Channel One
Reverb Section
38: Reverb Level- Press this button and Reverb Level will be displayed.
Then use level buttons 4&5 to adjust
39: Delay Level- Press this button and Ducking Level will be displayed.
Then use level buttons 4&5 to adjust
PLEASE NOTE: THE REMOTE DOES NOT TURN THE UNIT ON OR OFF.
YOU MUST DO THAT ON THE CONTROL PANEL
remote control
8
SW915 DIGITAL AUDIO TRAVEL PARTNER
WireleSS microphone Setup and operation
We use only the best wireless microphones for our PA systems. Audio-
Technica’s 700 Series Freeway wireless delivers professional features
and sound quality unheard of in its class. These easy-to-use wireless
systems feature eight selectable frequency-coordinated channels,
diversity operation for increased range/reliability, automatic frequency
scanning, Tone Lock™ squelch and more. For multiple-mic applications,
as many as eight systems may be used together.
TrANSmiTTEr SETup, CONTrOLS ANd FuNCTiONS
BATTERY SELECTION:
Two 1.5V AA type alkaline batteries
BELT PACK Transmitter Battery Installation:
1. Open the transmitter door by first pulling the catch down and then
sliding the door upward.
2. Observe correct polarity as marked and carefully insert two fresh
1.5V AA alkaline batteries.
3. Slide the door closed making certain it clicks securely in place.
HANDHELD Wireless Microphone Battery Installation:
Power /Mute Battery Indicator:
After the battery is installed, press and hold the power button unit until
the battery indicator LED turns green (it will first turn red, keep holding
until it turns green). If the battery indicator LED does not light up when
the power button is pressed, the batteries are installed incorrectly or
they are dead. The LED will flash to indicate low-battery condition. Press
and hold power button to shut unit off (light shuts off).
Mute Function:
With the transmitter on, a slight touch of the Power/Mute button will
toggle between muted and live operation. Red led indicates muted
operation, Green LED indicated live operation.
RECEIVER CONTROLS AND FUNCTIONS
THE POWER SWITCH ON THE HANDHELD MICROPHONE IS BUILT
INTO THE POWER/MUTE/BATTERY BUTTON, WHICH IS LOCATED ON
THE BASE OF THE MICROPHONE.
1. Unscrew the lower body cover slide it downward, and remove it to
expose the battery compartment.
2. Observe correct polarity as marked inside the battery compartment
and carefully insert two fresh 1.5V AA alkaline batteries. Insert the
first battery and slide it toward the spring contact. Then insert the
second battery into the space remaining. Make certain the batteries
are fully seated in the battery compartment.
3. Slide the lower body compartment back on and screw the housing
together. Do not over tighten.
Note: Remove batteries from the handheld transmitter starting at the
bottom end, where finger indents in the battery housing are provided
for easy grip.
1 2 3 4 5
ANTENNAS: Are positioned internally at the optimal 45 degree angle for
best reception.
1 - AF PEAK INDICATOR: Indicates when maximum transmitter
modulation without distortion has been reached. Not affected by
position of Volume control (Fig. C).
2 - LED WINDOW: LED Display indicates channel setting and scanning
operation.
3 - DIVERSITY INDICATORS: Indicates which antenna (A or B) has better
reception and is in operation.
4 - SELECT BUTTON (for manual channel selection): Press the Select
button repeatedly until desired channel is reached. Press and hold the
Set/Scan button to manually set the receiver to indicated channel.
Channel number will stop flashing. (A brief touch of the Set/Scan button
will revert to previously set channel). If the Set button is not pressed
within 10 seconds to confirm the selection, the system will revert to its
original channel.
5 - SET/SCAN BUTTON: The Set/Scan button can be used in two ways:
1) in conjunction with the Select button to permit manual selection
of an operating channel in Manual Set Mode (see “Select button”
description above); and 2) Automatic Scan/Set Mode, to initiate the
automatic channel scan and selection, as follows: Automatic Scan/Set
Mode: Press and hold the Set/Scan button for about two seconds. The
current channel will flash three times quickly; then the system will begin
to scan for the next open channel. When it finds an open channel, it
will flash the open channel three times and then set the channel. (If an
open channel is not found, the automatic scan will return to the original
channel and flash 5 times.)
CAuTiON! The small trimmer controls are delicate; use only the
supplied screwdriver. Do not force the trimmers beyond their normal
180 degree range of motion.
Return the screwdriver to its storage clip when not in use.
9
SW915 DIGITAL AUDIO TRAVEL PARTNER
compact diSc player operation
To operate the CD player with the
remote control, the button on the
remote labeled CD (15) must be
pressed first, in the same man-
ner as when adjusting the vol-
ume for the CD player. Once the
CD button is pressed, buttons
22-32 and 42-44, will continue to
control their respective functions
on the CD Player until one of the
other input buttons is pressed.
HANDLING THE DISCS:
Always insert a CD, CD-R, CD-R/W
into player with label side up!
Proper handling and care of CDs
should be taken to insure proper
operation. Fingerprints and dust
should be carefully wiped off the
surface, starting from the center of
the disc and moving out towards
the edge. It is best to avoid
touching the surface opposite
the label to prevent scratching or
leaving fingerprints on the surface
area. Always remove disc from
•
SD/USB/CD Button on far left of button row selects between SD,
USB and CD playback.
•FOLDER button selects which folder in USB or SD storage devices to
play back.
•FB skips back to the previous folder or selection.
•F.F skips forward to the next folder or selection.
•REV backs up on the current folder or selection.
•F.WD moves forward on the current folder or selection.
•PLAY/PAUSE starts playback of the current folder or selection, and
also stops the selection when pressed during playback. When the
button is pressed again, playback resumes at the point where the
selection was stopped.
•STOP/EJ stops the selection from playing. Pressing and holding the
button for a couple seconds after the CD has stopped playing will
eject the CD disk from the player.
CH 1 CH 2 CH 3
BASS TREB V/M
AUX CD MP3 TAPE
LEVEL DELAY THRSH CH1/W1
LEVEL DELAY
M VOL
MUTE ALL
DUCKING
REVERB
LEVEL
FUNCTION
WRLS1
FASTER
NORMAL
SLOWER
FOLDER
SOURCE
RANDOM REPEAT
RECORD
WRLS2 WRLS3 WRLS4
1-800-267-5486 WWW.AMPLI.COM
•PITCH CONTROL is adjusted by three
push buttons next to the volume knob:
•PressandholdHI to speed up playback material over a range.
•NOR adjusts the speed back to normal speed.
•PressandholdLO to slow down playback material over a range.
•VOLUME knob increases the output level when turned clockwise,
and decrease the volume when turned counter clockwise. This is in
addition to the volume control function CD Volume in the preamp,
and is a convenience for balancing the output with other sources.
For optimum playback leave the master volume at 1 o'clock and adjust
the preamp volume for proper listening levels.
player before transporting unit.
NOTE: CD will play automatically when Digital Partner is powered on if
CD is left inside the CD player.
POWER:
Press POWER button to turn CD Player on.
LOADING AND UNLOADING DISCS:
To insert disc, gently insert into disc player slot until engagement
mechanism pulls CD into player. Do not force CD into unit.
To remove disc press STOP/EJECT button twice and gently remove CD,
place CD back into jewel case.
NORMAL DISC PLAY:
Insert CD into player and press PLAY/PAUSE button if CD hasn’t
already begun to play. Disc play will start at first track. Player display
will indicate track number and time.
To operate the CD player with the remote control, the button on the
remote labeled CD must be pressed first.
The CD player has been upgraded to add USB & SD Card playback
and now functions with the 915 remote control.
Please note the following new features:
•
USB 2.0 ‘A’ input
for memory devices
containing compatible
audio files (MP3).
•SD Card Slot for SD
cards containing
compatible audio files
(MP3).
10
sw915 digital audio travel partner
diGital player / recorder S1960 (optional eQuipment)
n
Built-in 128MB NAND flash memory equipped for 120 min.
recording time.
n
SD card slot- supports industry standard SD cards up to 2GB,
providing up to 32 hours record time per card.
n
USB port connects to PC, which sees it as an external storage
device (no special driver required); or other USB - capable device for
easy download or duplication.
n
Up to 99 recording tracks.
n
Play MP3 & WAV format files.
n
Digitally record in MP3 compression format, high sample rate at
44.1 KHz, 128 Kbps.
n
USB plug type: USB 1.1
n
Impedance: 10K ohms
n
Output level: 0.9V +/- 2dB (1KHz/0dB)
n
Operating system: Windows 98, 2000, XP
caSSette player / recorder S1950 (optional eQuipment)
power: Press the power function to turn the power on to the
Cassette Deck. Once the power is on, a small red light to the right of
the POWER function will turn on, and the Counter display below the
POWER function will light up. Press the POWER function again to turn
the power off to the Cassette Deck.
TApE COuNTEr:
This 3 digit illuminated display serves as a numeric
reference for the user as an indicator of where on the cassette tape
material is being recorded or played back. Please refer to the section
below entitled ‘RESET’ for further information on this function
mOdE:
The cassette player has three operating modes- CONTINUOUS
LOOP (plays side A then side B over and over until stopped), AUTO
REVERSE (plays side A, then side B and stops), NORMAL (plays side A
then stops).
rECOrd:
Press the RECORD function to record any of the microphones, CD
decks, or any other sources being reproduced by the SW905, including
the CD Deck. Recording will start instantly.
rEWiNd:
The REWIND function rewinds the tape back to the
beginning of the tape and stops automatically once the beginning of
the tape is reached. Press the STOP button on the Tape Player at any
time during the REWIND function to manually stop REWIND.
pLAY (r. pLAY ANd F. pLAY):
Cassette tapes offer two sides for
storing material on. As a convenience the CASSETTE DECK offers
the ability to play back both sides of the cassette without the need
to manually remove it and turn it over. Press the F. PLAY function to
play back the side of the cassette tape facing up; press the R. PLAY
function to play back the side of the tape facing down.
FAST FOrWArd:
The FAST FORWARD function winds the tape
forward and is stopped automatically once the end of the tape is
reached. Press the STOP button on the Tape Player at any time during
the FAST FORWARD function to manually stop FAST FORWARD.
pAuSE:
The PAUSE function puts the tape on hold without
disengaging the RECORD function, or the F. PLAY or R. PLAY functions,
allowing the user to temporarily stop the tape during recording or
playback. Press the PAUSE function to temporarily stop the cassette
tape; press the PAUSE function again to start up the cassette tape at
the exact point it was paused at.
STOp/Ej (STOp/EjECT)
The STOP/EJ function serves two functions.
Press the STOP/EJ function once to stop the cassette tape from
playing, rewinding or fast forwarding. When the cassette tape is
stopped, press the STOP/EJ function to eject the cassette tape from
the Cassette Deck.
rESET:
Press the RESET function to reset the number in the
COUNTER display to “000”. This function can used at any point during
recording or playback, and is useful for creating a reference point.
dirECTiON/pLAY iNdiCATOrS:
There are two arrow heads that
indicate which side of the cassette tape is active, or playing or being
recorded on. The arrowhead aiming to the left indicates that the side
of the tape facing down is active; the arrowhead aiming to the right
indicates that the side facing up is active.
LEvEL:
This controls the volume of the Cassette Deck, and allows
for adjusting the volume independently of microphones plugged into
Channel 3. Please see the section entitled ‘INPUTS AND OUTPUTS’ for
further information on Channel 3 volume control.
piTCh:
The PITCH tuning control allows you to change the playback
speed to alter the pitch of the sound. Turning the control clockwise will
increase tape speed and counter clockwise will decrease tape speed.
Normal position for this control is at center detent.
NEEd hELp?
CALL 800-267-5486
Or 847-498-9000
EmAiL:
CuSTOmErSErviCE@
AmpLi.COm
11
SW915 DIGITAL AUDIO TRAVEL PARTNER
trouBleShootinG Guide
prOBLEm & iTEmS TO ChECk
uNiT WiLL NOT TurN ON
• Isunitpluggedin?
• Arebatteriescharged?
• Arefusesblown?
uNiT OpErATES ON AC BuT NOT BATTErY
• Checkbatteryterminals
• Check 25A Circut Breaker. reset if needed.
SOuNd iS diSTOrTEd
• IfOVERLOAD LED is lit, turn down volume
• Ifusingwirelessmic,isred‘AudioPeak’lit?Ifso,signal(suchas
voice) is too strong. Move microphone farther away from source.
• Turndowninputsource(suchaskeyboards,etc.)sincetheoutput
of some devices may be too high
• Checkfordebrisonspeakercone
SOuNd iS muFFLEd
• Basstoohigh
• Trebletoolow
FEEdBACk: A LOud SQuEALiNG, ShriLL Or hOWLiNG
SOuNd ThAT iS SELF GENErATEd
• Feedbackoccurswhenamicophoneistooclosetothespeakeror
the mic volume is too high, or the microphone is pointed towards
the speaker. It is also caused by sound reflecting off hard surfaces.
• ReduceoreliminateFeedbackby
- Pointing the microphone in a different direction
- Keeping themicrophone BEHIND the speakers
- Turn down the volume levels
pOWEr iS ON, BuT NO SOuNd
• Checkvolumelevelsforeachchannelandmainvolume
• Ifusingwireless,besurereceiver(s)and/ortransmitterbatteryis
installed and/or is on
• Ifusing“lineinsert”,loopmustbecompleted.
miCrOphONE SiGNAL iS WEAk
• Ifmichasbatteries,checkbatteriesinmicrophone
• Turnonphantompowerifapplicable
• Checkcables/connectors
WirELESS miC dOES NOT WOrk
• Checktransmitterbatteryisalkalineandensuretransmitterison.
• Doesyellow“signal”LEDlightwhentransmitteristurnedon?
• Doesthetransmitterfrequencygroupmatchthereceivergroup?
(are both A or both B)
• Arethetransmitterandreceiveronthesamechannel?(0-9)
Wireless mic cuts in and out
• Isunitvisible(lineofsight)fromuser?Ifnot,moveunitintoview
when using wireless mic.
• Doestheyellow“signal”LEDgooutwhensignaldropsout?Check
battery in transmitter.
uNiT mAkES BuzziNG NOiSE
• Checkcables–adamagedcablewillcausethis.Unplugcablesone
at a time until buzzing stops.
• CheckforGroundloops–useagroundloopisolatorwhereneeded.
(Isolator will not operate unless plugged into AC)
BATTEriES WiLL NOT hOLd ChArGE
• ReplaceBatteriesevery1-2yearsifunitisnotleftchargingwhen
not in use.
• Afullchargeisbestobtainedwhentheunitisoffandpluggedinto
the AC outlet for several hours. After a year or two the battery may
need to be replaced. Batteries are available from Amplivox.
• Toreplacethebatteriesuseaphillipsscrewdriverandtakeout
the 4 screws from the batery cover on the control panel. Remove
the foam spacer, set aside. Pull out the batteries to access the
terminals.
• Carefullyholdthebatterywithonehandwhileyouremovethe
mating connector. Replace with new battery and push mating
connector of battery wire onto the corresponding color/polarity.
RED = POSITIVE, BLACK = NEGATIVE.
• Placethebatteriesbackinthecompartment.Repacethefoamand
screw in the cover.
Cd dOES NOT pLAY
• Isunitturnedon?
• BesureCDorCD-Risloadedintotraycorrectly.
uNiT WiLL NOT pLAY Cd-r/W mEdiA.
• Inspectdiscfordeepscratchesorcracks
• Checkifplayerisin“pause”mode
Cd SkipS
• Besureunitissteady.Ifitisjarred,thismayoccur.
• Checkforscratchesondiscsurface
CASSETTE TApE dOES NOT pLAY
• Isunitturnedon?
• BesureCassetteisloadedinplayer
• Checkifplayerisin“pause”mode
• RemoveCassettefromplayerandcheckforentanglement
TApE BECOmES ENTANGLEd iN CASSETTE pLAYEr
• Carefullyremovetapefromplayer.-Cleanheadsandpinchroller
with rubbing alcohol and a swab or a commercially available
cassette player cleaner.
NEEd hELp? CALL 800-267-5486
Rated power output 250W Dynamic, 132W RMS
Battery (2) 12 volt rechargeable, 7.2 AH,
User accessible and replaceable
AC power 110-220 Auto sensing, 50/60 Hz,
Phantom Power Input Powers Electret condenser mics
Wireless Range Up to 200 Feet
Frequency response: 40Hz to 20Khz
Sensitivity 96dB
Equalization (tone) Separate Bass and Treble
Line output: Buffered, 600 ohm, 1/4in.-phone (pre fader)
Sensitivity for rated output:
Balanced Microphone -58 dBV (1.25 mVrms
Balanced Line -15 dBV (175 mVrms)
Unbalanced line -20 dBV (100 mVrms)
Unbalanced input: Hi-Z, Neutrik combo 1/4in.
Balanced Input: Lo-Z, Neutrik combo XLR
Weight: 35 lbs.
Dimensions (HWD): 23in.H x 11.5in. W x 11in. D
Warranty 6 years Electronics; 1 year on remote, Mics,
Cassette Player, CD Payer, Digital Player and
Rechargeable Batteries.
SW915 SpecificationS
12
sw915 digital audio travel partner
AmpLivOx pOrTABLE SOuNd SYSTEmS
3995 COmmErCiAL AvE., NOrThBrOOk, iL 60062
ph. 800-267-5486 Or 847-498-9000
Fx. 800-267-5489 Or 847-498-6691
WEB: WWW.AmpLi.COm
EmAiL: CuSTOmErSErviCE@AmpLi.COm
Part #: N011-0039
rounded corners
SW915 LABEL
Color: PMS 300, black, white,
Size: 7.32” x 1.27”
Made in USA
UPDATED 9/17/08
For future reference, please record your wireless system information here. The serial numbers
appear inside the battery compartment of each transmitter and on the bottom of each receiver.
UniPak TM Body-Pack Transmitter ___________________________________________
Handheld Dynamic Microphone Transmitter ______________________________________
Serial numBerS
diSclaimer / Warranty
AmpliVox Portable Sound Systems, operates a policy of continuous
dvelopment. AmpliVox reserves the right to make changes and
improvements to any of the products described in this document
without prior notice.
Under no circumstances shall AmpliVox be responsible for any loss
of data or income or any special, incidental, consequential or indirect
damages howsoever caused.
The contents of this document are provided "as is". Except as required
by applicable law, no warranties of any kind either express or implied,
including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose, are made in relation to the
accuracy, reliability or contents of this document. AmpliVox reserves
the right to revise this document or withdraw it at any time without
prior notice.
The availability of particular products may vary by country. Please
check with the distributor for your territory. In some countries there
may be some restrictions in using this equipment. please check with
your local radio frequency authorities.
AmpliVox products purchased in the United States are warrantied for
6 years from date of purchase by AmpliVox to be free of defects and
material workmanship. All accessories and the battery are warrantied
for 1 year. Accessories are; wireless and wired microphones,
receivers and transmitters, CD players, cassette players, and digital
players. In event of such defect, product will be repaired promptly
without charge or at our option, replaced with a new product of
equal or superior value if delivered to AmpliVox prepaid, together
with proof of purchase. Prior approval from AmpliVox is required for
return. This warranty excludes defects due to normal wear, abuse,
shipping dammage, or failure to use product in accordance with
instructions. This warranty is void in the event of unauthorized repair
or modification. For return and shipping information please call our
customer service department at 1-800-267-5486 or outside the US,
call 1-847-498-9000, Monday - Friday, 8am to 6pm, CST or email
customerservice@ampli.com.
Produkt Specifikationer
| Mærke: | AmpliVox |
| Kategori: | Modtager |
| Model: | SW915 |
| Bredde: | 292 mm |
| Dybde: | 279 mm |
| Højde: | 584 mm |
| Vægt: | 15875 g |
| Brugervejledning: | Ja |
| Produktfarve: | Sort |
| Forbindelsesteknologi: | Ledningsført |
| Lyd-output kanaler: | - kanaler |
| Formål: | Optræden/scene |
| klirfaktor (THD): | - % |
| Signal/støjforhold: | - dB |
| Spidseffekt pr. kanal: | 250 W |
Har du brug for hjælp?
Hvis du har brug for hjælp til AmpliVox SW915 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Modtager AmpliVox Manualer
27 August 2024
27 August 2024
Modtager Manualer
- James
- Scansonic
- Sandberg
- SureCall
- Hartke
- TechniSat
- Ashly
- Insignia
- Aguilar
- Cisco
- Solid State Logic
- Musway
- Optex
- BuonaIdea
- Power Dynamics
Nyeste Modtager Manualer
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
28 August 2025
27 August 2025
27 August 2025
