Installation Guide

NI-2100 NetLinx Integrated Controller

The NI-2100/ICS is ideal for control and automation of medium-sized rooms and multi-room

applications. The NI-2100 has 64MB of onboard RAM and is Device Discovery enabled to

simplify programming by standardizing device and function definitions, default touch panel

button assignments, and control and feedback methods.

ATTENTION!

Verify you are using the latest NI firmware for the on-board Master. Verify you are using the

latest version of NetLinx Studio (available for download from www.amx.com).

Specifications

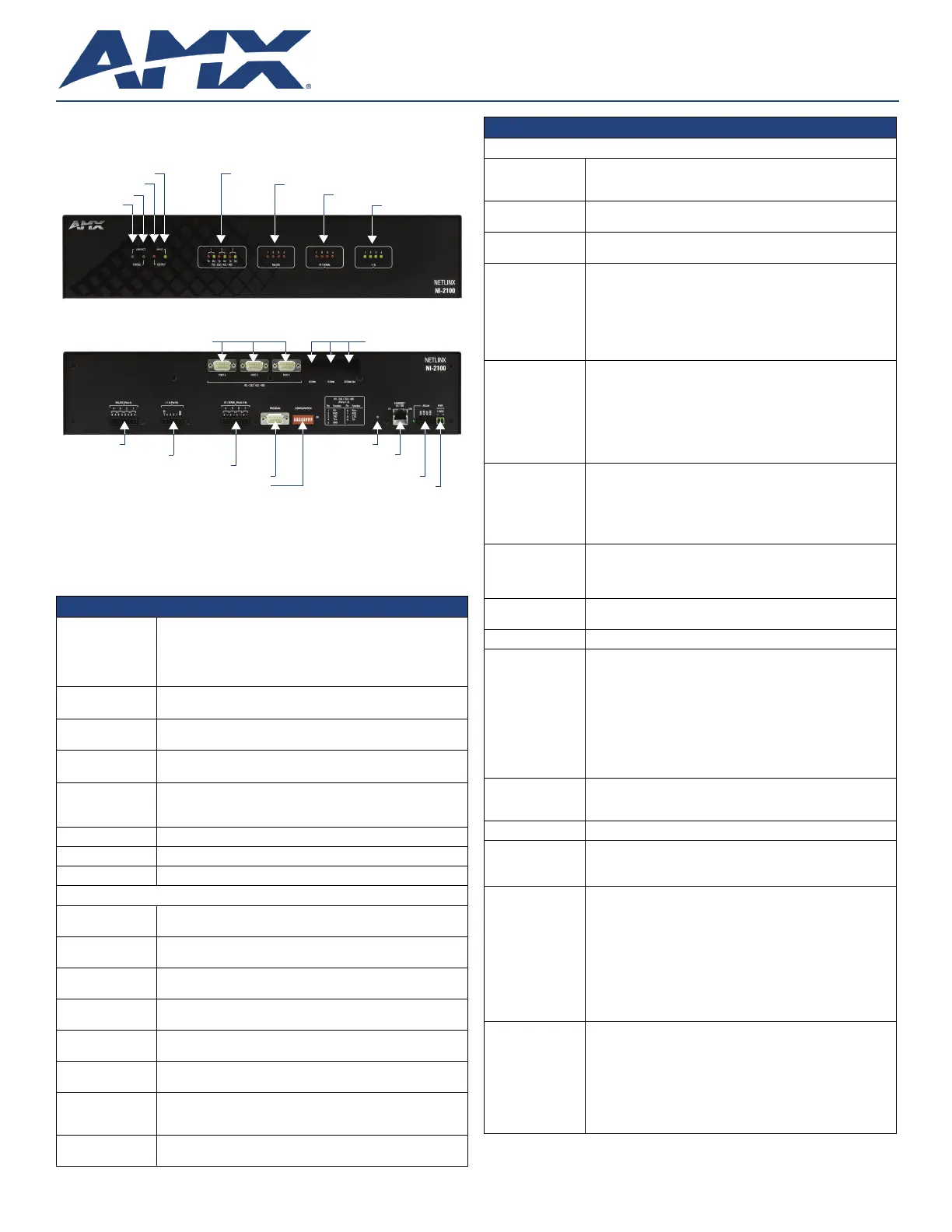

FIG. 1 NI-2100

NI-2100 Specifications

Models Available: • NI-2100 Controller (FG2105-04)

The NI-2100 can be upgraded to provide one ICSHub and two

ICSNet ports by installing the optional ICSNet daughter card

(FG2105-10 - see Other AMX Equipment)

• NI-2100/ICS Controller with ICSNet (FG2105-14)

Dimensions

(HWD):

• 3 1/2" x 17" x 3 1/2" (8.8 cm x 43.2 cm x 8.8 cm)

• RU: 2

Power

Requirement:

700 mA @ 12 VDC

Memory: • 64 MB SDRAM

• 1 MB Non-volatile (NV) SRAM

Compact Flash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment).

Note: AMX may increase Flash size at any time in response to

market availability.

Weight: 4.50 lbs (2.04 kg)

Enclosure: Metal with black matte finish

Certifications: FCC Part 15 Class B, CE, and IEC 60950

Front Panel LEDs:

LINK/ACT

(green):

Blinks when the Ethernet cables are connected and terminated

correctly. Also blinks when receiving Ethernet data packets.

Status (green): Blinks to indicate that the system is programmed and

communicating properly.

Output (red): Blinks when the Controller transmits data, sets channels On and

Off, sends data strings, etc.

Input (yellow): Blinks when the Controller receives data from button pushes,

strings, commands, channel levels, etc.

RS-232/422/485

(red / yellow):

3 sets of LEDs light to indicate that DB9 Ports 1 - 3 are transmitting

or receiving RS-232, 422, or 485 data (red = TX, yellow = RX).

Relay (red): 4 LEDs light to indicate the relay channels 1 - 4 are active (closed).

These LEDs reflect the state of the relay on Port 4.

IR/Serial (red): 4 LEDs light to indicate the IR/Serial channels 1 - 4 are transmitting

control data on Ports 5 - 8. LED indicator for each IR port remains lit

for the length of time that IR/Serial data is being generated.

I/O (yellow): Lights when the I/O channels 1 - 4 are active. The LED for each I/O

port reflects the state of that particular port.

LINK/ACT LED

STATUS LED

INPUT LED

OUTPUT LED RS-232/422/485 Status LEDs

RELAY Status LEDs

IR/SERIAL Status LEDs

I/O Status LEDs

front

rear RS-232/422/485 (Ports 1-3)

ICSNet/ICSHub Ports

(provided by optional

ICSNet daughter card)

Relays (Port 4)

I/O (Port 9)

IR/Serial (Ports 5-8)

PROGRAM Port

CONFIGURATION DIP Switch

ID Pushbutton

ETHERNET

10/100 Port

AxLink Port

12 VDC PWR Connector

NI-2100 Specifications (Cont.)

Rear Panel Components:

RS-232/422/485

(Ports 1 - 3):

3 RS-232/422/485 control ports using DB9 (male) connectors with

XON/XOFF (transmit on/transmit off), CTS/RTS (clear to send/

ready to send), and 300-115,200 baud.

ICSNet: 2 RJ-45 connectors for ICSNet interface (provided by optional

ICSNet daughter card).

ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller

(provided by optional ICSNet daughter card).

Relay (Port 4): • 4-channel single-pole single-throw relay ports

• Each relay is independently controlled.

• Supports up to 4 independent external relay devices

• Channel range = 1-4

• Each relay can switch up to 24 VDC or 28 VAC @ 1 A

• 8-pin 3.5 mm mini-Phoenix (female) connector provides relay

termination

Digital I/O

(Port 9):

4-channel binary I/O port for contact closure with each input being

capable of voltage sensing. Input format is software selectable with

interactive power sensing for IR ports.

Note: The I/Os on this card are not dry closure; they are electronic

switches that float at 5V when Off. Therefore, they should not be

expected to work in situations that require true dry contact (or dry

closure). The I/Os do work with AMX PC1, PC2, UPC20 and

UPC20+.

IR/Serial

(Ports 5 - 8):

4 IR/Serial control ports support high-frequency carriers of up to

1.142 MHz with each output being capable of two electrical formats:

IR or Serial.

• 4 IR/Serial data signals can be generated simultaneously.

• IR ports support data mode (at limited baud rates and wiring

distances).

Program Port: RS-232 DB9 connector (male) can be connected to a DB9 port on a

PC. This connector can be used with serial and NetLinx program-

ming commands, as well as other DB9 capable devices, to both

upload/download information from the NetLinx Studio program.

Configuration DIP

Switch:

Sets the communication parameters for the Program port (see Baud

Rate Settings).

ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.

Ethernet Port: RJ-45 connector provides TCP/IP communication. This is an Auto

MDI/MDI-X enabled port, which allows you to use either straight-

through or crossover Ethernet cables.

The Ethernet Port LEDs show communication activity, connection

status, speeds, and mode information:

•SPD (speed) - Yellow LED lights On when the connection speed

is 100 Mbps and turns Off when the speed is 10 Mbps.

•L/A (link/activity) - Green LED lights On when the Ethernet cables

are connected and terminated correctly, and blinks when

receiving Ethernet data packets.

AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and

power to external control devices. Green AXlink LED indicates the

state of the AXlink port.

Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

Operating

Environment:

• Operating Temperature: 0° C (32° F) to 50° C (122° F)

• Operating Humidity: 20% to 85% RH

• Heat Dissipation (Typical): 28.7 BTU/hr

Included

Accessories:

• 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)

• 4-pin 3.5 mm mini-Phoenix (female) AXlink connector (41-5047)

• 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063)

• 8-pin 3.5 mm mini-Phoenix female Relay connector (41-5083)

• Installation Kit (KA2105-01):

8-pin Relay Common Strip

4 rack mount screws

4 washers

• 2 CC-NIRC NetLinx IR Emitter Cables (FG10-000-11)

• 2 removable rack ears (62-2105-07)

Other AMX

Equipment:

• 2-pin 3.5 mm mini-Phoenix male connector (41-5026)

• CC-COM Programming Port Cable (FG10-727)

• CC-NSER IR/Serial cable (FG10-007-10)

• ICSNet daughter card (FG2105-10)

• NCK, NetLinx Connector Kit (FG2902)

• STS, Serial To Screw Terminal (FG959)

• Upgrade Compact Flash (factory programmed with firmware):

NXA-CF2NI4G, 4 GB Flash Upgrade (FG2116-07)

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

9/10

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-2105-14 REV: H

Connections and Wiring

Wiring a Power Connection

Use a 12 VDC-compliant power supply to provide power to the Controller via the rear 2-pin

3.5 mm mini-Phoenix connector. The incoming PWR and GND cable from the PSN power

supply must be connected to their corresponding locations within the PWR connector.

• This unit should only have one source of incoming power.

• Using more than one source of power to the Controller can result in damage to the

internal components and a possible burn out.

• Apply power to the unit only after installation is complete.

RS-232/422/485 Wiring Connector Information

FIG. 2 shows the pinout and wiring specification information for the RS-232/422/485 (DB9)

Device Ports. These ports support most standard serial mouse control devices and RS-232

communication protocols for PC data transmission.

The NI-2100 uses Ports 1 - 3.

WARNING: NOT When wiring the 422/485 connections, do use pre-made 9-wire cable or

connect the wire in the cable to any connection that will not be used by the DB9 serial port.

Only use wiring that connects the needed pins.

Ethernet 10/100 Base-T Connector

The RJ-45 Ethernet connector provides 10/100 network connectivity between the panel and

the NetLinx Master (FIG. 3).

Use a standard CAT5 Ethernet cable to provide communication between the Integrated

Controller and external NetLinx devices.

Baud Rate Settings (Program Port DIP Switch)

The Program Port DIP switch is located on the rear of the device. Use this DIP switch to set

the baud rate for the Program Port, according to the settings shown in the following table.

Make sure the baud rate you set matches the baud rate on your PC's NetLinx COM Settings

before programming the unit.

Note: DIP switch 1 activates/deactivates the Program Run Disable Mode. DIP Switches 2,3,

and 4 must remain OFF at all times.

Ethernet Ports Used by the NI-2100

Preparing the NI-2100 for Serial Communication

To establish serial communication with the Controller via the PROGRAM (DB9) port:

1. Use a Serial DB9 cable (i.e. CC-COM Programming Port Cable - not included) to con-

nect the Controller’s Program port to a DB9 port on a PC.

2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc

> NetLinx Studio 2 > NetLinx Studio 2).

3. Select Settings > Master Communication Settings, from the menu bar, to open the

Master Communication Settings dialog box.

4. Click the Communications Settings button to open the Communications Settings

dialog.

5. Click the NetLinx Master radio button (from the Platform Selection section) to indicate

you are working with a NetLinx Master.

6. Click the Serial radio button (from the Transport Connection Option section) to indicate

you are connecting to the Master via a COM port.

7. Click the Edit Settings button (on the Communications Settings dialog) to open the

Serial Settings dialog and set the COM port parameters (used to communicate to the

NetLinx Master).

8. Click OK to close all dialogs and return to the main application.

9. Right-click the Online Tree Refresh System: tab entry and select the Controller

should appear in the Device Tree. If not, verify that the Serial cable is connected

properly, and that the Baud Rate settings on the Controller (set via the Program Port

DIP Switch) match the settings in NetLinx Studio.

Once Serial communication has been established, use NetLinx Studio to configure the

Controller for Ethernet Communication, as described below.

Configuring the NI-2100 for Ethernet Communication

Before continuing, complete the COM port steps above.

1. Use an Ethernet cable to connect the Controller to the LAN to which the PC running

NetLinx Studio is connected.

Note: The NI-x100 Controllers feature an Auto MDI/MDI-X Ethernet port. This provides

the option of using either a standard (straight through), or a crossover Ethernet cable

to communicate with a PC - both cable types will work.

2. Select Diagnostics > Network Address from the menu bar and enter the System,

Device (0 for a Master), and Host Name information.

3. To configure the Address:

• Use a DHCP Address by selecting the Use DHCP radio button, then click the GET IP

button (to obtain a DHCP Address from the DHCP Server), click the SET IP

Information button ( ), and then finish the process by clicking to retain the new address

the Reboot Master > OK buttons.

• Use a Static IP Address by selecting the radio button, enter the IP Specify IP Address

parameters into the available fields, then click the SET IP Information button (to retain

the pre-reserved IP Address to the Master), and then click the Reboot Master > OK

buttons to finish the process.

4. Repeat steps 1 - 5 from the previous section, but rather than selecting the Serial

option, choose TCP/IP and edit the settings to match the IP Address you are using

(Static or IP).

5. Click on the d) and press Authentication Required radio box (if the Master is secure

the User Name and Password button to enter a valid username and password being

used by the secured Master.

6. Click the OK to close all dialogs and return to the main application.

Onboard WebConsole

NetLinx Masters have a built-in WebConsole that allows you to make various configuration

settings via a web browser on any PC that has access to the Master.

The WebConsole consists of a series of web pages that are collectively called the "Master

Configuration Manager". Refer to the NI Series NetLinx Integrated Controllers WebConsole

& Programming Guide for details on the WebConsole.

Accessing the WebConsole

From any PC that has access to the LAN that the target Master resides on:

1. Open a web browser and type the IP Address of the target Master in the Address Bar.

2. Press Enter to access WebConsole for that Master. The initial view is the WebControl

page.

Additional Documentation

Additional Documentation for the N1-2100 is available at www.amx.com:

• Refer to the NXI-x100 Series Hardware Reference Guide for additional details on

Installation, Upgrading, and Wiring the NI-2100.

• Refer to the NI Series NetLinx Integrated Controllers WebConsole & Programming

Guide for detailed configuration instructions.

FIG. 2 RS-232/422/485 DB9 (male) connector pinouts

FIG. 3 Layout of Ethernet LEDs

Baud Rate Settings

Baud Rate Position 5 Position 6 Position 7 Position 8

• 9600 bps OFF ON OFF ON

• 38,400 bps (default) OFF ON ON ON

• 57,600 bps ON OFF OFF OFF

• 115,200 bps ON ON ON ON

Ethernet Ports Used

Port type Port # Type

• FTP 21/20 TCP

• SSH (only SSH v2 is supported) 22 TCP

• Telnet 23 TCP

• HTTP 80 TCP

• HTTPS/SSL 443 TCP

• ICSP 1319 UDP/TCP

• integration! Solutions 10500 TCP

Male

DB9 Serial Port pinouts (male connector)

Pin 2: RX signal

Pin 3: TX signal

PIN 5: GND

Pin 7: RTS

Pin 8: CTS

RS-232

Pin 1: RX -

Pin 4: TX +

PIN 5: GND

Pin 6: RX +

Pin 9: TX -

RS-422

Pin 1: A (strap to 9)

Pin 4: B (strap to 6)

PIN 5: GND

Pin 6: B (strap to 4)

Pin 9: A (strap to 1)

RS-485

SPD - Speed LED lights (yellow)

100 Mbps and turns Off when the

speed is 10 Mbps.

when the connection speed is

L/A - Link/Activity LED lights

(green) when the Ethernet

cables are connected and

terminated correctly.

Produkt Specifikationer

Mærke:	AMX
Kategori:	Controller
Model:	FG2105-04

Har du brug for hjælp?

Hvis du har brug for hjælp til AMX FG2105-04 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Controller AMX Manualer

30 August 2024

30 August 2024

27 August 2024

27 August 2024

27 August 2024

AMX NetLinx NX-1200 Manual

27 August 2024

AMX NXA-WAPZD1100 Manual

27 August 2024

AMX AXB-REL8 Manual

27 August 2024

AMX AXB-232++ Manual

27 August 2024

AMX AXB-DMX512 Manual

27 August 2024

Controller Manualer

Nyeste Controller Manualer

Sonance VC60R Manual

2 April 2025

Trust Mylox GXT 735G Manual

30 Marts 2025

Trust Mylox GXT 735 Manual

30 Marts 2025

American DJ STAGE SETTER-8 Manual

30 Marts 2025

American DJ DP-DMX20L Manual

30 Marts 2025

Visual Productions TimeCore Manual

30 Marts 2025

PCE Instruments PCE-RE22T Manual

28 Marts 2025

Turtle Beach Recon Manual

27 Marts 2025

PowerA Enhanced Wireless Controller Manual

26 Februar 2025

IPEGA PG-9078 Manual

20 Februar 2025
