Installation Guide

NXA-WAPZD1100

ZoneDirector Smart WLAN Controller

Overview

The NXA-WAPZD1100 (FG2255-75) is a centrally managed wireless LAN (WLAN)

controller for homes and business using multiple NXA-WAP1000 Wireless Access

Points, that delivers exceptional performance by integrating the Ruckus Smart/OS

application engine. It delivers advanced features such as smart wireless meshing,

hotspot authentication, elegant guest networking and dynamic Wi-Fi security.

Redundant and secure, the AMX ZoneDirector provides WLAN-wide network,

security, RF and location management within a single, easy-to-use and affordable

WLAN system.

Common Applications

Ideal for homes and businesses that require a robust and secure WLAN that can be

easily deployed, centrally managed and automatically tuned. The NXA-WAP1000 is

perfect for environments where high bandwidth applications such as video streaming

are accessed simultaneously from several wireless devices such as iPads, laptops,

and gaming consoles.

Features

• Configure and Install in Minutes - Automatically discovers and configures AMX

NXA-WAP1000 Wireless Access Points making them instantly manageable.

• Smart Wireless Mesh Networking - Simplifies deployment and reduces

installation cost by eliminating the need to run Ethernet cable to every AMX

NXA-WAP1000.

• Automatically Adapts to Wi-Fi Signal Changes in Real-time - The SmartMesh

Networking is self-organizing, self-optimizing, and self-healing to provide

maximum performance and reliability.

• Complete Centralized WLAN Control - Dynamically controls the RF channel

assignment and transmit power level for each NXA-WAP1000 Wireless Access

Point.

• Integrated Wi-Fi Client Performance Tools - Ruckus SpeedFlex™ allows

administrators to locally or remotely determine client Wi-Fi performance over the

wireless LAN to improve troubleshooting.

• Secure Admission Control Across the WLAN - The NXA-WAP1000 centralizes

authentication and authorization decisions for all access points.

• Automatic User Security - Supports Ruckus's patent-pending Dynamic

Pre-Shared Key (PSK) capability eliminating the requirement to configure and

update individual PC client devices with unique encryption keys.

Power Adapter Compatibility

The NXA-WAPZD1100 is shipped with an appropriate power adapter for the country in

which it is to be used:

• FG2255-75: Includes US Power Adapter for use in US, Canada, Colombia,

Ecuador, Mexico

Product Specifications

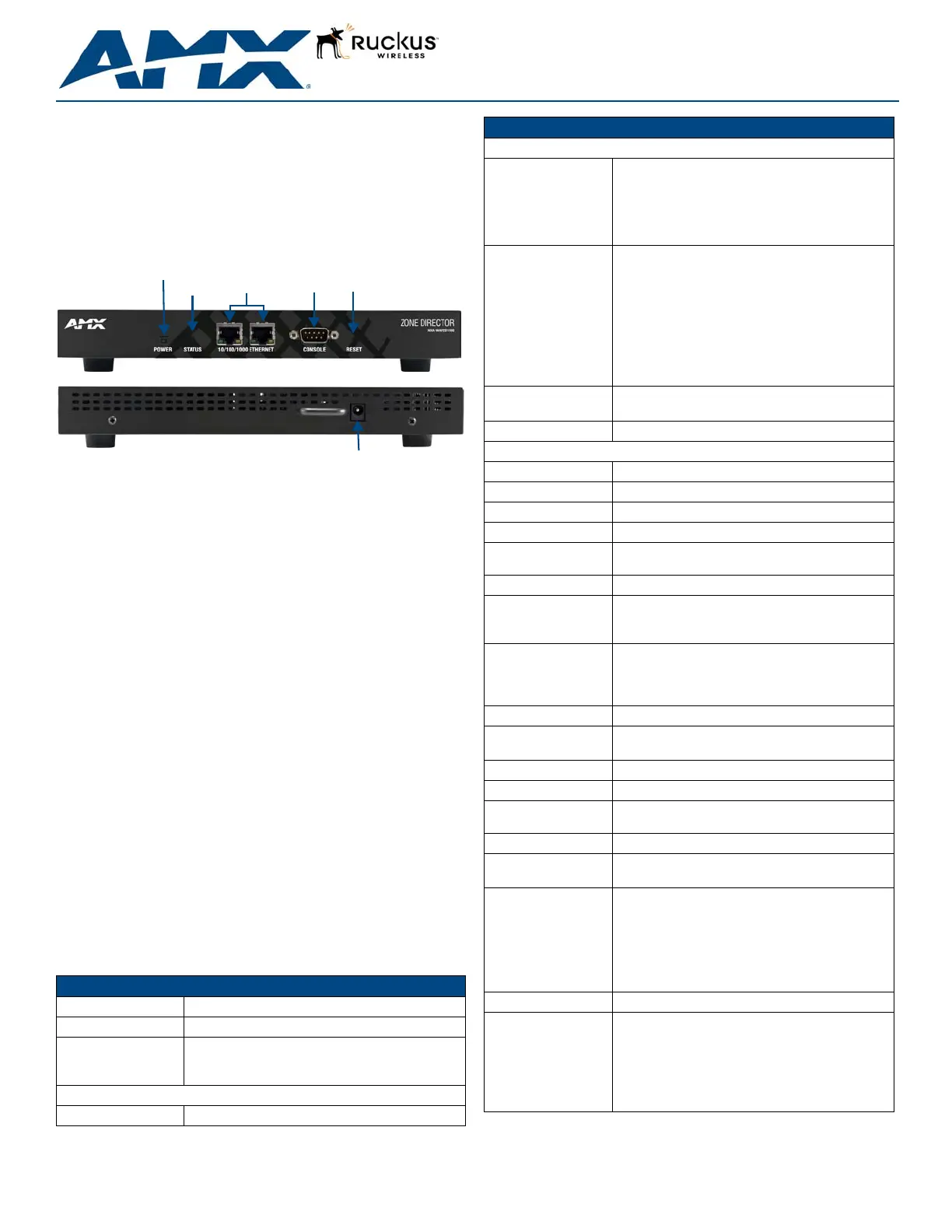

FIG. 1 NXA-WAPZD1100 front and rear view

NXA-WAPZD1100 (FG2255-75) Specifications

Dimensions (HWD): 1 1/2” x 6 5/16” x 9 13/16” (39 mm x 159 mm x 250 mm)

Weight: 2.2 lbs (1 Kg)

Power: • External power adapter

• Input: 110 - 240V AC

• Output: 12V DC, 1A

Front Panel Components:

Power LED: Green LED: the device is receiving power.

(front)

(rear)

Power

Status

10/100/1000

Ethernet Output

Console

Reset

LED

Port

Button

12VDC

Input

NXA-WAPZD1100 (FG2255-75) Specifications (Cont.)

Front Panel Components (Cont.):

Status LED: • Steady green LED: Device is configured.

• Blinking green LED: Device in factory default settings.

• Steady amber LED: Device is shut down but still

connected to a power source.

• Flashing amber LED: Device is starting up or shutting

down.

10/100/1000

Ethernet:

Two 10/100/1000Mbps RJ-45 ports for Ethernet

connectivity.

• Solid green or amber left LED: The port is connected to

a device.

• Blinking green or amber left LED: The port is

transmitting or receiving data traffic.

• Green right LED: The port is connected to a 1000Mbps

device.

• Amber right LED: The port is connected to a 100Mbps

or 10Mbps device.

Console port:

DB-9 port for accessing the NXA-WAPZD1100 command

line interface.

Reset Button: Hold the reset button for 8 seconds to reset the device.

Rear Panel Components:

Input:

One 12VDCpower jack

Configuration: Web user interface

Statistics: LAN, wireless and associated stations (available via UI)

VLAN Support: 802.1Q (per BSSID)

AP Discovery &

Control:

Layer-2 or Layer-3

WLANs (BSSIDs): Up to 32

Access Lists (ACLs): • Layer-2 (MAC address based ACL)

• Layer-3 (IP address based ACL)

• L2 client isolation

Wireless Intrusion

Detection (WIDS):

• Rogue AP detection

• DoS attack prevention

• Password guessing protection

• Rate limiting

Wireless Security: WEP, WPA-TKIP, WPA2-AES, 802.11i

Authentication: • 802.1X, local database

• External AAA servers: ActiveDirectory/RADIUS/LDAP

Local Authentication: 1000 user entries

Countries: US, Canada, Colombia, Ecuador, Mexico

Number of Managed

APs:

Up to 6

Concurrent Stations: Up to 1250

Operating

Environment:

• 32°F - 122°F (0°C - 50°C)

• Operating humidity - 15% – 95% (non-condensing)

Certifications: •FCC

•IC

•CE

•C-Tick

• VCCI

• EN 60950-1

•RoHS

Included Accessories: • External power adapter

Other AMX Equipment: • NXA-ENET8-2POE Gigabit Ethernet Switch

(FG2178-63)

• NXA-WAP1000 Smart Wireless Access Point, US

Operation (FG2255-51)

• NXA-WAP1000 Smart Wireless Access Point,

Operation Outside US (FG2255-53)

• NXA-WAPZD License Upgrades (FG2255-62/63/64)
