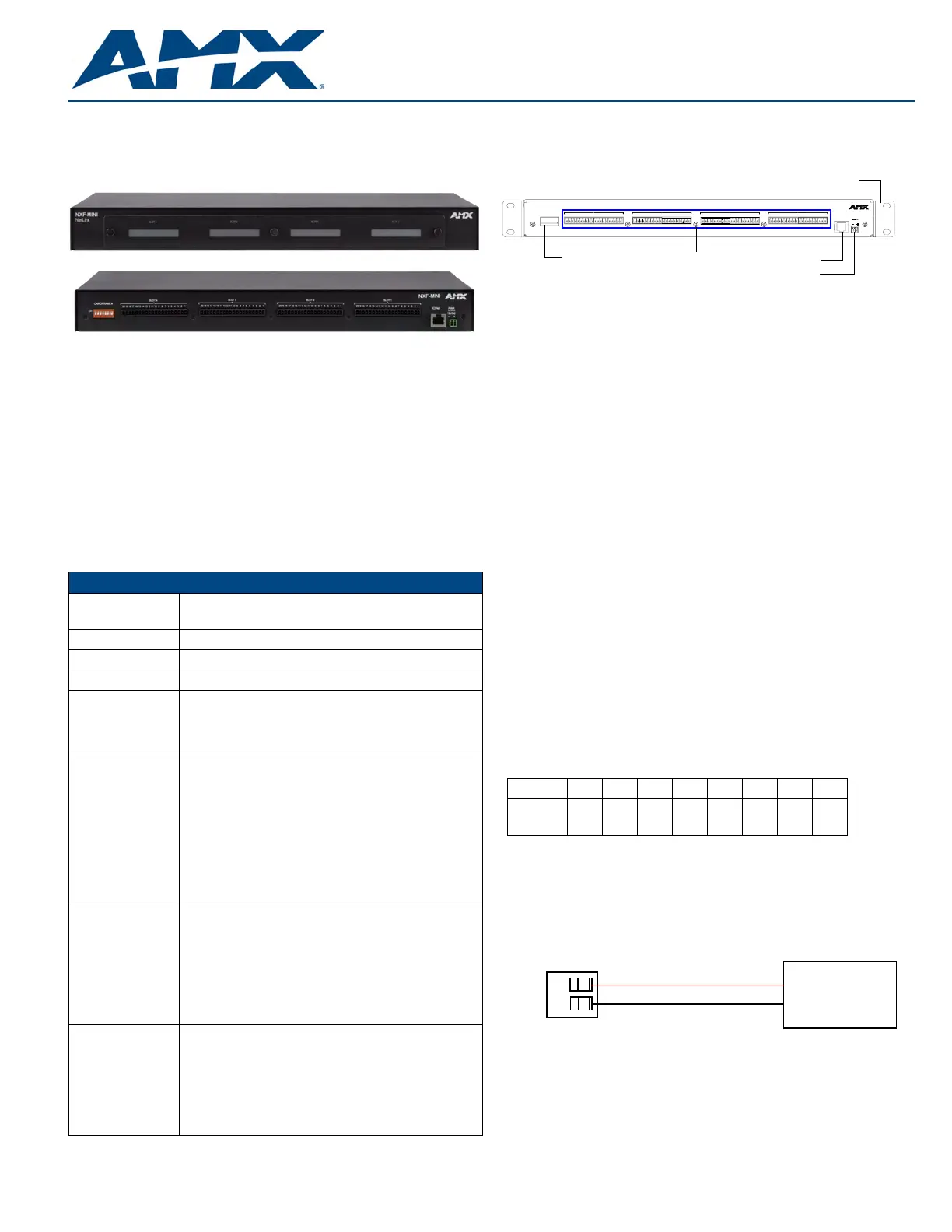

Installation Guide

NXF-MINI NetLinx® Mini-CardFrame

Overview

The NXF-MINI NetLinx Mini CardFrame (FG2104) provides up to 4 expansion

card slots that accept any combination of compatible NetLinx Control Cards (see

Specifications table below).

The NXF-MINI is compatible with any NetLinx Controller or Master. The unit is

one rack unit high and connects via ICSNet communications to the controller

system.

This unit is ideal for expansion or distributed systems needing additional IR,

Relay, and Volume Control capabilities. Current features include:

• Flexibility and custom control options.

• Supports for up to four NetLinx Control Cards.

• Front access to all four card slots.

• Ease of use and installation.

Multiple MINIs can be connected using ICSNet Hubs.

Specifications

Note: The NXF-MINI requires a local 12 VDC Power Supply.

Connections and Wiring

FIG. 2 shows the layout of the connectors and components on the rear of the

NXF-MINI.

Inserting NetLinx Cards into the NetLinx Control Card Slots

The optional NetLinx Cards can be installed horizontally into the NXF-MINI

through the card slot openings on the front of the enclosure.

To install a NetLinx Card:

1. Discharge the static electricity from your body by touching a grounded

metal object and unplug all the connectors from the unit.

2. Remove the three (3) screws by turning them in a counter-clockwise

direction and remove the front faceplate.

3. Align the edges of the card with the internal guide slots and gently slide the

card all the way in until you feel the rear edge of the card lightly snap into

place.

4. Re-secure the faceplate by inserting the three (3) screws by turning them in

a clockwise direction and securing the front faceplate to the

NXF-MINI.

5. Re-apply power and other connections as necessary.

Setting the MINI’s Control Card starting Card Address

The 8-position CardFrame Number DIP switch, located on the lower-left rear of

the CardFrame, sets the starting address (the device number in the D:P:S

specification) for the Control Cards installed in the unit.

The Control Card address range is 1-3064. The factory default CardFrame DIP

switch value = 0 (All CardFrame DIP switches in the OFF position).

The formula for setting the starting address is:

(DIP switch value) + Card slot Number (1-4) = Card Address

For example:

For DIP switch setting, 00010101:

(0 + 0 + 0 + 96 + 0 + 384 + 1536) + SLOT #(ex:1) = 2017.

A card in slot number 1 = device address 2018.

Set the CardFrame Number DIP switch based on the table below.

Cycle power to the unit for approximately 5 seconds. This allows the unit to read

the new device number settings.

Using the PSN NetLinx connector for power

To supply power from the local power supply to the rear 2-pin mini-Phoenix

power jack; the incoming PWR and GND cables from the power supply must be

connected to the corresponding location on the NXF-MINI 2-pin 3.5 mm mini-

Phoenix connector (FIG. 3).

1. Insert the PWR and GND wires into the terminal end of the PSN 2-pin

3.5 mm mini-Phoenix cable.

2. Tighten the clamp to secure the two wires.

3. Verify the connection of the other end to the mini-Phoenix connector on the

power supply.

FIG. 1 NXF-MINI NetLinx Mini CardFrame

NXF-MINI Specifications

Dimensions (HWD): • 1.75" x 17.00" x 9.56" (4.45 cm x 43.18 cm x 24.28 cm)

• 1 RU

Power: • 25 mA @ 12 VDC

Weight: • 6.20 lbs (2.81 kg)

Enclosure: • Metal with black matte finish

Front Panel: • NetLinx Control Card Slots 1- 4: Accept up to 4 compatible

NetLinx Cards: such as the NXC-COM2, NXC-I/O10, etc.

• Rack-mount brackets: Provides an installation option for the

NXF-MINI to be mounted into an equipment rack.

Rear Panel: • CardFrame Number DIP Switch: Sets the starting address

for the Control Cards in the CardFrame. The 8-position DIP

switch address range is 1-3064. (Factory default

CardFrame DIP switch value = 0). The Control Card

address range is 1-3064.

• NetLinx Control Card Connectors (1-4): Four 20-pin (male)

connectors that bridge the gap between the Control Cards

in the CardFrame and external equipment.

• ICSNet Connector: Single RJ-45 connector for ICSNet

interface.

• Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

Included

Accessories:

• Removable rack ear set (62-2104-03). Allows for tabletop,

under-counter, and front/rear rack mounting

• Quick Start Guide (93-2104)

• Three faceplate screws (80-0181)

• One 2-pin mini-Phoenix PWR connector (41-5025)

• Installation Kit (KA2104):

- 4 screws (#10-32 x 0.625)

- 4 washers (#10 Black Nylon)

Optional

Accessories:

• PSN6.5 power supply (FG423-41)

• Accepts up to 4 compatible NetLinx Control Cards:

NXC-COM2 Dual COM Port Control Card (FG2022)

NXC-I/O10 Input/Output Control Card (FG2021)

NXC-IRS4 4-Port IR/S Control Card (FG2023)

NXC-REL10 Relay Control Card (FG2020)

NXC-VAI4 Analog Voltage Control Card (FG2025)

NXC-VOL4 Volume Control Card (FG2024)

front

rear

FIG. 2 Rear NXF-MINI connectors and components

Position 12345678

position

Value 12 24 48 96 192 384 768 1536

FIG. 3 NetLinx power connector wiring diagram

20 19 18

SLOT 1

13310

SLOT 3

1516 14 1213 11 9 78 56 4 202 1 1719 18 1516 14 10

SLOT 2

12 11 89 7 356 4 12 20 1819 17 131516 14 1112 10 ICSNet

NXF-MINI

689 7 5 34 12 PWR

12VDC

CARDFRAME #

14171920 18 16 15 10

SLOT 4

1213 11 9 8 7 56 4 23 1

Rear

PWR

CardFrame DIP

switch Slot 1-4 connectors ICSNet

Rack ears

PWR +

GND -

To the NXF-MINI

12 VDC Power Supply

(terminal end)

(PSN6.5)

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

1/09

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-2104 REV: B

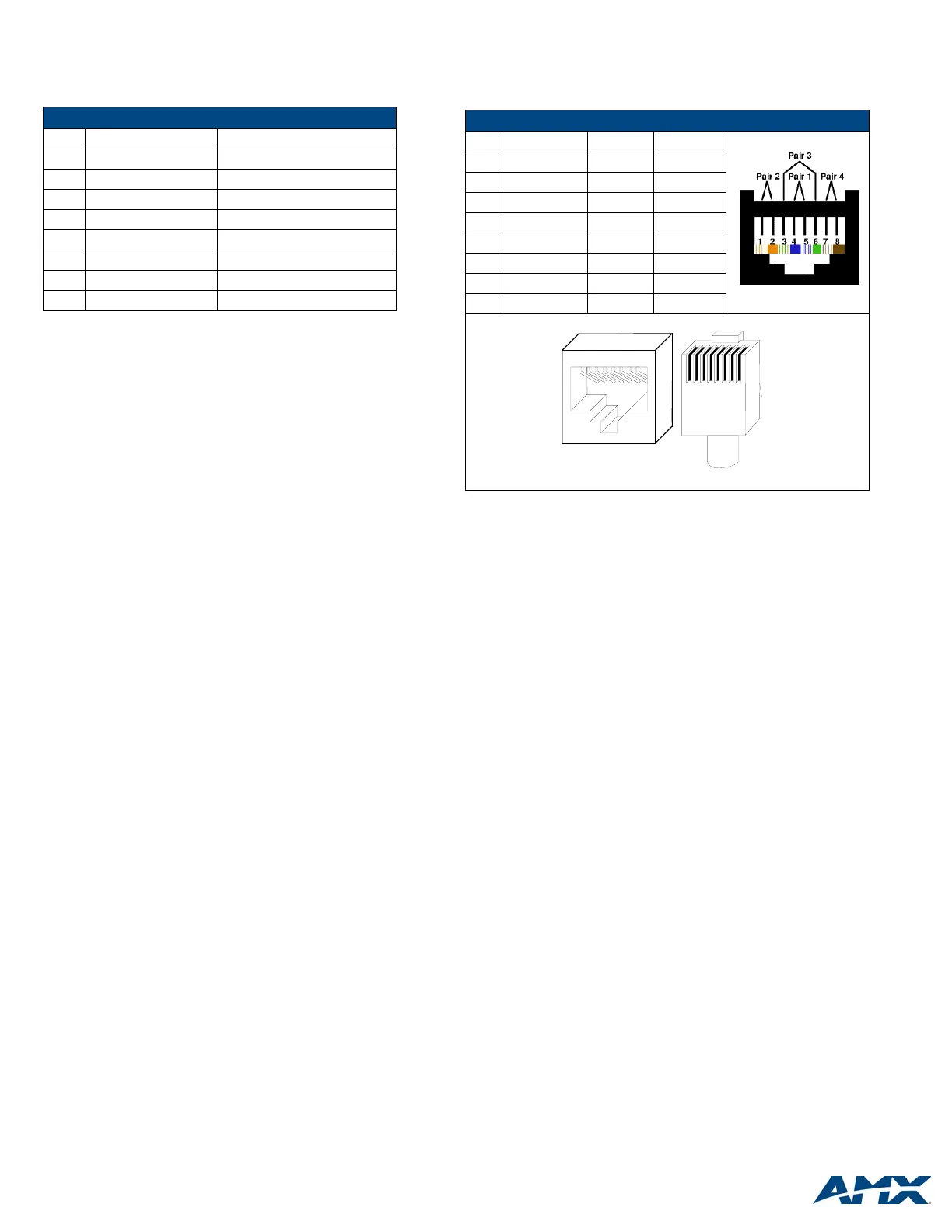

ICSNet Connections/Wiring

This connector uses a standard CAT5 Ethernet cable to provide

communication between the CardFrame and the NetLinx control system

processor. The following table shows the signal and pinout information

associated with the ICSNet connections.

Note: ICSHub cable information is used when connecting an NXF-MINI (from

the rear ICSNet connector) to an external Hub (ex: ICSHub connector port on

an NXC-NH).

ICSHub Connections/Wiring

The following table shows the ICSHub pinout wiring, coloring, and functionality.

ICSNet Signals and Pinouts

Pin Signal-Master Signal-Device

1 TX + RX +

2 TX - RX -

3 N/A N/A

4 GND GND

5 N/A N/A

6 N/A N/A

7 RX + TX +

8 RX - TX -

ICSHub Pinout Information (EIA/TIA 568 B)

Pin Wire Color Polarity Function

1 Orange/White + Transmit

2 Orange - Transmit

3 Green/White - -

4 Blue - -

5 White/Blue + -

6 Green + -

7 White/Brown + Receive

8 Brown - Receive TIA 568B

1 2 3 4 5 6 7 8

RJ-45 connector - pin configurations

(female) (male)
