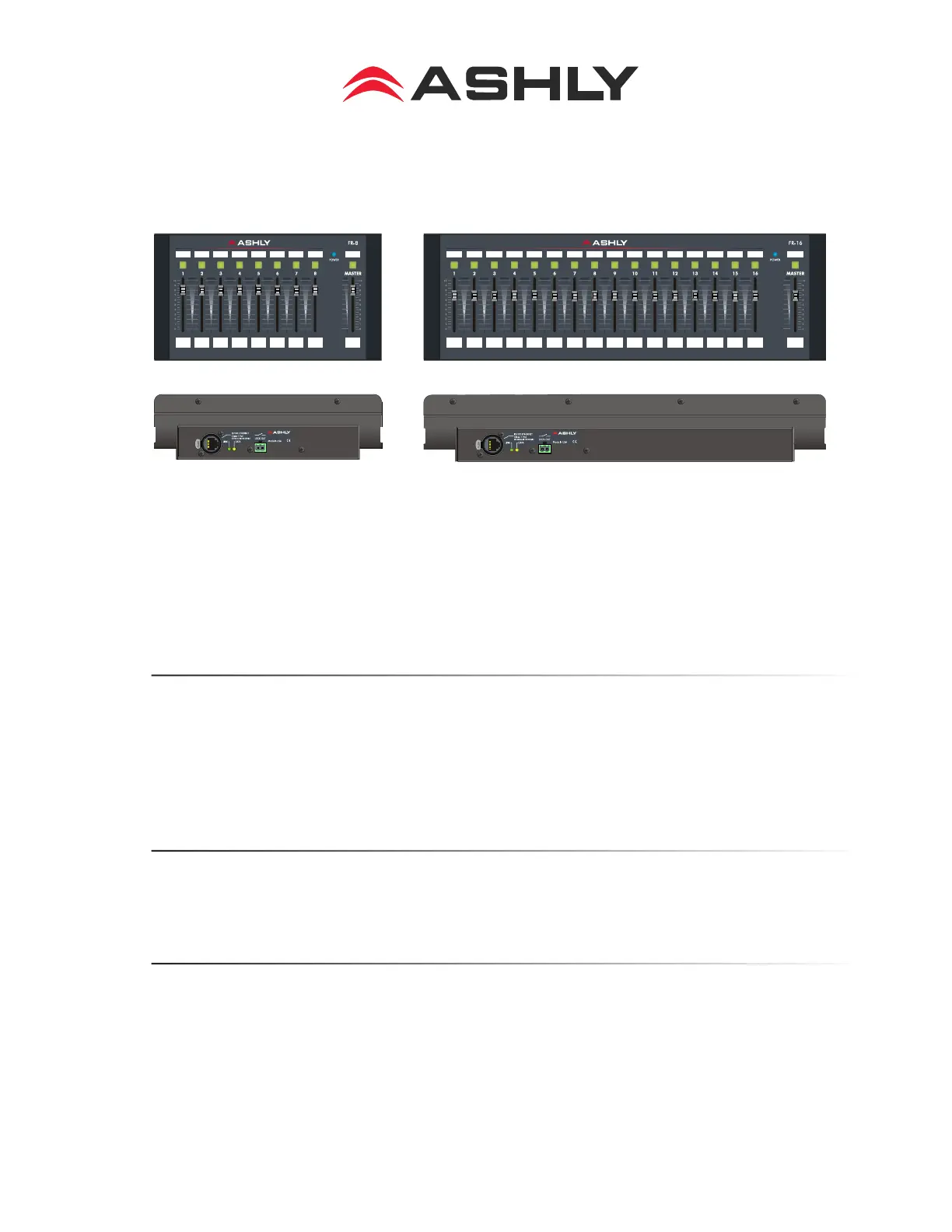

Operating Manual

FR-8 and FR-16 Programmable Fader Control

Overview

The FR-8 and FR-16 are Ethernet-based programmable fader remote controllers for all Ashly

networked products with DSP capabilities. Each fader and it’s push button LED can be programmed

to adjust signal level, select input source, or mute the signal. The FR remotes are ideal for networked

sound systems in meeting rooms, houses of worship, courtrooms, or other applications where simple but

programmable real-time level control is required.

ASHLY AUDIO INC.

847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010

Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com

All Trademarks referred to herein are the property of their respective owners.

Features

• 8 or 16 Assignable Faders with Master

• Push Button Switches with LED

• Mute/Unmute per Fader

• A/B Source Select per Fader (programmable)

• Two Signal Level Indicators per Fader

• User Defined Signal Level LED Thresholds

• Assignable Fader Scaling

• Front Panel Lockout

• Communication Failure Indicator

• Automatic IP Addressing

• User Defined Label Inserts

•

Wall Box, Rack, or Panel Cut-Out Mounting

Requirements

• Ethernet Network

• Class 1 IEEE 802.3af Power Over Ethernet

• Ashly Networkable Device with DSP

• PC Running

Microsoft® Windows XP or

higher, 32 & 64 bit

• Proteane Software v5.11 or Higher

Compatible Ashly Devices

• ne24.24M

• NE Two-Channel Amplifiers (with DSP)

• NE Multi-Channel Amplifiers (with DSP)

• NE4400, 4800, and 8800 DSP Processors

• Pema Amplifiers

• nXp Amplifiers

Front Panel

1) Push Button LED Label Window - Insert

label made from Ashly template doc (page 12)

2) Push Button LED - Used to switch fader

Mute or fader A/B Source Select. LED also

indicates signal level or fader status

3) Channel Fader - Adjusts level of targeted

DSP gain stage or output mixer source

4) Channel Fader Label Window - Insert

label made from Ashly template doc (page 12)

5) Power LED - Shows device is powered

6) Master Fader - Adjusts level of all

assigned channel faders

Rear Panel

1) RJ-45 Jack - Connects to Ethernet

Network with PoE or PoE injector

2) Link LED - Shows network is connected

3) Data LED - Shows Data is transferring

4) Lockout Connector - Use with any switch

to disable all front panel controls when closed

5) Serial Number and MAC Address - Used

for warranty or ash programming

FR Features (FR-8 not shown)

On Startup:

1. When the FR-8 or FR-16 is first connected or powered on, it attempts to communicate with

all devices it has been programmed to control, if any.

2. Once communication with the targeted device is established, it waits to transmit any fader or

switch position data until a control is physically changed by the user. At that point only the data for

that control is sent. This feature prevents sudden and unexpected changes when reconnecting or re-

starting the FR remote control, as well as when a new preset is recalled to the host device.

PLEASE NOTE: When in doubt, make sure all faders are either in the correct position or fully

down before reconnecting
