Installation Guide
AWM-HS
Slider

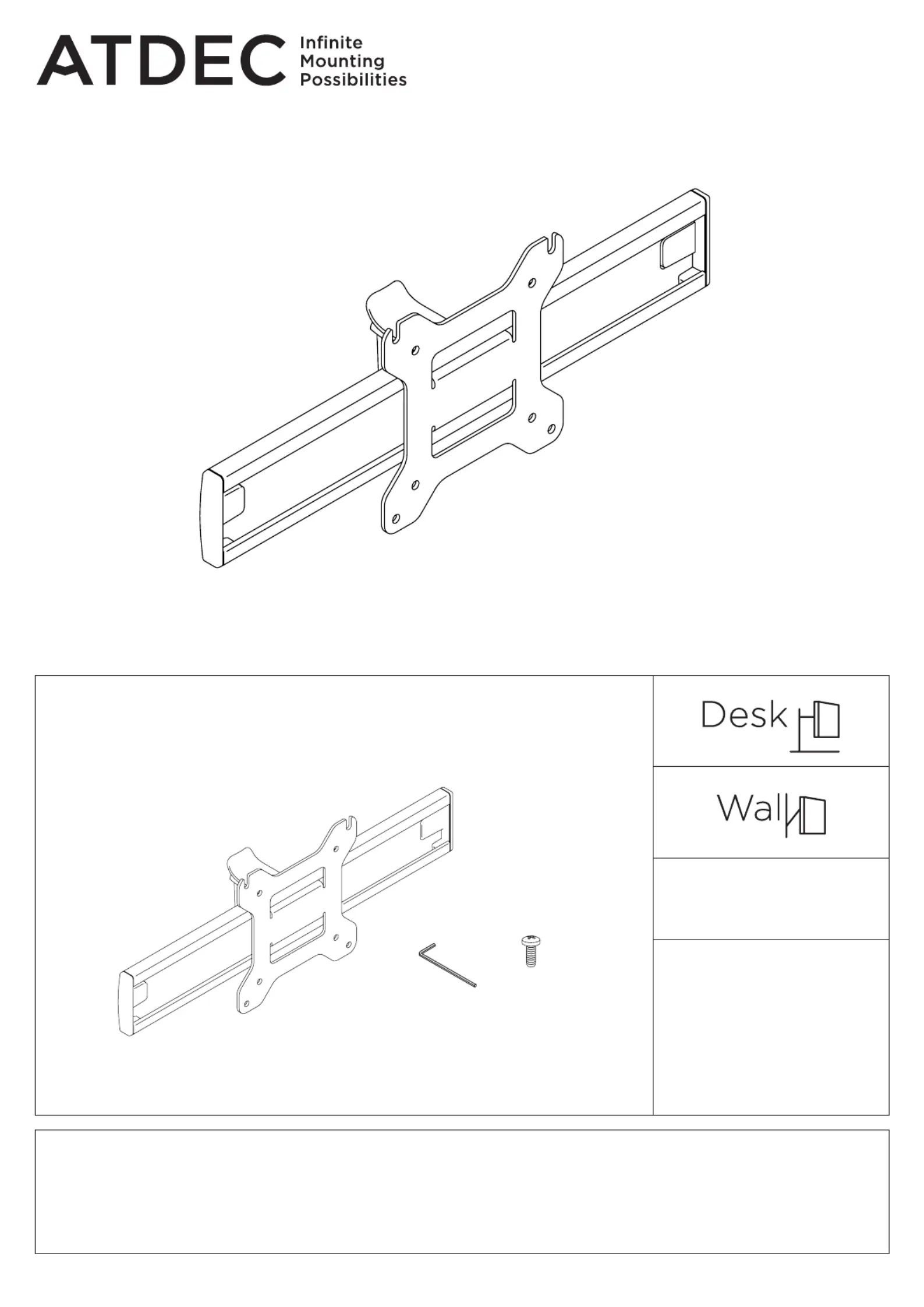

COMPONENT CHECKLIST
REQUIRED TOOLS
• Phillips Head Screwdriver
A
Slider
Assembly
(x1)
C
Screw
M4x10mm
(x4)
B
2.5mm
Allen key
(x1)
0 - 7 kg
(0 - 15 )lbs
Monitor weight should be
within the weight range of
all modular elements that
make up the complete
monitor mounting solution.
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed
the capacity of the mount even though the monitor weight may be within the stated range.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is compatible with AWM Series monitor arms: AWM-A13, AWM-A46, AWM-A71 and AWM-AD.
WEIGHT RANGE
AWM-HS Page 2 of 2

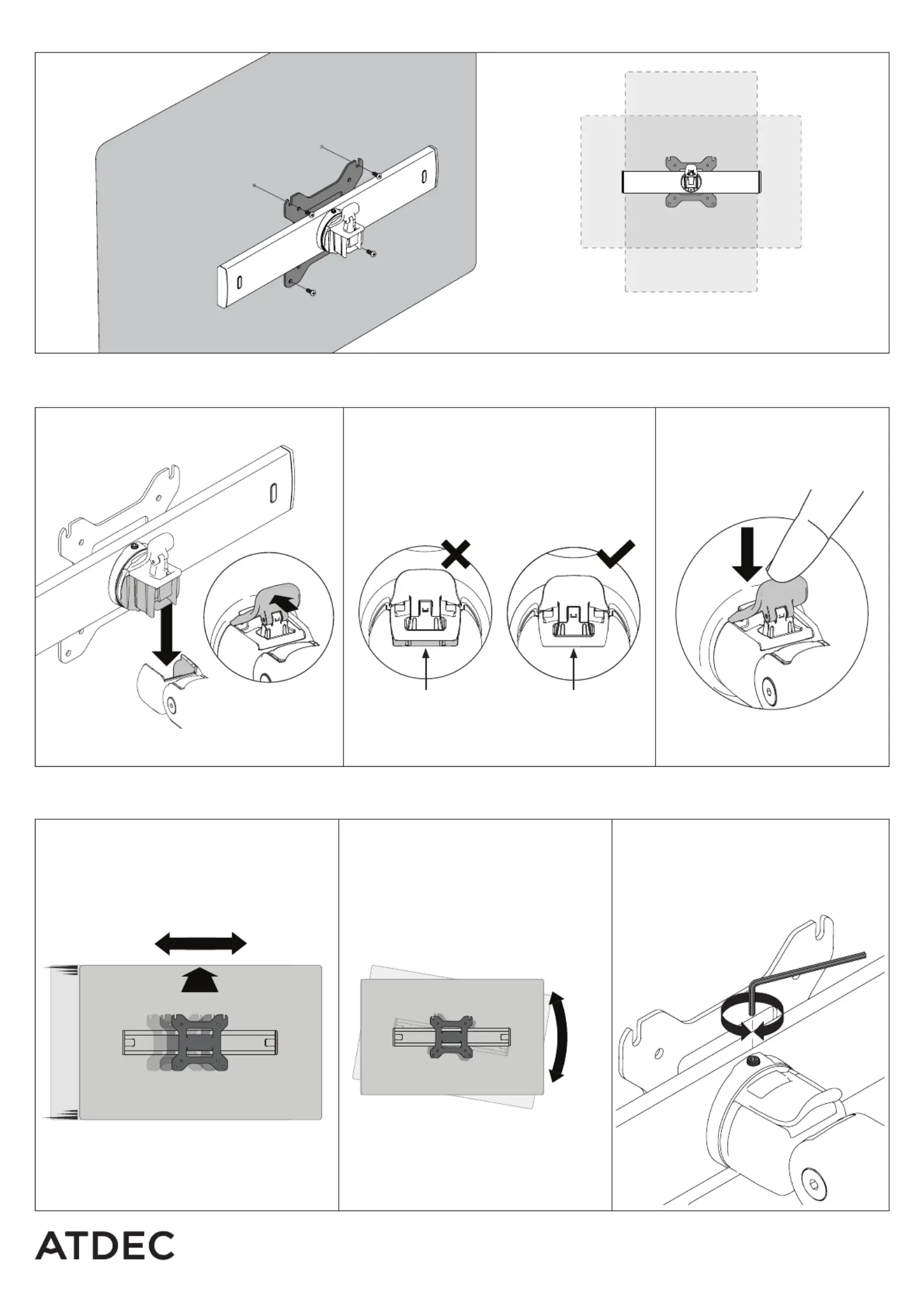

1. Attach slider to monitor
1.1 Fix the slider onto
monitor using the
provided screws.
Slider orientation should match your desired
monitor orientation, or landscape portrait.
Note: Ensure the lever is unlocked when tting.
3. Adjust the monitor position
3.1 To adjust the monitor’s horizontal position,
tilt it back slightly and slide left or right.
3.2 To level the screen simply rotate it
to the desired position.
3.3 (Optional) Monitor rotation
tension may be adjusted by
tightening or loosening a small
screw with the provided allen key.
PUSH
SLIDE
+/-
10°
atdec.com | atdec.co.uk | atdec.com.au
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20190208
2. Mount slider on arm
2.1 Mount slider onto the monitor arm 2.3 Push the lever down to secure
it to the arm assembly
2.2 Ensure that the slider is seated fully into
the receptacle at the end of the monitor arm.
There should be no gap.
Gap No gap
