Side 1/4

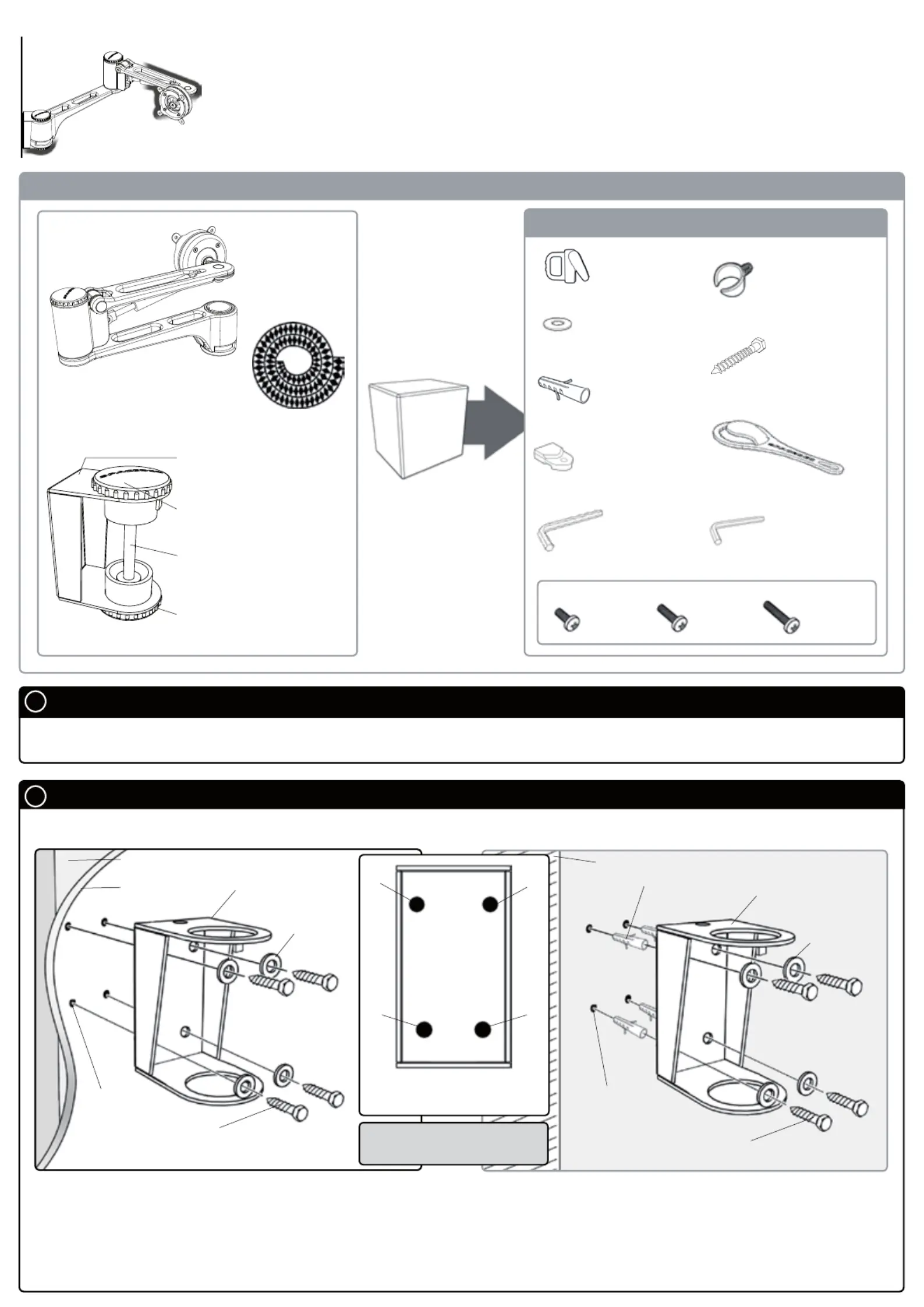

Component Checklist

Articulated Arm

Assembly (x1)

Cable Wrap

Applicator (x1)

Top Cap Tool (x1)

2.5mm Allen

Key (x1)

Cable Clip

(x3)

Extension

Clip (x4)

Component Checklist

Check you have received all parts against the Component Checklist above.

Bits Box

Mounting Fasteners

M4x10mm

Screw (x4)

M4x12mm

Screw (x4)

M4x16mm

Screw (x4)

16mm Cable

Wrap (x1)

5mm Allen

Key (x1)

Nylon Anchor

Plugs (x4)

M6x40mm

Coach Screw (x4)

Direct Wall Mount

Timber Stud

Wall

Direct Wall Mount

Bracket

4mm Hole

M6 Washer

M6 Coach Screw

B.1.2.

B.1. For Timber Stud Mounting - Use the Direct Wall

Mount Bracket to mark out the location of the required

four holes. (see diagram B.1.1.) Drill 4mm holes deep

enough to receive the M6 Coach Screws, insert the screws

and secure the bracket to the wall. (see diagram B.1.2.)

B.2. For Masonry Mounting - Use the Direct Wall Mount

Bracket to mark the location of the required four holes. (see

diagram B.1.1.) Using an

8mm masonry drill bit, drill four holes

41mm deep. Insert the Nylon Anchors and then secure the Bracket

to the wall using the M6 Coach Screws. (see diagram B.2.1.)

Installation Instructions

SPACEDEC ACROBAT

SD-AT-DW / WALL ARTICULATED ARM

Direct Wall Mount

Bracket

8mm Hole

M6 Washer

M6 Coach Screw

Brick or Concrete Wall

B.2.1.

S8 Nylon Anchor

Front View of the Direct Wall

Mount Bracket

B.1.1.

Direct Wall Mount

Bracket Assembly (x1)

M6 Washer (x4)

Refer to Ergonomic guidelines overleaf to determine best position to mount wall bracket.

Note: Ensure Bracket is

mounted Vertically

Top Cap

Threaded Rod

Bottom Cap

Direct Wall Mount

Bracket

Attaching the Cable Wrap to the Arm

E.1. Position the display at its highest possible position to ensure that there is sufficient cabling at the end of the

arm so the cables are not stretched or pulled out when the display is moved.

BEFORE PROCEEDING TO THE NEXT STEP PLEASE NOTE:

Wall Articulated Arm will only work when a display is properly installed.

DO NOT adjust tension screws or gas strut until your display has been attached.

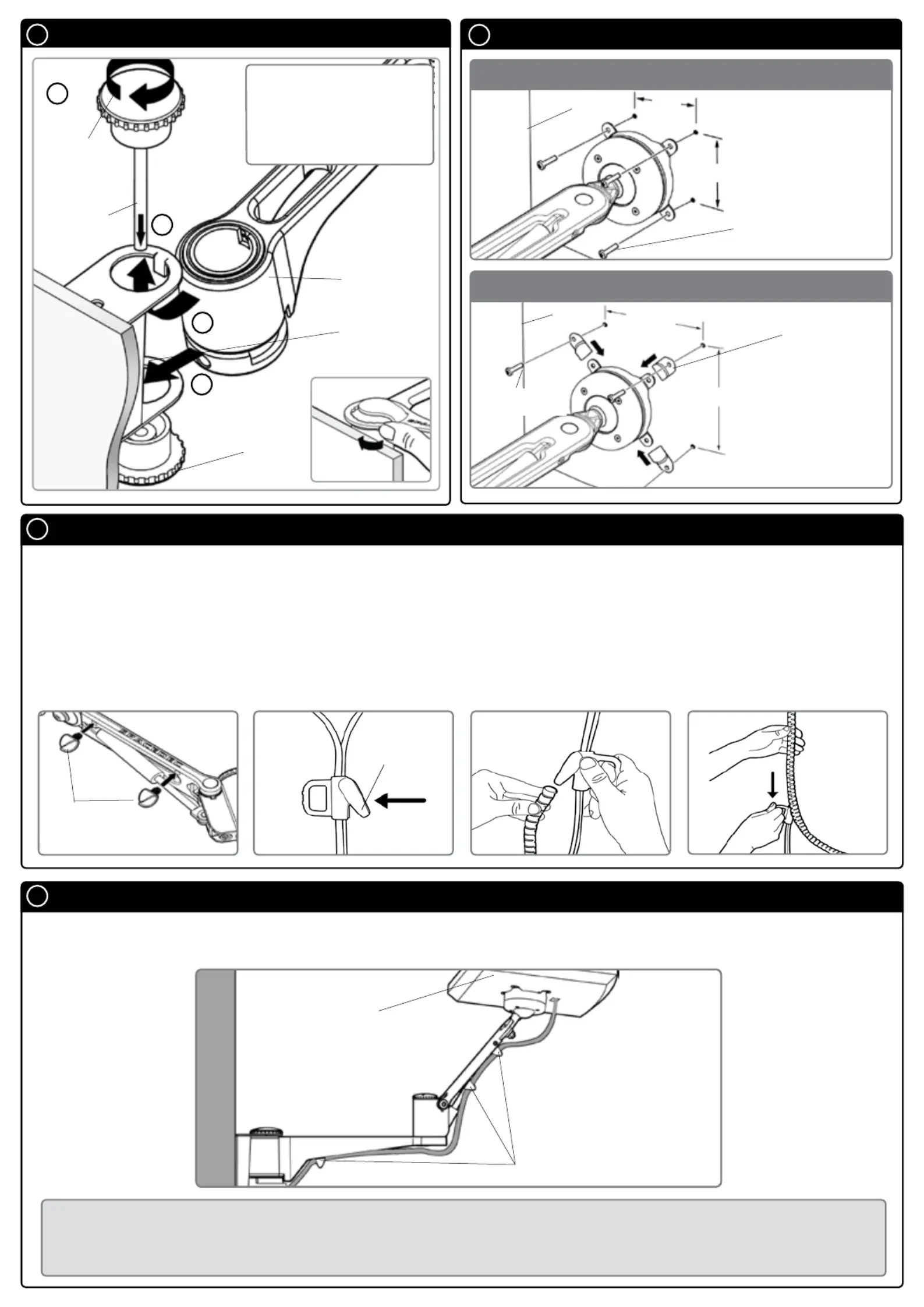

Direct Wall Mount Continued.

Tighten

using the

Top

Cap Tool

Insert

Threaded

Rod and

Top Cap

Direct Wall

Mount

Bracket

Plastic

Bottom

Cap

Arm with

inner tube

B.3.1.

Attaching the Display

75mm x 75mm (3” x 3”) mounting hole pattern

Display

4x10mm

Screws

75mm

(3”)

75mm (3”)

100mm x 100mm (4” x 4”) mounting hole pattern

NOTE:

Ensure that the

flat side of each

Extension Clip sits

against the back

of the display

Extension Clip

4x12mm or

4x16mm Screws

100mm

(4”)

100mm (4”)

Display

Installing Cable Management

D.1. Push the four supplied Cable Clips into the holes on the underside of the Wall Articulated Arm as shown.

D.2. Feed the cables into the Cable Wrap Applicator.

D.3. Insert the Cable Wrap Applicator into the Cable Wrap as shown.

D.4. Squeeze the nose of the Applicator and place inside the Cable Wrap ensuring that the opening edges of

the Cable Wrap face towards the nose of the applicator as shown in diagram.

D.1.

Push in

Clips

Nose

D.2. D.3.

D.4.

B.3. Attach the Spacedec

Arm to the Direct Wall Mount

Bracket. (see diagram B.3.1)

Tighten the Top Cap with the

supplied Top Cap Tool. (see

diagram B.3.2.)

B.3.2.

Cable Clips (x3)

Display at

highest point

E.1.

Tighten

Produkt Specifikationer

Mærke:	Atdec
Kategori:	Ikke kategoriseret
Model:	SD-AT-DW-BK
Produktfarve:	Sort
Længde:	610 mm
Skærmstørrelse kompatibilitet:	12/24 "
Maksimal vægtkapacitet:	9 kg
Drejevinkel:	40 °
Monteringsgrænseflade:	VESA 3"x3" & VESA 4"x4"
Minimum kompatibilitet med tabletskærmstørrelse:	12 "
