Explosion Proof Drivers
HLE Series

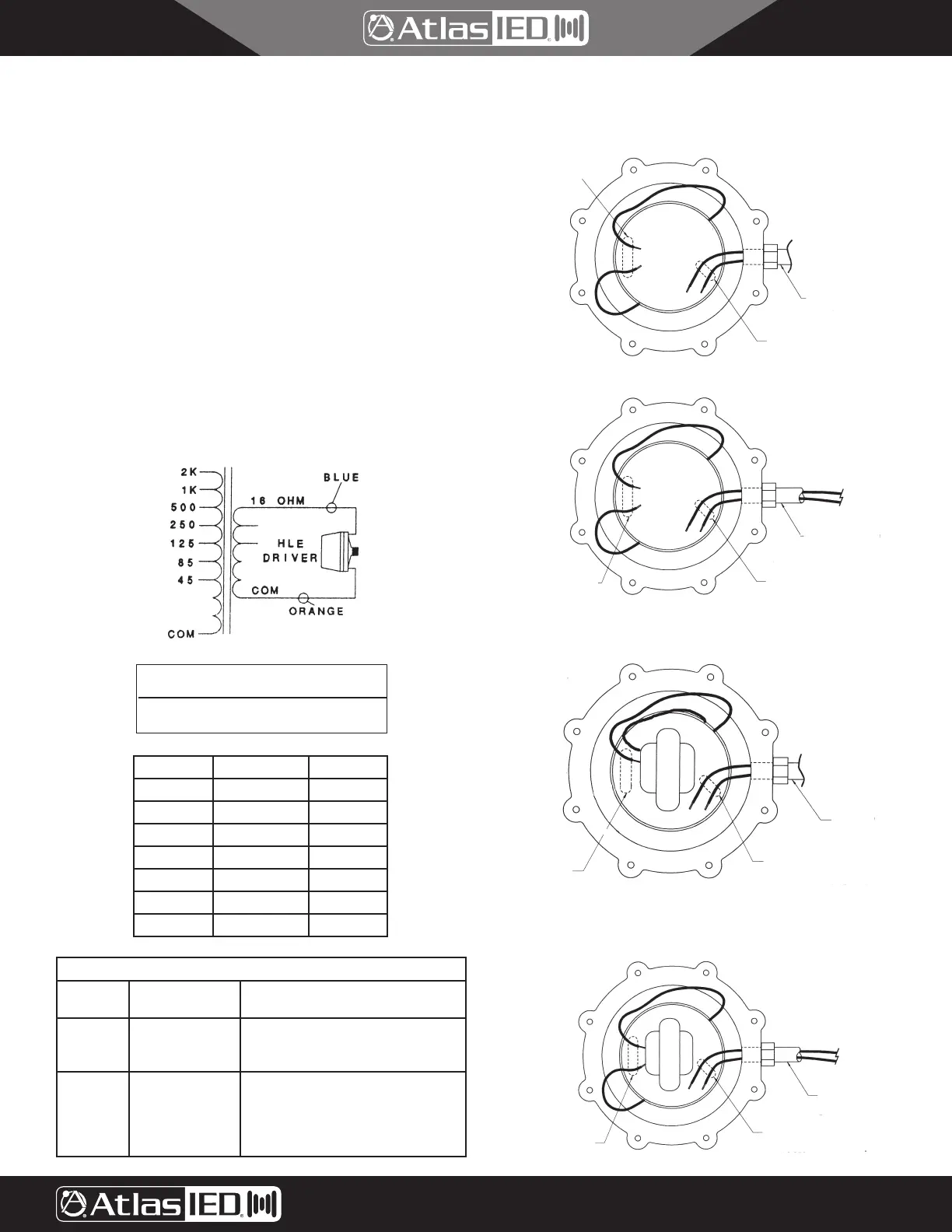

Wiring the Driver
Exercise special care in removing the back cover of explosion-proof
driver enclosure (Part 1) to avoid damaging machined surfaces. Prior
to re-assembly, make certain that joining surfaces of enclosure are
free of dirt. Tighten all cover bolts completely. To provide the specified
protection in hazardous locations, please note that no compound of
any type is to be applied on machined flange.
The HLE-1 and HLE-1T do not include a factory installed pipe seal. The
installer must provide an appropriate connector as directed by local codes
or authority having jurisdiction. A pipe seal with integral field wiring leads
is included with the HLE-3 and HLE-3T.
The models HLE-1T and HLE-3T include an integral line matching
transformer.
Regulartory Agency Listings:
UL: File E27820, Guide VCSV
FITTING BY OTHERS
FIELD WIRING
DRIVER VOICE COIL
FACTORY INSTALLED
PIPE SEAL AND
INTEGRAL WIRING
NOTE: THE INSTALLER MUST
CONNECT THESE LEADS
TO THE LEAD VOICE COIL
DRIVER VOICE
COIL LEADS
FACTORY
WIRING
FIELD WIRING
CONNECT THESE
LEADS TO DESIRED
POWER TAP
FITTING
BY OTHERS
FACTORY
WIRING
NOTE: THE INSTALLER MUST
CONNECT THESE LEADS
TO DESIRED POWER TAP
FACTORY INSTALLED
PIPE SEAL AND
INTEGRAL WIRING
HLE-1
HLE-3
HLE-1T
HLE-3T
UNDERWRITERS' LABORATORY LISTINGS
DRIVER CLASS/
GROUP
FOR ATMOSPHERE
CONTAINING:
HLE-1(T) Class 1/
Group C and D
Gas Atmospheres
(Including Ethyl, Gasoline, Naphtha,
Ether, Butane, Alcohols, Propane)
HLE-3(T) Class 1/ Group B,
C, and D
Gas Atmospheres
(Including Ethyl, Ether, Gasoline,
Naphtha, Alcohols, Butane, Propane)
Hydrogen, Gas and Vapor,
(Manufactured Gas)
IMP. OHMS W 70V IN W 25V IN
45 Do Not Use 15.0
85 60 7.5
125 40 5
250 20 2.5
500 10
-
1000 5
-
2000 2.5 -
POWER VOICE COIL
MODEL RATING IMPEDANCE
HLE-1 60 Watts 16 Ohms
HLE-3 60 Watts 16 Ohms
