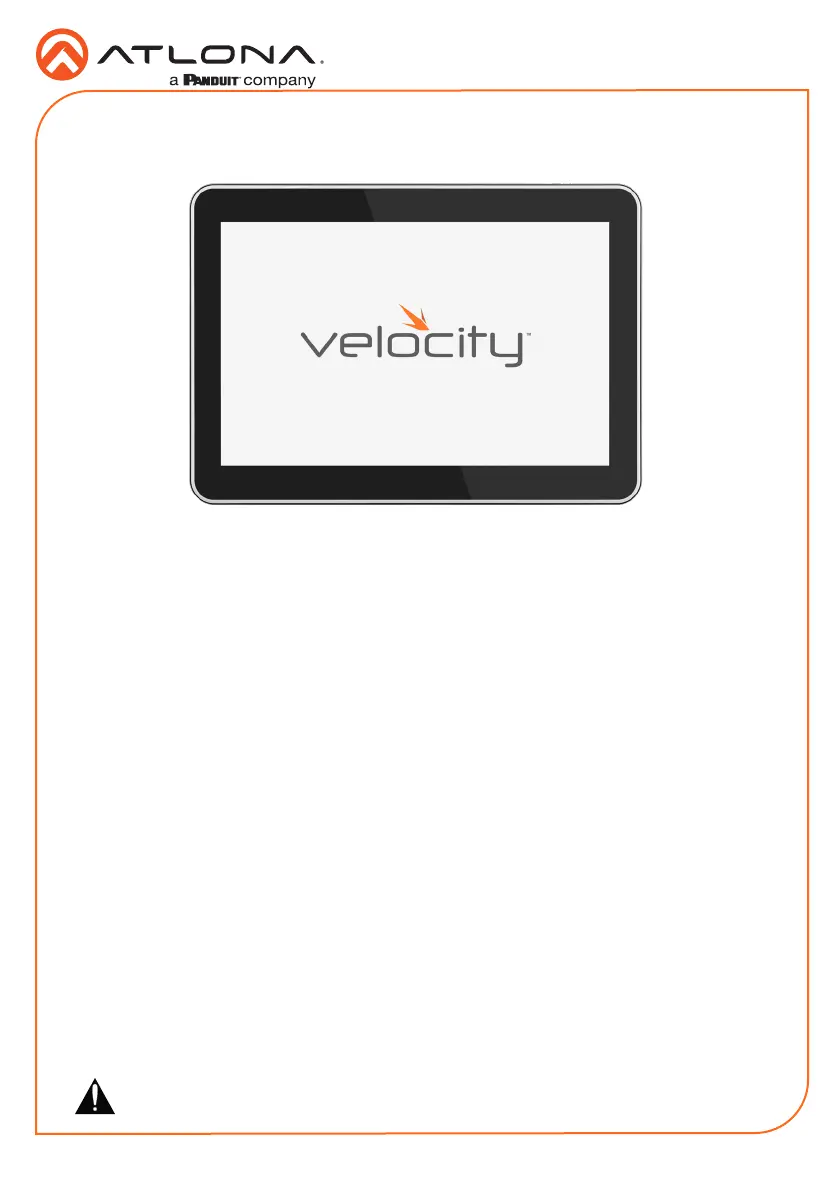

Installation Guide

AT-VTP-1000VL-BL and AT-VTP-1000VL-WH

Velocity 10” Touch Panel

AT-VTP-1000VL-BL and AT-VTP-1000VL-WH

1 x AT-VTP-1000VL

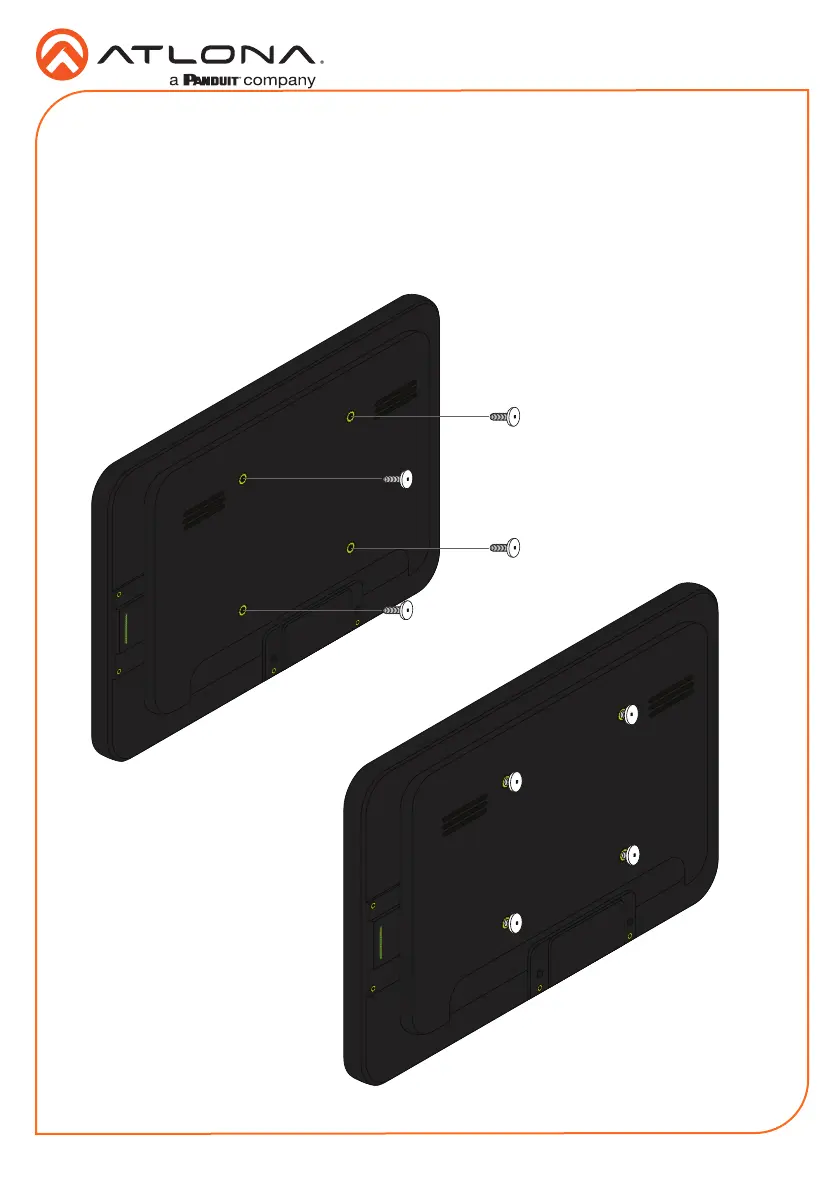

1 x Wall/Glass mount

4 x Mounting screws

2 x Safety screws

1 x Glass mount cover sticker

2 x Glass mount adhesive strips

1 x Installation Guide

Package Contents

Operating Notes

• The Velocity 10” Touch Panel (AT-VTP-1000VL) must be on the same network as the Velocity

Gateway (AT-VGW-HW or AT-VGW-SW) or it will be unable to sync for control.

• The AT-VTP-1000VL is PoE capable, to power the unit, simply plug it into a 802.3at

compatible network switch. If the network switch is not PoE capable, a PoE injector

(purchased separately) can be used.

IMPORTANT: Velocity Gateway (AT-VGW-HW or AT-VGW-SW) must be set up before the

AT-VTP-1000VL is fully functional.

The Atlona AT-VTP-1000VL is a Velocity System 10” touch panel with integrated surround

LED lighting. It features contemporary, rened styling with 1280×800 native resolution, and a

capacitive glass surface that supports multi-touch. The large 10” touch panel provides additional

space for more complex user control of video walls, high density matrix switchers, audio

DSP’s, or other applications that have greater control function requirements. Bright LED lighting

surrounding the edge of the panel is ideal for providing a visual representation of room status

in scheduling applications or for adding emphasis to AV control functions. The panel ships with

a dual-purpose one-gang wall/glass mount kit, that is a standard VESA 75 pattern to provide

compatibly with a wide variety of other options. The VTP-1000VL features Power over Ethernet

(PoE), enabling a single network connection for data and power. Setting up the touch panel

is easy, with room scheduling and AV control GUIs automatically uploaded from the Velocity

System hardware or software server gateway during system conguration.

Produkt Specifikationer

Mærke:	Atlona
Kategori:	Ikke kategoriseret
Model:	AT-VTP-1000VL
Bredde:	181 mm
Dybde:	25 mm
Højde:	255 mm
Vægt:	650 g
Produktfarve:	Hvid
Skærm diagonal:	10.1 "
Skærmopløsning:	1280 x 800 pixel
Skærmens lysstyrke:	500 cd/m²
Indbyggede højttaler(e):	Ja
Opbevaringstemperatur (T-T):	-15 - 65 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal højttalere:	2
Ethernet LAN:	Ja
VESA montering:	Ja
Driftstemperatur (T-T):	-10 - 50 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Certificering:	CE, FCC, RCM, China RoHS
Monteringstype:	I væggen
Billedformat:	16:10
Højttalereffekt:	2 W
Kontrastforhold:	800:1
Antal RJ-45-porte:	1
Antal simultane touchpunkter:	5
