Side 1/4

AXTC-MB3

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition to

test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

TABLE OF CONTENTS

Connections: LD-SWCX-MB3 2 .................................

Programming 3 .........................................................

Troubleshooting.....................................................4

Connector View 4 ......................................................

Mercedes SWC (Steering Wheel Control)

and Data Interface 2016-2021

INTERFACE FEATURES

• Designed for non-amplified models

• Provides accessory power (12 volt 10-amp)

• Provides wires for multimedia radios (park brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Designed to be compatible with all major radio brands

• Auto detects vehicle type, radio connection, and preset controls

• Ability to dual assign steering wheel control buttons

• Retains memory settings even after battery disconnection or

interface removal (nonvolatile memory)

• Provides illumination output

• Micro-B USB updatable

INTERFACE COMPONENTS

• AXTC-MB3 Interface

• LD-SWXC-MB3 Harness

• 3.5mm Adapter

APPLICATIONS

Mercedes

C Class 2016-2021 ..................................................................................

ML/GL 2016-2021 ...................................................................................

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors or

• Solder gun, solder, and heat shrink

• Tape

• Wire cutter

• Zip-ties

• Multimeter

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications.

Product Info

2 2

REV. 11/16/23 INSTAXTC-MB3

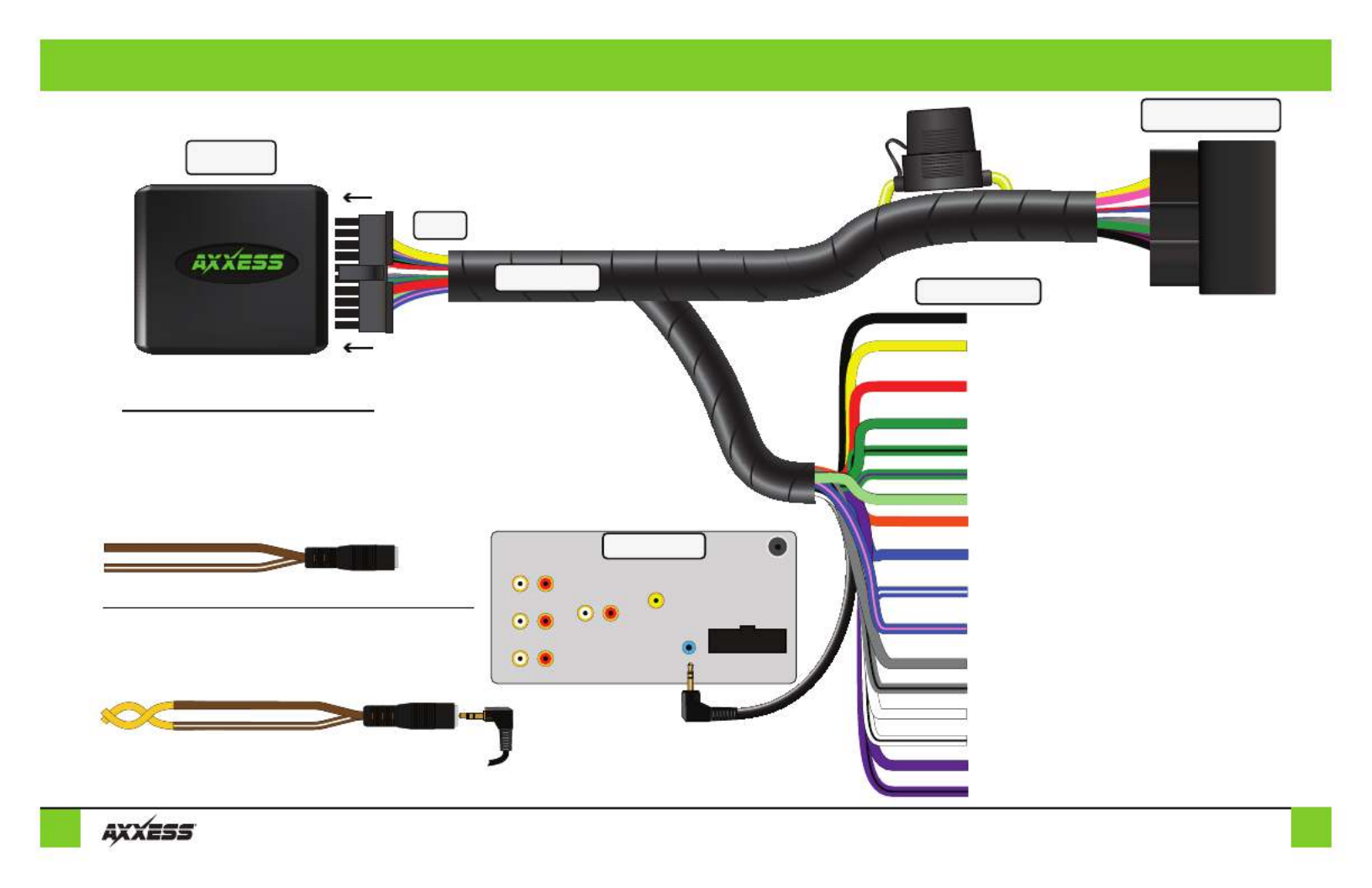

CONNECTIONS: LD-SWCX-MB3 HARNESS

LD-SWCX-MB3

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue - Antenna turn on

Blue/White - Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

20-Pin

Vehicle Connector

Radio Connections

Interface

LED Light

Reset Button

3.5mm Adapter (for vehicles with Steering wheel controls

or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) 3.5mm adapter Brown Brown/White From the , tie the and wires together

with tape or connector

2) 3.5mm adapter AXTC-MB3 HarnessConnect the to the 3.5mm jack from the

3) AXTC-MB3 Program the per the instructions on page 3. Disregard steps 4 & 5
