AX-LOC2.2-LD

INSTALLATION INSTRUCTIONS

TABLE OF CONTENTS

Quick Start Guide

Things to Know .................................................2

Connections ....................................................... 2

Gain setup

Basic setup .........................................................3

Advanced Setup ................................................ 3

Feature Breakdowns .............................................4

Quick Reference ..................................................... 5

Diagram .................................................................. 6

Specifications ......................................................... 7

Premium Active LOC with Line Driver 2 IN - 2 OUT with Line Driver, Max Input 40v

TOOLS RECOMMENDED

• Digital Multi-meter

• Test Tones

Universal Premium LOC with Line Driver

The Axxess AX-LOC2.2-LD is an LOC and line driver all-in-one package. This unit allows you to add aftermarket amplifiers to your factory system

easily. High level inputs mean you can tap right into your factory speaker wire for signal, and the built-in signal sensing turns the unit on without

the need to find a factory accessory lead. In applications where a low level RCA output needs amplified the built in line driver is exactly what you

need to achieve the output you are looking for. It also provides you with a remote turn on output to your amplifier.

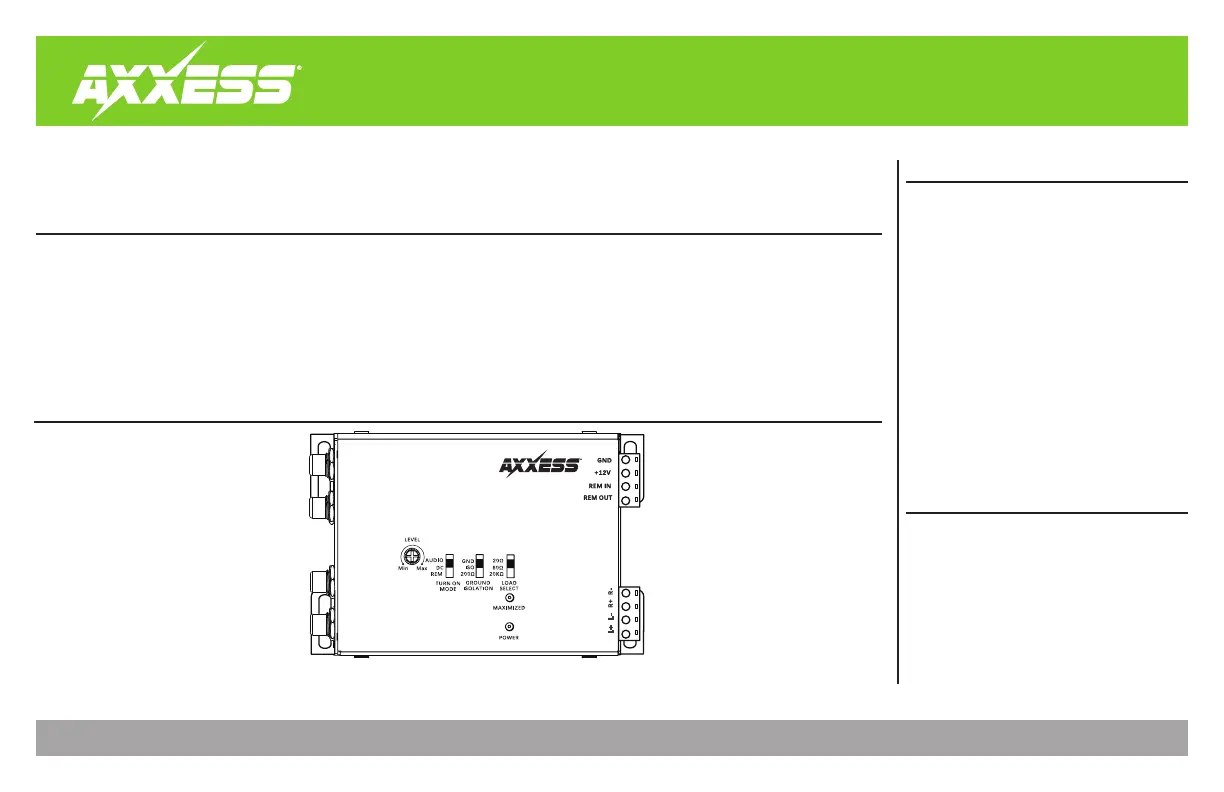

AX-LOC2.2-LD

Line Out Converter (LOC)

COMPONENTS

AX-L0C2.2-LD

L LINE IN RR OUTPUT L

SPEAKER IN

AX-RM1

THINGS TO KNOW

1. This is an active LOC and MUST have constant 12 volt and a good ground to operate properly.

Having a poor ground can induce noise into your system, use the same gauge wire as the

12 volt line.

2. Determine a suitable mounting location. Make sure you can access all controls and

connections.

3. When ready to mount your LOC check under your selected mounting location to make sure

it is clear of any wiring harnesses, fuel or brake lines or anything else that may affect the

vehicle safety.

QUICK START GUIDE

CONNECTIONS

1. Connect your 12 volt and ground wires to the terminals. 14-16 gauge wire is recommended.

2. By default the LOCs Turn On Mode is set to DC Offset. Other turn on options are available

and described in the Turn On Signal Feature Breakdown portion of this manual.

3. Connecting your Speaker Input can happen in a few different places based on your factory

system.

a. If your vehicle doesn’t have an OE amplifier your best option is to use the speaker wires

located behind the radio. Your LOC only requires two inputs, we recommend a left

and right full range signal.

b. If your vehicle has an OE amplifier your best option is to use the speaker wires on

the output side of your factory amplifier, look for a full range signal.

4. If you have an RCA output from an aftermarket radio or a low level output from factory

equipment you can use the LINE IN RCA to feed signal into the LOC, taking advantage of the

built in LINE DRIVER.

5. Connect your RCAs. Red RCA’s are for the right channel. Black, Gray, or White are for the

left channels. An explanation of the RCAs Main Output and Bass Output are described in the

Feature Breakdown portion of this manual.

6. If the customer would like to control the Bass Level remotely the AX-RM1 can be purchased

separately and plugs directly into the side of the LOC.
