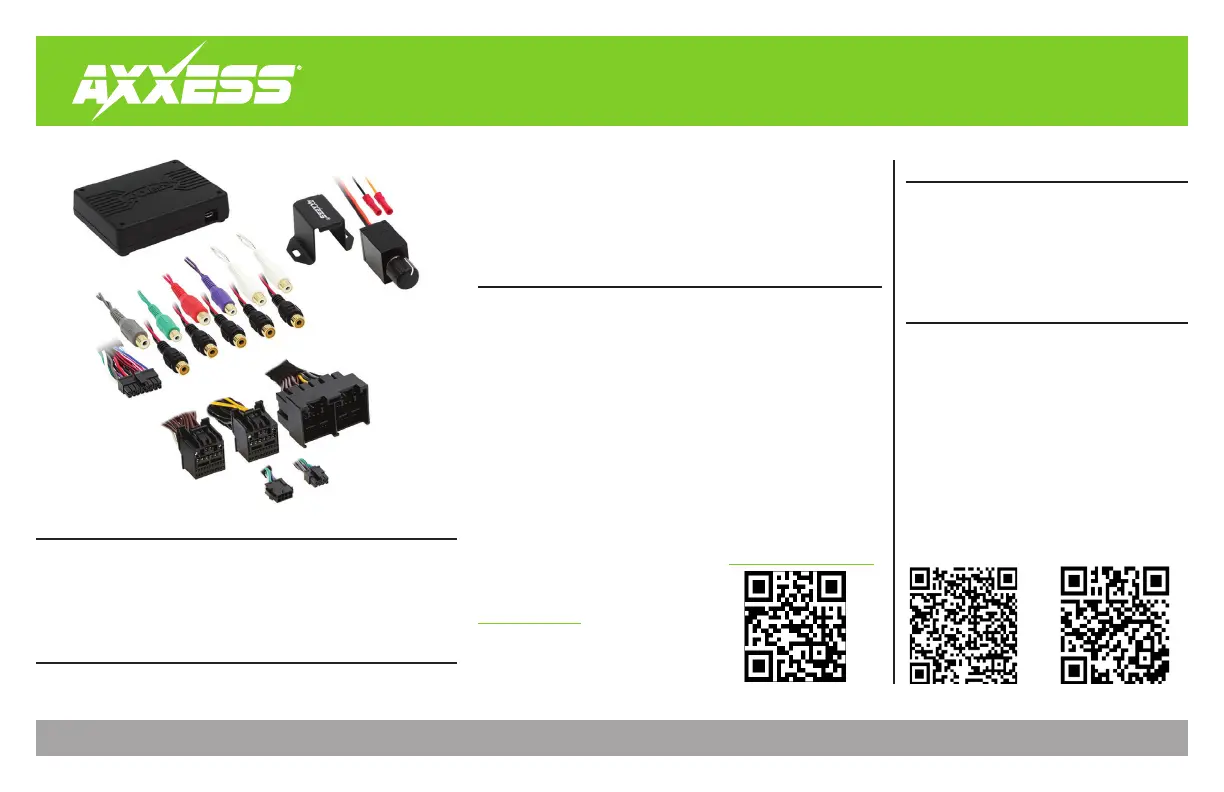

AXDSPX-FD3

INSTALLATION INSTRUCTIONS

Google Play Store Apple App Store

iOS 12.1 or higher

Android 9 or higher

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options ........................2

Connections ........................................................3-4

Mobile App .........................................................5-6

Specifications ......................................................... 7

• Designed for non-amplified models

• Includes a DSP (Digital Signal Processor)

• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and band pass filters

• Each channel can be delayed independently up to 10ms

• Easy behind the radio installation with pre-wired harness

• Bass knob included for level control of subwoofer amp

(Features continued on next page)

APPLICATIONS

Visit AxxessInterfaces.com for current application list

INTERFACE COMPONENTS

• AXDSPX-FD3 interface

• AXDSPX-FD3 interface harness

• AXDSPX-FD3 vehicle T-harness • Bass knob

DSPX Interface (for Non-Amplified Vehicles with

Pre-Wired Harness) Fits Ford

2020-Up

For Dash Disassembly Instructions, refer to

metraonline.com. Enter the year, make, and

model of the vehicle in the Vehicle Fit Guide

for Radio Install kits.

www.MetraOnline.com

Adding a subwoofer to a factory system:

The diagram on Page 3 shows the connections that need to be made to add a subwoofer to the

factory system.

Note: RCA jacks sold separately.

Adding a full-range of amps and subwoofer to a factory system:

The diagram on Page 4 shows the connections that need to be made to add: Subwoofer (RCA jacks

sold separately)

Amplifier (SPDT relay E-123 required) or

Additional Amp (RCA jacks sold separately).

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†

2. Install the AXDSPX-FD3 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AXDSPX-FD3 vehicle T-harness to the AXDSPX-FD3 interface.

4. Plug the AXDSPX-FD3 interface harness to the AXDSPX-FD3 interface.

Download and install the AX-DSP-XL app from the Google Play Store or Apple

App Store.

6. Open the app then select the Bluetooth Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to page 6 for more information.

7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down ‡

button to save the configuration. Refer to page 7 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any

new configurations.

† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

‡ Anytime the interface is locked down the key must be cycled off then back on.

INSTALLATION OPTIONS I N S TALLATIO N

• Settings adjusted via Bluetooth

in a smart device application (tablet or mobile phone), compatible

with both Android and Apple devices

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• USB Micro B updatable

FEATURES CO NT.
