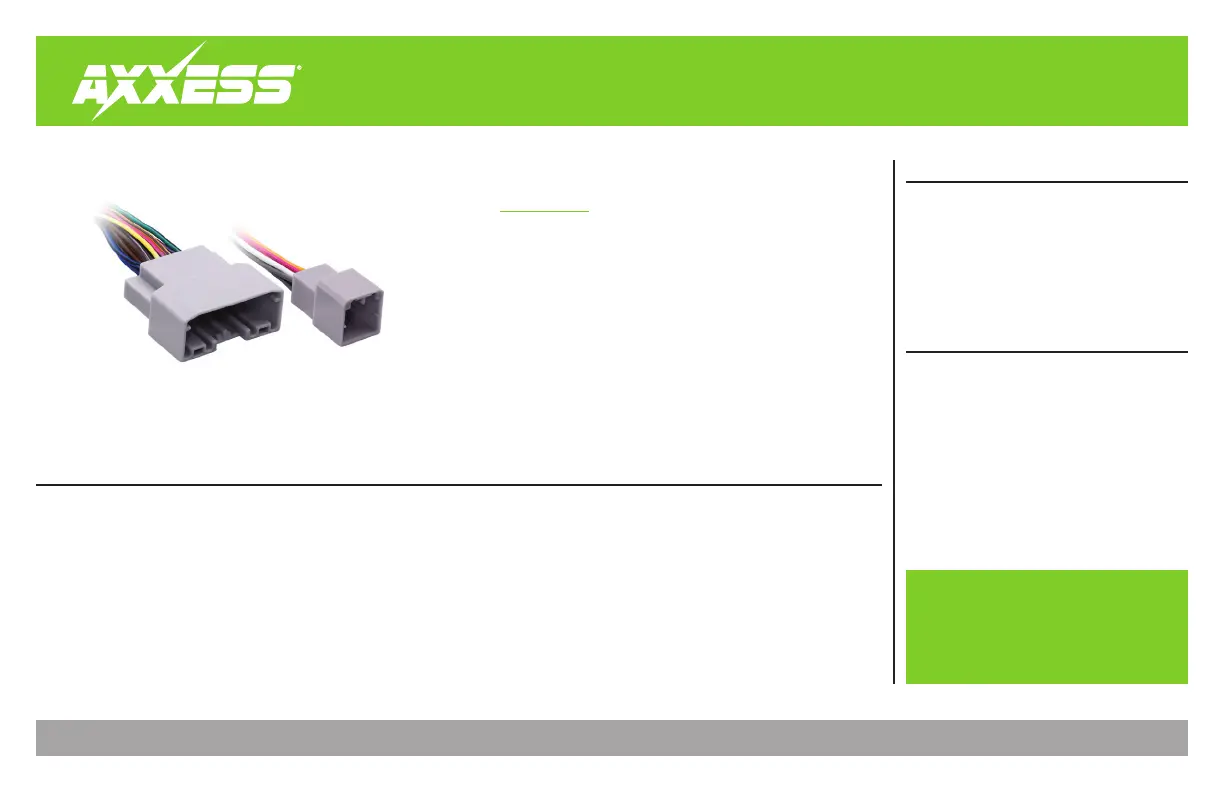

AX-AB-CH4

INSTALLATION INSTRUCTIONS

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Ampliﬁer locations ................................................2

Connections

22-Pin Harness ................................................3-6

10-Pin Harness .................................................7-8

Chrysler Ampliﬁer Bypass Harness 2015-up

Refer to the following pages for the vehicle speciﬁc instructions

for wiring connections. Wiring connections vary per vehicle. Please

note that there are (2) different wiring harnesses included, and the

instructions for each harness will be on a different page. *

If it’s uncertain whether the vehicle contains a speciﬁc speaker or not,

test the wires with a tone generator, or check to see if the factory

wires are populated on the vehicle side. Alternatively, the wires can

be tested for impedance with a multimeter.

APPLICATIONS

Alfa Romeo

Giulia 2017-2018

Stelvio 2018

Chrysler

300* 2016-up

Paciﬁca 2017-2018

Dodge

Challenger*** 2016-up

Charger* 2016-up

Durango SRT 2018-up

Viper 2016-2018

Jeep

Cherokee

†

2019-up

Grand Cherokee* 2015-up

Wrangler (JL body type) 2018-up

Ram

Ram 1500 (exclude Classic)* 2019

Ram 1500 (exclude Classic)** 2019

* With Premium amp

** With Premium Plus amp

*** With Mid-line amp

†

With Active Noise Control (ANC)

* Excluding Jeep Wrangler

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle speciﬁc applications

AMPLIFIER LOCATIONS

Make/Model Amp Location

Alfa Romeo

Guilia 2017-2018 Unknown

Stelvio 2018 Unknown

Chrysler

300 2016-up Driver kick, left of steering column

Paciﬁca 2017-2018 Behind glovebox

Dodge

Challenger 2016-up Driver kick, left of steering column

Charger 2016-up Driver kick, left of steering column

Durango SRT 2018-up Behind left rear quarter panel

Viper 2016-2018 Rear, luggage compartment (under ﬂoor)

Jeep

Cherokee

†

2019-up Behind glove box

Grand Cherokee 2015-up Driver rear quarter, above wheel well

Wrangler (JL body type) 2018-up Driver kick, left of steering column

Ram

1500 (excluding Classic) 2019-up Under driver’s seat

† With Active Noise Control (ANC)
