Side 1/8

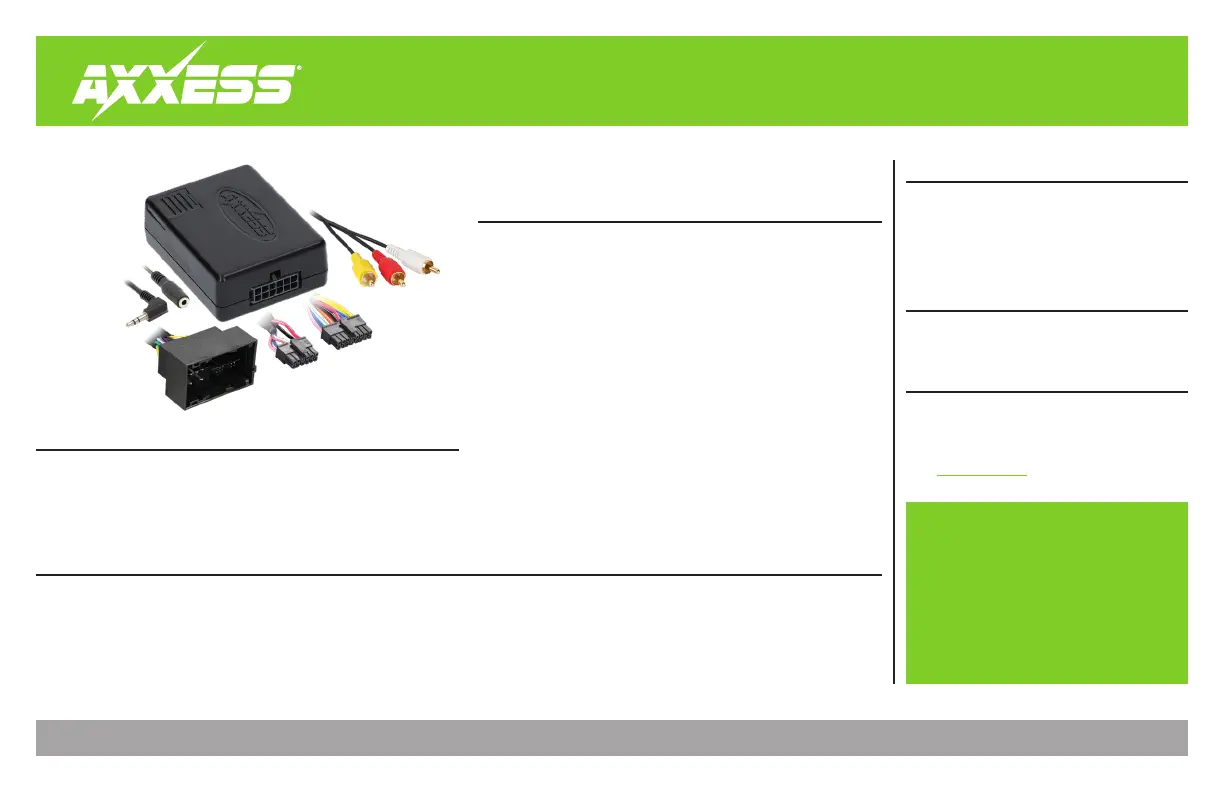

AXDI-6524

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ........................................................ 2-3

Installation .............................................................3

Programming .........................................................3

App Instructions .................................................4-5

Jeep/Ram Select Models Data Interface 2014-Up

• Designed for non-amplified systems

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

•

Provides wires for multimedia radios (park brake, reverse, speed sense)

• Pre-wired AXSWC harness (AXSWC sold separately)

•

Retains the factory backup camera (Not retained on Wrangler JL

or Gladiator)

• Retains balance and fade

• Retains the factory AUX-IN jack

• Allows retention and adjustment of the Personalization Options

• Adjust Personalization Options through a wireless application

• Smartphone application offering full control from either Android

or Apple mobile devices

• Micro-B USB updatable

• AXDI-6524 interface

• LD-AX-XSVI-CH3BT Harness

• 2-pin CAN harness

OPTIONAL ACCESSORIES

(sold separately)

Steering Wheel Control Interface:

AXSWC OBD T-Harness: AX-IL-OBD2

APPLICATIONS

Jeep

Gladiator* ....................................................................................2020-Up

Renegade .................................................................................. 2015-2017

Renegade Sport ................................................................................. 2018

Wrangler* JL (Base model) .........................................................2018-Up

Ram

Promaster (w/color screen) .......................................................2014-Up

Promaster City .............................................................................2015-Up

* Factory Backup Camera will not be retained on Wrangler JL or Gladiator

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit AxxessInterfaces.com for more detailed information about

the product and up-to-date vehicle specific applications

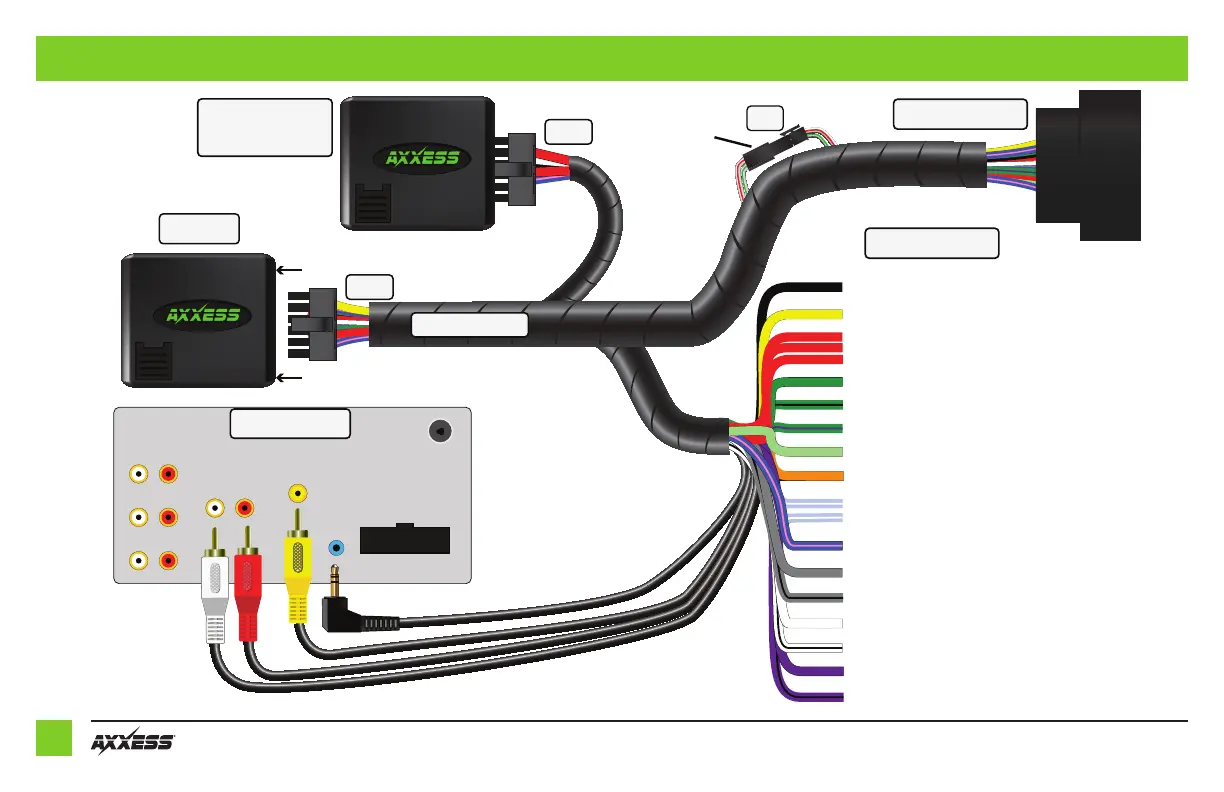

CONNECTIONS: LD-AX-XSVI-CH3BT DIAGRAM

Steering Wheel

Control (AXSWC)

(Sold Separately)

Refer to

page 3

for 2-Pin

Connection

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

LD-AX-XSVI-CH3BT

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue/White - NOT USED

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

16-Pin

Vehicle Connector

Radio Connections

Interface

12-Pin

2-Pin
