CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

A X-T YAMP2-SWC

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

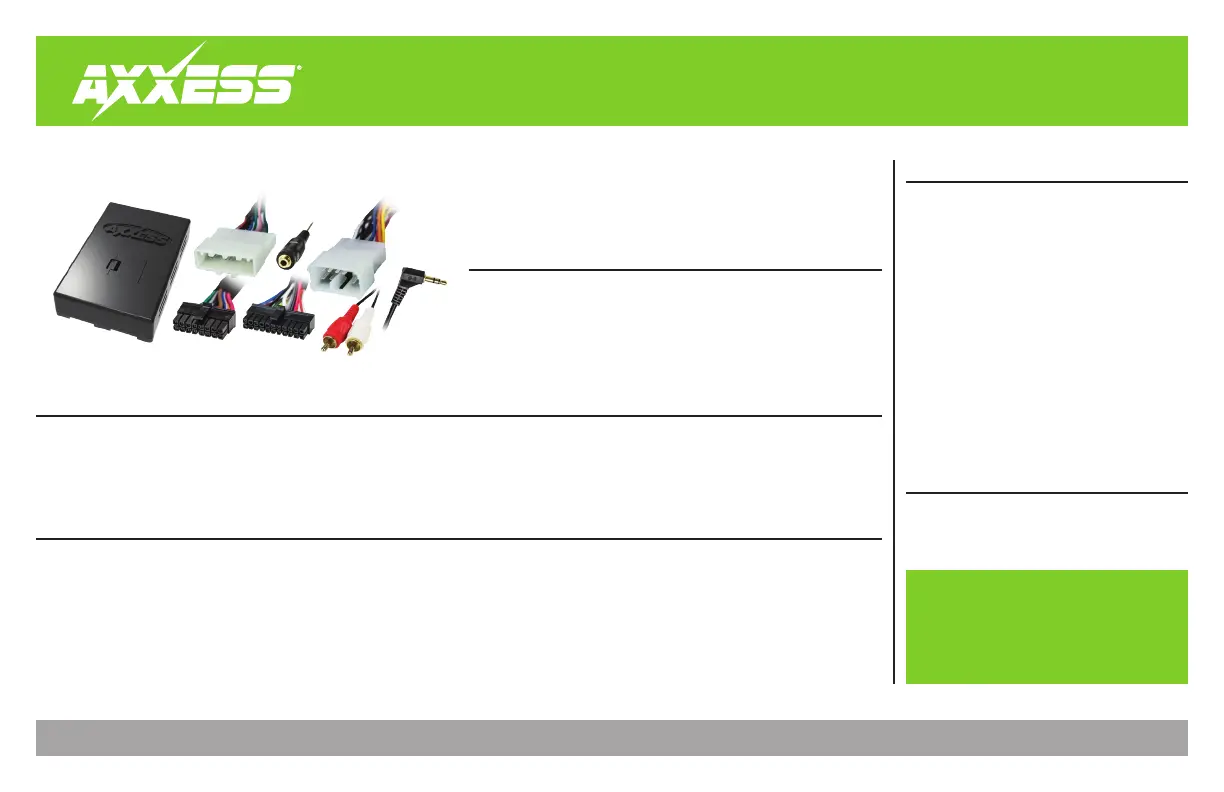

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.) • Small ﬂat-blade screwdriver

TABLE OF CONTENTS

Connections to be made ....................................2-3

- 3.5mm jack steering wheel control retention

...3

Installing the AX-TYAMP2-SWC .............................3

Programming the AX-TYAMP2-SWC......................4

Adjusting the AX-TYAMP2-SWC .............................4

Steering wheel control settings ........................5-7

- L.E.D. feedback ....................................................5

- Changing radio type ...........................................5

- Remapping the steering wheel control buttons ...6

- Dual assignment instructions (long button press)

...7

Troubleshooting .....................................................8

Toyota Amp Interface with SWC 2012-up*

APPLICATIONS

• Retains audio controls on the

steering wheel

• Provides NAV outputs (reverse)

• Retains the factory AUX-IN jack

• Designed for ampliﬁed models

• Retains balance

• Micro “B” USB updatable

TOYOTA

Avalon * 2013-up

4-Runner 2014-up

Camry 2014-2017

Camry (w/ nav) 2012-2013

Highlander 2014-up

Prius 3rd Gen (w/ nav) 2012-2015

Plug-In (PHV) (w/ nav) 2012-2015

Prius V 2012-2017

Rav-4 2014.5-up

Sequoia 2014-up

Sequoia (w/ nav) 2013

Sienna 2015-up

Tacoma 2014-up

Tundra * 2014-up

Venza 2015

Venza (w/ HDD based nav) 2013-2014

• AX-TYAMP2-SWC interface

• AX-TYAMP2-SWC harness

• Female 3.5mm connector with stripped lead

*Visit AxxessInterfaces.com for up-to-date vehicle speciﬁc applications.

* Only for models with a JBL ampliﬁer

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear

sound from the factory ampliﬁer.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

• Tape off and disregard the following (6) wires, they will not be used in this application:

Blue/Pink, Brown, Green/Purple, Light Green, Orange/White, Red.

From the AX-TYAMP2-SWC harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Red wire to the accessory wire.

• Connect the Blue wire to the power antenna wire.

• If the aftermarket radio has an illumination wire, connect the Orange wire to it.

The following (1) wire is for an aftermarket multimedia/navigation radio that requires this wire.

If not required, tape it off and disregard it.

• Connect the Green/Purple wire to the reverse wire.

• If retaining the factory AUX-IN jack, connect the Red & White RCA jacks to the AUX input.

Continue to 3.5mm jack steering wheel control retention
