AXAC-CH4
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/14/25 INSTAXAC-CH4
TOOLS REQUIRED INTERFACE COMPONENTS REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Interface Features ..................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................7
• Crimping tool and connectors, or solder gun, solder, and heat
shrink • Tape • Wire cutter • Zip ties
• AXAC-CH4 interface
• AXAC-CH4 interface harness
• AXAC-CH4 vehicle harness (qty. 2)
• 22-pin T-harness
•
22-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL
(sold separately
)
Axxess Updater Program
*Radio models # RB2, RBZ, REN, REW, REP, RER, REZ, RHB, RHR, RHWRHWRHP
Camera Interface With Pre-Wired
Harness
Fits Select Chrysler Models
2007-2018*
APPLICATIONS
Chrysler
300 .....................................................2008-2010
Dodge
Challenger .........................................2008-2014
Durango ...............................................2011-2013
Jeep
Liberty** .............................................2008-2011
Wrangler (JK) ....................................2007-2018
**With MyGig Radio
Note: Only compatible with NTSC cameras.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
ATTENTION:
With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting the
battery or cycling the ignition to test this product.
NOTE:
Refer also to the instructions included
with the aftermarket accessory before installing
this device.
INTERFACE FEATURES
(see next page)
2

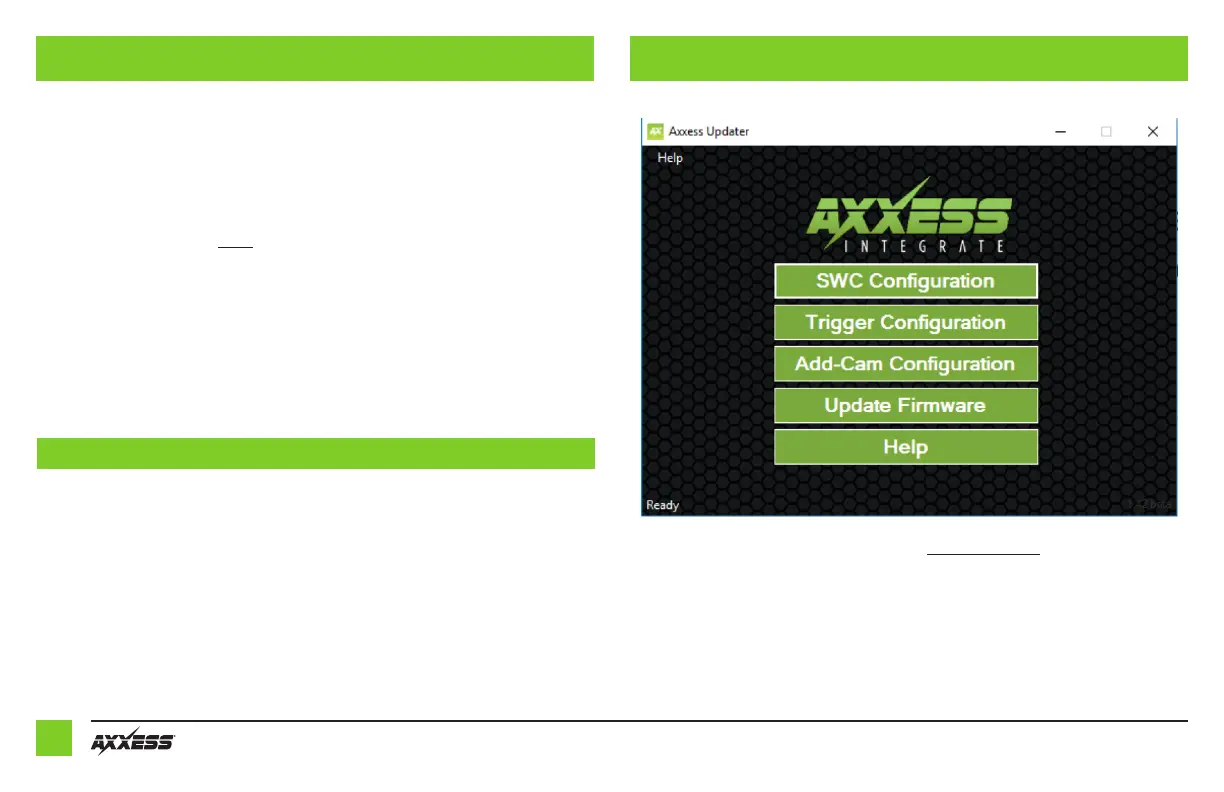

CONFIGURATION
• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-CH4 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
INTERFACE FEATURES
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
•
Programmable 12-volt 5-amp switched output (configured through the Axxess Updater program)
•
Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• 4 programmable camera control wires (configured through the Axxess Updater program)
• Can also be manually controlled and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
