AXAC-MZ2

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

TOOLS REQUIRED

INTERFACE COMPONENTS

REQUIRED ITEMS

TABLE OF CONTENTS

Introduction ...........................................................2

Configuration ..................................................... 2-4

Connections ............................................................5

Installation .............................................................6

Programming .........................................................6

• Add multiple CAN-activated cameras with 4 camera inputs

• Includes AXAC camera interface and vehicle-specific harness

• Programmable 12-volt 5-amp switched output (configured through

the Axxess Updater program)

• Reverse signal trigger generated via CAN bus communication of

the vehicle

•

Turn signal trigger generated via CAN bus communication of

the vehicle

• 4 programmable camera control wires (configured through the

Axxess Updater program)

•

Can also be manually controlled and used along with an

aftermarket radio

• Retains backup camera

• VSS (Vehicle Speed Sense) input and output

• Micro “B” USB updatable

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

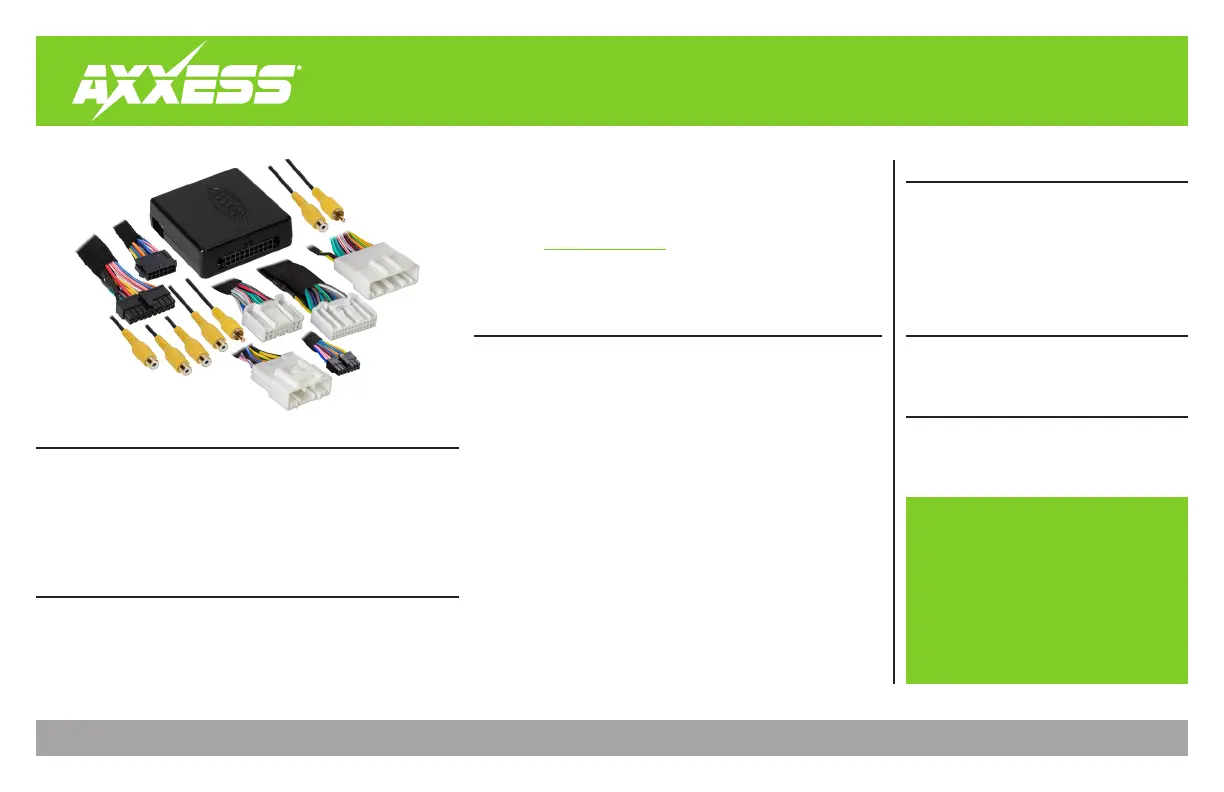

• AXAC-MZ2 interface

• AXAC-MZ2 interface harness

• AXAC-MZ2 vehicle harness (qty. 2)

• 18-pin T-harness

• 28-pin T-harness (cam harness)

Update Cable: AXUSB-MCBL (sold separately)

Axxess Updater Program

Camera Data Interface with Pre-Wired Harness

Fits Select Mazda Models 2013-2018

APPLICATIONS

Mazda

CX-9 ............................................................2013-2016

Mazda 3 ...................................................... 2014-2018

INTERFACE FEATURES

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications

CONFIGURATION

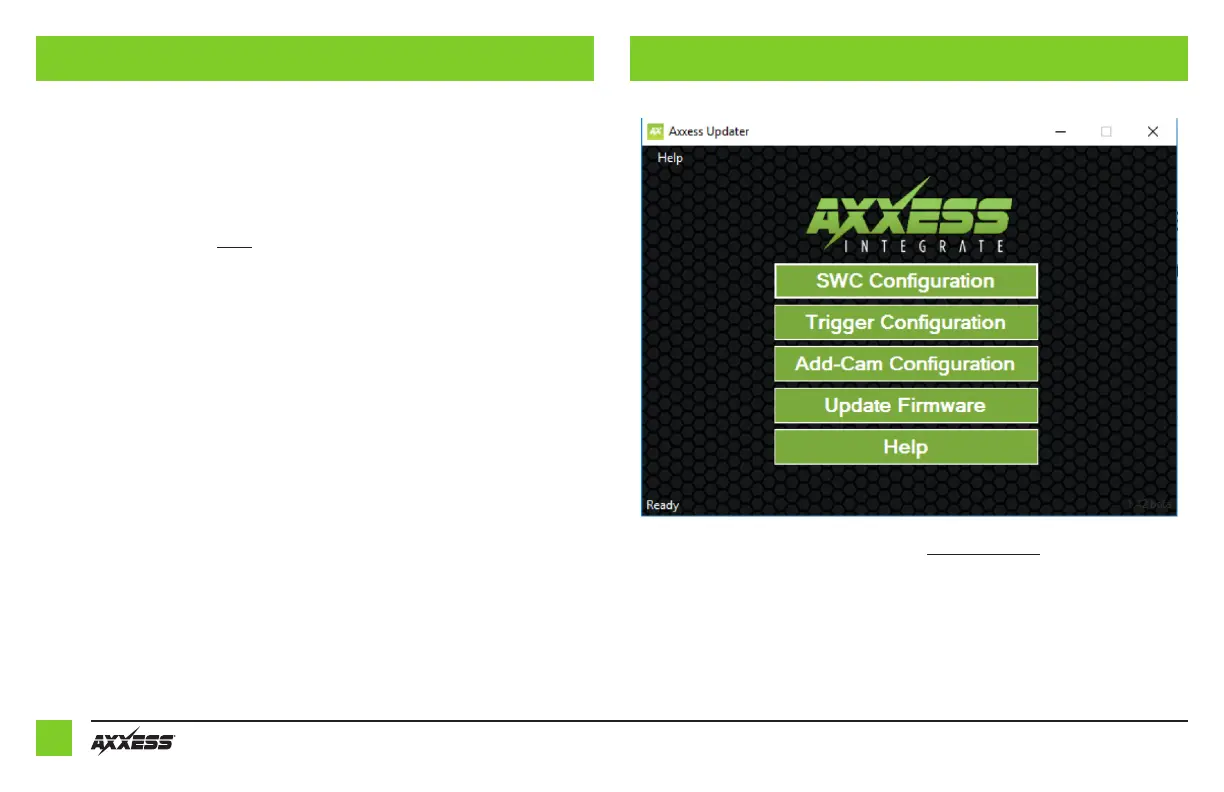

• Download and install the Axxess Updater available at: AxxessInterfaces.com

• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.

The cable will connect into the micro-B USB port in the interface.

• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.

• Select Add-Cam Configuration.

Continued on the next page

INTRODUCTION

The AXAC-MZ2 is a camera switching interface that provides up to (3) additional camera inputs

to the factory radio, while still retaining the factory camera. With this interface a front camera,

and/or side cameras, can be added to the factory radio. The cameras function automatically, no

human interaction required, unless desired to do so. The interface can also be used if the vehicle

doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess

recommends cameras from the iBEAM product line for best results.
