AXAMP-FD2

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

INTERFACE COMPONENTS

TABLE OF CONTENTS

Installation & Installation Options ........................2

Adding Amp/Amps to a Factory System

Non-amplified ......................................................3

Amplified .............................................................. 4

Troubleshooting: LED Feedback ...........................6

Amplifier Integration Interface

Fits Ford

2011-2023

• Designed for amplified and non-amplified models

• Provides 6 channels of 5-volt RMS audio

• Non-fading full range output (Channels 5 & 6)

• Includes plug-n-play harnessing

• Simple behind the radio installation

• Dual colored LED

• Input power handling 50 Watts per channel

• Amp turn-on trigger (DC) 250mA

• 2 channel S/PDIF out (Fronts)

APPLICATIONS

Visit Axxessinterfaces.com for current application list

www.MetraOnline.com

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape

• Wire cutter

• Zip ties

• Multimeter

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

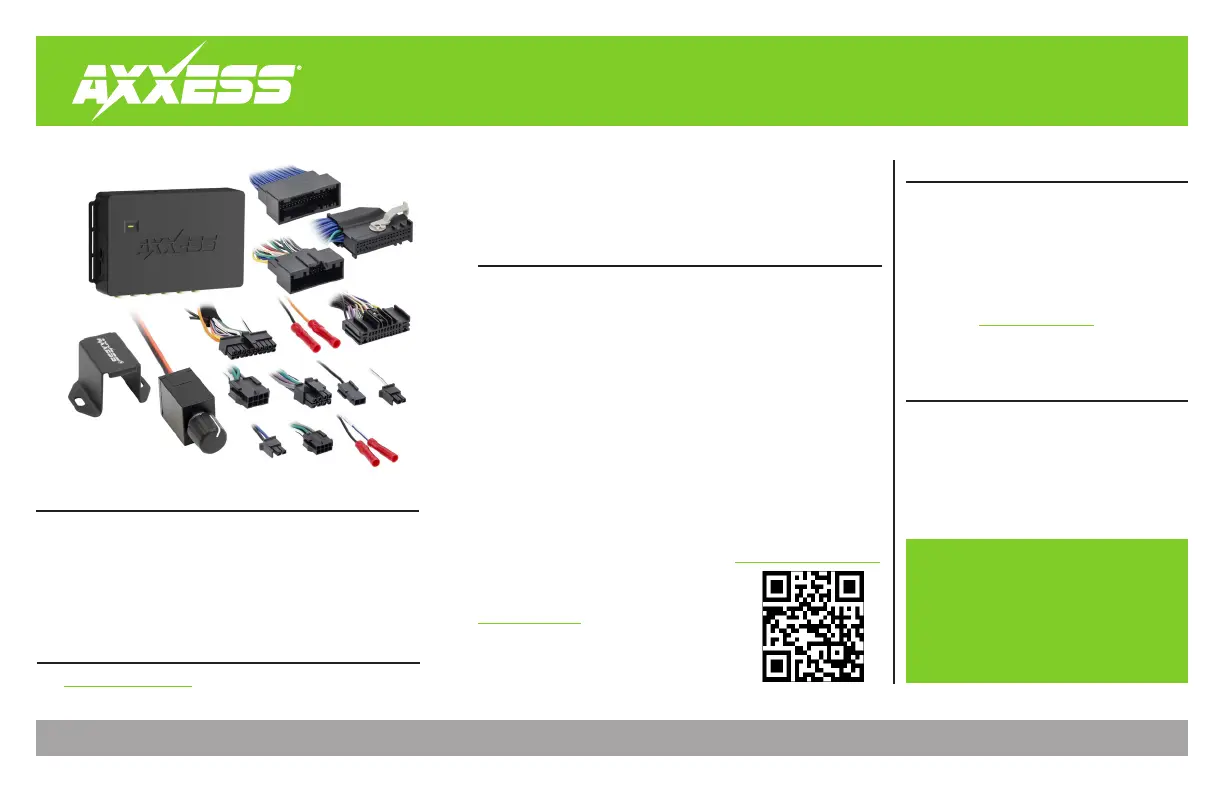

• AXAMP-FD2 Amplifier Integration interface

• AXAMP-FD2 vehicle T-harness

• AXAMP-FD2 display T-harness

• Bass knob

Visit AxxessInterfaces.com for more

detailed information about the product and

up-to-date vehicle specific applications.

For Dash Disassembly Instructions, refer to

metraonline.com. Enter the year, make, and

model of the vehicle in the Vehicle Fit Guide

for Radio Install kits.

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified*

or non-amplified. (Refer to Page 3)

* For amplified models the amp must be bypassed/unplugged. Refer to www.MetraOnline.com for

the vehicle specific amplifier bypass harness.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Remove the factory radio*, then unplug all connectors.

2. Install the AXAMP-FD2 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

For NAV models only: Install the AXAMP-FD2 display T-harness to the vehicle and

make all necessary connections.

4. Plug the AXAMP-FD2 vehicle T-harness to the AXAMP-FD2 interface.

5. Plug the AXAMP-FD2 interface harness to the AXAMP-FD2 interface.

6 Connect the amp turn-on wire.

The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.

Adjustment is as follows:

Counterclockwise turn lowers the volume of channels 5 & 6.

Clockwise turn raises the volume of channels 5 & 6.

* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

INSTALLATION OPTIONS INSTALLATION
